Mikron WF 74 CH X 900 – Y 630 – Z 500 MM Milling Machine()
- Listing No
- 955216
- Year
- Manufacturer
- Mikron
- Model
- WF 74 CH X
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
Milling head can tilt +/- 45° Tools are included Max cross-travel Y-axe: 630 mm Max travel Z-axe: 500 mm Power on spindle: 15 kW Max quill travel Z': 100 mm Admission in boring head (ISO): ISO 40 Spindlespeeds: 20 > 6300 rpm Table size: 1200 x 600 mm Control: Heidenhain TNC 407 Power needed: 27 kW - 50 amp ACCESSORIES & TOOLING: yes Toolholder: yes Number of tools: 12 toolpositions
About this machine

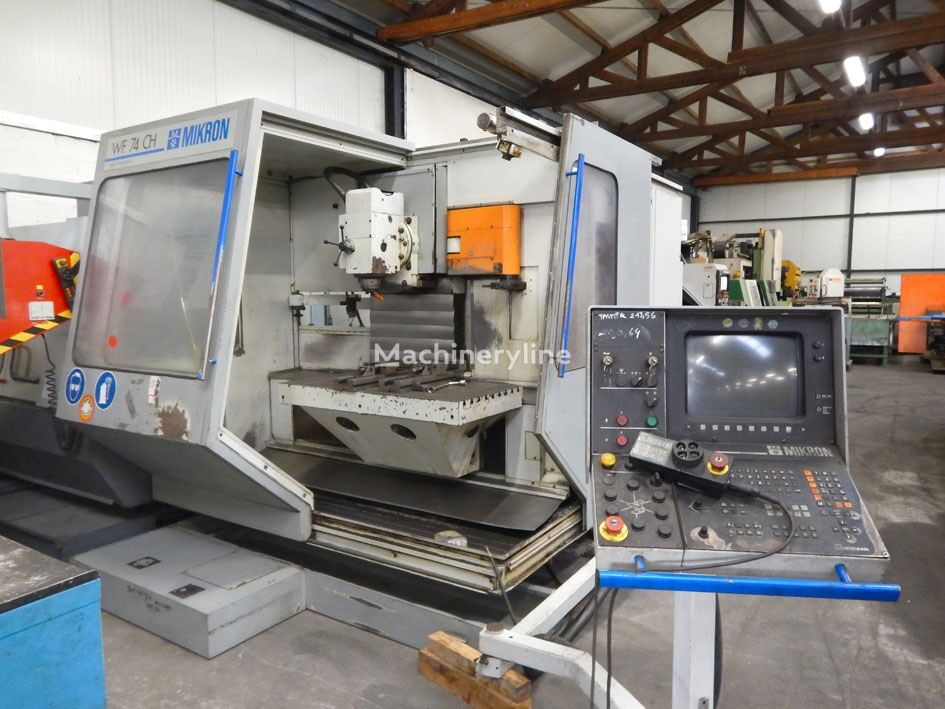

This Mikron WF 74 CH X 900 - Y 630 - Z 500 MM is a used milling machine — sometimes referred to as a machining centre — designed for precision material removal across multiple axes. Mikron is a Swiss manufacturer with a long-standing reputation for high-accuracy metal cutting and machining equipment, serving industries including aerospace, automotive, toolmaking, and general precision engineering.

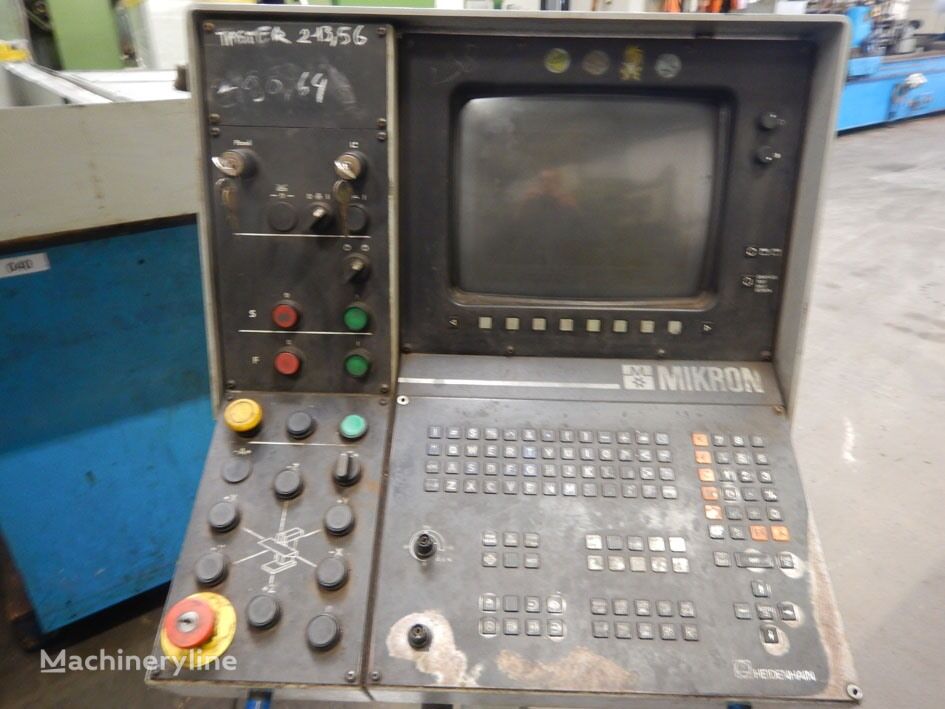

The machine is equipped with a Heidenhain TNC 407 CNC control system, a widely respected conversational and ISO-programmable controller well suited to complex contouring and milling operations. The milling head can tilt ±45°, extending the range of angular cuts and compound surfaces the machine can address without repositioning the workpiece. Spindle power stands at 15 kW, with a speed range spanning 20 to 6,300 rpm, allowing the machine to handle both heavy roughing passes at low speed and fine finishing work at higher revolutions. The spindle accepts ISO 40 toolholders, a widely used standard in this class of machine.

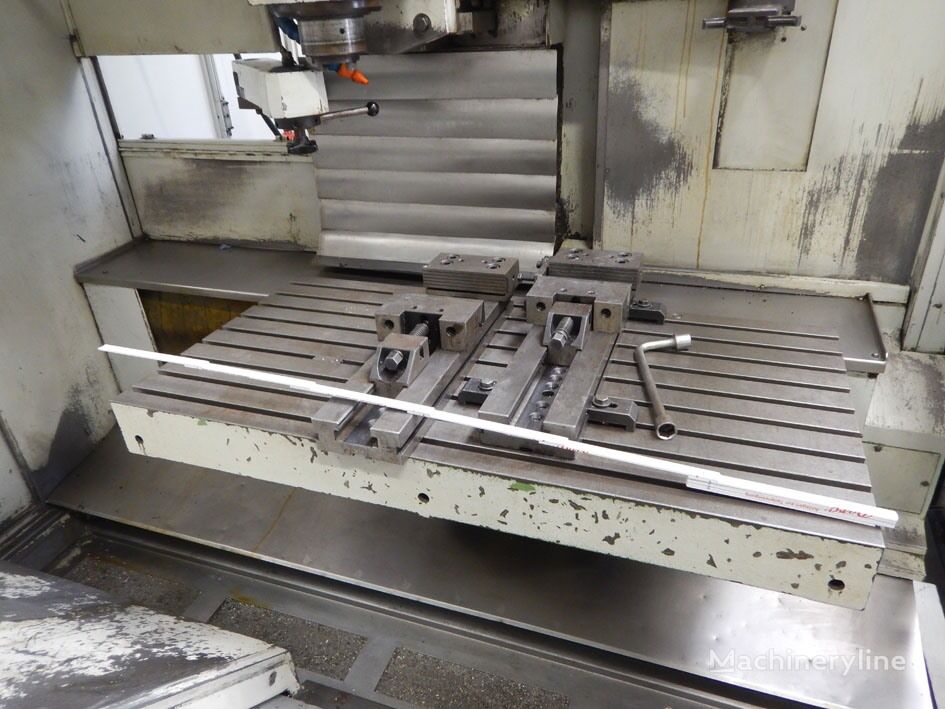

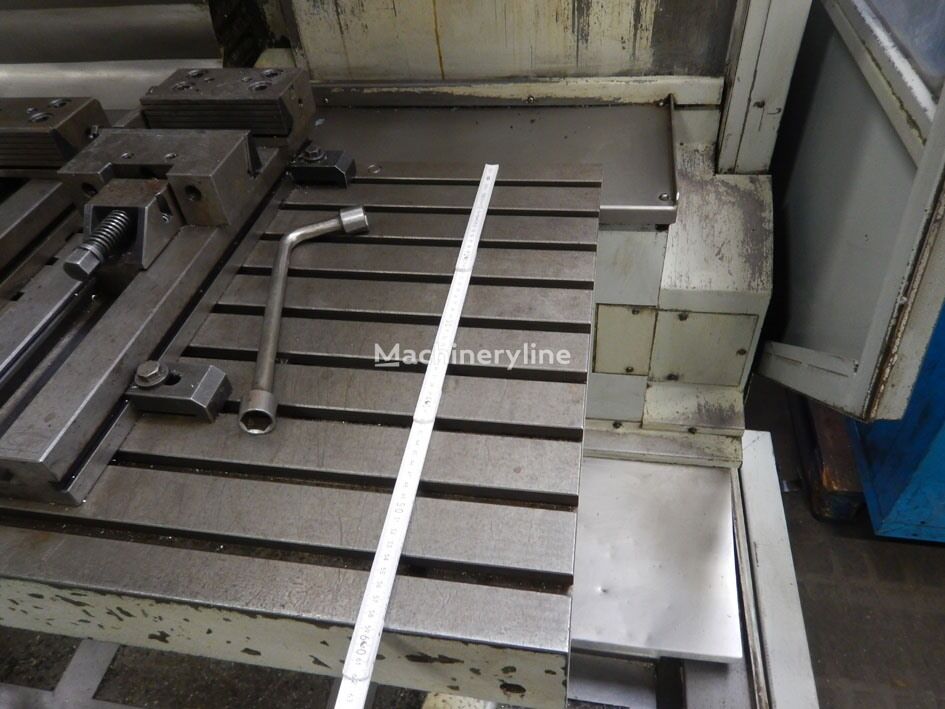

Axis travels are 630 mm on the Y-axis (cross-travel) and 500 mm on the Z-axis, with an additional 100 mm of quill travel (Z'), providing useful reach for deep-bore or step-down operations. The working table measures 1,200 × 600 mm, offering a generous clamping surface for medium to large workpieces. The machine draws 27 kW from the supply and requires a 50-amp connection.
A 12-position toolholder carousel is included, enabling automatic tool changes and reducing manual intervention during multi-operation runs. Accessories and tooling are included with the sale. The machine is located in Belgium and is available in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
