2016 - Telstar Pfeiffer Vacuu Dryer
()- Listing No
- 1167011
- Year
- 2016
- Manufacturer
- Telstar
- Model
- Pfeiffer Vacuu
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: DUO 10M No: 3392 Material: Stainless steel 1.4401 (316), Stainless steel 1.4404 Surface: 0.48 m2 Freeze dryer: check Cooling surface: 0,48 m² Plate sizes: dia. 300 mm (not delivered) With cooling compressor: check Capacity: S(N₂): max. 12 m³/h Cooling medium: R-507a Motor: 0,45 kW 100-110/200-230 Volt With switch: check Floorspace: 0,7x0,76 m Total height: 1,1 m Extra Specifications: Ice condenser capacity: 22 kg Final condenser temperature: -55 °C Number of compressors: 1 Base unit weight: 190 kg Total power: 3,2 kW merk: Pfeiffer Vacuum General Main Features Specified Features - Freeze dryer Information
About this machine

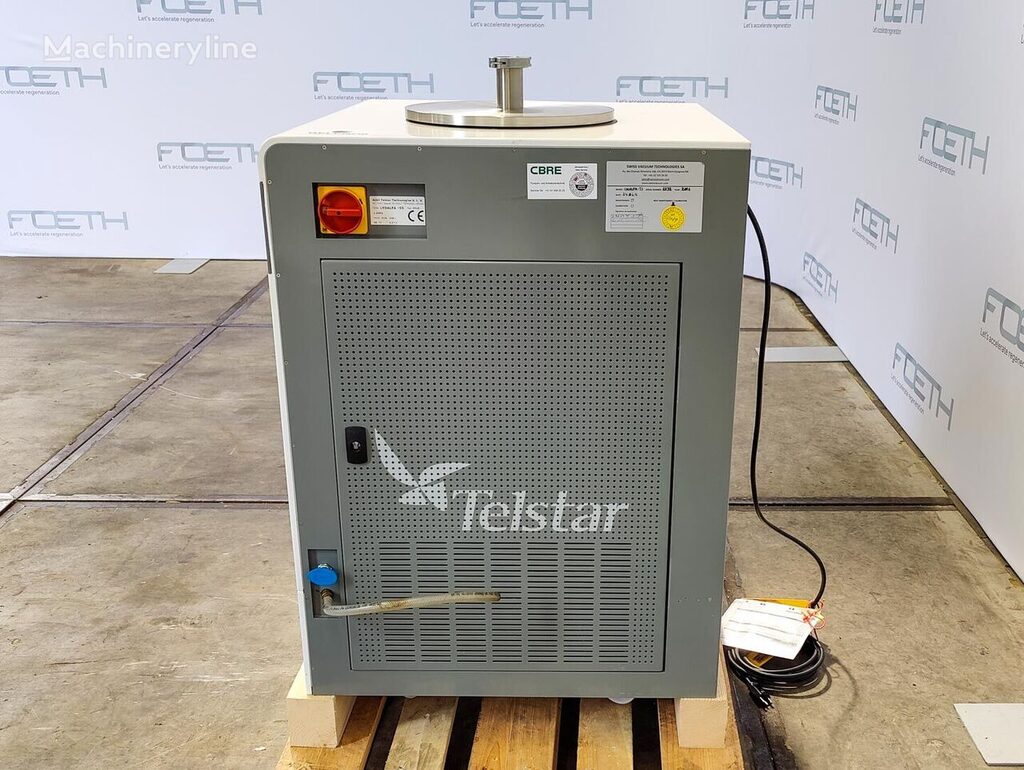

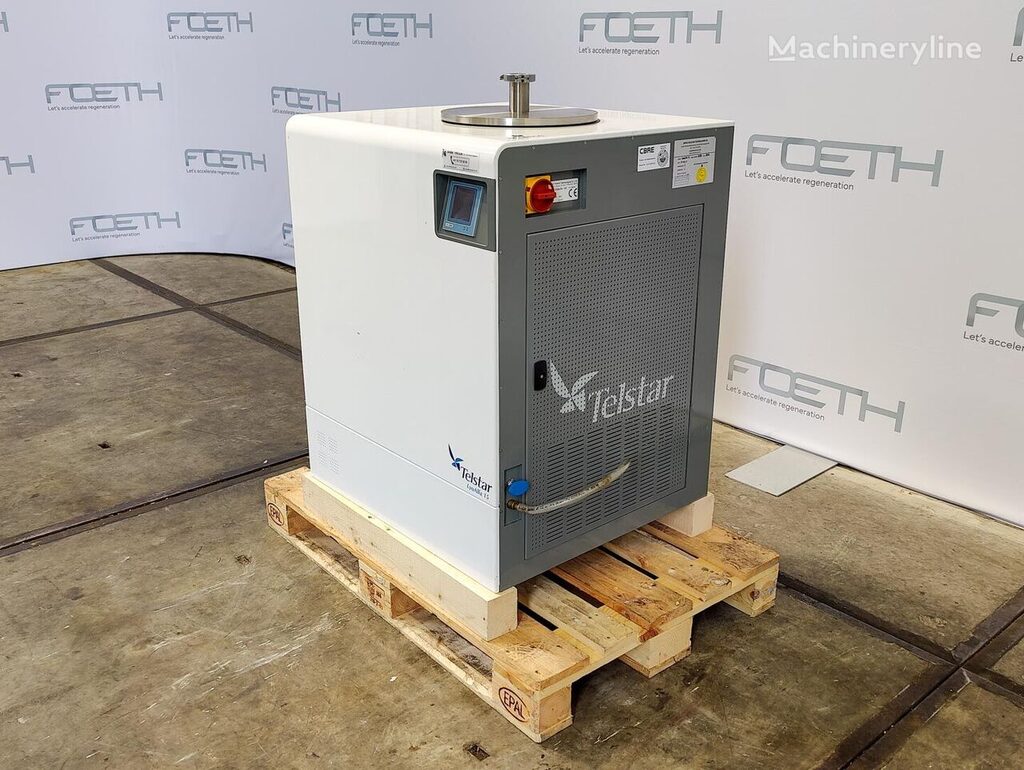

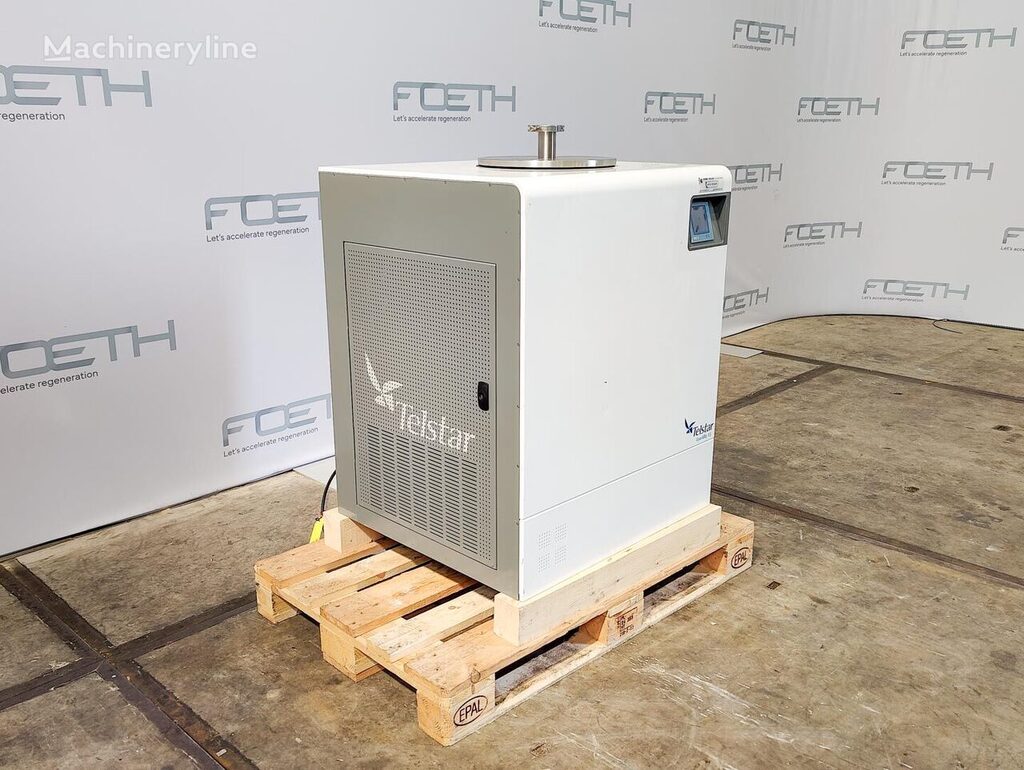

This Telstar Pfeiffer Vacuu Dryer is a used freeze dryer — also known as a lyophilizer — built in 2016 and currently located in Barneveld, Netherlands. Freeze dryers are used to remove moisture from heat-sensitive materials through a process of freezing the product and then reducing the surrounding pressure to allow the frozen water to sublimate directly from solid to vapour. Telstar is a well-established manufacturer of freeze-drying and pharmaceutical processing equipment, serving industries including pharmaceuticals, biotechnology, and food technology. Pfeiffer Vacuum is a recognised name in vacuum technology, known for producing high-performance vacuum pumps and systems used in laboratory and industrial applications.
This unit carries the internal designation DUO 10M, serial number 3392, and is constructed from stainless steel grades 1.4401 and 1.4404 (both equivalent to AISI 316 and 316L respectively), making it suitable for hygienic and corrosive-resistant applications. The freeze-drying surface area is 0.48 m², and the plate diameter is 300 mm, though the plates are noted as not included with the sale. The ice condenser has a capacity of 22 kg and reaches a final condenser temperature of -55 °C, providing the deep cold necessary for effective sublimation of ice from the product.
The machine is equipped with a single cooling compressor using R-507a as the refrigerant medium, delivering a nitrogen pumping speed of up to 12 m³/h. Total installed power is 3.2 kW, with the vacuum motor rated at 0.45 kW and compatible with both 100–110 V and 200–230 V supplies. The unit includes a switch and has a compact footprint of 0.7 × 0.76 m with a total height of 1.1 m. The base unit weighs 190 kg.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
