2016 - Battenfeld 160.750 Unilog Injection Moulding()
- Listing No
- 1153332
- Year
- 2016
- Manufacturer
- Battenfeld
- Model
- 160.750 Unilog
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
We offer this used Battenfeld 160.750 Unilog B6P injection molding machine, manufactured in 2016 and currently located in the Czech Republic. This injection molding machine combines power, precision, and efficiency for demanding plastic production. It features a clamping force of 1600 kN, a mold opening stroke of 650 mm, and a plate height for mold mounting of 300 mm. The Battenfeld 160.750 Unilog B6P is built for high productivity, offering consistent molding accuracy and robust performance suitable for large-scale industrial applications.Advantages:Consistent molding quality.Energy-efficient hydraulics.Versatile production capabilities.____*Information may be inaccurate and subject to change without notice. This description could have been automatically translated, and details in this classified ad are indicative and subject to change. GLOMACH advises verifying specifications or else.**Bidding is subject to specific circumstances and negotiation terms. Clamping force: 1600 kN Height of the plate for mounting the mold: 300 mm Distance between the columns (horizontal): 570 mm Distance between the columns (vertical): 520 mm Opening the mold: 650 mm Availability: Immediately
About this machine

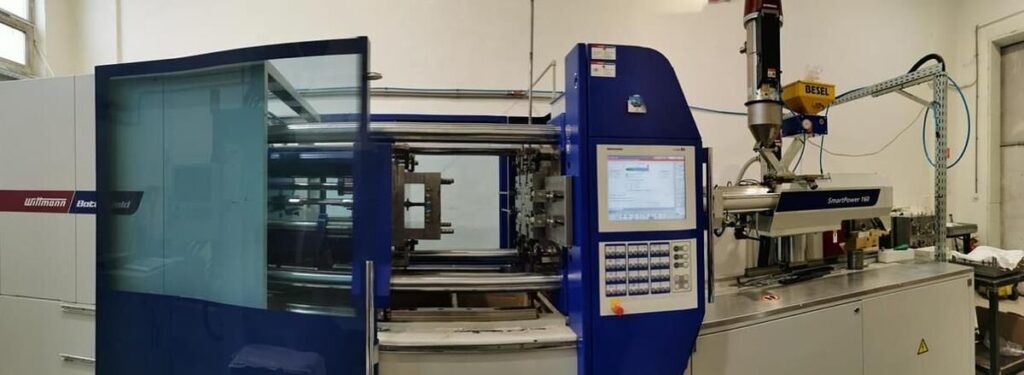

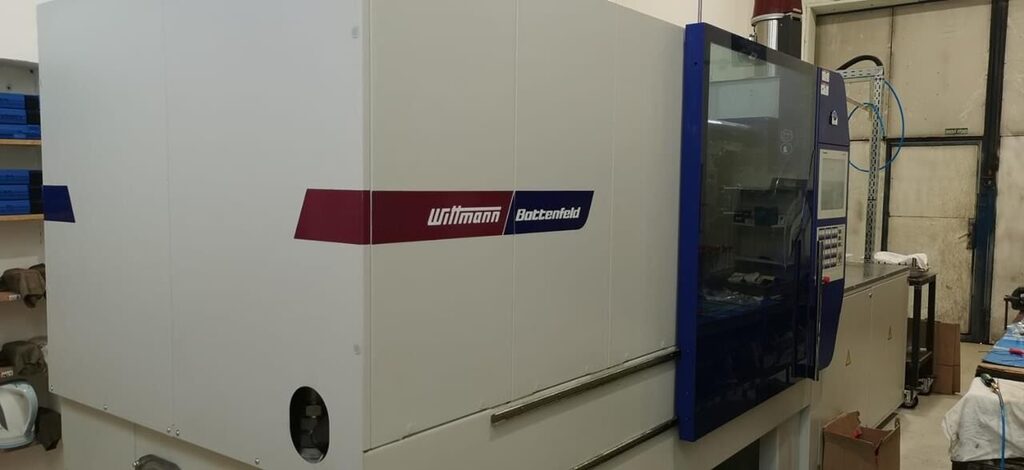

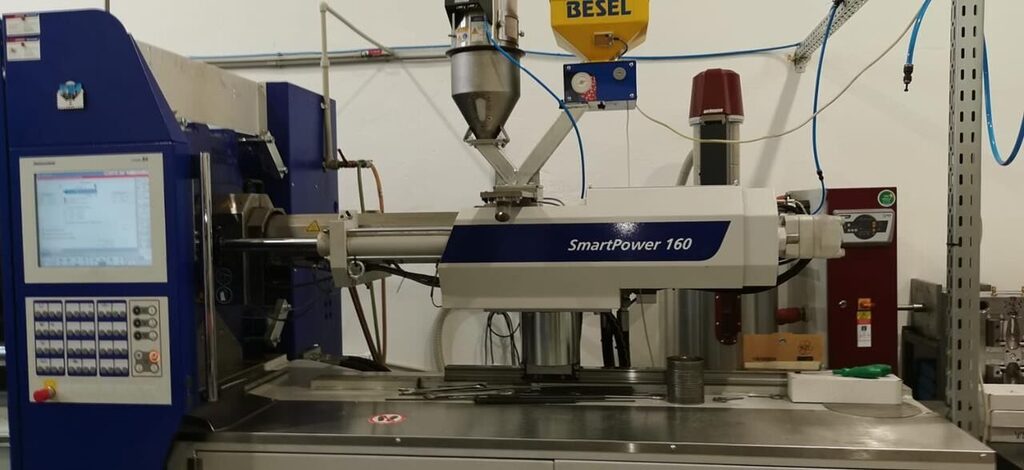

This Battenfeld 160.750 Unilog is a used injection molding machine — sometimes referred to as a plastic injection press — designed for the automated shaping of plastic components by injecting molten material into a closed mold under controlled pressure and clamping force. Battenfeld is a well-established manufacturer of injection molding machinery, with a long history of supplying equipment to the plastics processing industry across automotive, packaging, consumer goods, and industrial sectors. The machine was manufactured in 2016, is in used condition, and is currently located in the Netherlands.
The central specification of this machine is its clamping force of 1,600 kN, which determines the maximum force applied to keep the mold closed during the injection cycle and directly governs the size and complexity of parts that can be produced. The mold opening stroke measures 650 mm, defining the maximum travel distance the platen moves when the mold opens to eject a finished part — a generous figure that accommodates deeper or taller moulded components.

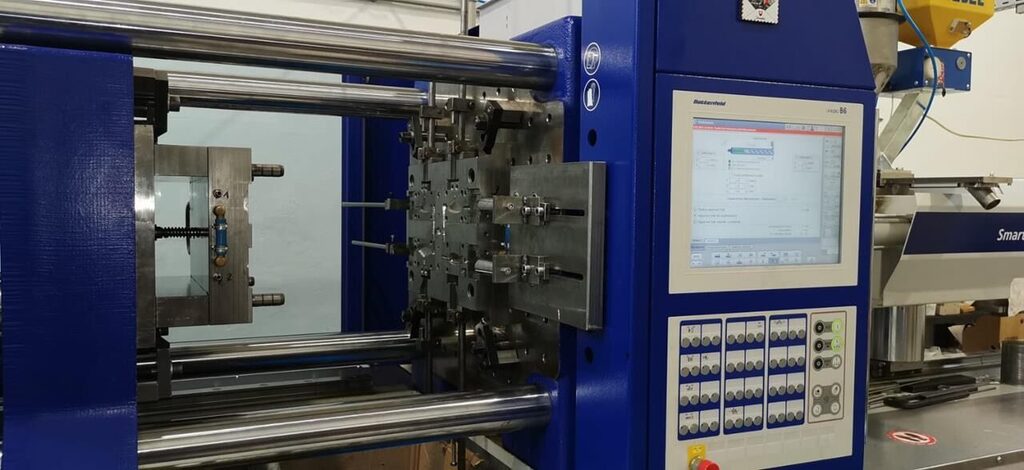

The platen configuration is described by a mounting plate height of 300 mm, a horizontal distance between tie bars of 570 mm, and a vertical distance between tie bars of 520 mm. Together, these four dimensions define the mold installation envelope — that is, the maximum footprint a mold tool can occupy when mounted in the machine. The tie-bar spacing of 570 mm horizontally and 520 mm vertically gives a clear indication of the largest mold width and height this machine can accept.
The machine is available for immediate delivery.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
