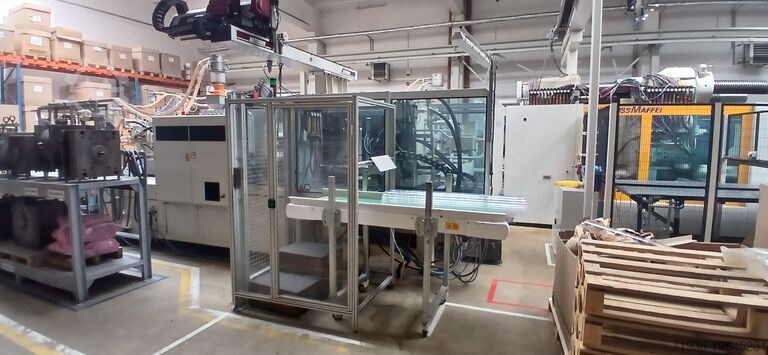

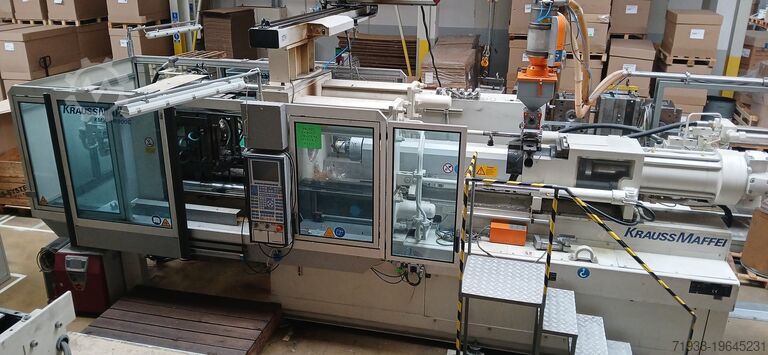

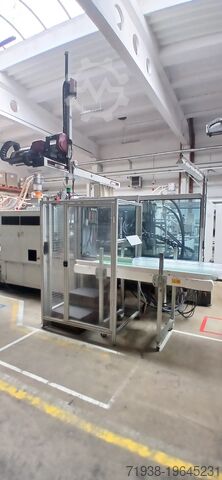

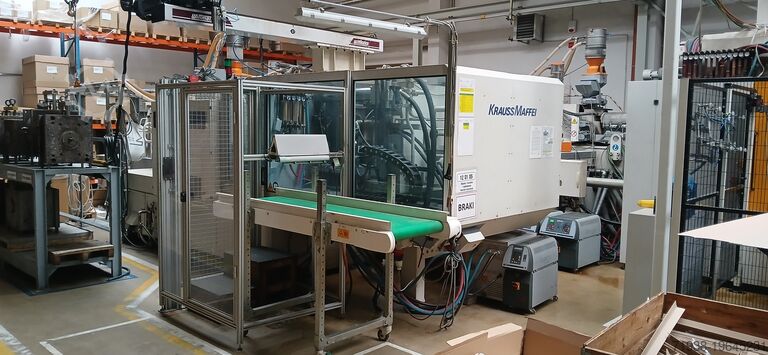

2007 - Kraussmaffei KM 300-1900 C1 Injection Molding
- Listing No
- 1222544
- Year
- 2007
- Manufacturer
- Kraussmaffei
- Model
- KM 300-1900 C1
- Condition
- Used
- Location
- Poland
- Price
- $N/A
- Description
- KRAUSS MAFFEI INJECTION MOULDING MACHINE KM 300-1900 C1 Year of manufacture: 2007 Includes: Wittmann W 731 Robot General Description We offer a used injection moulding machine from the renowned manufacturer Krauss Maffei, model KM 300-1900 C1, equipped with a Wittmann W 731 robot. The machine features a fully hydraulic clamping system and a modern MC4 control system with color monitor, integrated operator panel, and floppy disk drive. Plasticising Unit Complete plasticising unit for thermoplastics, anti-wear version, equipped with a 60 mm diameter screw, non-return valve, and open nozzle. Technical Data Clamping Unit Clamping force: 3,000 kN Mold opening force: 160 kN Moving platen force: – Opening: 86 kN – Closing: 68 kN Platen dimensions (H x W): 995 x 1050 mm Tie bar spacing: 630 x 630 mm Mold opening stroke: 820 mm Minimum mould height: 330 mm Platen open stroke: 1,150 mm Ejector stroke: 200 mm Ejector force: 58 / 28 kN Injection Unit Screw diameter: 60 mm Fo A Eqzbow Du Htotsfw Injection pressure: 2,420 bar Shot volume: 769 cm³ Shot weight (PS): 700 g Screw speed (standard/option): 218 / 306 rpm Injection rate: 294 cm³/s Throughput at: – standard speed: 55 g/s – increased speed: 78 g/s Electro-hydraulic System Pump motor power: 55 kW Heater power: 30 kW Number of barrel heating zones: 6 Dry cycle rate (Euromap): 1,350 cycles/h Oil tank capacity: 720 l Dimensions and Weight Net weight with control cabinet: 14.2 t Overall dimensions (L x W x H): 6.21 x 2.04 x 2.38 m The listing was translated automatically. Translation errors are possible. Request more information Request more information Already requested
