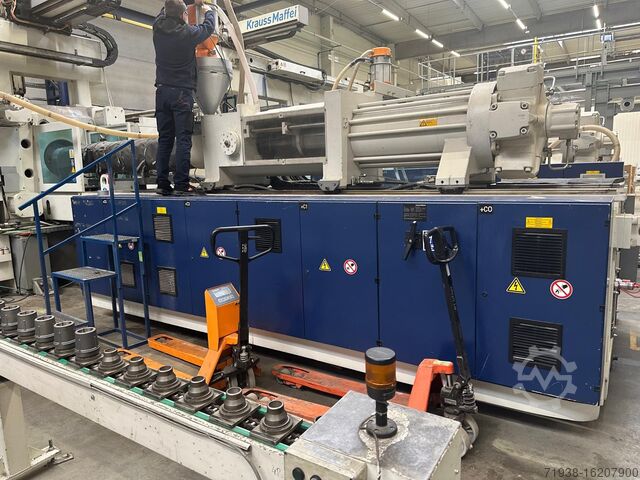

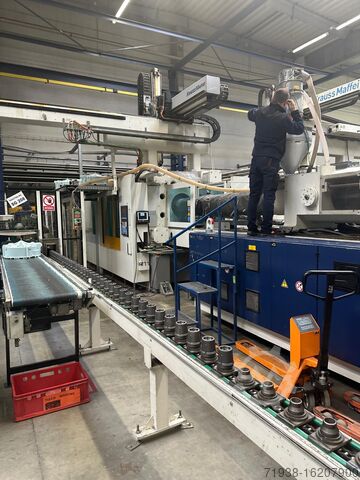

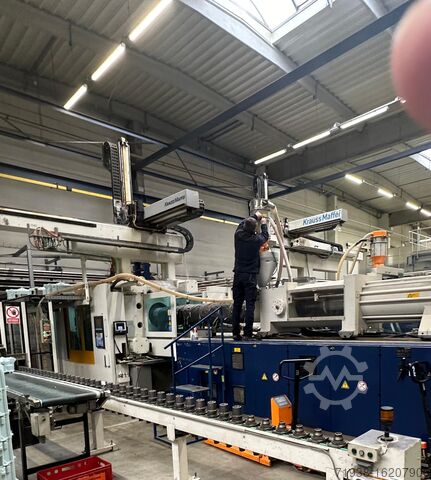

2011 - Kraussmaffei KM 850-12000 M Injection Molding
- Listing No
- 1222568
- Year
- 2011
- Manufacturer
- Kraussmaffei
- Model
- KM 850-12000 M
- Condition
- Used
- Location
- Poland
- Price
- $N/A
- Description
- Krauss Maffei KM 850-12000 MX injection molding machine With Krauss Maffei robot Year of manufacture - 2011 Hydraulic-mechanical double-plate clamping system with 4 pressure pads and 4 locking units on the moving plate. PV - adjustment of the injection unit. MC 5 control system with color monitor, integrated control panel and USB data storage. Plasticizing system Complete plasticizing system for thermoplastics with a screw diameter of 135 mm, with reverse lock and open nozzle. Nozzle radius 25 mm, nozzle opening 9 mm TECHNICAL DATA Closing unit - mold closing force: kN 8500 - mold opening force: kN 560 - clamping plate dimensions (h x v): mm 1600 x 1600 - clearance between columns (h x v): mm 1140 x 1140 - mold opening path: mm 1600 - mold height (min-max.): mm 500 - 1100 - opening width: mm 2100 - ejector stroke: mm 300 - ejector force: kN 200/ 100 Injection unit - screw diameter: mm 135 - injection pressure: bar 1389 Fo A Estrya Rsqzbtefw - injection volume: cm3 8588 - injection size for PS: g 6098 - injection capacity: cm3/s 1414 Electro-hydraulic equipment - rated power of pump motor: kW 132 - dry cycle time according to Euromap 6: 1/h 965 - oil tank capacity: l 2440 Weight and dimensions - net weight with control cabinet: t 49 - dimensions of foundation space (L x W x H): m 11.72 x 2.92 x 2.71 The listing was translated automatically. Translation errors are possible. Request more information Request more information Already requested
