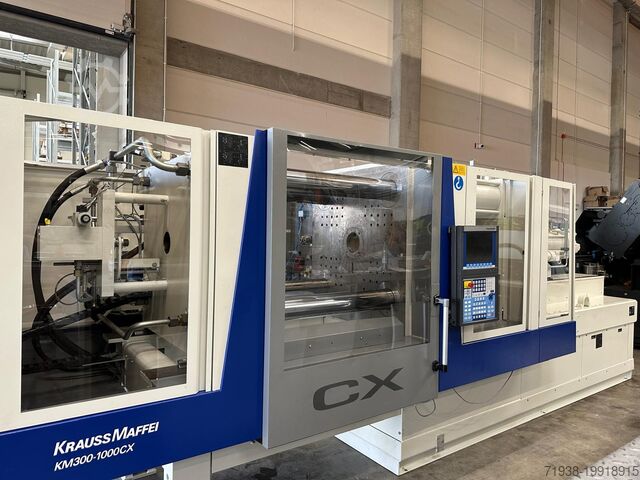

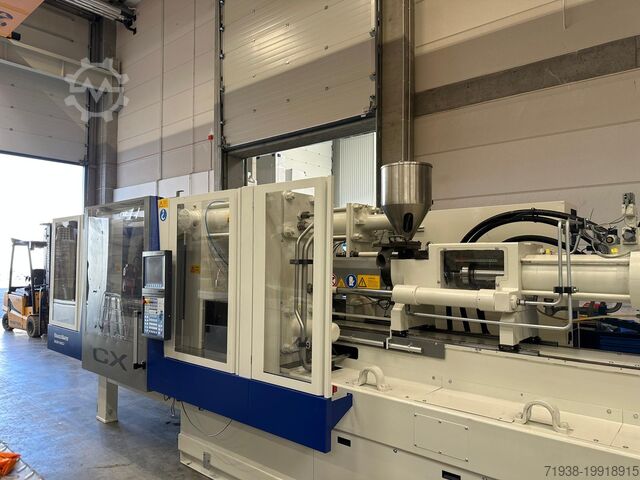

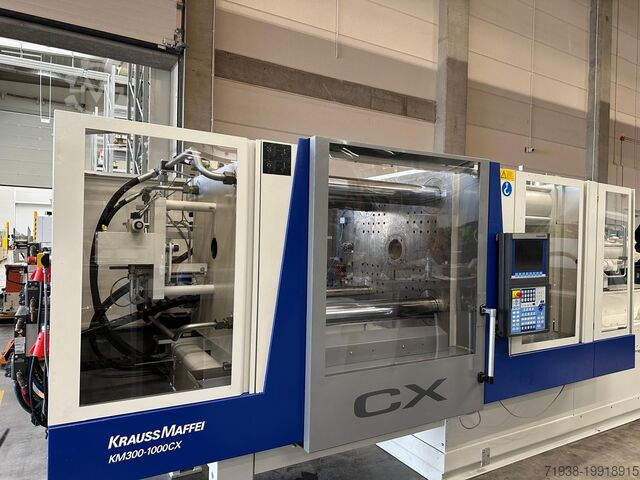

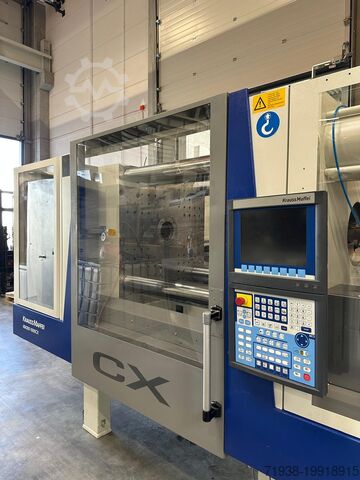

2008 - Kraussmaffei KM 300-1000 CX Injection Molding
- Listing No
- 1222619
- Year
- 2008
- Manufacturer
- Kraussmaffei
- Model
- KM 300-1000 CX
- Condition
- Used
- Location
- Poland
- Price
- $N/A
- Description
- Krauss Maffei Injection Moulding Machine KM 300-1000 CX Year of manufacture: 2008 Manufacturer: Krauss Maffei Control system: MC 5 with colour monitor, integrated control panel, and disk drive station Clamping system: fully hydraulic Plasticising unit SP 1000 Screw diameter: 50 mm Non-return valve, open nozzle Nozzle radius: 15 mm, bore: 3 mm Clamping unit Clamping force: 3000 kN Opening force: 169 kN Platen dimensions (H × V): 995 × 1050 mm Tie bar spacing: 630 × 630 mm Mould opening stroke: 820 mm Minimum mould height: 330 mm Maximum daylight (max. mould open width): 1150 mm Ejector stroke: 200 mm Ejector force (forward/backward): 58 / 28 kN Injection unit Screw diameter: 50 mm L/D ratio: 22.0 Injection pressure: 2304 bar Injection volume: 432 cm³ Shot weight (PS): 393 g Injection speed: 170 mm/s Injection flow rate: 334 cm³/s Screw speed (standard): 370 rpm Plasticising rate (at standard screw speed): 54.3 g/s Electro-hydraulic equipment Pump motor power: 45 kW Heater capacity: 18.7 kW Number of heating zones: 5 Dry cycle time / stroke per Euromap 6: 2.8 s / 441 mm Oil tank capacity: 720 l Foc Row U Rcdj Uqygyofw Dimensions and weight Net weight (including control cabinet): 12.5 t Dimensions (L × W × H): 6.11 × 2.17 × 2.25 m The listing was translated automatically. Translation errors are possible. Request more information Request more information Already requested
