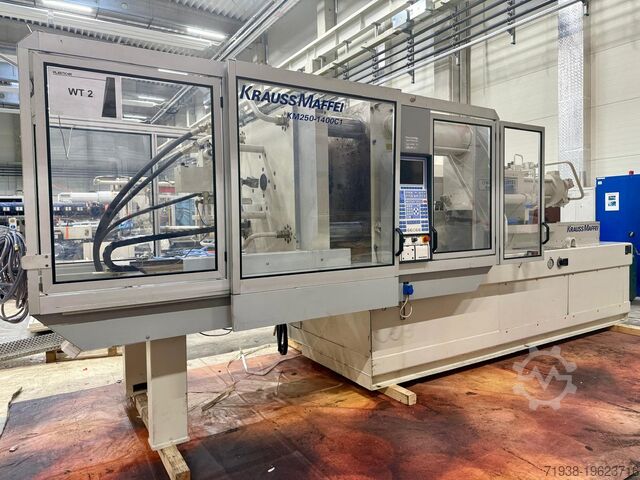

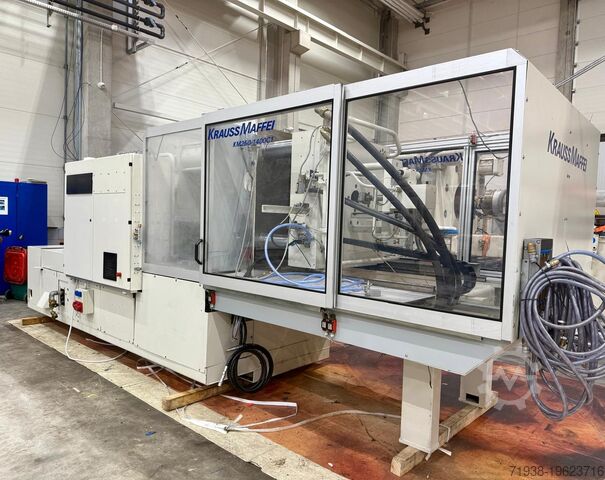

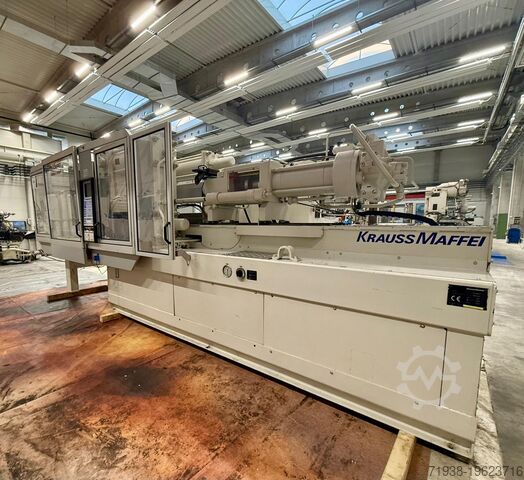

2007 - Kraussmaffei KM 250 – 1900 Injection Molding
- Listing No
- 1222532
- Year
- 2007
- Manufacturer
- Kraussmaffei
- Model
- KM 250 – 1900
- Condition
- Used
- Location
- Poland
- Price
- $N/A
- Description

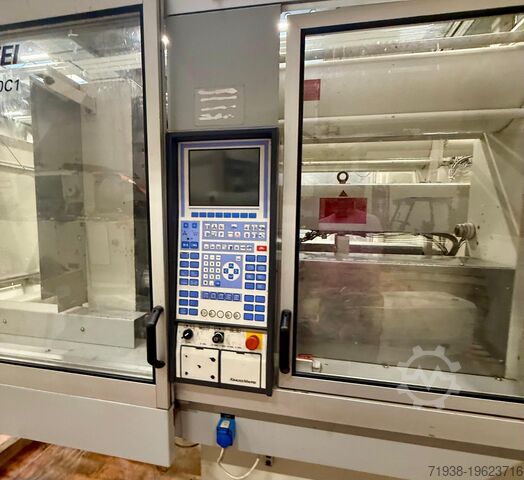

- Krauss Maffei KM 250 – 1900 C1 Injection Moulding Machine Year of manufacture: 2007 Control system: MC4 Operating hours: only 8,900! Clamping unit: Clamping force: 2,500 kN Maximum mould opening force: 160 kN Moving platen force – opening: 86 kN Moving platen force – closing: 68 kN Mould platen dimensions (H × L): 995 × 1,050 mm Tie-bar clearance (H × W): 630 × 630 mm Mould opening stroke: 820 mm Minimum mould height: 330 mm Maximum daylight: 1,150 mm Ejector stroke (hydraulic): 200 mm Ejector force (forward/backward): 58 / 28 kN Injection unit: Screw diameter: 70 mm L/D ratio: 20 Injection pressure: 1,778 bar Shot volume: 1,047 cm³ Shot weight (for PS): 953 g Injection rate: 400 cm³/s Screw speed (standard/option): 218 / 306 rpm Maximum plasticizing rate: 75 g/s Nozzle contact force: 110 kN Electro-hydraulic equipment: Pump motor power: 55 kW Installed heating power: 30 kW Number of barrel heating zones: 6 Ffjcgprfew A N Hfspdew Hydraulic oil tank capacity: 720 l Dimensions and weight: Machine dimensions (L × W × H): approx. 6.21 × 2.04 × 2.39 m Total weight: 14,500 kg Maximum mould weight: 3,430 kg Accessories and additional equipment: - Oil tank - Anti-vibration pads - 3 × core pullers - 8 × hot runner control zones - 2 × air valves - Robot interface according to Euromap 67 Additional information: - Machine located in Poland - Immediately available - Loading, transport, installation, and commissioning can be organized The listing was translated automatically. Translation errors are possible. Request more information Request more information Already requested
