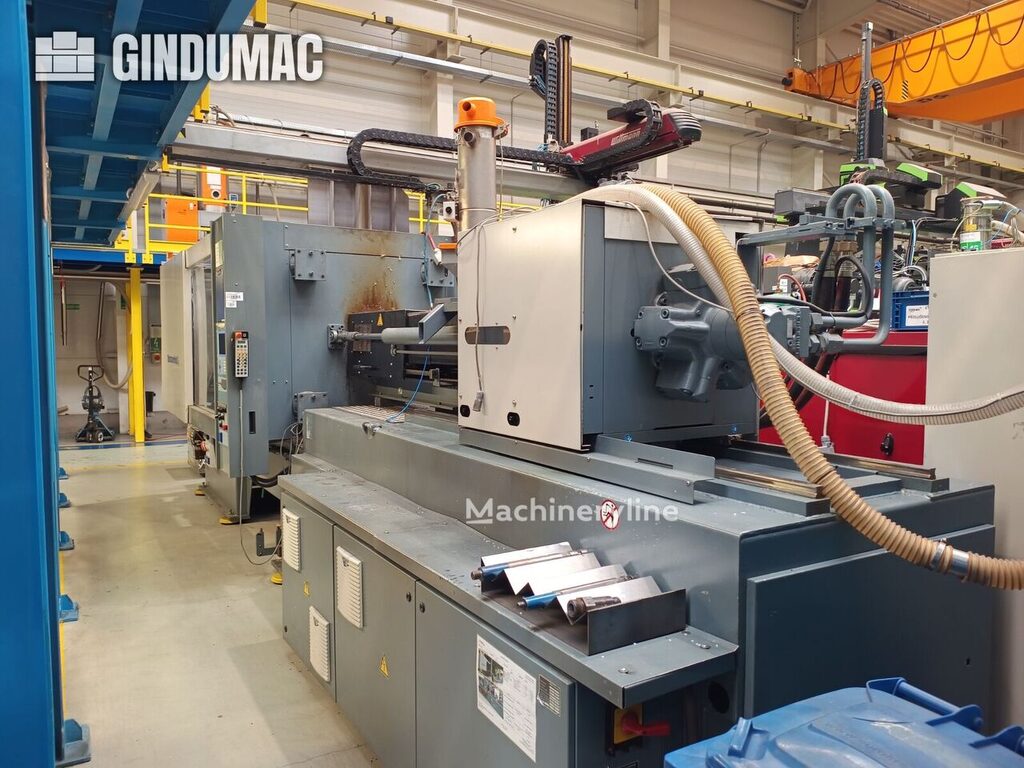

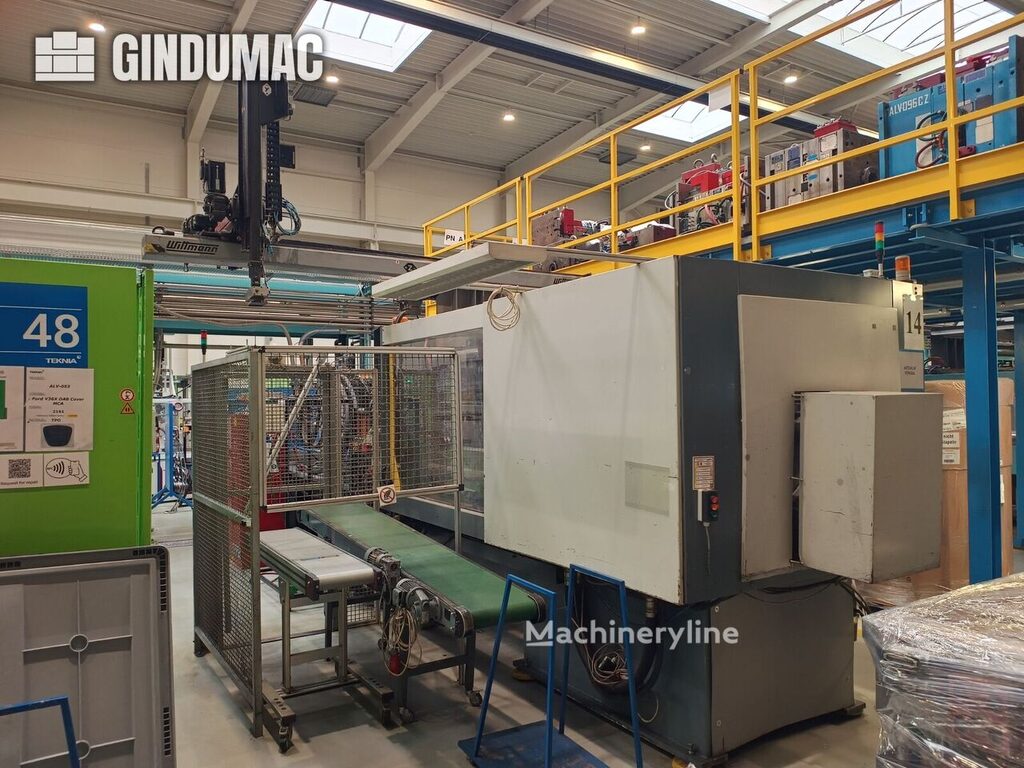

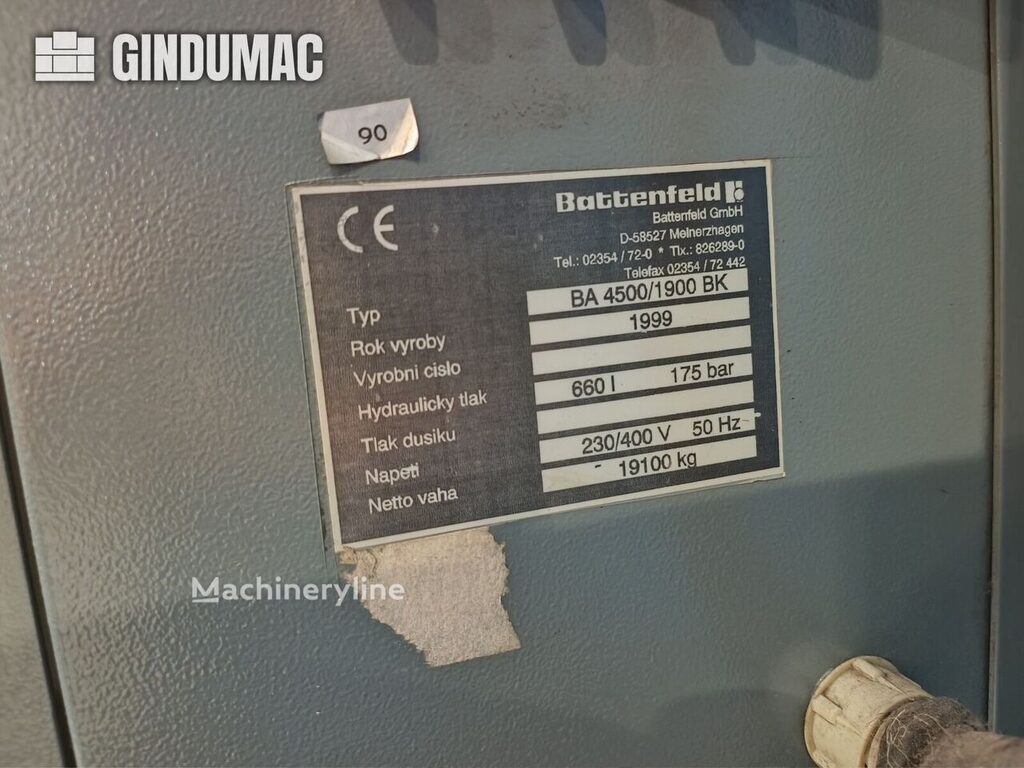

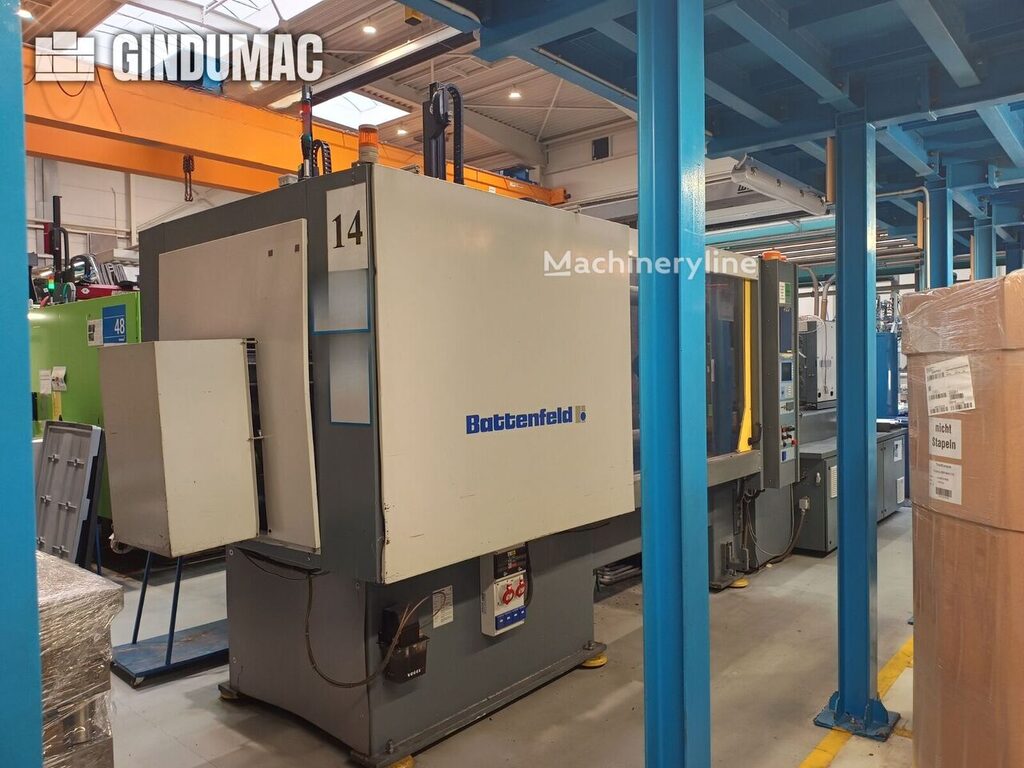

1999 - Battenfeld BAT BA 4500 19 Injection Moulding()
- Listing No
- 1152217
- Year
- 1999
- Manufacturer
- Battenfeld
- Model
- BAT BA 4500 19
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
This Battenfelds BAT BA 4500/1900 BK hydraulic injection moulding machine was manufactured in 1999. It features a press power of 400 tons and a maximum distance between plates of 1530 mm. With a screw diameter of 65 mm and a maximum volume of 772 cm3, this machine is equipped with 2 hydraulic core pullers and includes a Wittmann robot. Consider the opportunity to buy this Battenfelds BAT BA 4500/1900 BK hydraulic injection moulding machine. Contact us for further details. Location: CZ Screw Diameter: 65 mm Press power: 400 tons Between columns (W x H): 800 x 800 mm Min. mold height: 300 mm Max. mold height: 815 mm Max. distance between plates: 1530 Diameter of center ring / height: 200 / 15 Diameter of thread on ejector coupling: M24 Max. volume: 772 cm³ Hydraulic core pullers: 2 Additional equipment Wittmann robot
About this machine
This Battenfeld BAT BA 4500/1900 BK is a used injection moulding machine — sometimes referred to as an injection moulding press — manufactured in 1999 and currently located in Germany. Injection moulding machines are used to produce plastic components by injecting molten material into a mould under high pressure, and they are fundamental to industries ranging from automotive and consumer goods to packaging and medical manufacturing. Battenfeld is a well-established German manufacturer with a long history of producing hydraulic and hybrid injection moulding equipment for demanding industrial applications.
This machine is hydraulic in operation and delivers a clamping force of 400 tonnes, making it suited to medium-to-large mould tooling. The distance between tie bars measures 800 mm × 800 mm, which defines the maximum platen area available for mounting moulds. The minimum mould height is 300 mm and the maximum is 815 mm, giving a broad range of mould sizes that can be accommodated. The maximum distance between the platens extends to 1,530 mm, which determines the total mould opening stroke available during part ejection.
The injection unit is equipped with a screw of 65 mm diameter and is capable of a maximum shot volume of 772 cm³, suiting it to relatively large-volume mouldings or high-throughput production runs. The centre ring diameter is 200 mm with a height of 15 mm, and the ejector coupling features an M24 threaded connection, both of which are relevant when specifying tooling and ejector interfaces.
The machine comes with two hydraulic core pullers, which allow the production of parts with undercuts or internal features that require the mould cores to be retracted before the part is ejected. A Wittmann robot is included with the machine, providing automated part removal from the mould, which supports consistent cycle times and reduces manual handling requirements. The machine is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
