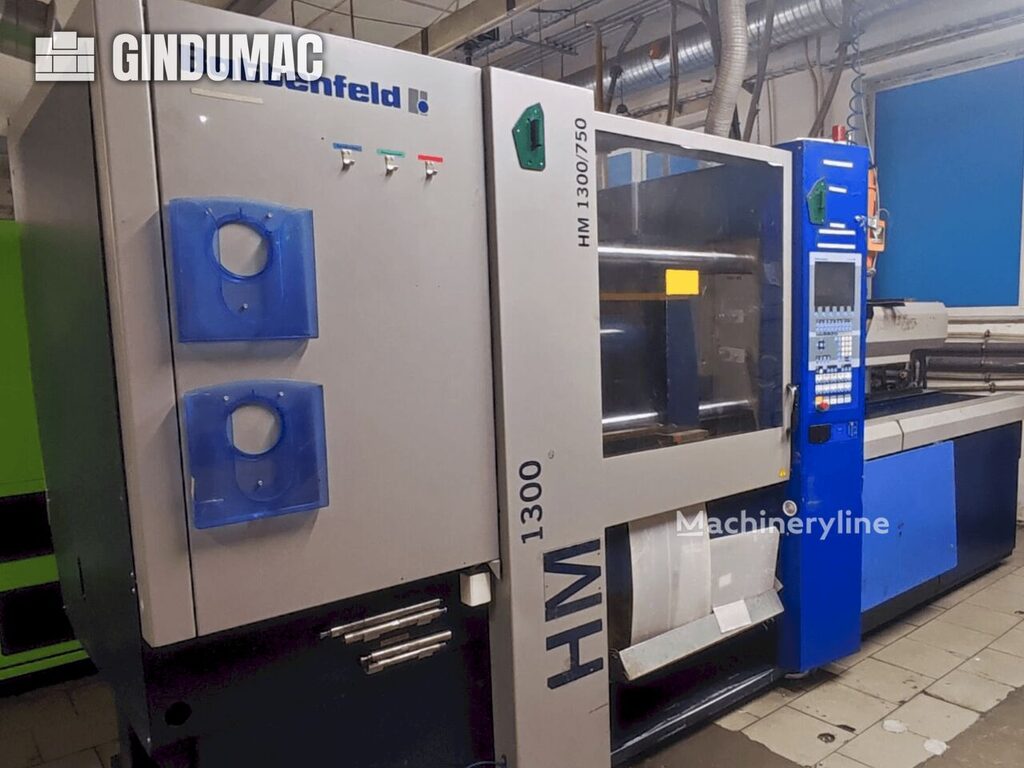

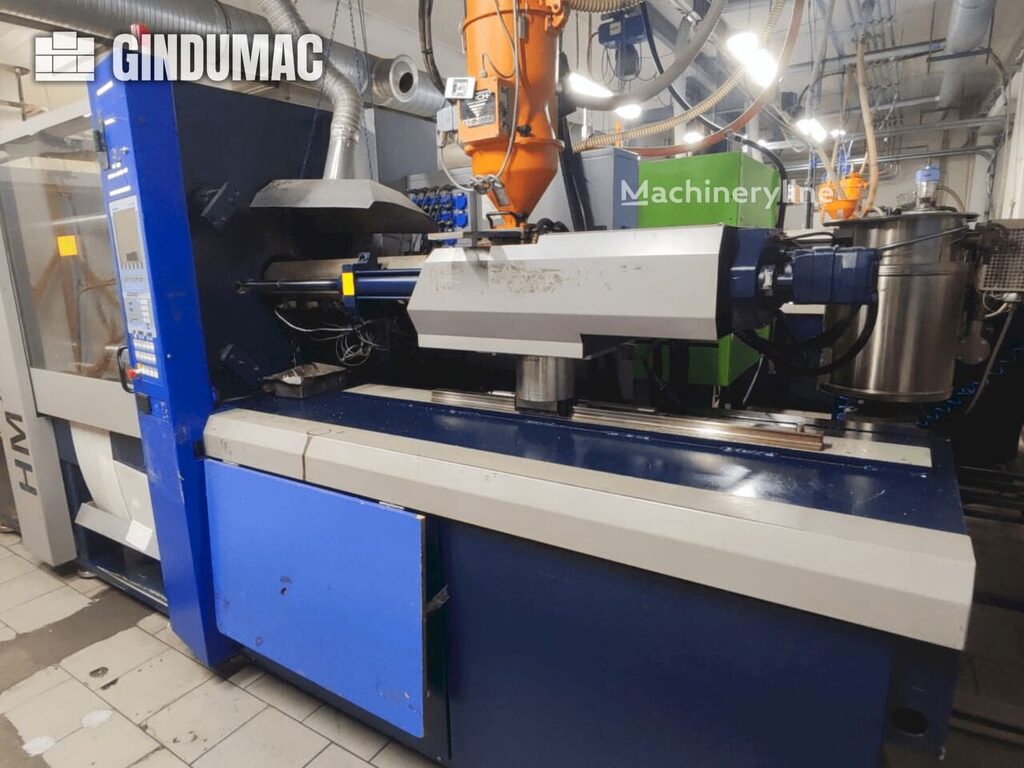

2004 - Battenfeld HM 1300 750 Injection Moulding()
- Listing No
- 1151792
- Year
- 2004
- Manufacturer
- Battenfeld
- Model
- HM 1300 750
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
This Battenfeld HM 1300/750 was manufactured in 2004. It features a clamping force of 1,300 kN, injection pressure of 2,116 bar, and a screw diameter of 45 mm. Equipped with a Unilog CC300 B4 control system, it supports a mold height range of 275 to 500 mm. Consider the opportunity to buy this Battenfeld HM 1300/750 hydraulic injection moulding machine. Contact us for more information. Location: CZ Screw Diameter: 45 mm Cylinder volume: 325 cm³ Horizontal clamping plates: 755 mm Vertical clamping plates: 674 mm Passage between columns horizontal: 520 mm // passage between columns vertical: 470 mm Machine opening maximum: 850 mm Control: unilog cc300 b4 Hot runner heating: 6 Centering ring diameter: 125 mm Core puller: 1 Air valve: 1 Machine Benefits Technical Machine Benefits Extra Information Machine still under power
About this machine
The Battenfeld HM 1300/750 is a used hydraulic injection moulding machine — sometimes referred to as a plastics injection moulding press — manufactured in 2004 and currently located in Germany. Injection moulding machines of this type are used to produce plastic components by injecting molten material into a mould under high pressure, and Battenfeld is a well-established European manufacturer with a long history of supplying hydraulic and hybrid injection moulding equipment to the plastics processing industry.
At the core of its specification, this machine delivers a clamping force of 1,300 kN and an injection pressure of 2,116 bar, with a screw diameter of 45 mm and a cylinder volume of 325 cm³. The mould height range runs from 275 to 500 mm, and the maximum machine opening is 850 mm. The horizontal clamping plate dimension is 755 mm and the vertical clamping plate dimension is 674 mm, while the passage between columns measures 520 mm horizontally and 470 mm vertically, defining the available space for tooling installation.
The machine is equipped with a Unilog CC300 B4 control system, a recognised Battenfeld control platform that provides process monitoring and parameter management for the moulding cycle. Additional equipment fitted to this machine includes hot runner heating with six zones, a centering ring of 125 mm diameter, one core puller connection, and one air valve. The machine is reported to still be under power, indicating it remains in operational condition at its current location.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
