2003 - Battenfeld HM 1600 750 Injection Moulding()
- Listing No
- 1151728
- Year
- 2003
- Manufacturer
- Battenfeld
- Model
- HM 1600 750
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-

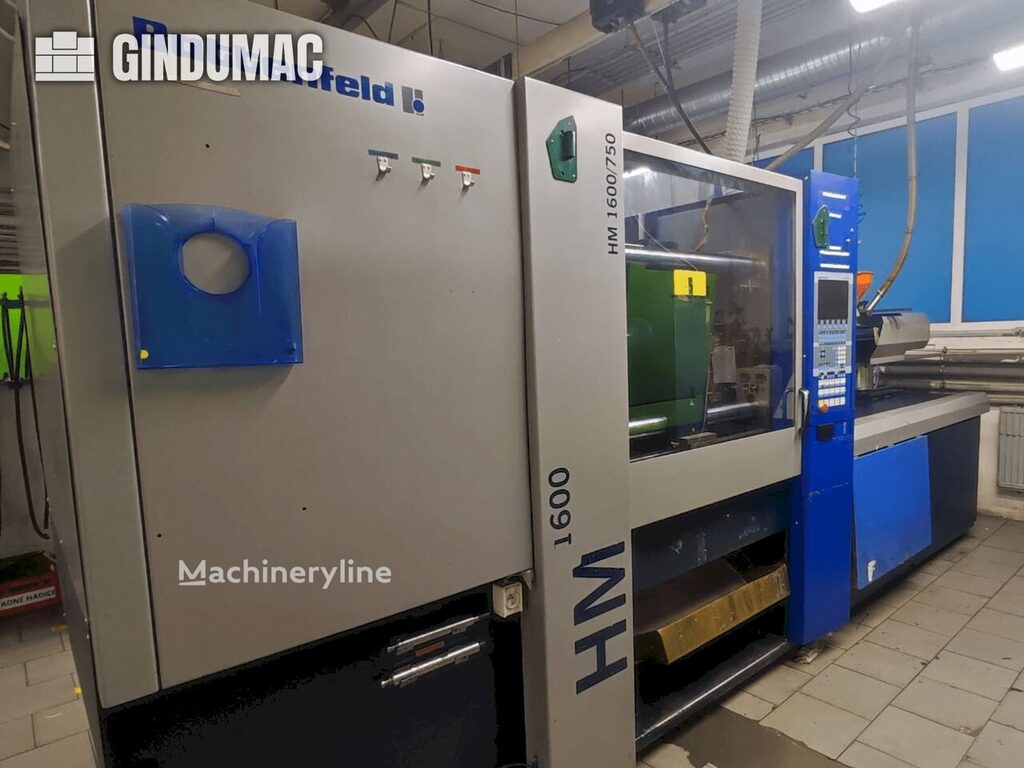

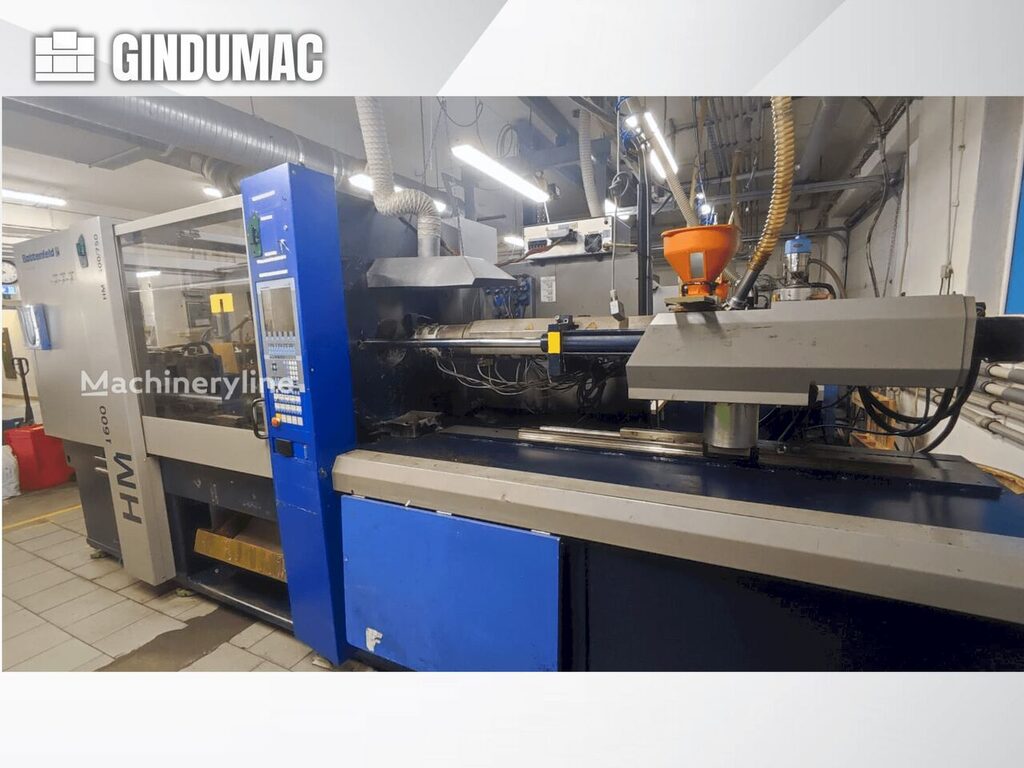

This Battenfeld HM 1600/750 was manufactured in 2003. It features a clamping force of 1,600 kN and an injection pressure of 2,116 bar. The screw diameter is 50 mm, and it includes a unilog CC300 B4 control system. Ideal for precision in hydraulic injection moulding. Contact us for more information about this machine. Location: CZ Clamping force/ clamping force: 1600 kn Injection unit: injection pressure: 2116 bar /cylinder volume: 360 cm3 /screw diameter: 50 mm Machine-specific data/horizontal clamping plates: 810 mm /vertical clamping plates: 724 mm/ passage between columns horizontal: 570 mm /passage between columns vertical: 520 mm/ mold height minimum: 295 mm/ mold height maximum: 550 mm /machine opening maximum: 950 mm Centering ring diameter: 160 mm /core puller: 1/ air valve: 1 Machine Benefits Technical Machine Benefits
About this machine
The Battenfeld HM is a used injection molding machine — sometimes referred to as an injection moulding press — designed to produce plastic components by injecting molten material into a closed mould under high pressure. Injection molding machines of this type are widely used across industries including automotive, consumer goods, packaging, and medical device manufacturing. Battenfeld is a well-established German manufacturer with a long history of producing hydraulic and hybrid injection molding equipment, known for precision engineering and robust build quality.
This machine was manufactured in 2003 and is located in Germany. At its core, it delivers a clamping force of 1,600 kN, which holds the mould halves firmly closed during the injection and cooling phases. The injection unit operates at a maximum injection pressure of 2,116 bar, with a screw diameter of 50 mm and a cylinder volume of 360 cm³, giving the unit the capacity to process a solid shot of material per cycle.
The mould area is defined by horizontal clamping plates measuring 810 mm and vertical clamping plates of 724 mm. The passage between columns is 570 mm horizontally and 520 mm vertically, determining the maximum footprint of any mould that can be mounted. The machine accommodates mould heights between a minimum of 295 mm and a maximum of 550 mm, with a maximum machine opening of 950 mm — the daylight available for mould removal and part ejection.
Additional tooling and interface details include a centering ring diameter of 160 mm, which ensures precise mould alignment on the platen. The machine is equipped with one core puller connection and one air valve, supporting more complex mould configurations that require slides, lifters, or pneumatic part ejection.
Control is handled by a Unilog CC300 B4 system, Battenfeld's proprietary machine control platform, which provides process monitoring and parameter management for repeatable, precision moulding cycles.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
