2001 - Battenfeld TM 1600 1000 Injection Moulding()
- Listing No
- 1151472
- Year
- 2001
- Manufacturer
- Battenfeld
- Model
- TM 1600 1000
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-

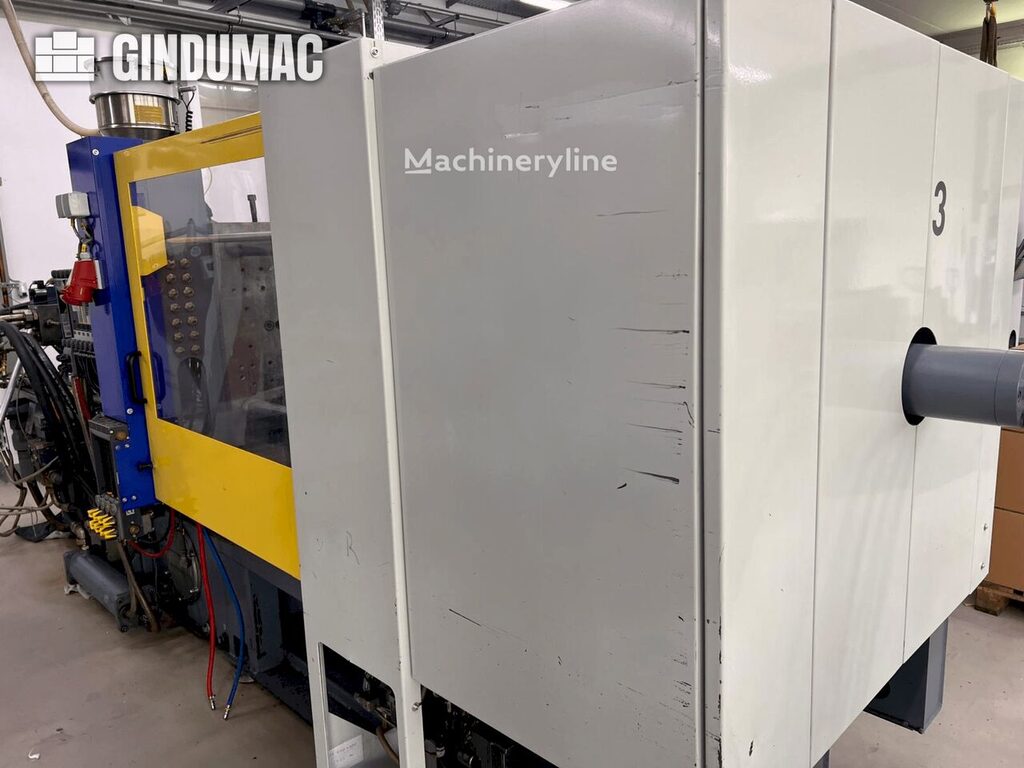

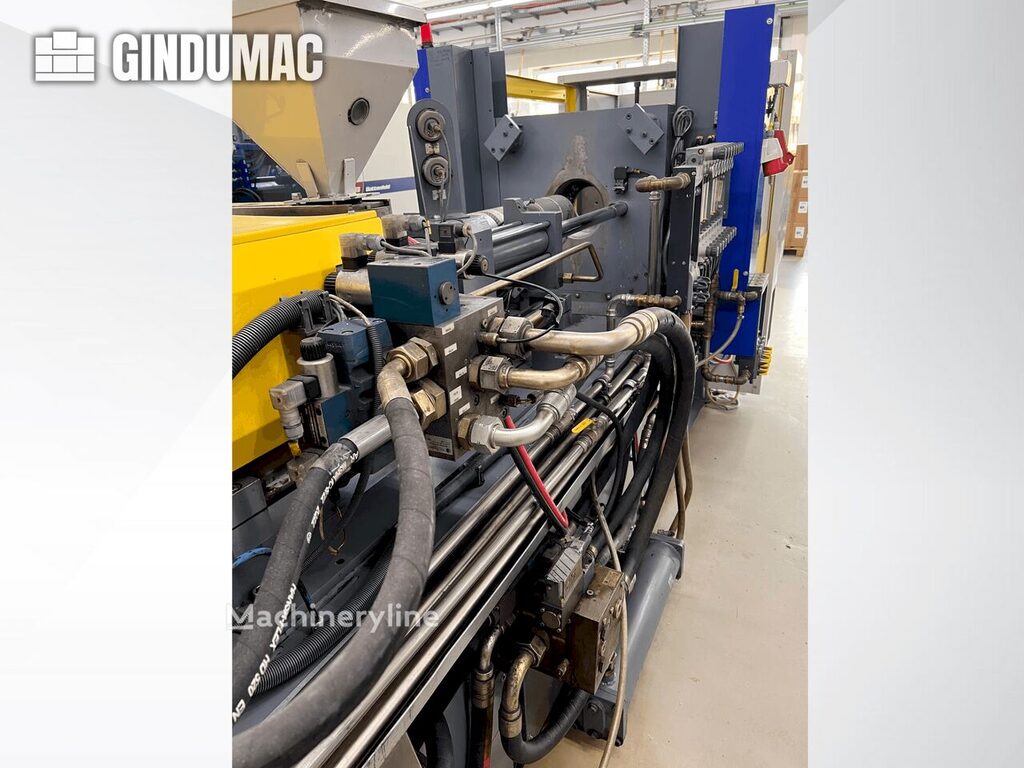

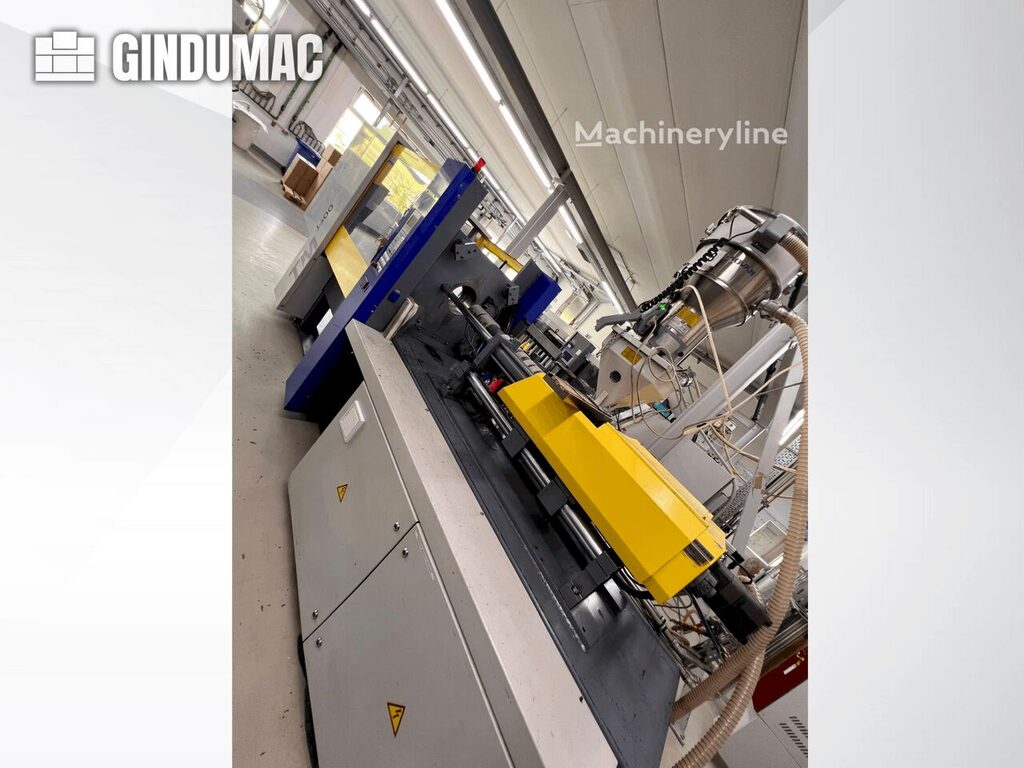

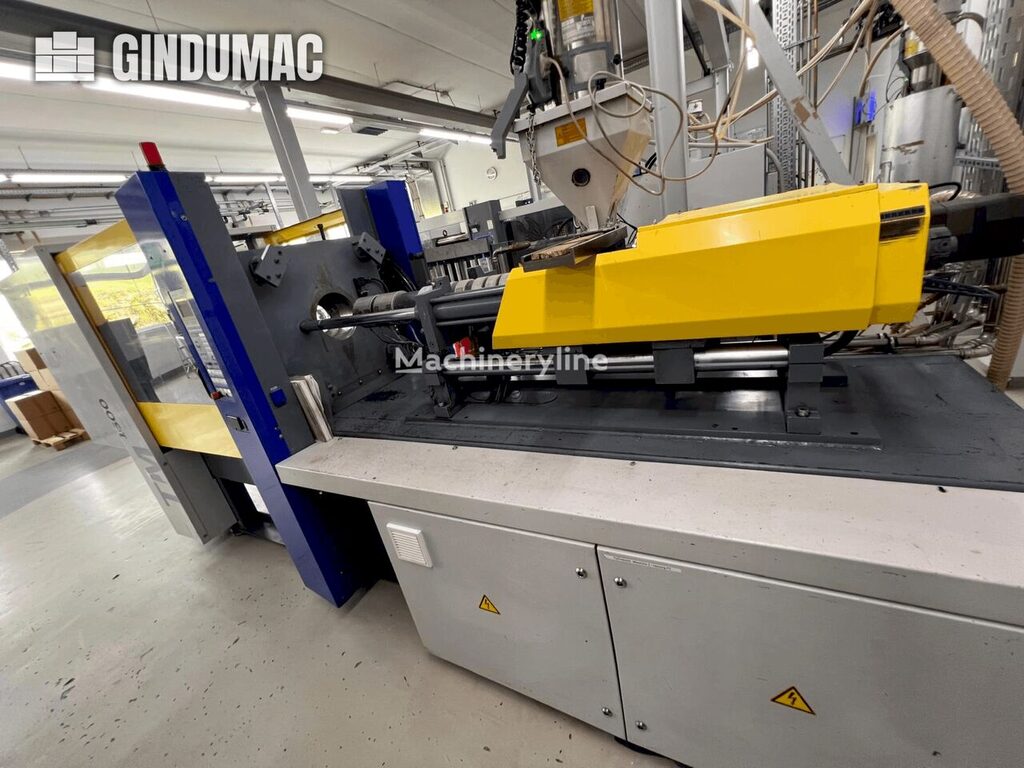

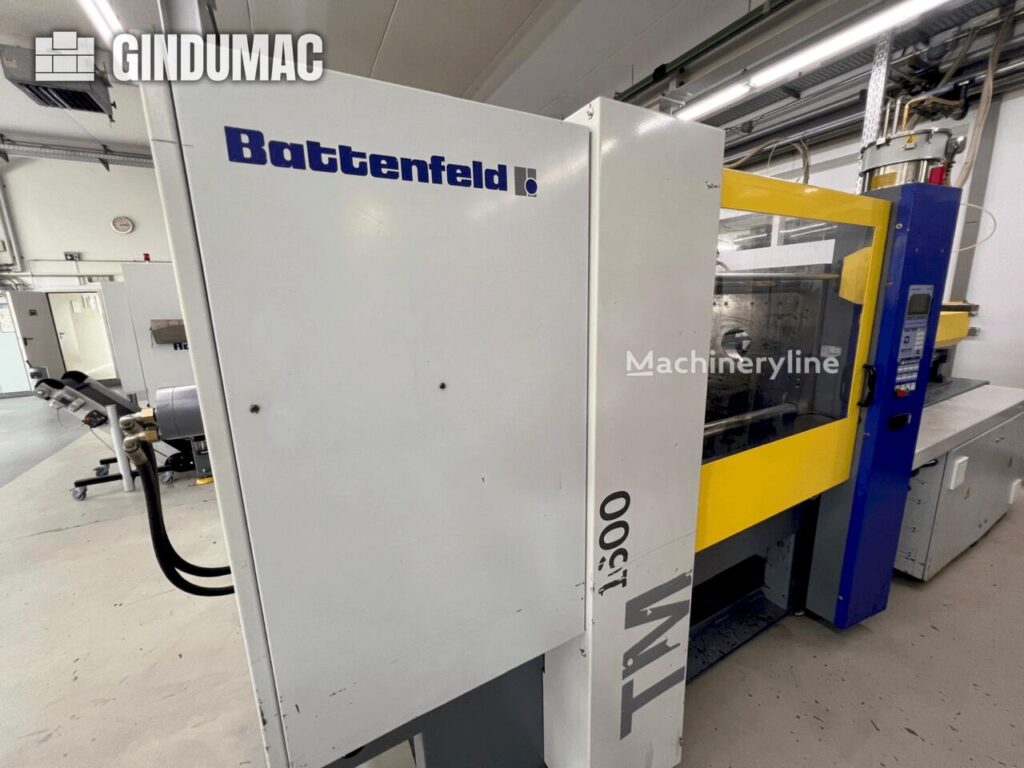

This Battenfeld TM 1600/1000 was manufactured in 2001. A robust injection moulding machine with 160 tonnes of clamping force and a screw diameter of 50 mm. It features a distance between tie bars of 520x520 mm and an opening stroke of 480 mm from the installation height. Ideal for precise and efficient production, the Battenfeld TM 1600/1000 machine we have for sale is a valuable asset for any operation. Contact us for further details. Location: DE Screw diameter: 50 mm Injection weight in g ps: 520 g Distance between tie bars: 520 mm x 520 mm Installation height: 225/550 mm Opening stroke from installation height: 480 mm Diameter centring ring: 160 mm Machine Benefits Technical Machine Benefits Extra Information Machine still under power
About this machine
The Battenfeld TM 1600/1000 is a used injection moulding machine — sometimes referred to as a plastic injection press — dating from 2001 and currently located in Germany. Injection moulding machines are used to produce plastic parts by injecting molten material into a mould under high pressure and clamping force, and are a cornerstone of modern plastics processing across automotive, consumer goods, packaging, and industrial manufacturing. Battenfeld is a well-established German manufacturer with a long heritage in injection moulding technology, known for producing reliable, precise machines that serve a broad range of plastics processing industries.
This machine delivers a clamping force of 160 tonnes, making it well suited to a wide variety of mould sizes and part geometries. The screw diameter is 50 mm, and the maximum injection weight is 520 g (measured in general-purpose polystyrene), giving a clear indication of the shot capacity available for production runs. The distance between tie bars measures 520 mm × 520 mm, defining the maximum platen area available for mould installation, while the opening stroke from installation height is 480 mm, determining how far the mould can open for part ejection and removal.
The installation height range is specified at 225 to 550 mm, indicating the range of mould heights the machine can accommodate. The centring ring diameter is 160 mm, an important dimension for correctly locating moulds on the stationary platen. The machine is noted as still being under power, meaning it has been verified as operational rather than simply stored.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
