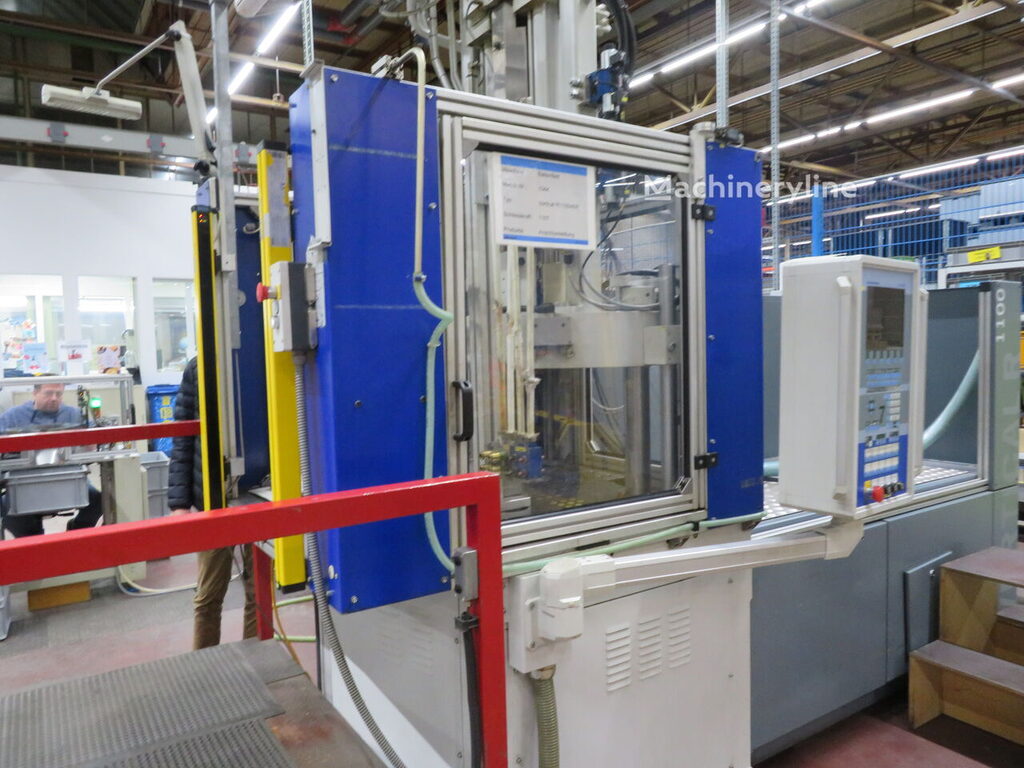

2002 - Battenfeld Vertical B 110 Injection Moulding()
- Listing No
- 1152879
- Year
- 2002
- Manufacturer
- Battenfeld
- Model
- Vertical B 110
- Condition
- Used
- Location
- France
- Price
- POA
- Description
-
VERTICALE AVEC PLATEAU ROTATIF Controls de commande : Uniloy BA4 Nombre d’heure / Working hours : 43000 Nombre de noyaux / Core pulling : 3 Interface robot : E67 Soufflettes / Air circuit : Zone chauffe moule : 8 Diamètre de vis / Screw diameter mm : 40 Volume injectable/ Shot volume cm3 : 201 Poids injectable/ Shot Weight Gr : 182 Pression d’injection / Injection Pressure bar : 1859 Diamétre table rotative/ diameter rotative table : 1040 mm Dimensions des Plateaux /Platen sizes mm : Course d’ouverture / Opening Stroke mm : 300 Epaisseur moule / Mould Height Mini-maxi mm : 300-600 Dimensions / Dimensions Lx l x hmm : 3767 x 1600 x 3900 Poids / Weight kg : 9000
About this machine
The Battenfeld Vertical B 110 is a used injection moulding machine — sometimes referred to as an injection moulding press — designed to produce plastic components by injecting molten material under high pressure into a closed mould. Battenfeld is a well-established European manufacturer with a long history of building injection moulding equipment for the plastics processing industry, serving sectors ranging from automotive and electronics to consumer goods and technical components. This particular machine is configured as a vertical press with a rotating platen table, a layout commonly chosen for insert moulding and multi-station production where parts can be loaded and unloaded at one station while moulding continues at another.
The machine dates from 2002 and is located in France. It has accumulated 43,000 working hours and is offered in used condition. Control is handled by a Uniloy BA4 control system. The unit includes a robot interface to the E67 standard, three core-pull circuits, and eight mould heating zones, making it well suited to technically demanding tooling.
The injection unit is built around a 40 mm screw diameter, delivering a shot volume of 201 cm³ and a shot weight of 182 grams. Maximum injection pressure is 1,859 bar, indicating a capable injection unit for processing a wide range of engineering polymers.
On the clamping side, the rotary table has a diameter of 1,040 mm. The opening stroke is 300 mm, and the mould height range runs from a minimum of 300 mm to a maximum of 600 mm. The machine occupies a footprint of 3,767 × 1,600 mm with an overall height of 3,900 mm and has a total weight of 9,000 kg.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
