1990 - Biesse TECHNO.CN – SV Edge Bander
()- Listing No
- 989202
- Year
- 1990
- Manufacturer
- Biesse
- Model
- TECHNO.CN - SV
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
Machine number: 848/90 - 849/90 Line consisting of Throughfeed drill Biesse type Techno.CN 7 x twin bottom units each with 10 spindle drilling blocks 2 x twin top units each with 10 spindle drilling blocks 1 x horizontal drilling unit left 20 spindles 1 x horizontal drilling unit right 20 spindles Chip removal screw in machine base Drilling units 95 mm wide Drilling and dowel-inserting machine Biesse type SVBL/J.CN 3 x twin bottom units each with 10 spindle drilling blocks Drilling units 95 mm wide 4 x dowel inserting units left 4 x dowel inserting units right Dowel diameter 8 mm
About this machine
This Biesse TECHNO.CN - SV is a used edge bander, a type of woodworking machine — sometimes referred to as an edge banding machine — used to apply and trim edging material to the exposed sides of panel-based components such as furniture carcasses, cabinet doors, and shelving. Biesse is a well-established Italian manufacturer of machinery for the wood, glass, and stone processing industries, with a broad portfolio covering CNC machining centres, drilling lines, and edge banding equipment widely used in furniture production and joinery.

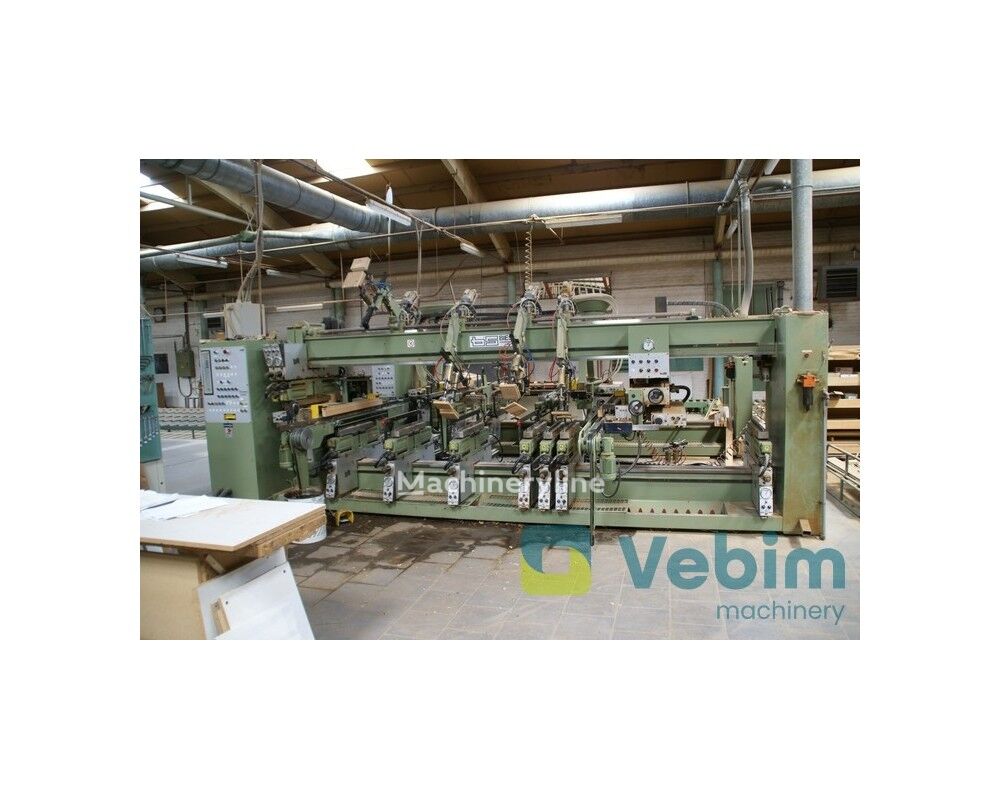

According to the seller's notes, this is not a standalone unit but a complete line comprising two machines offered together under machine numbers 848/90 and 849/90, both dated to 1990 and located in Belgium.

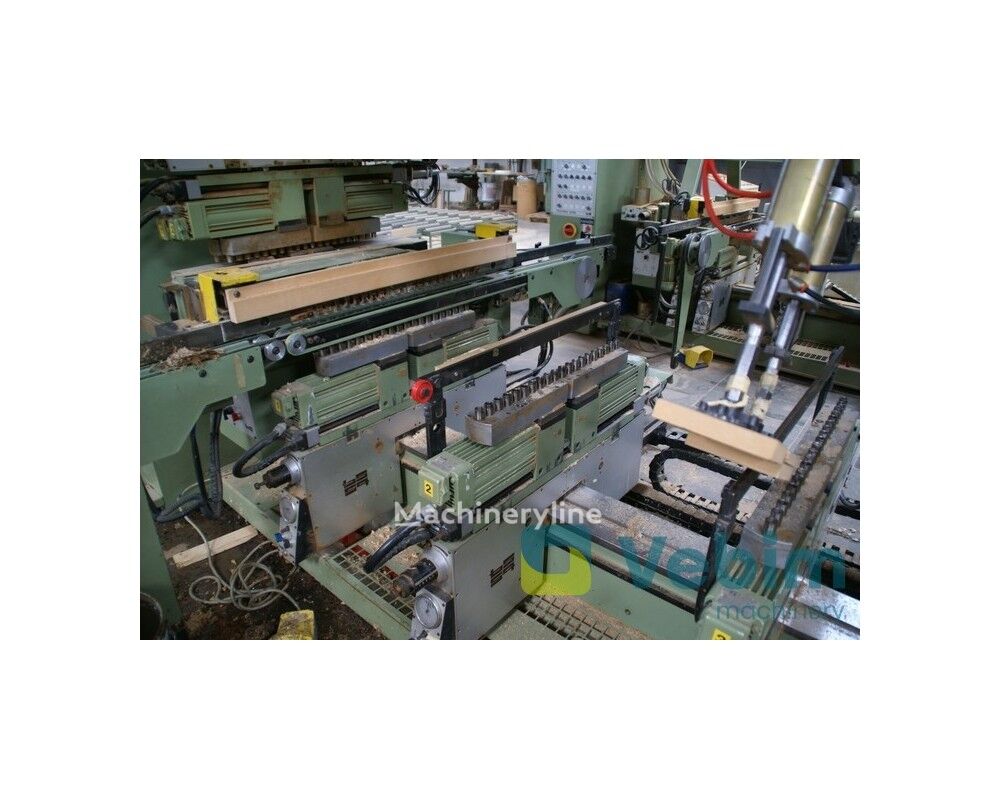

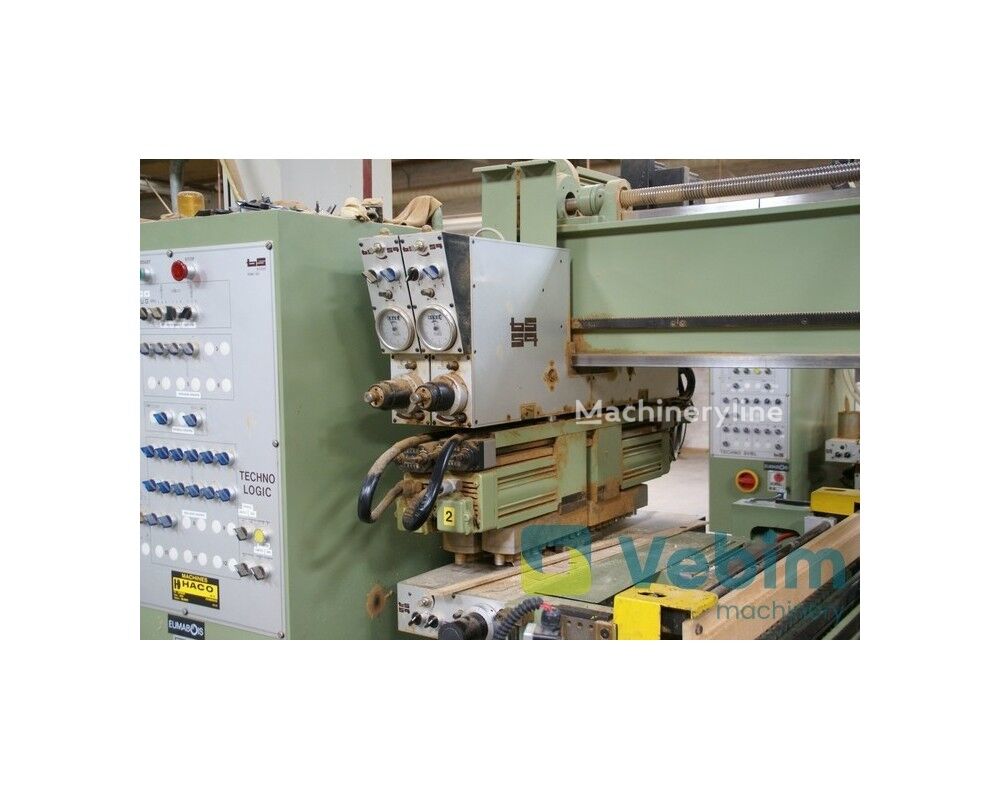

The first machine is a throughfeed drill of Biesse type Techno.CN. It is configured with seven twin bottom units, each fitted with a ten-spindle drilling block, giving a total of seventy bottom spindles. In addition, there are two twin top units, each also carrying a ten-spindle drilling block, providing twenty top spindles. Horizontal drilling capacity is provided by two dedicated units — one positioned on the left and one on the right — each equipped with twenty spindles, for a combined horizontal spindle count of forty. All drilling units are 95 mm wide. The machine base incorporates a chip removal screw for swarf extraction.
The second machine is a combined drilling and dowel-inserting unit of Biesse type SVBL/J.CN. It carries three twin bottom units, each with a ten-spindle drilling block, again on 95 mm wide drilling units. Dowel insertion is handled by four dedicated inserting units on the left side and four on the right side, working with 8 mm diameter dowels.
Together, the two machines form a comprehensive panel drilling and dowel-inserting line suited to high-volume cabinet and furniture component production.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
