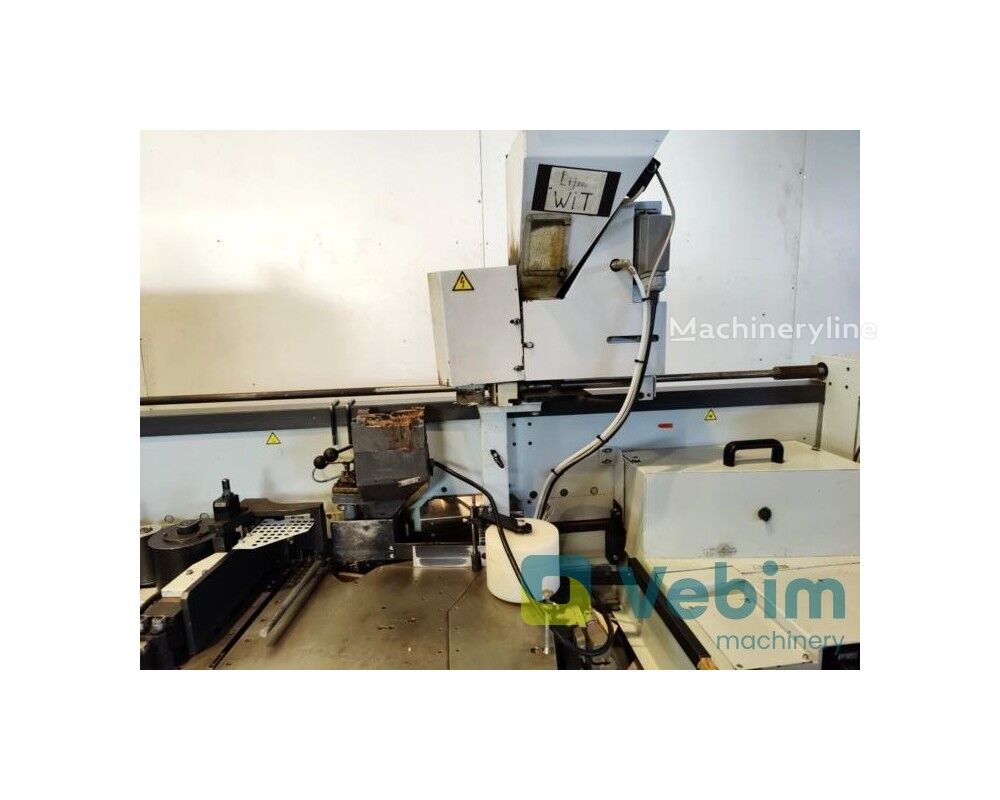

2008 - Homag KAL 310 9 A20 Edge Bander
()- Listing No
- 989155
- Year
- 2008
- Manufacturer
- Homag
- Model
- KAL 310 9 A20
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
Machine number: 0-200-11-7698 Workpiece thickness: 8 - 90 mm, electronically adjustable Feed rate: 18-32 m/min frequency controlled Edge thickness: 0.3 - 3 mm for roll edges, strips up to 20 mm Joint milling unit: 2 x 3.0 KW Pre-milling unit: 2 x 1.5 KW, pneumatic adjustment Control: Power Control PC22 Equipment Inlet guide automatically adjustable via the control extension 500 mm workpiece preheating Gluing unit A34 edging magazine for roll Pressure zone with 1 driven 6 non-driven rollers automatic adjustment from the control Cutting unit WK14 straight 2 motors 0.8 kW Form milling unit FF 12 automatic 2 motors 0.4 kW radius/phase milling unit FF12 automatic 4 motors 0.4 KW universal milling aggregate controlled UF11 4 kW Profile scrapers PN20 Glue scrapers Nozzles for detergent and anti-stick Polishing unit
About this machine
This Homag KAL 310 9 A20 is a used edge bander, a type of woodworking machine — sometimes referred to as an edge banding machine — designed to apply and finish edge material along the exposed sides of panel-based components such as furniture parts, cabinet doors, and shelving boards. Homag is a well-established German manufacturer specialising in woodworking machinery and systems, supplying equipment to furniture producers, joinery shops, and the broader wood-processing industry worldwide. This machine, built in 2008 and located in Belgium, carries the serial number .
The machine processes workpieces with a thickness range of 8 to 90 mm, with adjustment carried out electronically through the control system. Feed rate is frequency-controlled and adjustable between 18 and 32 metres per minute, allowing the operator to match throughput to the material and process requirements. Edge material can be applied from roll stock with a thickness of 0.3 to 3 mm, or from strip material up to 20 mm thick. The machine is controlled by a Power Control PC22 unit, and the inlet guide adjusts automatically via the control.
The processing line is comprehensively equipped. A joint milling unit rated at 2 × 3.0 kW prepares the panel edge before bonding, while a pre-milling unit rated at 2 × 1.5 kW with pneumatic adjustment refines the edge surface. The gluing unit is an A34 type, and the machine includes an edging magazine for roll material as well as a workpiece preheating station. The pressure zone consists of one driven roller and six non-driven rollers, with automatic adjustment available from the control. An inlet extension of 500 mm is also fitted.
The cutting unit is a WK14 straight type driven by two motors of 0.8 kW each. Profile finishing is handled by a form milling unit FF12 automatic with two motors of 0.4 kW, and a radius and phase milling unit also of the FF12 automatic type, fitted with four motors of 0.4 kW each. A universal milling aggregate UF11 rated at 4 kW is included for more complex profile work. Finishing equipment comprises profile scrapers PN20, glue scrapers, nozzles for detergent and anti-stick fluid application, and a polishing unit.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
