2011 - Homag KAL210 Ambitio Edge Bander
()- Listing No
- 989099
- Year
- 2011
- Manufacturer
- Homag
- Model
- KAL210 Ambitio
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
Machine number: 0-200-26-3161 Coil edge thickness: 0,3 - 3 mm, strips 0,4 - 20 mm Fixed side at the left Feedspeed 18 - 25 m/min Working width min 60mm for panel thickness 22mm 105mm for panel thickness 40mm Panel overhang 30mm Panel thickness 8 - 60 mm in stead of 12 - 40 mm (with limitations) Coil diameter 830 mm Equipment Sprayers release agent Squaring device with 2 motors each 3 kW Edge heating Edge magazine for 2 coils guillotine for edges up to 3 mm Glueing part A20 with quickmelt application Lateral pressure zone K 1 driven and 6 after pressing rollers End trims HL84 2 motors each 0,8kW Rough trimming 2 motors 1,5kW Contour trimming 2 exchange units Profile scraping PN10 Flat scrapers FA11 Sprayers cleaning agent Buffing Automation package straight/chamfer Automatic adjustment infeed fence Automatic setting of pressure rollers Pneumatic setting of end trims Pneumatic setting of rough trims Automatic setting of chamfer/radius on the contour trims Pneumatic setting of profile and flat scraping units Electronic height positioning
About this machine

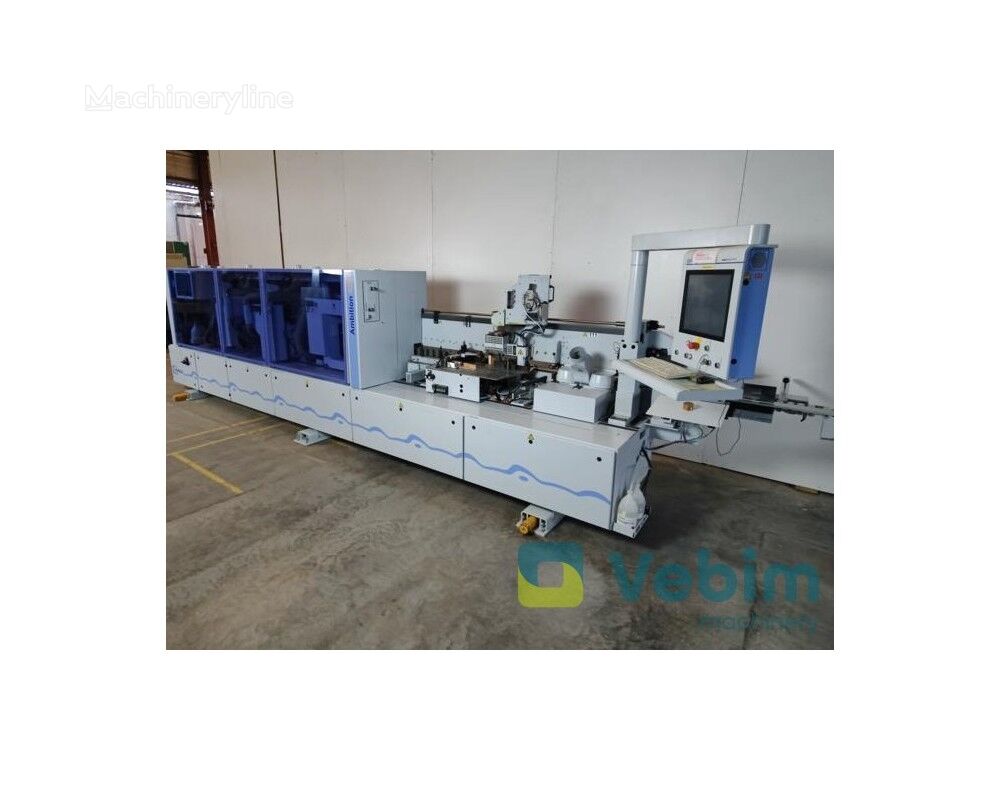

This Homag KAL210 Ambitio is a used edge bander — sometimes referred to as an edge banding machine — dating from 2011 and currently located in Belgium. Edge banders are core woodworking machines used to apply and finish edge material to the exposed sides of panels, giving them a clean, durable appearance. Homag is a well-established German manufacturer widely recognised in the woodworking and furniture industry for producing high-specification panel processing equipment, and this machine reflects the kind of automation-focused engineering the brand is known for.
The machine carries serial number and is configured with the fixed side on the left. It accepts coil edge material ranging from 0.3 to 3 mm in thickness, as well as strip edges from 0.4 to 20 mm, fed from an edge magazine capable of holding two coils with a maximum coil diameter of 830 mm. Feed speed is variable between 18 and 25 metres per minute. Panel thickness capacity runs from 8 to 60 mm (in place of the standard 12–40 mm range, though with certain limitations), and the minimum working width is 60 mm for panels up to 22 mm thick, rising to 105 mm for panels up to 40 mm thick, with a panel overhang of 30 mm.
The gluing section uses a Part A20 system with quickmelt application, complemented by a lateral pressure zone (unit K), one driven pressing roller, and six after-pressing rollers. Edge heating is fitted as standard, and release agent sprayers are included. A squaring device is installed, powered by two motors of 3 kW each.
End trimming is handled by an HL84 unit driven by two motors of 0.8 kW each, while rough trimming is carried out by units powered by two motors of 1.5 kW each. A guillotine accommodating edges up to 3 mm is also present. Contour trimming is equipped with two interchangeable exchange units, and finishing is completed by profile scraping unit PN10, flat scrapers FA11, cleaning agent sprayers, and a buffing station.

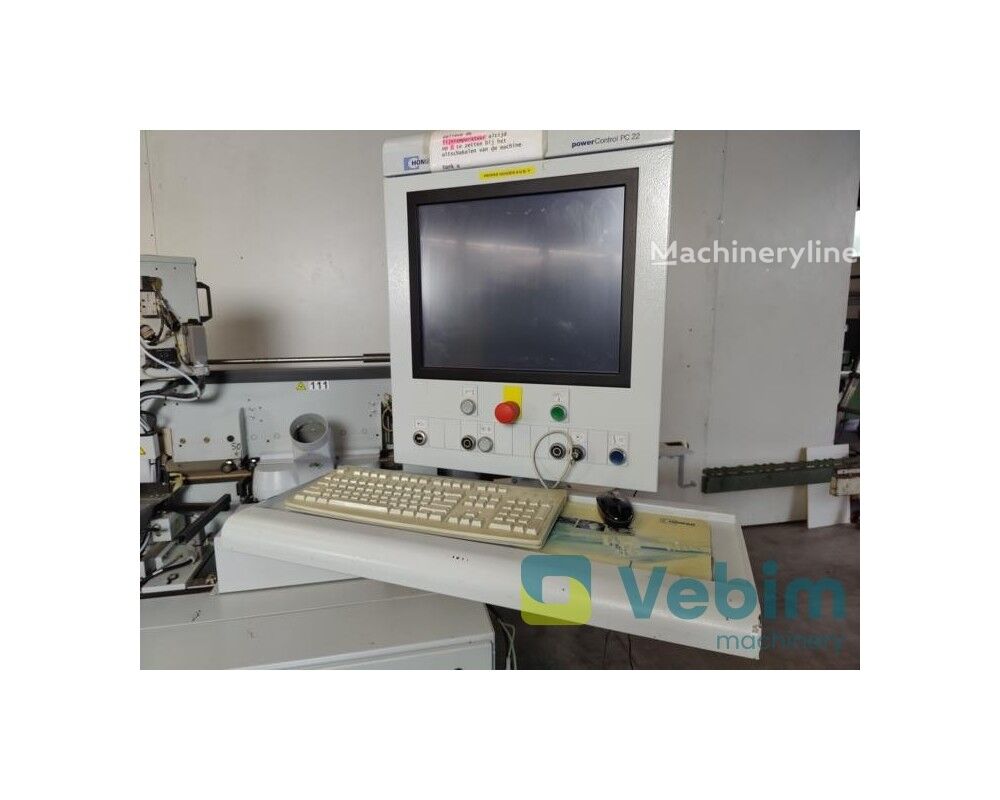

The machine is equipped with a comprehensive automation package covering both straight and chamfer processing. This includes automatic adjustment of the infeed fence, automatic setting of the pressure rollers, pneumatic setting of the end trims and rough trims, automatic setting of chamfer and radius on the contour trimming units, pneumatic setting of the profile and flat scraping units, and electronic height positioning throughout. This level of automation places the machine well above entry-level edge banding configurations and makes it suited to production environments requiring consistent, repeatable results across varied panel dimensions.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
