About this machine

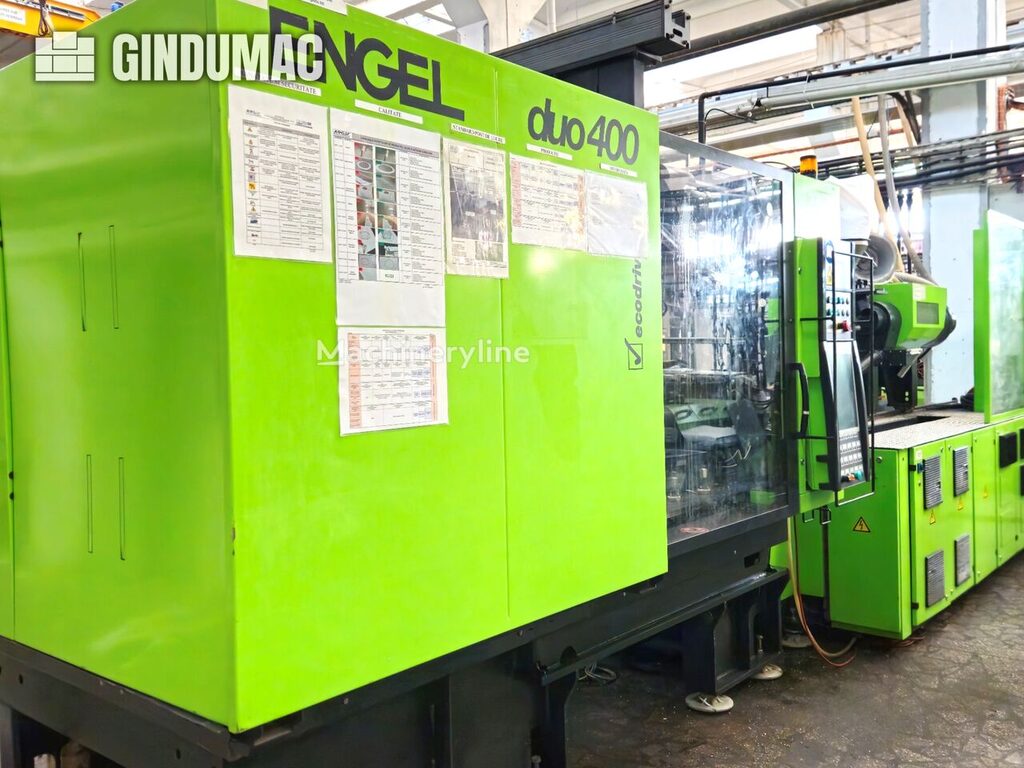

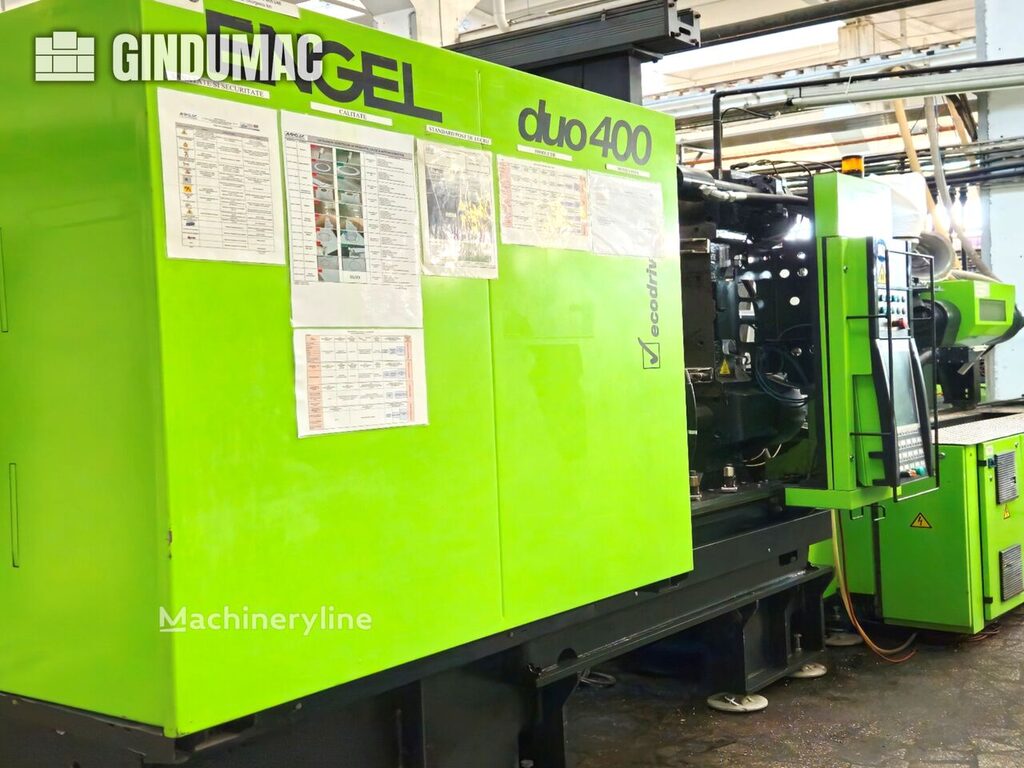

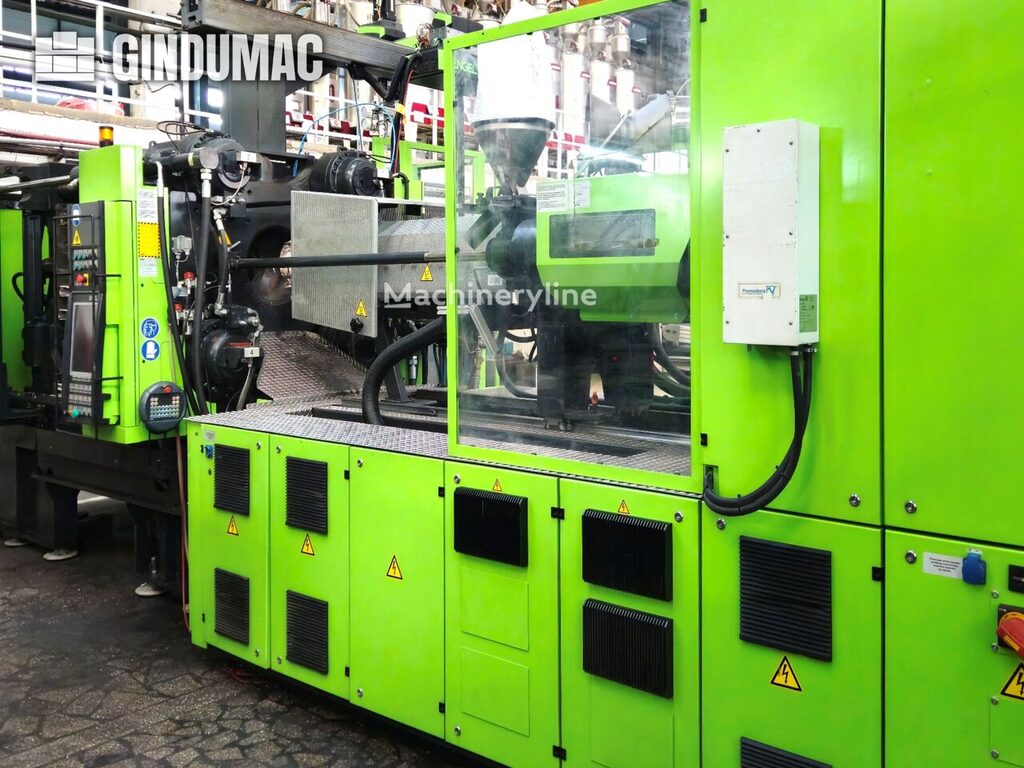

The Engel DUO P is a used injection moulding machine — sometimes referred to as an injection moulding press — a type of industrial equipment used to produce plastic parts by injecting molten material into a mould under high pressure. Engel is a well-established Austrian manufacturer recognised globally for its injection moulding technology, supplying machines to the automotive, packaging, medical, and consumer goods industries, among others.

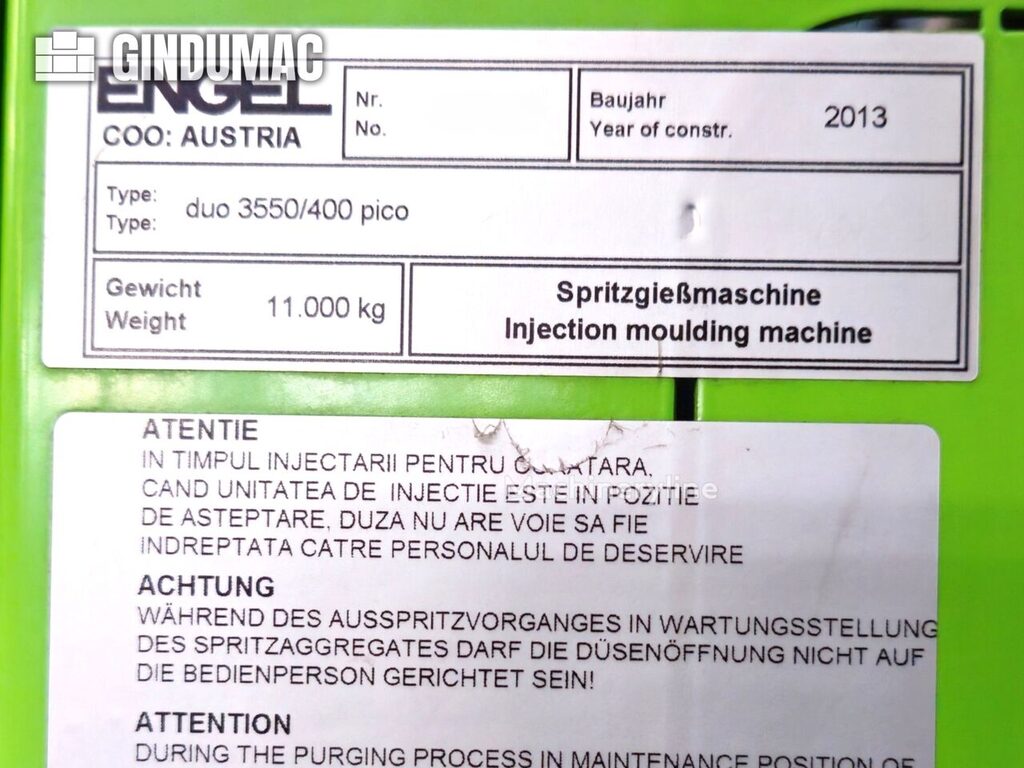

Built in 2013 and currently in production at its location in Germany, this machine is reported to be in excellent condition. It delivers a clamping force of 4,000 kN, which defines the force applied to keep the mould closed during injection. The screw diameter measures 80 mm, and the machine is capable of a maximum injection volume of 1,960 cm³, making it suited to producing medium-to-large plastic components.

The mould area is defined by platen dimensions of 1,100 × 1,190 mm, with a tie-bar distance of 800 × 800 mm — the clear space between the tie bars through which the mould must fit. The mould height can range from a minimum of 350 mm to a maximum of 850 mm, and the platen opening stroke is 1,050 mm, determining how far the platens separate to allow part ejection and mould access. The injection nozzle has a tip radius of R35, and the centering ring diameter is 200 mm, both relevant for tooling alignment and nozzle seat compatibility.

Heater power is rated at 52.95 kW, supporting the barrel heating zones necessary for plasticising material. The machine is fitted with 32 electrical connection pins for mould interfacing and is equipped with a robot, communicating via a Euromap 67 robot interface — a standardised protocol that allows seamless integration with external handling or automation systems. Overall dimensions are 7,420 × 2,360 × 2,360 mm, and the machine weighs 11,000 kg.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
