1998 - Engel DUO 3550 550 T Injection Moulding()
- Listing No
- 1153379
- Year
- 1998
- Manufacturer
- Engel
- Model
- DUO 3550 550 T
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-

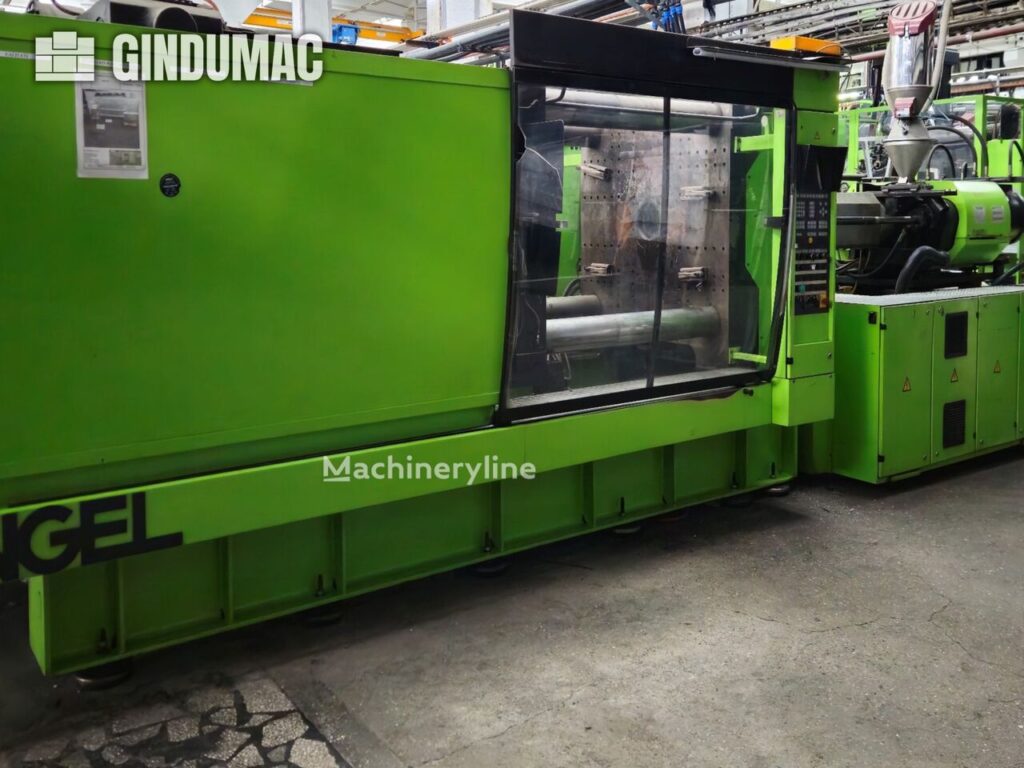

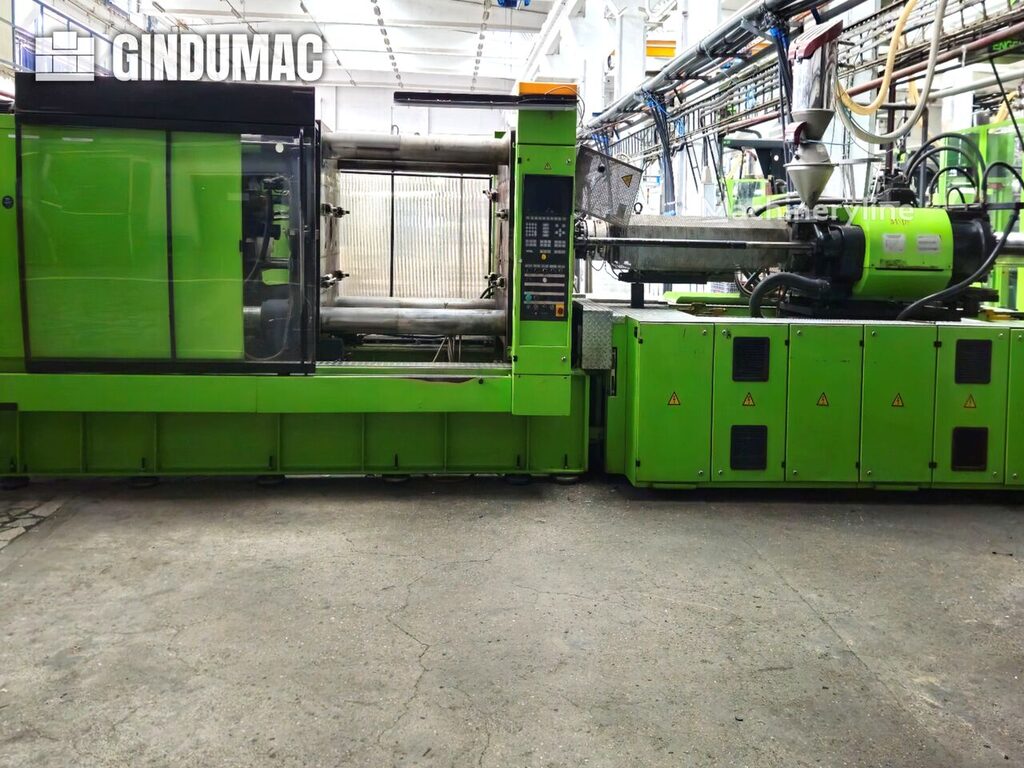

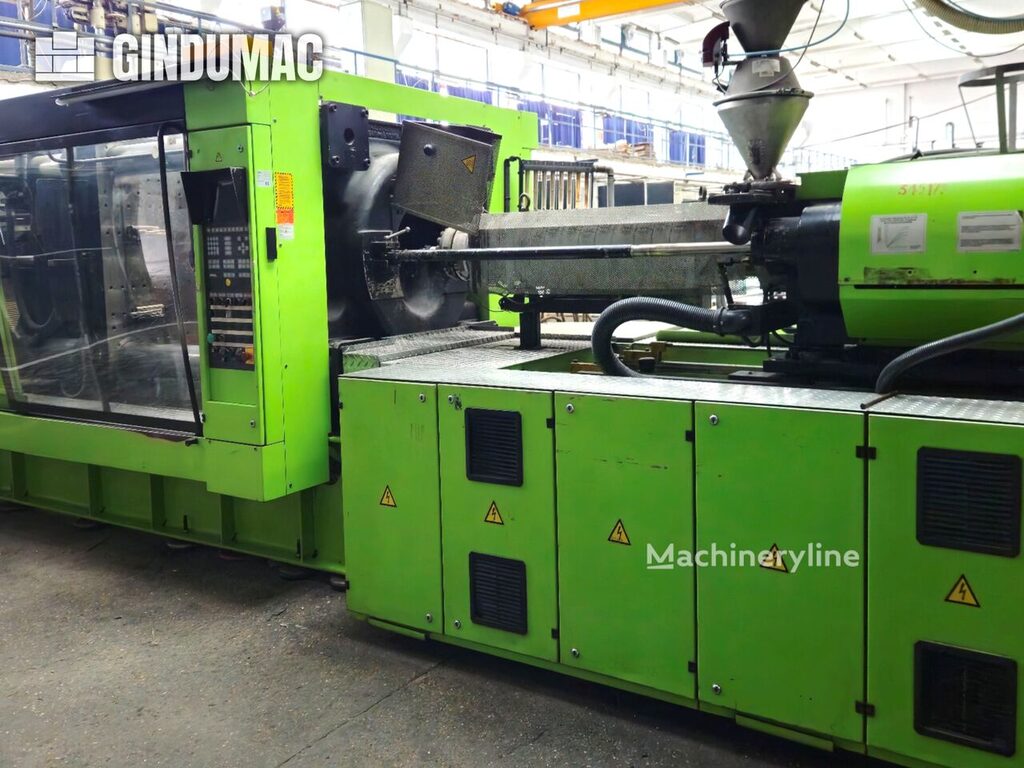

This Engel Duo 3550/550 Tech was manufactured in 1998. It features a clamping force of 5500 kN, a maximum injection volume of 1960 cm³, and a screw diameter of 80 mm. The machine dimensions are 8840 x 2520 x 2230 mm, and it weighs 20,000 kg. If you are looking to get high-quality injection moulding capabilities, consider the Engel Duo 3550/550 Tech machine we have for sale. Contact us for more information. Location: RO Screw Diameter: 80 mm Maximum injection volume: 1,960 cm³ Minimum mould height: 310 mm Maximum mould height: 800 mm Platen opening stroke: 850 mm Platen dimensions (W x L): 1,345 x 1,280 mm Tie-bar distance (H x V): 915 x 860 mm Heater power: 47.5 kW Injection nozzle radius (at tip): R35 Centering ring diameter: 200 mm Condition: Excellent Robot: Not equipped Robot interface: None Other accessories: None reported Additional equipment
About this machine
This Engel DUO T is a used injection moulding machine — sometimes referred to as a plastic injection press — manufactured by Engel in 1998 and currently located in Germany. Injection moulding machines are used to produce plastic parts by injecting molten material into a mould cavity under high pressure, and they are central to industries ranging from automotive and packaging to consumer goods and medical technology. Engel is a well-established Austrian manufacturer widely recognised for building injection moulding machinery and automation solutions that serve plastics processors around the world.
The machine was built in 1998 and is described as being in excellent condition. Its clamping force stands at 5,500 kN, making it a substantial press suited to producing larger or more complex moulded components. The maximum injection volume is 1,960 cm³, and the screw diameter is 80 mm. The heater power is rated at 47.5 kW.
Mould accommodation is defined by a minimum mould height of 310 mm and a maximum of 800 mm, with a platen opening stroke of 850 mm. The platen dimensions measure 1,345 mm × 1,280 mm, and the tie-bar distances are 915 mm horizontally and 860 mm vertically, providing the working envelope within which tooling can be installed. The injection nozzle has a tip radius of R35, and the centering ring diameter is 200 mm.
The machine's overall footprint is 8,840 mm × 2,520 mm × 2,230 mm, and it has a total weight of 20,000 kg. No robot or robot interface is fitted, and no additional accessories are reported with this machine.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
