2013 - Engel DUO 7050 650 P Injection Moulding()
- Listing No
- 1153368
- Year
- 2013
- Manufacturer
- Engel
- Model
- DUO 7050 650 P
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-

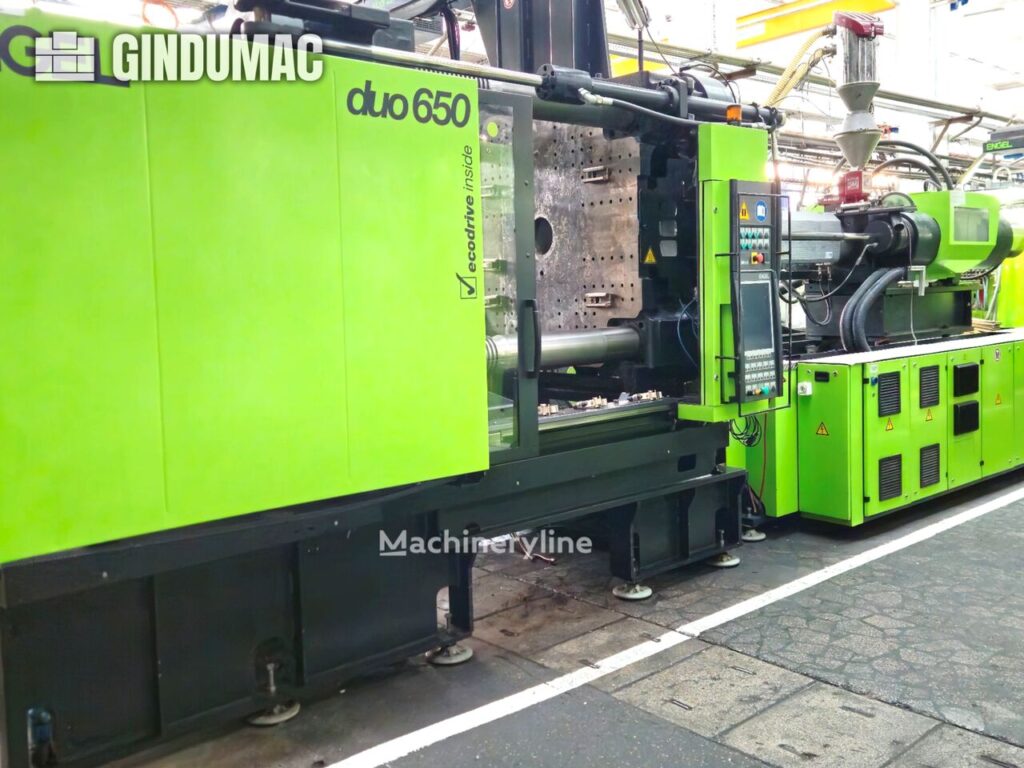

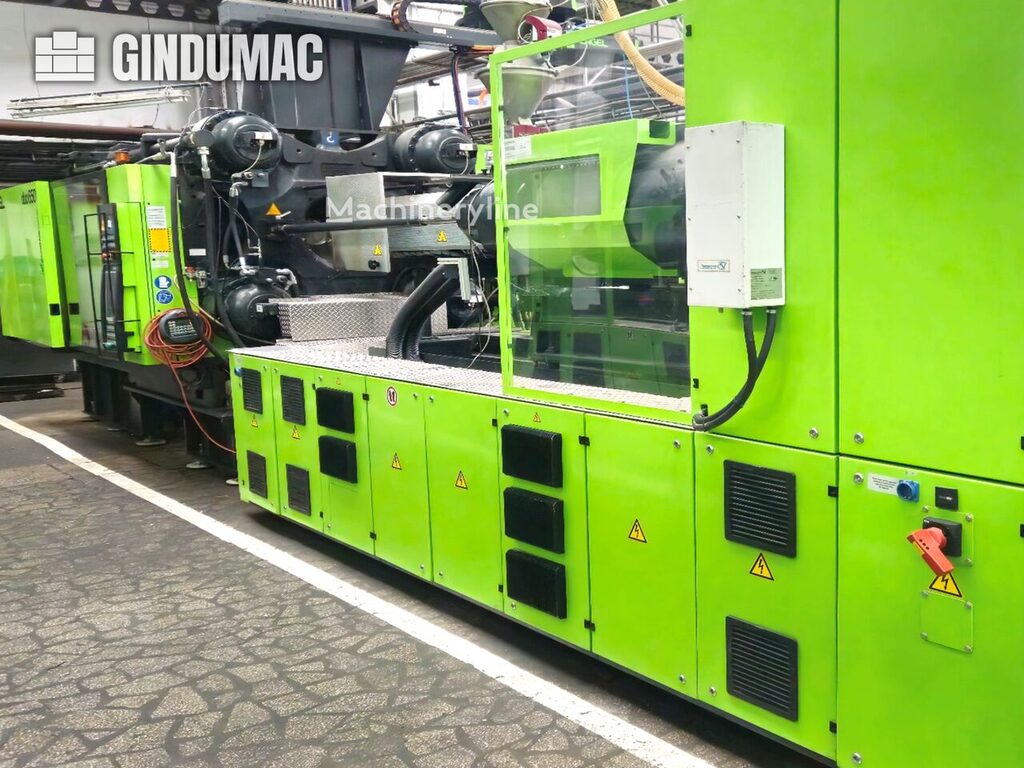

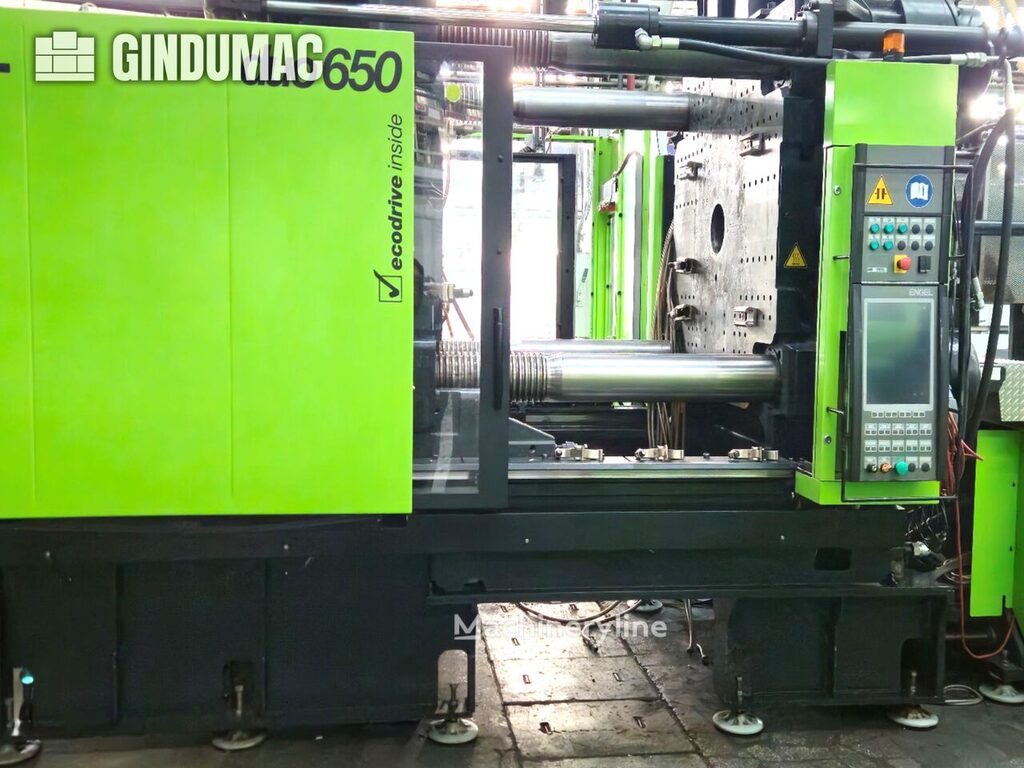

This Engel DUO 7050/650 pico was manufactured in 2013. It features a clamping force of 6500 kN, a maximum injection volume of 4160 cm³, and a screw diameter of 105 mm. The machine includes a robot interface (Euromap 67) and is still in production with excellent condition. If you are looking to get high-quality injection molding capabilities, consider the Engel DUO 7050/650 pico machine we have for sale. Contact us for more information about this machine. Location: RO running hours: approx. 60,244 h Screw Diameter: 105 mm Maximum injection volume: 4160 cm³ Minimum mold height: 450 mm Maximum mold height: 950 mm Platen opening stroke: 1400 mm Platen dimensions (W × L): 1510 × 1440 mm Tie-bar distance: 1100 × 960 mm Heater power: 73.9 kW Number of electrical connection pins: 32 Injection nozzle radius (at tip): R35 Centering ring diameter: 200 mm Condition: Excellent Status: In production Equipped with robot: Yes Robot interface: Euromap 67 Additional equipment
About this machine
The Engel DUO P is a used injection moulding machine — sometimes referred to as an injection moulding press — a type of industrial equipment used to produce plastic components by injecting molten material into a mould under high pressure. Engel is a well-established Austrian manufacturer widely recognised as one of the leading builders of injection moulding machinery, supplying systems to the automotive, packaging, medical, and consumer goods industries, among others.
Manufactured in 2013, this machine is currently in production and has been assessed in excellent condition, with approximately 60,244 running hours recorded. It is located in Germany and is equipped with a Euromap 67 robot interface, confirming that an integrated robot is included with the machine.
The clamping side offers a clamping force of 6,500 kN, with a platen opening stroke of 1,400 mm. The platen dimensions measure 1,510 × 1,440 mm, and the tie-bar distances are 1,100 mm × 960 mm. Mould heights are accommodated within a range of 450 mm minimum to 950 mm maximum, providing flexibility across a broad range of tooling sizes.
On the injection side, the screw diameter is 105 mm, and the maximum injection volume is 4,160 cm³, indicating capability for large-volume shot weights. The injection nozzle has a radius of R35 at the tip, and the centering ring diameter is 200 mm. Heater power is rated at 73.9 kW, and the machine features 32 electrical connection pins.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
