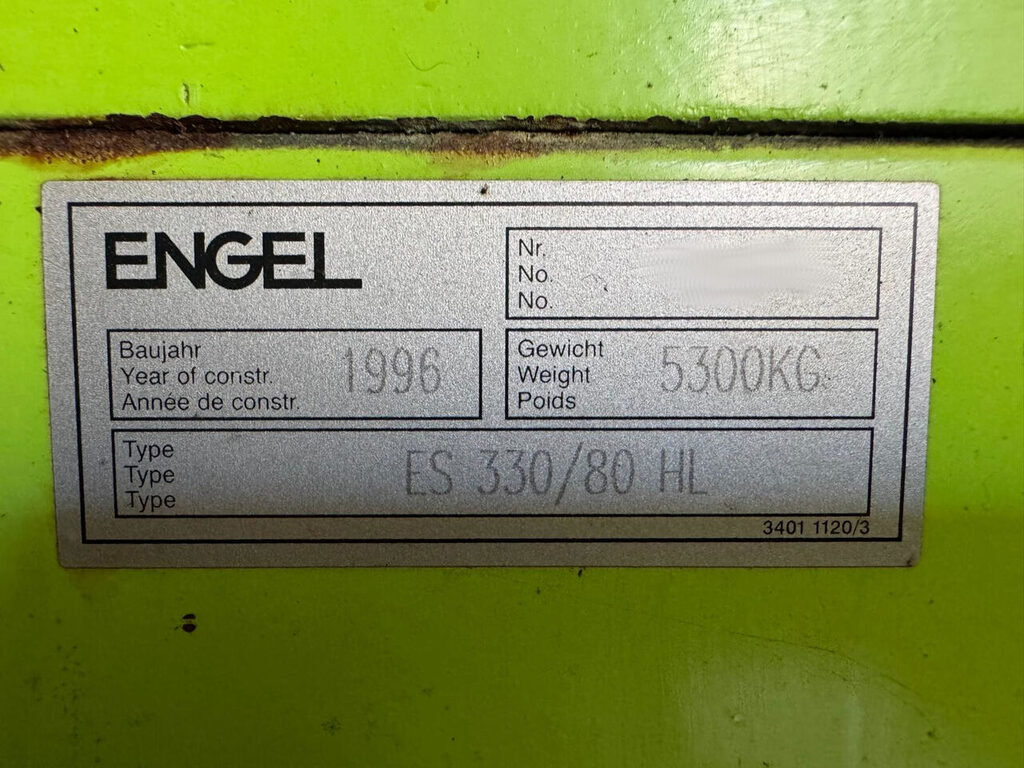

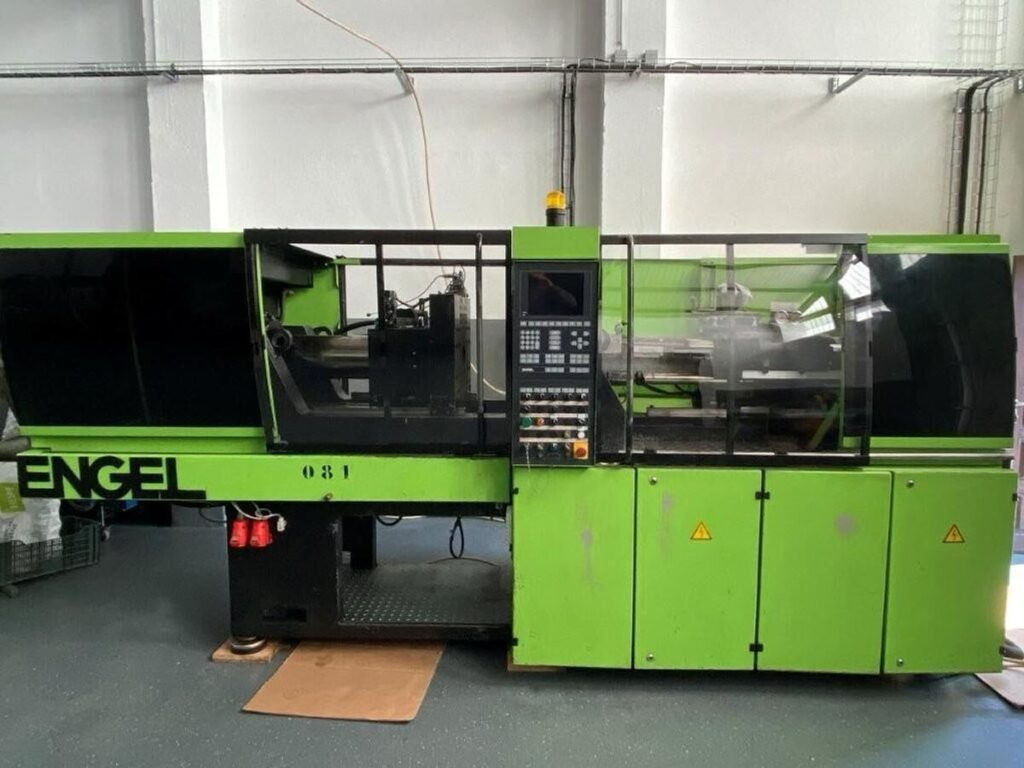

1996 - Engel ES 330 80 HL Injection Moulding()
- Listing No
- 1153637
- Year
- 1996
- Manufacturer
- Engel
- Model
- ES 330 80 HL
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
We hereby offer this used Engel ES 330/80 HL injection molding from 1996, located in Portugal. This reliable and compact unit is designed for precision plastic part production. It offers a clamping force of 80 tons, making it suitable for small to medium-sized components. The machine is equipped with a 35 mm screw diameter, ensuring efficient plasticizing of materials, and features a mould opening stroke of 450 mm, allowing for flexible mold configurations.Included with the Machine:12 hotrunners.2 “cors” for molds with automatic unscrewing.Extra spindle (screw).Engel MachineryEngel is a renowned manufacturer in the field of plastic processing machinery, specializing in injection molding technology. With a history dating back to 1945, Engel has established itself as a global leader in innovative solutions for the plastics industry. The company produces a wide range of machines, including injection molding machines, extrusion equipment, and automation solutions. Engel's machines are known for their precision, reliability, and advanced features, making them suitable for various industries such as automotive, packaging, medical, and consumer goods. With a commitment to quality and continuous innovation, Engel continues to set the standard for performance and efficiency in plastic processing machinery.____*Information may be inaccurate and subject to change without notice. This description could have been automatically translated, and details in this classified ad are indicative and subject to change. GLOMACH advises verifying specifications or else.**Bidding is subject to specific circumstances and negotiation terms. Clamping force: 80 Ton Size of mould platens: 660 x 560 mm Mould opening stroke: 450 mm Screw diameter: 35 mm Injection pressure: 1600 bar Stroke volume: 154 cm3 Injection weight: 140 g Screw speed: 20 - 400 m/min Min. mould height: 250 mm Max daylight: 700 mm Nominal capacity of pump motor: 15 kW Availability: Immediately
About this machine
This Engel ES 330 80 HL is a used injection moulding machine — sometimes referred to as an injection moulding press or plastics moulding machine — dating from 1996 and currently located in the Netherlands. Injection moulding machines are used to produce plastic components by injecting molten material into a mould under pressure, and they are fundamental to manufacturing across the automotive, packaging, medical, and consumer goods sectors. Engel is a well-established Austrian manufacturer with a long history in plastic processing machinery, recognised globally for the precision and reliability of its injection moulding equipment.
This machine delivers a clamping force of 80 tonnes, positioning it as a capable unit for small to medium-sized plastic parts. The mould platens measure 660 × 560 mm, with a minimum mould height of 250 mm and a maximum daylight opening of 700 mm. The mould opening stroke is 450 mm, providing useful flexibility in accommodating different mould configurations.
On the injection side, the machine is fitted with a 35 mm screw diameter and develops an injection pressure of 1,600 bar. The stroke volume is 154 cm³ and the maximum injection weight is 140 g, making it well suited to precision small-part production. Screw speed is variable across a range of 20 to 400 m/min, allowing control over plasticising rate to suit different materials. The pump motor has a nominal capacity of 15 kW.
The machine is offered with a notable package of ancillary equipment. Included are 12 hot runners, two cores for moulds with automatic unscrewing, and an additional spare screw spindle. The unit is described as available for immediate delivery.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
