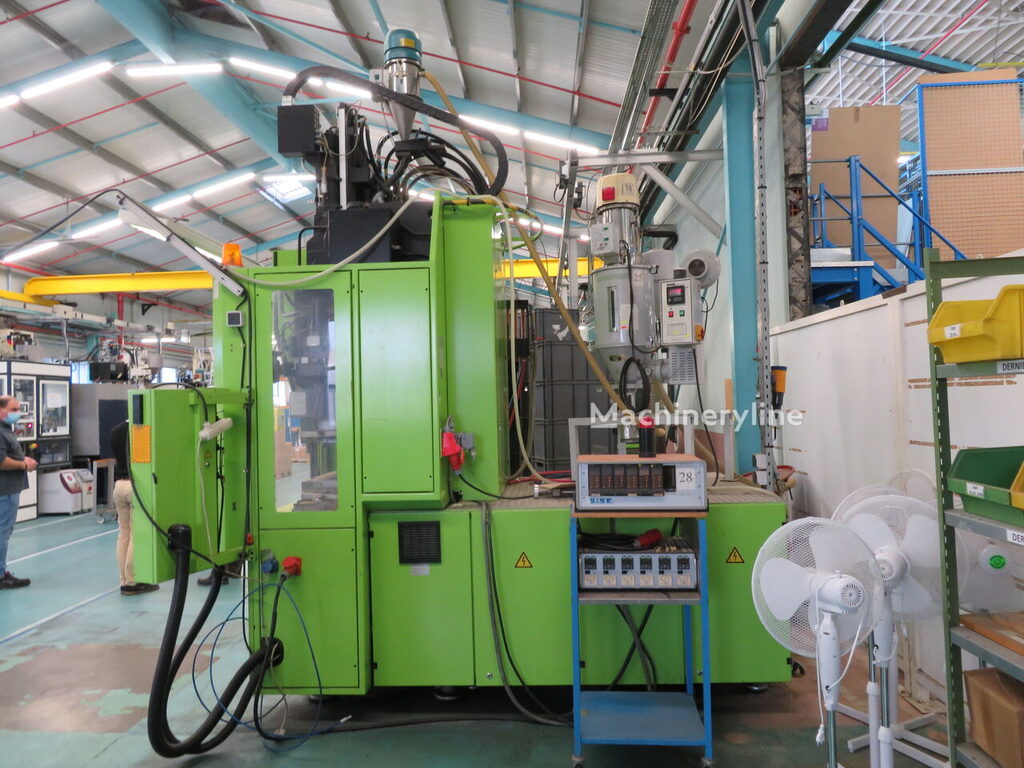

2001 - Engel ES200 V50 VT-H Injection Moulding()
- Listing No
- 1152861
- Year
- 2001
- Manufacturer
- Engel
- Model
- ES200 V50 VT-H
- Condition
- Used
- Location
- France
- Price
- POA
- Description
-
Nombre de noyaux / Core pulling : 3 : Control : CC100 Diamètre de vis / Screw diameter mm : 30 Volume injectable/ Shot volume cm3 : 99 Pression d’injection / Injection Pressure bar : 1450 Passage entre colonne / Bettween tie bar mm : Dimensions des Plateaux /Platen sizes mm : 920 x 400 Course d’ouverture / Opening Stroke mm : 330 Epaisseur moule / Mould Height Mini-maxi mm : 190-520
About this machine
This Engel ES200 V50 VT-H is a used injection moulding machine — sometimes referred to as an injection moulding press — designed to form plastic components by injecting molten material under high pressure into a closed mould. Engel is a well-established Austrian manufacturer recognised globally for producing injection moulding machinery and automation solutions across a broad range of industries including automotive, packaging, medical, and consumer goods. This machine dates from 2001 and is located in France.

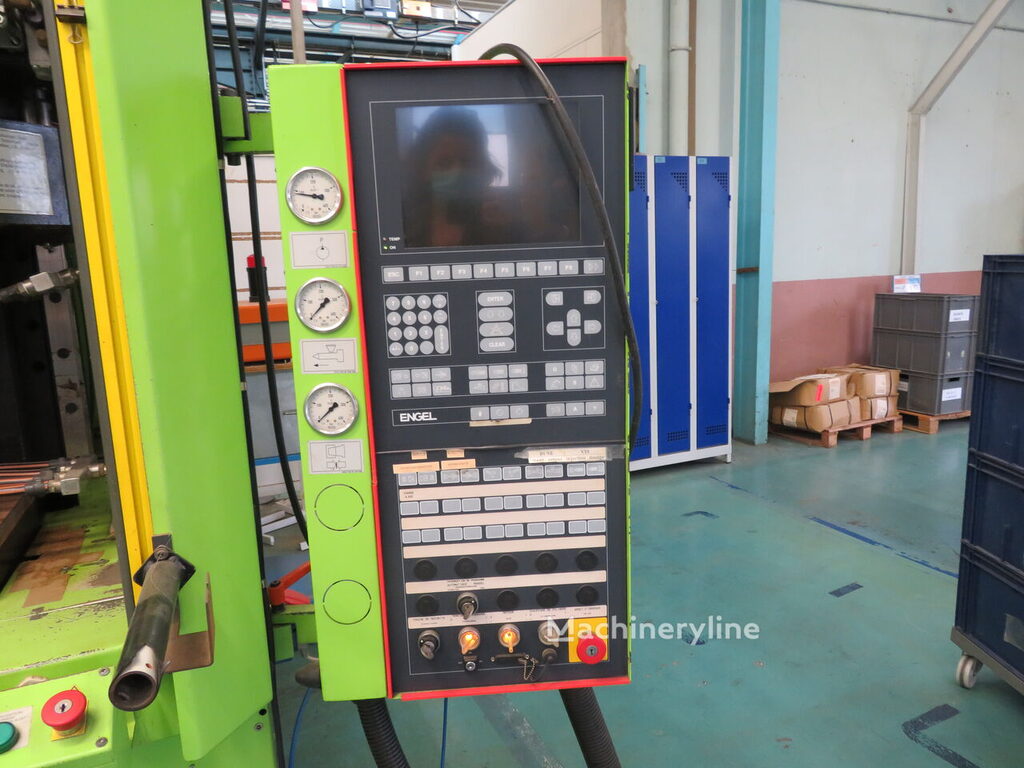

The machine is equipped with a screw diameter of 30 mm and delivers a shot volume of 99 cm³, making it suited to the production of small to medium-sized plastic parts. Injection pressure is rated at 1,450 bar, providing the force necessary to fill complex or tight-tolerance moulds reliably. The control system is the CC100, Engel's dedicated injection moulding controller of that era.
The platen dimensions measure 920 × 400 mm, with an opening stroke of 330 mm. Mould height can be accommodated across a range of 190 mm to 520 mm minimum to maximum, giving the machine flexibility to accept tooling of varying sizes. Three core pulls are available, enabling the use of moulds with side actions or internal cores — a useful capability for producing parts with undercuts or complex internal geometries.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
