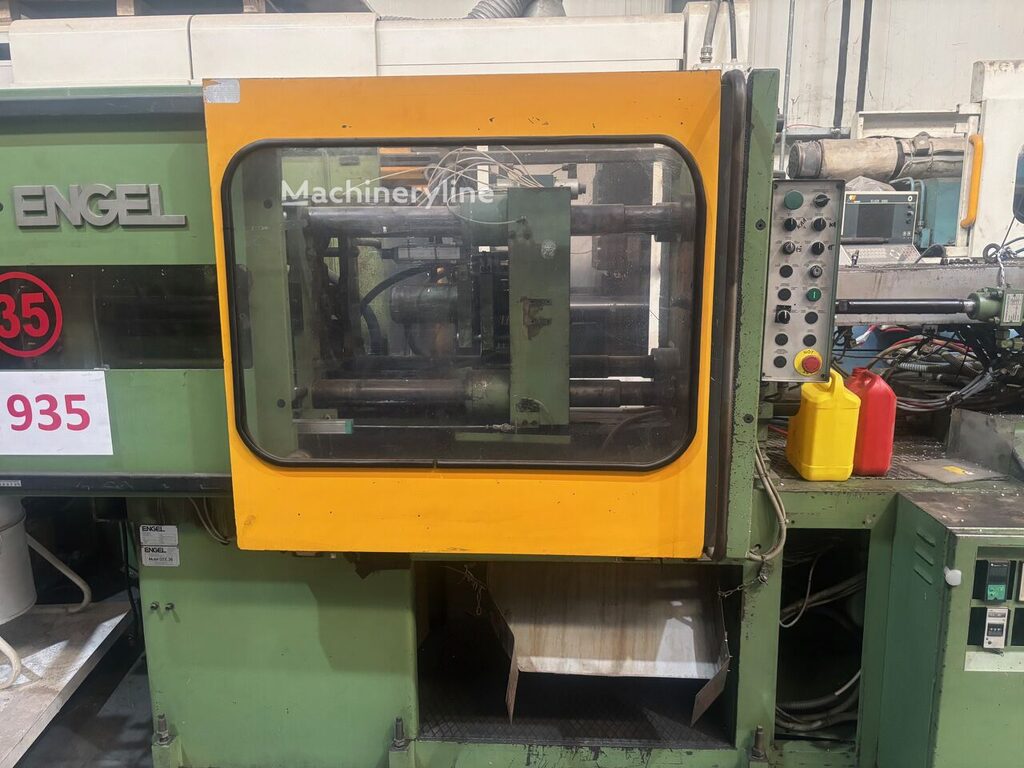

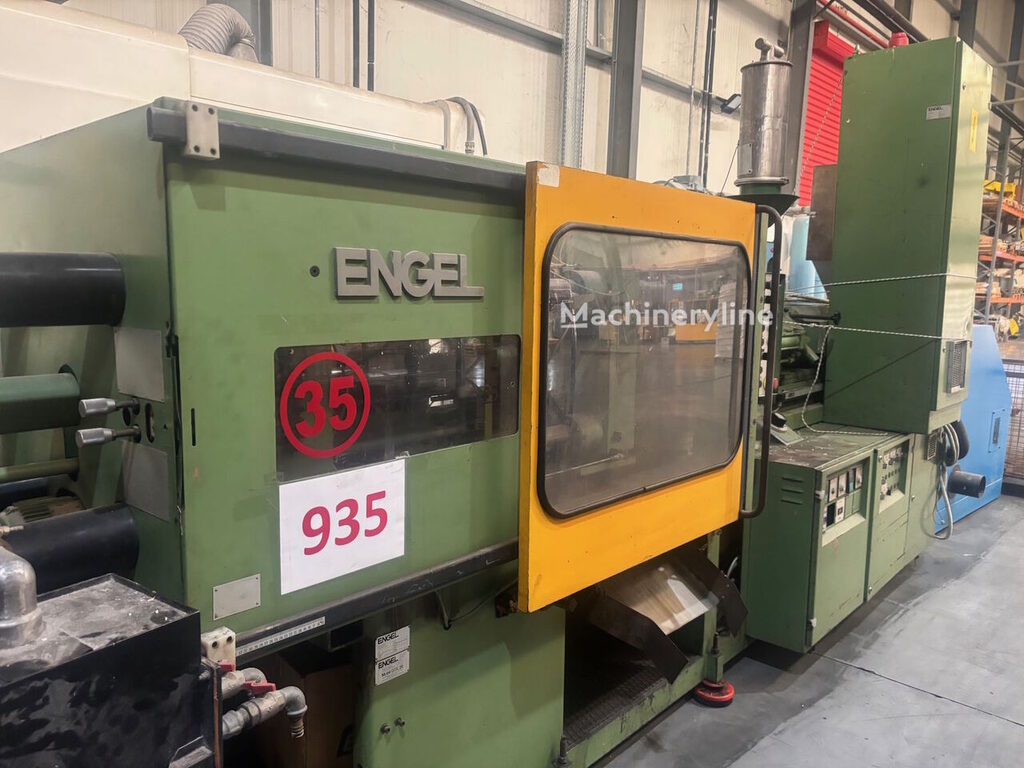

1984 - Engel ES600 100ST Injection Moulding()
- Listing No
- 1153651
- Year
- 1984
- Manufacturer
- Engel
- Model
- ES600 100ST
- Condition
- Used
- Location
- Greece
- Price
- $4,000
- Description
-
Offer Title: ENGEL Injection Moulding Machine ES600/100ST Manufacturer: ENGEL Model: ES600/100ST Year of Manufacture: 1984 Working Hours: 10,000 hours Technical Condition: As-is, where-is State: Visible Dimensions: Length: 5600.0 mm Width: 1500.0 mm Height: 2000.0 mm Weight: 6100.0 kg Technical Specifications: Clamping Force: 1000.0 kN Screw Diameter: 40.0 mm Tie Bar Spacing (Horizontal): 420.0 mm Tie Bar Spacing (Vertical): 420.0 mm Shot Volume: 250.0 cm³ Shot Weight: 226.0 g Pressure on Material: 1400.0 bar Platen Length: 576.0 mm Platen Width: 576.0 mm Equipped with Robot: No
About this machine
This Engel ES600 100ST is a used injection moulding machine — also commonly referred to as an injection molding machine or plastic injection press — designed to shape thermoplastic and thermosetting materials by injecting molten plastic into a mould under high pressure. Engel is a well-established Austrian manufacturer recognised globally for producing injection moulding machinery used across the plastics processing industry, serving sectors including automotive, packaging, medical, and consumer goods.
Manufactured in 1984, this machine has logged approximately 10,000 working hours and is offered in as-is, where-is condition, with the unit available for inspection in Greece. It carries a price of $4,000.
The machine is built around a clamping force of 1,000 kN, which determines the force applied to keep the mould closed during injection. The injection unit is equipped with a 40 mm screw diameter and delivers a shot volume of 250 cm³ with a corresponding shot weight of 226 g, making it suited to mid-range part sizes. Injection pressure on the material reaches 1,400 bar, providing the force necessary to fill detailed or complex mould cavities effectively.
The platen dimensions are 576 mm × 576 mm, and the tie bar spacing measures 420 mm horizontally and 420 mm vertically, defining the maximum mould size that can be accommodated between the platens. The machine is not equipped with a robot.
Physically, the unit measures 5,600 mm in length, 1,500 mm in width, and 2,000 mm in height, with a total weight of 6,100 kg, figures that are relevant for transport planning and floor space allocation.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
