2012 - Engel Victory 1350 2 Injection Moulding()
- Listing No
- 1153362
- Year
- 2012
- Manufacturer
- Engel
- Model
- Victory 1350 2
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-

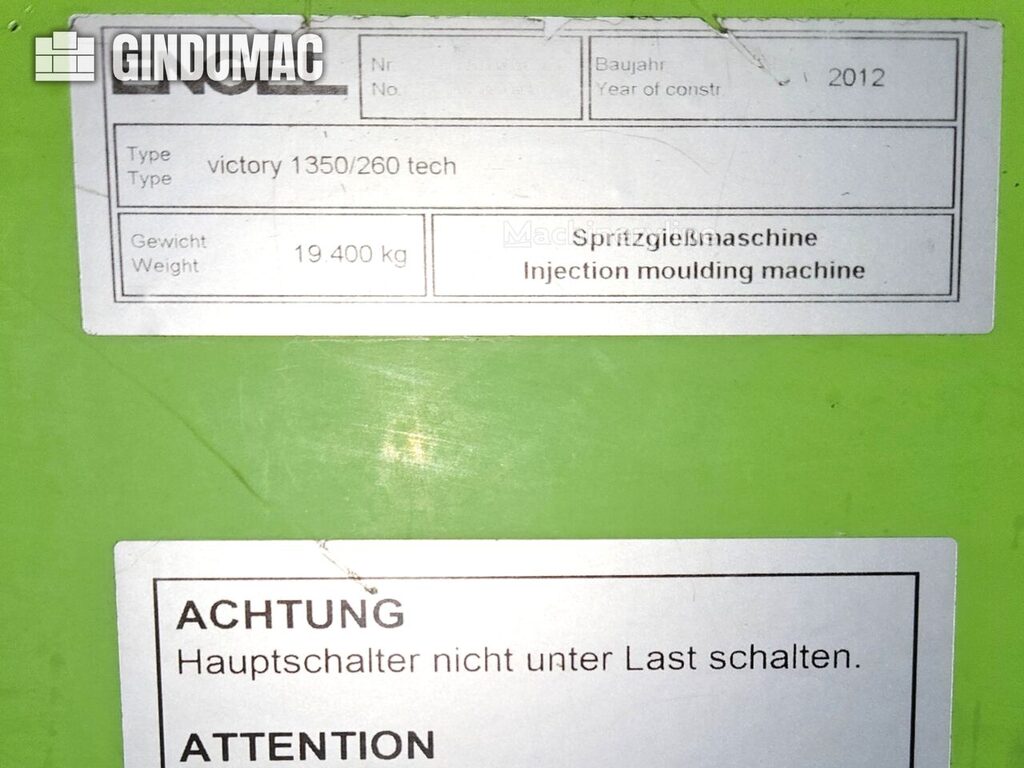

This Engel VICTORY 1350/260 tech was manufactured in 2012. It features a clamping force of 260 tons, a maximum injection volume of 735 cm³, and a screw diameter of 60 mm. The machine dimensions are 5,861 × 1,923 × 2,300 mm, and it weighs 19,400 kg. Currently in production with excellent condition and 73,164 operating hours. Contact us for more information about this machine. Location: RO Screw Diameter: 60 mm Condition: Excellent Status: In production Maximum injection volume: 735 cm³ Minimum mould height: 393 mm Maximum mould height: 1,300 mm Platen opening stroke: 907 mm Platen dimensions (W × L): 1,100 × 1,100 mm Tie-bar distance: Not applicable (tie-bar-less design) Injection nozzle radius (tip): R35 Centering ring diameter: 160 mm Heater power: 21.35 kW Electrical connection pins: 32
About this machine

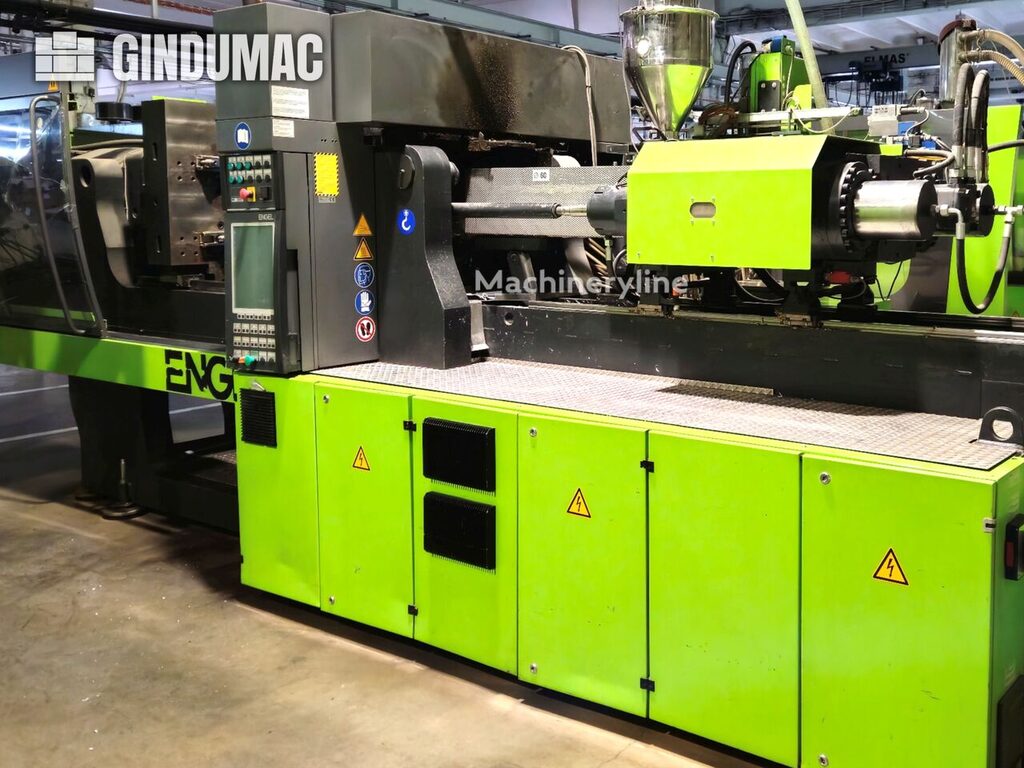

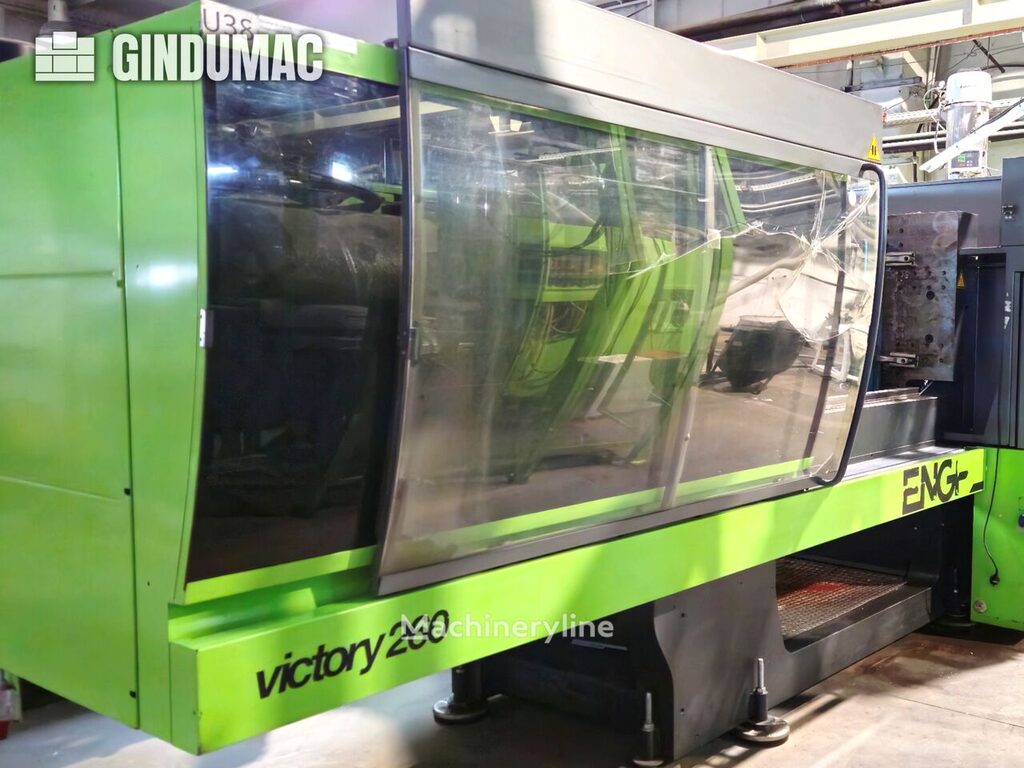

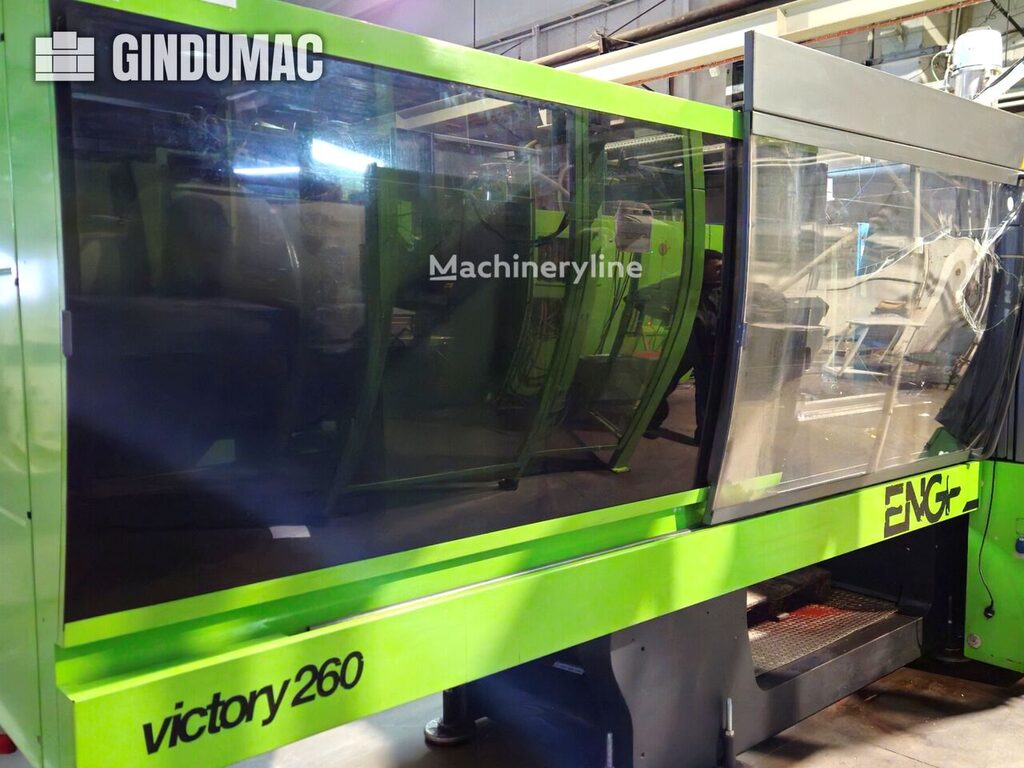

This Engel Victory 1350 2 Injection Moulding is an injection molding machine — sometimes referred to as an injection moulding press or plastic injection machine — used to manufacture plastic components by injecting molten material into a closed mould under high pressure. Engel is a well-established Austrian manufacturer of injection molding machinery, supplying equipment to the automotive, packaging, medical, and consumer goods industries, among others. The brand is particularly recognized for its tie-bar-less machine designs, which allow for greater flexibility in mould handling and platen use.
This example was built in 2012 and is currently in active production, described by the seller as being in excellent condition, having accumulated 73,164 operating hours. It is located in Germany.
The machine delivers a clamping force of 260 tonnes and operates with a screw diameter of 60 mm, accommodating a maximum injection volume of 735 cm³. It features a tie-bar-less design, meaning there are no tie bars to restrict mould placement across the platen face. The platen dimensions are 1,100 × 1,100 mm, with a platen opening stroke of 907 mm. Mould height can range from a minimum of 393 mm up to a maximum of 1,300 mm, giving considerable flexibility for tooling of varying sizes.
The injection unit is configured with a nozzle tip radius of R35 and a centering ring diameter of 160 mm. Heater power is rated at 21.35 kW, and the machine is equipped with a 32-pin electrical connection. Overall machine dimensions are 5,861 × 1,923 × 2,300 mm, and the unit has a total weight of 19,400 kg.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
