2015 - Engel Victory 330 80 Injection Moulding()
- Listing No
- 1153397
- Year
- 2015
- Manufacturer
- Engel
- Model
- Victory 330 80
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
This Engel Victory 330/80 Tech was manufactured in 2015. It features a clamping force of 800 kN, a screw diameter of 35 mm, and a maximum injection volume of 154 cm³. The machine dimensions are 3974 x 1437 x 1932 mm, weighing 5300 kg. Currently in production with excellent condition and 37,235 operating hours. If you are looking to get high-quality injection moulding capabilities, consider the Engel Victory 330/80 Tech machine we have for sale. Contact us for more information. Location: RO Screw Diameter: 35 mm Maximum injection volume: 154 cm³ Minimum mould height: 242 mm Maximum mould height: 699 mm Platen opening stroke: 475 mm Platen dimensions (W x L): 670 x 600 mm Heater power: 9.25 kW Number of electrical connection pins: 16 Injection nozzle radius (tip): R35 Centering ring diameter: 125 mm Equipped with robot: No Robot interface: No Condition: Excellent Status: In production
About this machine

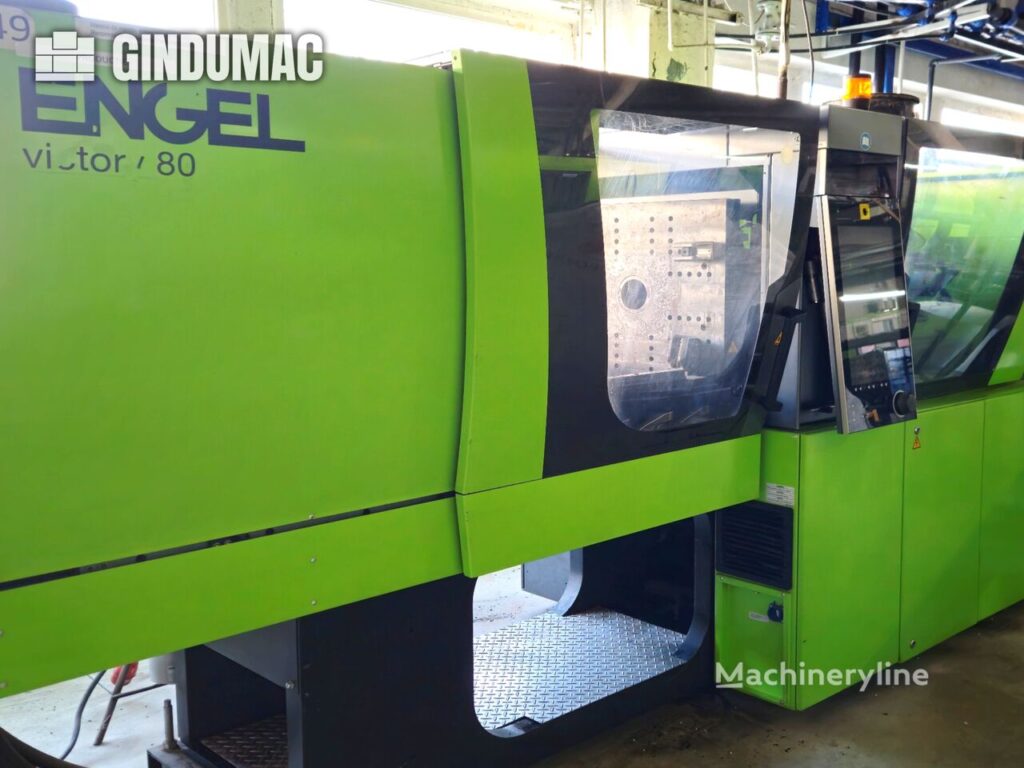

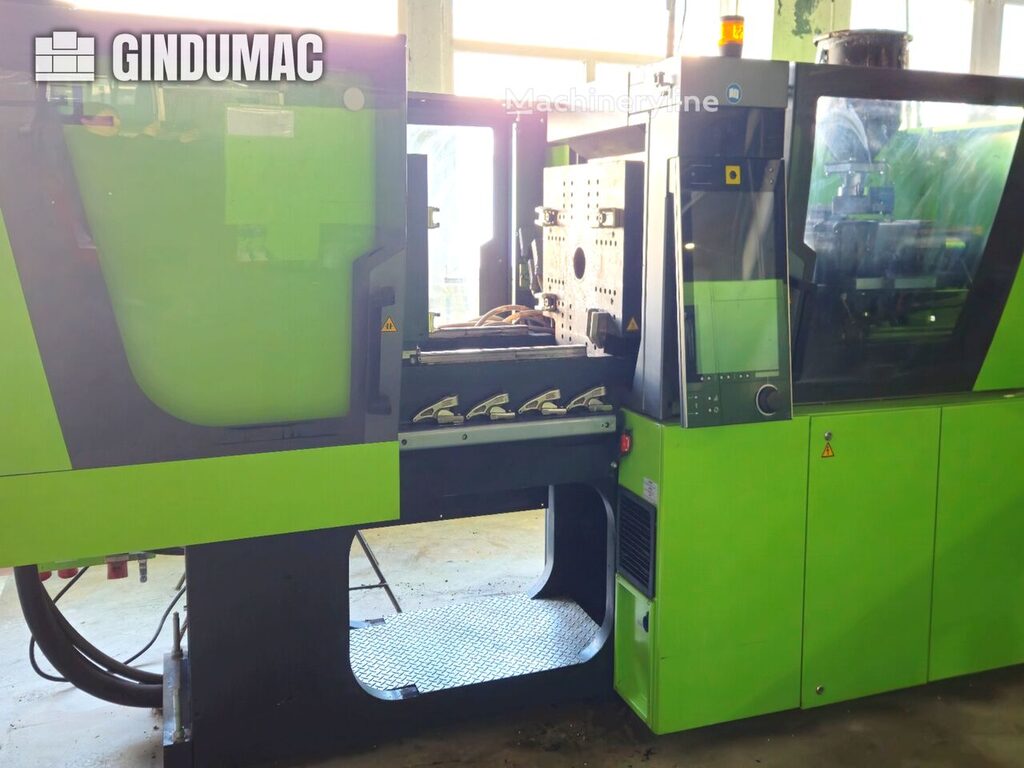

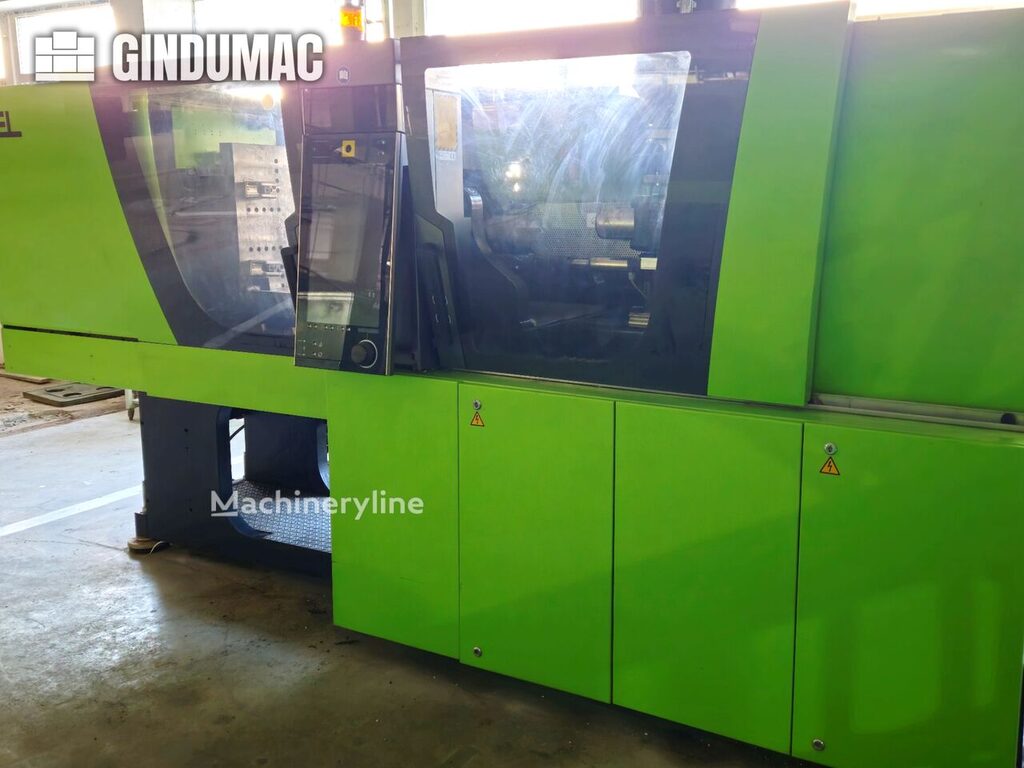

This Engel Victory 330 80 is an injection moulding machine — sometimes referred to as an injection moulding press — used to manufacture plastic components by injecting molten material into a closed mould under high pressure. Engel is a well-established Austrian manufacturer of injection moulding equipment, supplying machines to a broad range of industries including automotive, packaging, medical, and consumer goods.
This example was built in 2015 and is described as being in excellent condition, currently in active production, and has accumulated 37,235 operating hours. It is located in Germany.
The machine delivers a clamping force of 800 kN, which holds the mould halves firmly closed during injection. The injection unit is fitted with a 35 mm screw and is capable of a maximum injection volume of 154 cm³, making it well suited to small and medium-sized plastic parts. Heater power is rated at 9.25 kW.
The mould area is defined by platen dimensions of 670 x 600 mm, with a platen opening stroke of 475 mm. Minimum mould height is 242 mm and maximum mould height is 699 mm, giving a useful range of mould sizes that can be accommodated. The injection nozzle has a tip radius of R35 and the centering ring diameter is 125 mm. There are 16 electrical connection pins available for mould connections.
Overall machine dimensions are 3,974 x 1,437 x 1,932 mm and the total weight is 5,300 kg. The machine is not equipped with a robot and does not carry a robot interface.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
