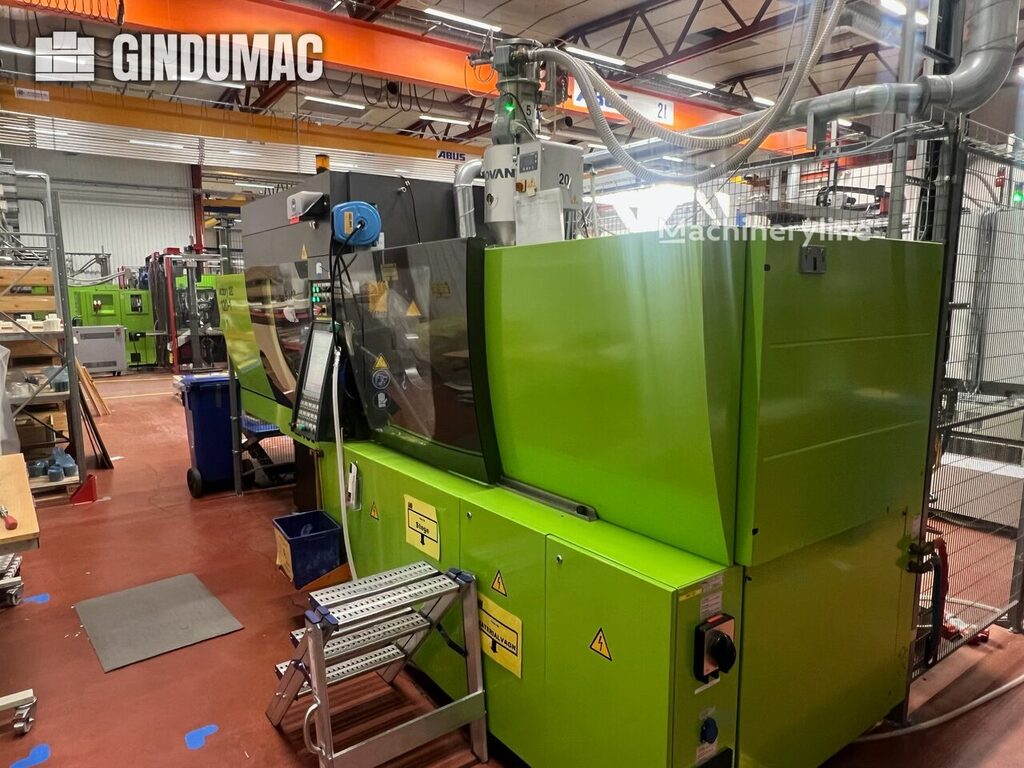

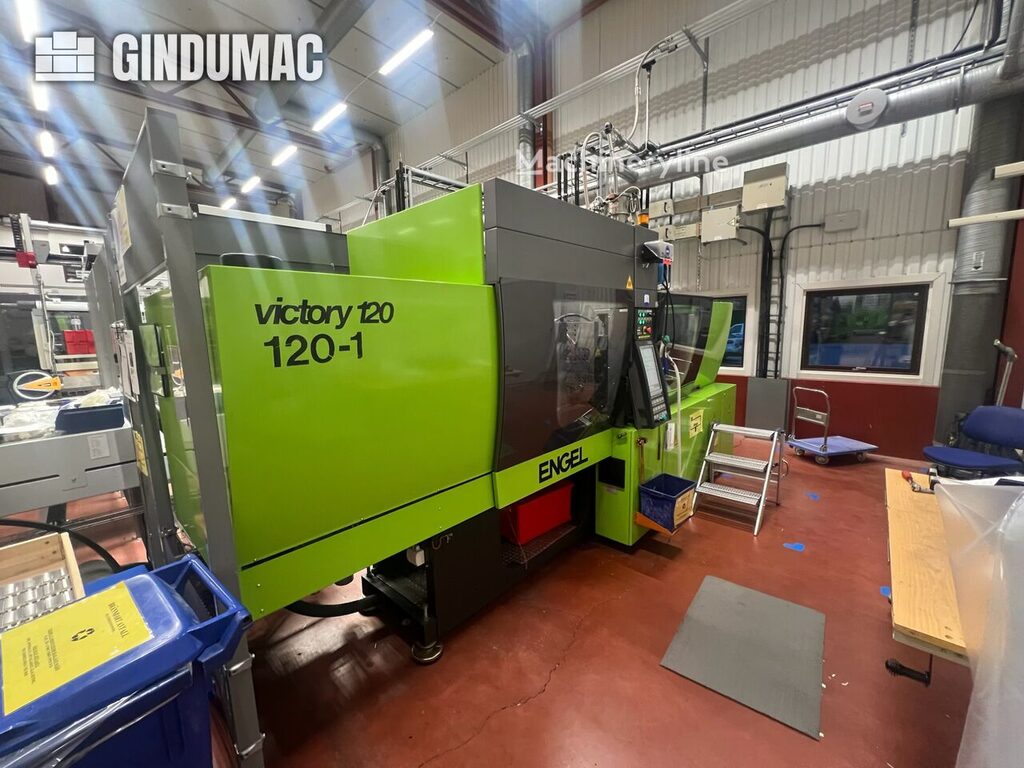

2010 - Engel Victory 500 12 Injection Moulding()
- Listing No
- 1153444
- Year
- 2010
- Manufacturer
- Engel
- Model
- Victory 500 12
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
This Engel Victory 500/120 Tech was manufactured in 2010. It features a clamping force of 120t and a screw diameter of 40 mm. The machine has a minimum mold size of 300 mm, an opening of 500 mm, and a daylight of 800 mm. Dimensions are 5m x 1.7m, weighing 7 tons. Consider the opportunity to buy this Engel Victory 500/120 Tech hydraulic injection moulding machine. Contact us for more information about this machine. Location: SE Screw Diameter: 40 mm Control: CC 200 Screw diameter: 40 mm (231 g) Minimum mould height: 300 mm Opening stroke: 500 mm Daylight: 800 mm Running hours (total): 43,236 (as of 19/12/2025) Status: In production; planned to run until the middle of February next year
About this machine
This Engel Victory 500 12 is a used injection moulding machine — sometimes referred to as an injection moulding press — designed to produce plastic components by injecting molten material into a closed mould under high pressure. Engel is a well-established Austrian manufacturer of injection moulding machinery, supplying equipment to a wide range of industries including automotive, packaging, medical, and consumer goods.

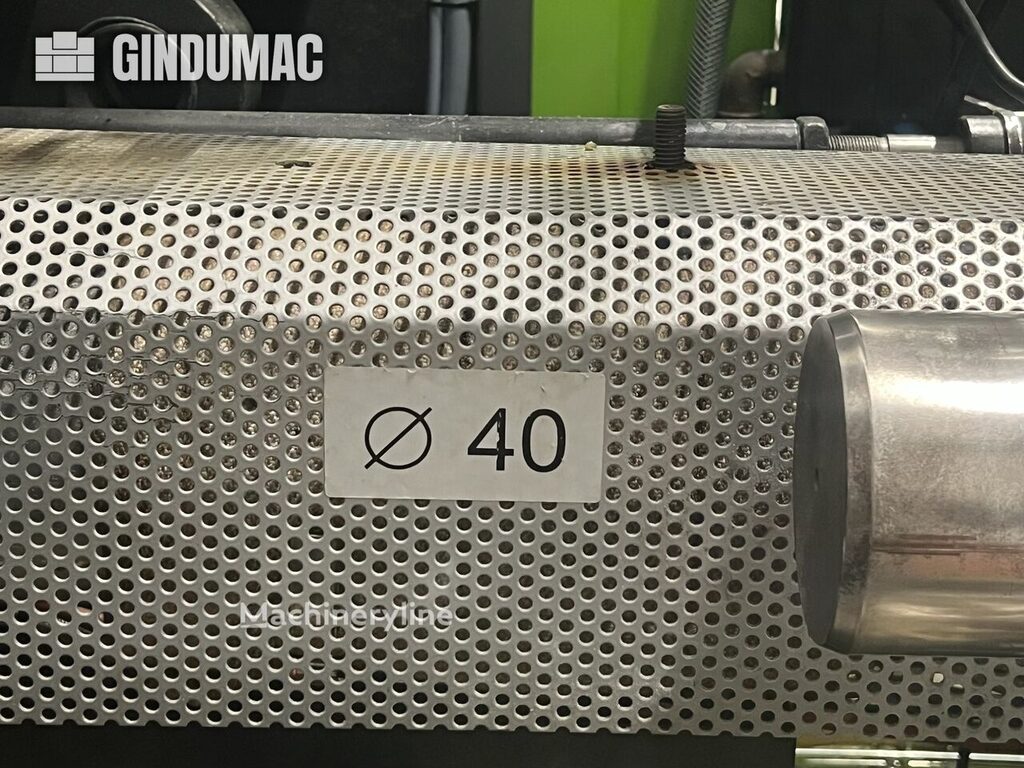

Built in 2010 and located in Germany, this machine is equipped with a hydraulic drive system and runs under Engel's CC 200 control unit. The screw diameter is 40 mm, with a shot capacity of 231 g. Clamping force is rated at 120 tonnes, making it suitable for a broad range of mid-sized moulding applications.
The mould area dimensions are well defined: a minimum mould height of 300 mm, an opening stroke of 500 mm, and a total daylight of 800 mm. The machine has an overall footprint of 5 m × 1.7 m and a total weight of approximately 7 tonnes.

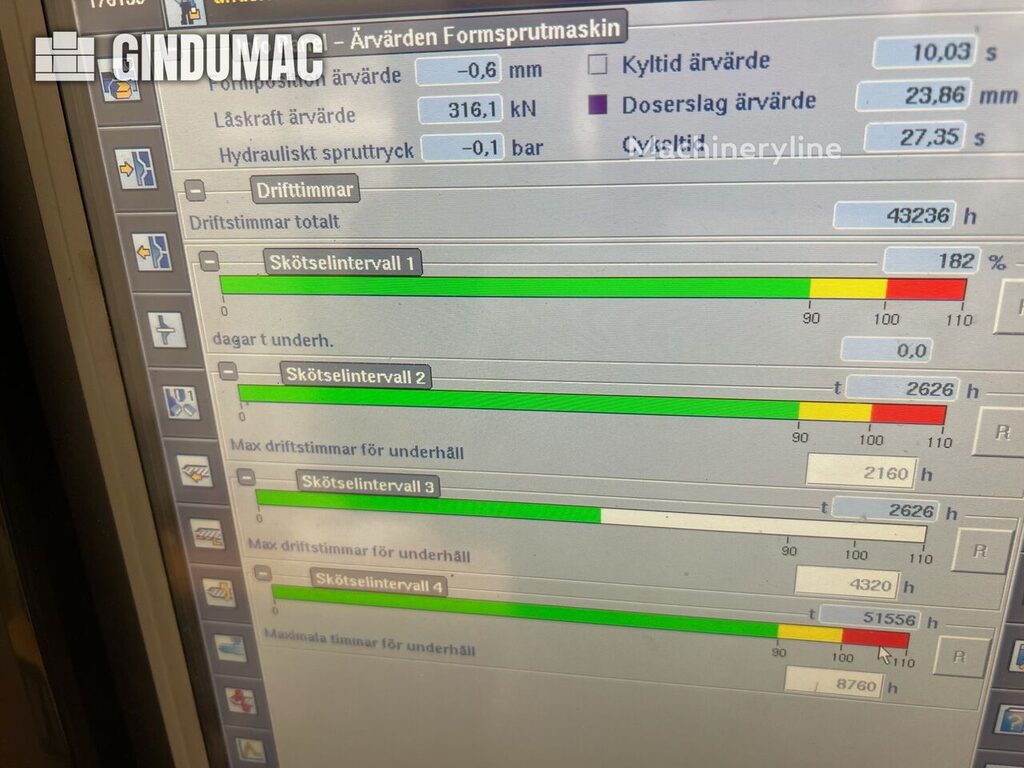

At the time of data capture on 19 December 2025, the machine had logged 43,236 running hours and was still active in production, with operation planned to continue until mid-February 2026.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
