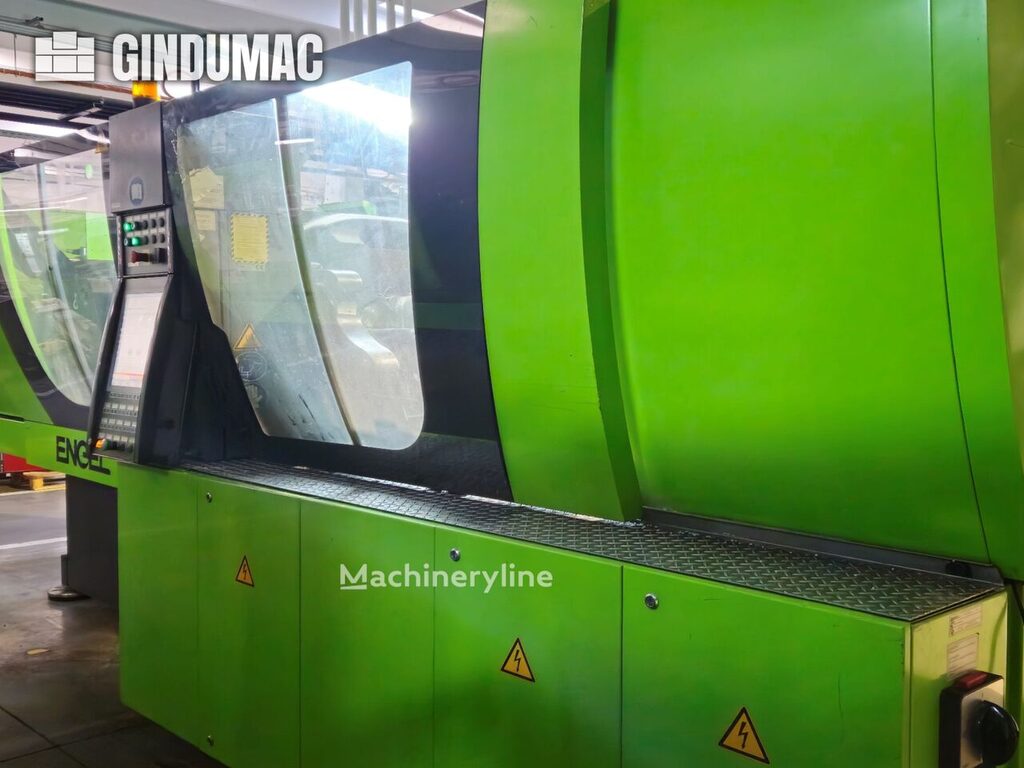

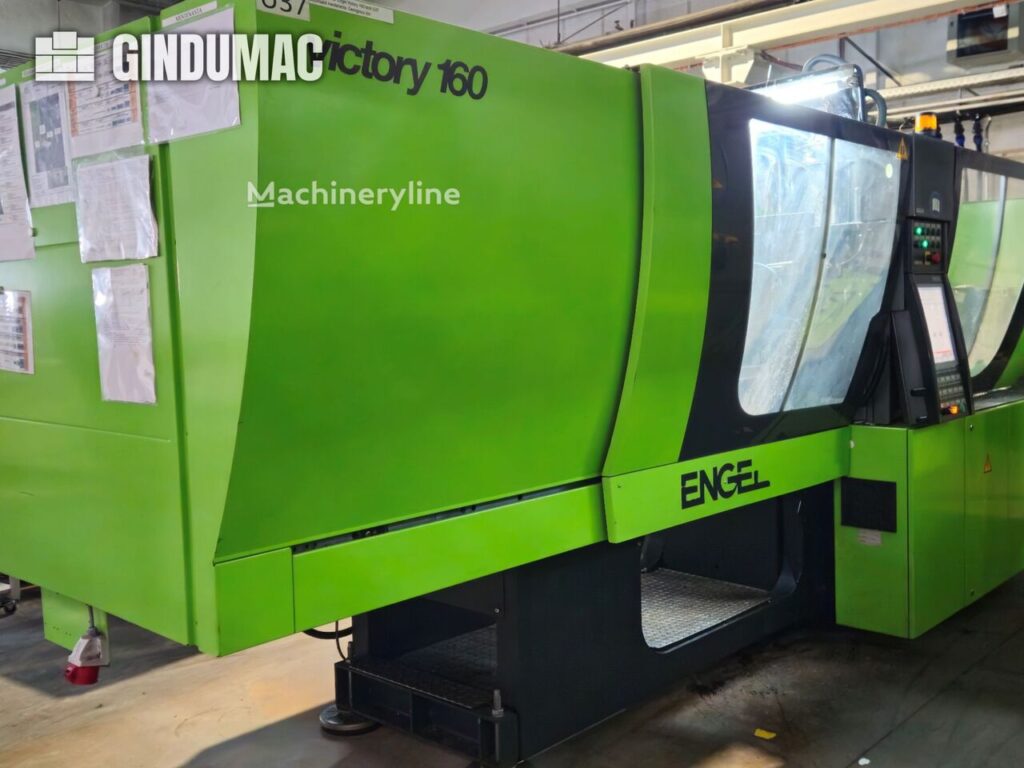

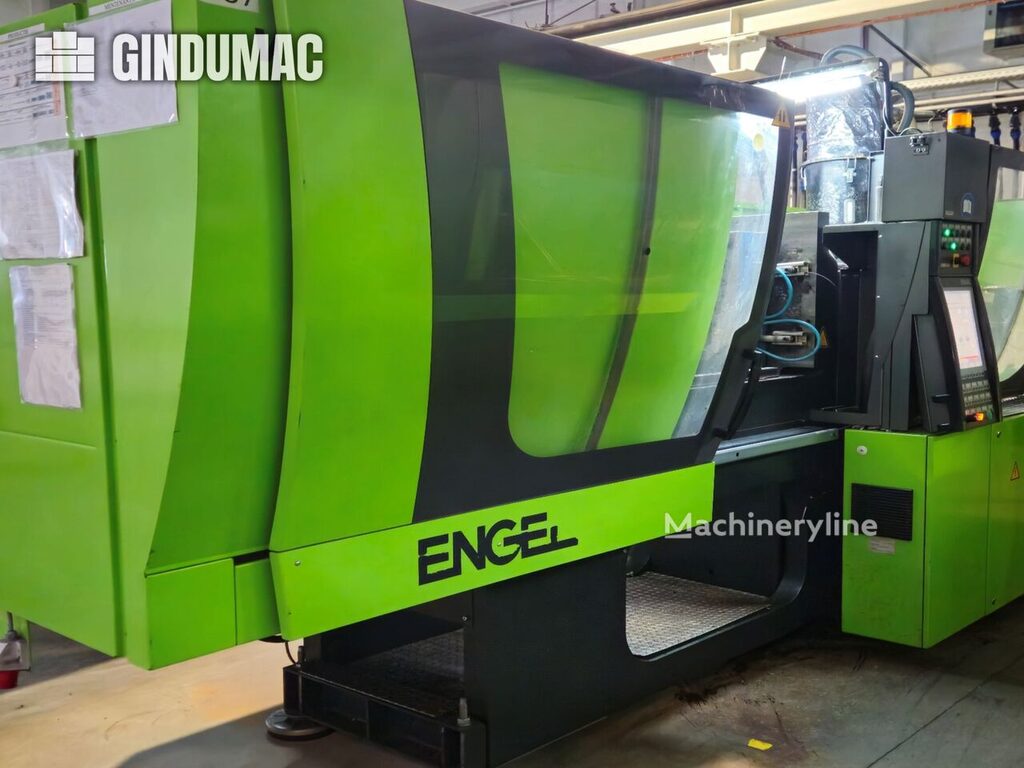

2012 - Engel Victory 650 16 Injection Moulding()
- Listing No
- 1153402
- Year
- 2012
- Manufacturer
- Engel
- Model
- Victory 650 16
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
This Engel VICTORY 650/160 tech was manufactured in 2012. It features a tie-bar-less design, enhancing flexibility and accessibility for various mould sizes, with a clamping force of 1600 kN and a screw diameter of 45 mm. It's equipped with a robot, ensuring efficient automation. If you are looking to get high-quality injection moulding capabilities, consider the Engel VICTORY 650/160 tech machine we have for sale. Contact us for more information about this machine. Location: RO Screw Diameter: 45 mm Condition: Excellent Status: In production Maximum injection volume: 318 cm³ Minimum mould height: 292 mm Maximum mould height: 900 mm Platen opening stroke: 609 mm Platen dimensions: 750 × 750 mm Tie-bar distance: Tie-bar-less design Heater power: 13.35 kW Number of electrical connection pins: 16 Injection nozzle radius (tip): R35 Centering ring diameter: 125 mm Equipped with robot: Yes Robot interface: Euromap 67 Additional equipment
About this machine
This Engel Victory 650 16 is a used injection moulding machine — sometimes referred to as a plastic injection press — designed to produce precision plastic components by injecting molten material into a closed mould under controlled pressure. Engel is a well-established Austrian manufacturer of injection moulding machinery, supplying equipment to a wide range of industries including automotive, packaging, medical technology, and consumer goods.
Built in 2012 and currently in active production, this machine is offered in excellent used condition from a location in Germany. One of its defining features is its tie-bar-less design, which eliminates the horizontal tie bars found on conventional machines and provides unrestricted access to the mould area. This architecture allows larger or awkwardly shaped moulds to be mounted more easily and enables the full platen surface to be used, making the machine particularly versatile across a range of part geometries and mould sizes.
The machine delivers a clamping force of 1,600 kN and accommodates moulds with a minimum height of 292 mm and a maximum height of 900 mm. The platen dimensions measure 750 × 750 mm, and the platen opening stroke is 609 mm, providing a practical working envelope for medium to large moulded parts. The injection unit is fitted with a 45 mm screw diameter and offers a maximum injection volume of 318 cm³. The injection nozzle carries a tip radius of R35 and the centering ring diameter is 125 mm, standard dimensions that facilitate tooling compatibility. Heater power is rated at 13.35 kW, and the machine is equipped with 16 electrical connection pins.
The machine comes with an integrated robot, interfaced via the Euromap 67 standard, which is the widely adopted protocol for communication between injection moulding machines and peripheral automation equipment. This integration enables synchronised part removal, handling, or downstream operations without manual intervention, supporting higher throughput and consistent cycle times.
