2015 - Engel Victory 750 18 Injection Moulding()
- Listing No
- 1153391
- Year
- 2015
- Manufacturer
- Engel
- Model
- Victory 750 18
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-

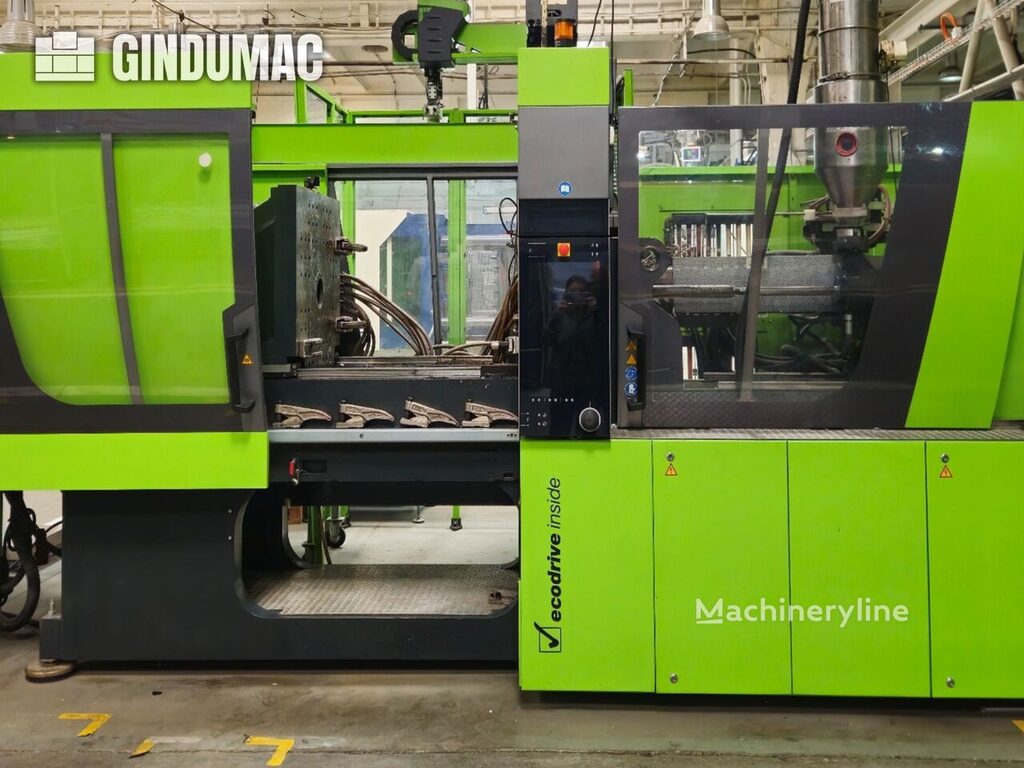

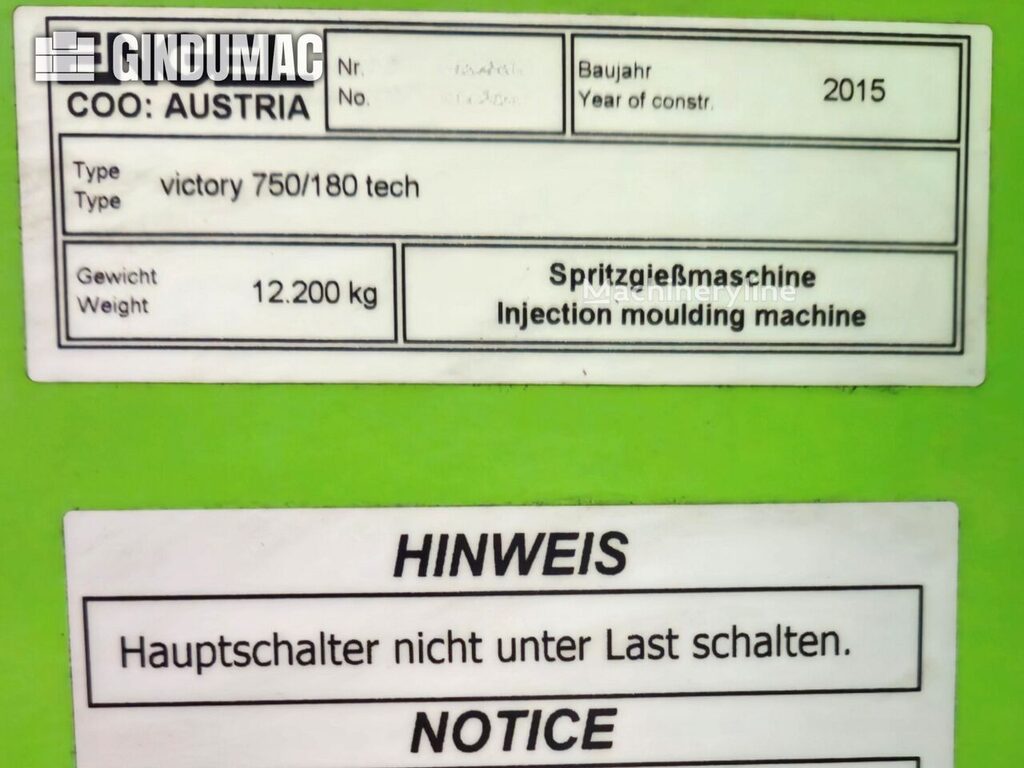

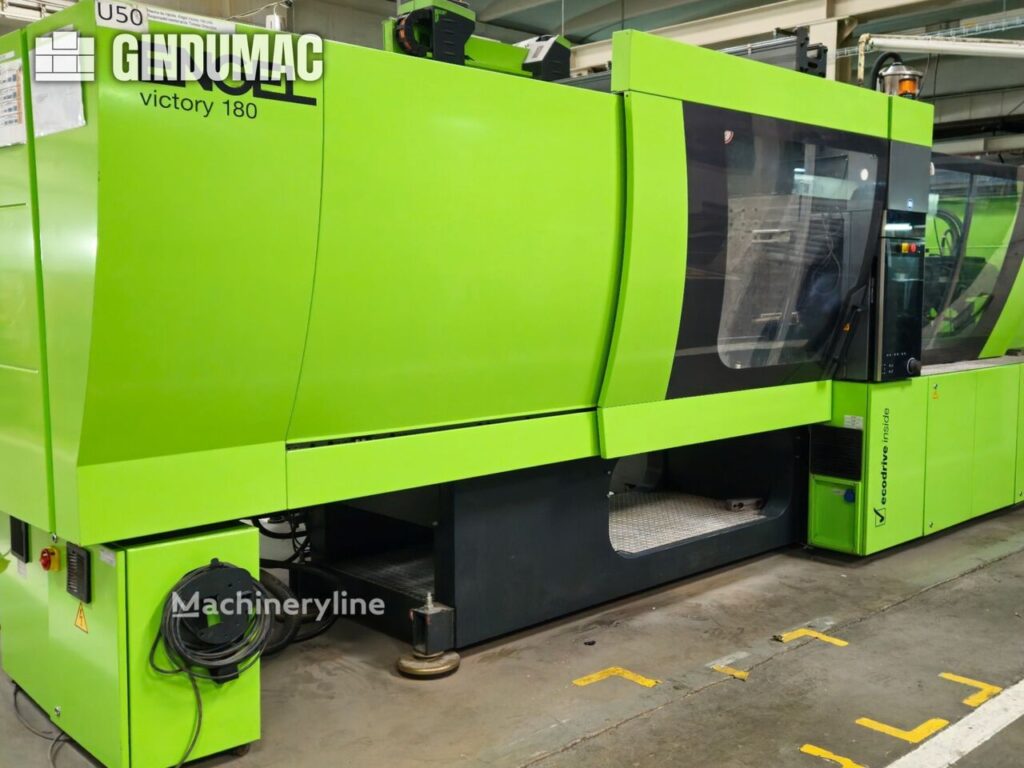

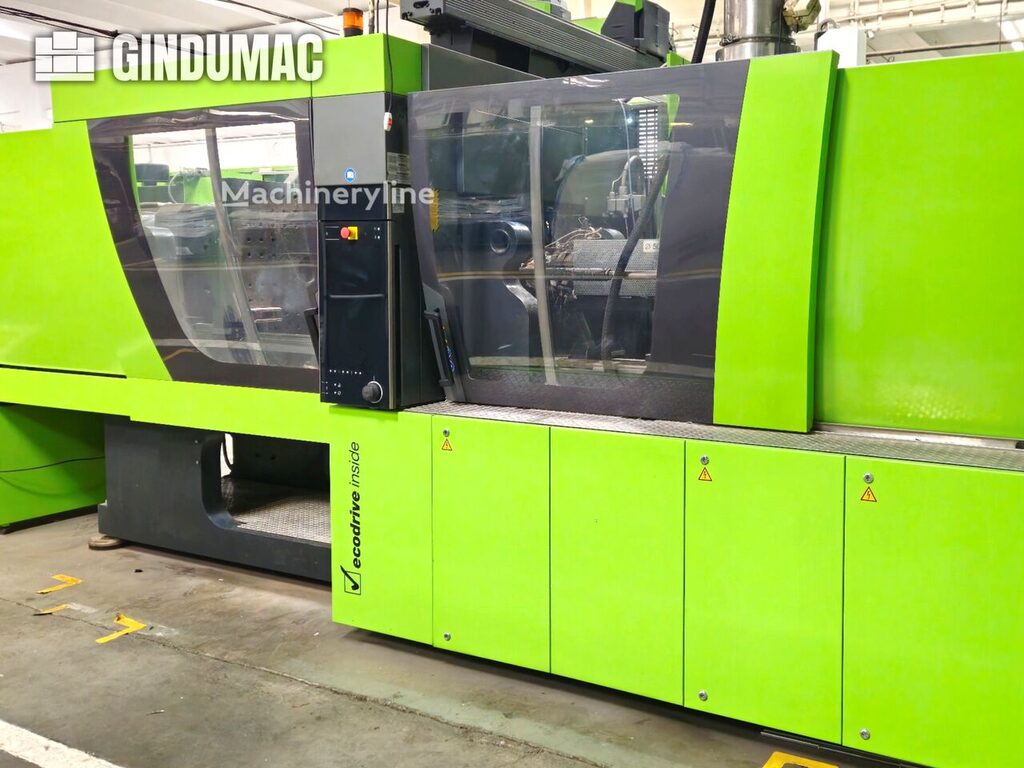

This Engel VICTORY 750/180 tech was manufactured in 2015. It features a tie-bar-less design, enhancing flexibility and accessibility for various mould sizes. With a clamping force of 1,800 kN and a screw diameter of 50 mm, it supports a maximum injection volume of 393 cm³. Currently in production and in excellent condition, this machine also includes a robot interface EUROMAP 67. Contact us for more information about this machine. Location: RO Screw Diameter: 50 mm Condition: Excellent Status: In production Maximum injection volume: 393 cm³ Minimum mould height: 292 mm Maximum mould height: 1,049 mm Platen opening stroke: 757 mm Platen dimensions (W × L): 880 × 830 mm Tie-bar distance: Tie-bar-less design Heater power: 15.35 kW Electrical connection pins: 16 Injection nozzle radius (tip): R35 Centering ring diameter: 125 mm Robot interface: EUROMAP 67 Equipped with robot: Yes Additional equipment
About this machine
This Engel Victory 750 18 is a used injection moulding machine — also commonly referred to as an injection moulder or plastic injection press — designed for the precision manufacture of plastic components by injecting molten material into a closed mould under high pressure. Engel is a well-established Austrian manufacturer with a long-standing reputation in the plastics processing industry, producing injection moulding machines and automation systems for sectors ranging from automotive and packaging to medical technology and consumer goods.
Built in 2015 and currently in production in excellent condition, this machine is based on Engel's tie-bar-less design, which removes the horizontal tie bars found on conventional machines and allows unobstructed access to the mould area from all sides. This architecture makes it considerably easier to accommodate large or unusually shaped moulds relative to the machine's footprint, and simplifies mould changes.
The machine delivers a clamping force of 1,800 kN and accepts a screw diameter of 50 mm, supporting a maximum injection volume of 393 cm³. Mould height can be set anywhere between a minimum of 292 mm and a maximum of 1,049 mm, while the platen opening stroke is 757 mm. The platen dimensions measure 880 mm by 830 mm, providing a generous mounting surface. The injection nozzle carries a tip radius of R35, and the centering ring diameter is 125 mm.
Heater power is rated at 15.35 kW, and the machine is configured with 16 electrical connection pins. A EUROMAP 67 robot interface is fitted as standard, and the machine is equipped with a robot, making it ready for automated part handling and integrated cell operation.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
