2004 - Hankook VLC 30 70 Lathe()
- Listing No
- 959275
- Year
- 2004
- Manufacturer
- Hankook
- Model
- VLC 30 70
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Metalworking - Vertical LatheUsed Hankook industrial machinery – VLC 30/70 from 2004 located in The Netherlands. This vertical lathe is equipped with a control unit Fanuc 18i-TB and has a turning diameter of 7000 mm, 2000 mm/min rapid feed and total output of 60/75 kW.More info:Machine with chip conveyor, C-axis and driven tools.____* Please note that this description may have been translated automatically. The information of this classified ad are only indicative and change without notice! GLOMACH recommends to check the details with the seller. Contact us for further information.* Control unit: Fanuc 18i-TB Faceplate diameter: 3000 mm Max. turning diameter: 7000 mm Max. turning height: 3000 mm W-Axis travel: 2000 mm Max. workpiece weight: 40 Ton Max. speed of the faceplates: 1 - 80 rpm Rapid feed: 2000 mm/min Rapid traverse: 8000 mm/min Total output: 60/75 kW Availability: Immediately Observations: *Information can sometimes be inaccurate and change without notice!
About this machine

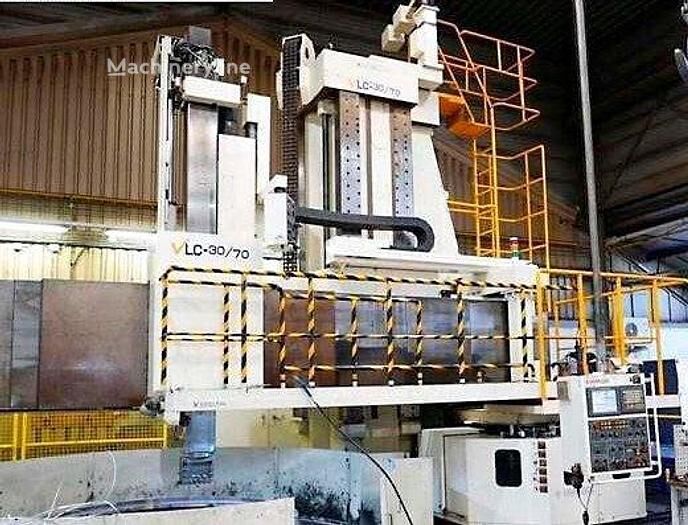

This Hankook VLC 30 70 is a used vertical lathe — sometimes referred to as a vertical turning lathe or VTL — a type of machine tool designed for the precise turning, boring, and facing of large, heavy, or complex cylindrical workpieces. Rather than rotating a part on a horizontal axis as a conventional centre lathe does, a vertical lathe holds the workpiece on a horizontal faceplate that rotates about a vertical axis, making it well suited to large-diameter components that would be impractical to support in a horizontal orientation. Hankook is a South Korean machine tool manufacturer with a longstanding reputation for producing heavy-duty lathes, machining centres, and boring machines serving industries such as energy, shipbuilding, aerospace, and general heavy engineering.

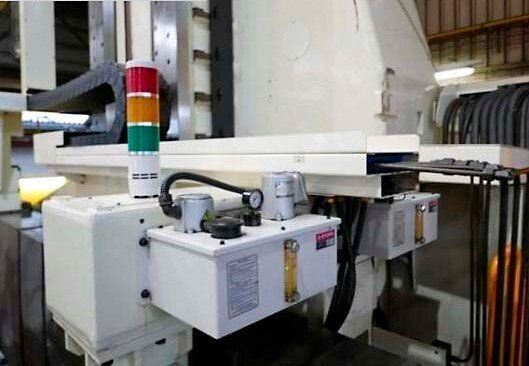

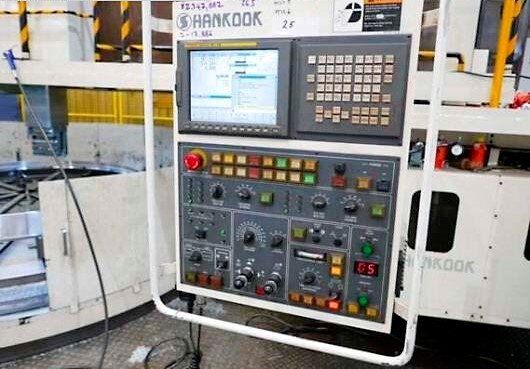

This example was built in 2004 and is located in the Netherlands, available for immediate collection. It is equipped with a Fanuc 18i-TB CNC control unit, a widely used and well-supported system in industrial turning applications. The machine features a C-axis and driven tools, extending its capability beyond plain turning to allow milling, drilling, and contouring operations without repositioning the workpiece. A chip conveyor is also fitted, supporting efficient swarf removal during continuous production.
The faceplate measures 3,000 mm in diameter, while the maximum turning diameter reaches 7,000 mm, accommodating exceptionally large workpieces. Maximum turning height is 3,000 mm, and the W-axis travel extends to 2,000 mm. The machine is rated to carry workpieces weighing up to 40 tonnes. Faceplate speed ranges from 1 to 80 rpm, providing the broad speed range needed to turn both very large and relatively smaller diameters at appropriate cutting speeds.
Feed and traverse rates are well specified: rapid feed is 2,000 mm/min and rapid traverse reaches 8,000 mm/min, enabling efficient non-cutting movements across the working envelope. Total spindle output is rated at 60/75 kW, reflecting a dual-range power figure typical of machines with both continuous and short-term duty ratings.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
