Harrison M-250 Lathe()
- Listing No
- 960541
- Year
- Manufacturer
- Harrison
- Model
- M-250
- Condition
- Used
- Location
- Netherlands
- Price
- $4,750
- Description
-
Max. draaidiameter boven bed: 250 mm Max. draailengte tussen centers: 1000 mm Doorlaat in spindel: 37 mm Max. spindelsnelheid: 2000 rpm Spindelaansluiting: Camlock Gereedschapshouder type: Drehblitz Afmetingen machine (LxBxH): 150x80x120 Aansluitspanning: 400 V DC Digitale uitlezing: Ja 2 assen Koelvloeistofinstallatie
About this machine

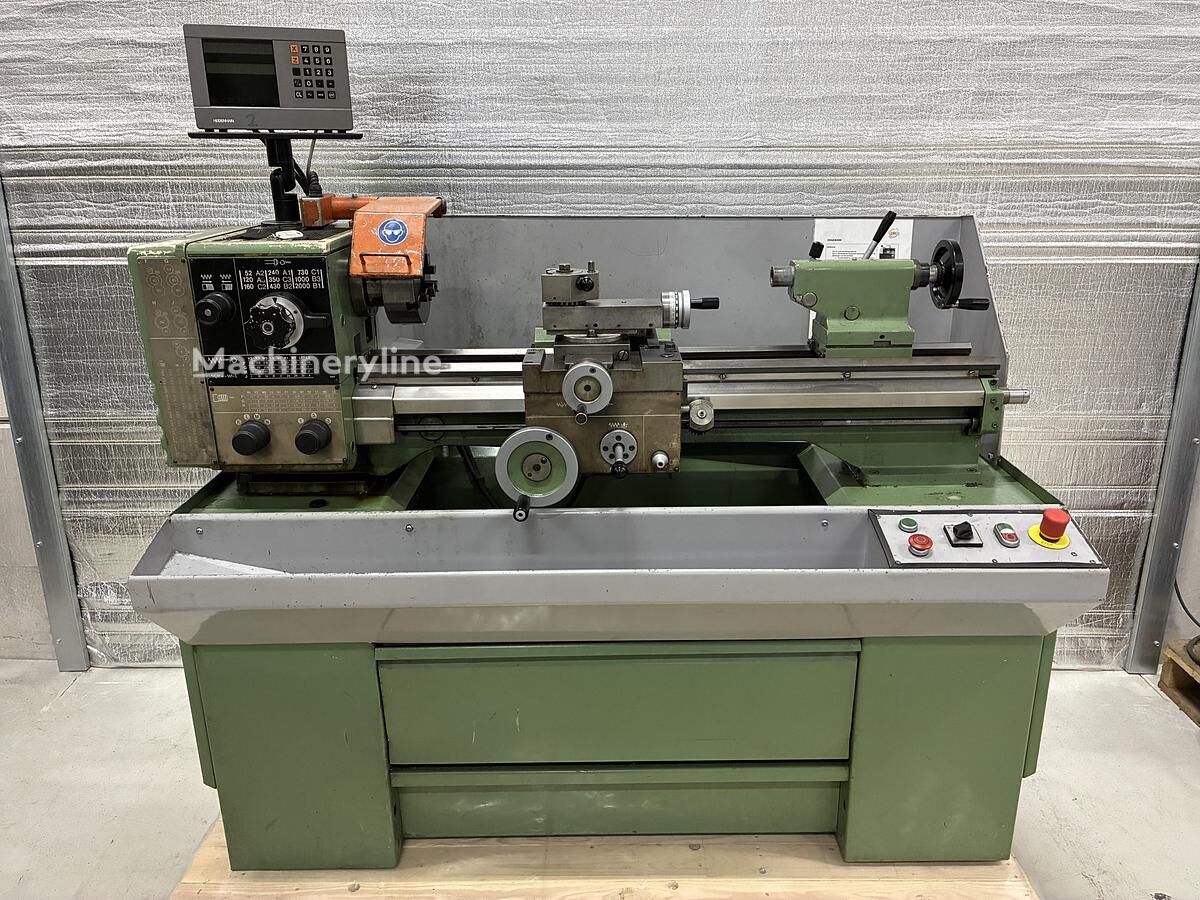

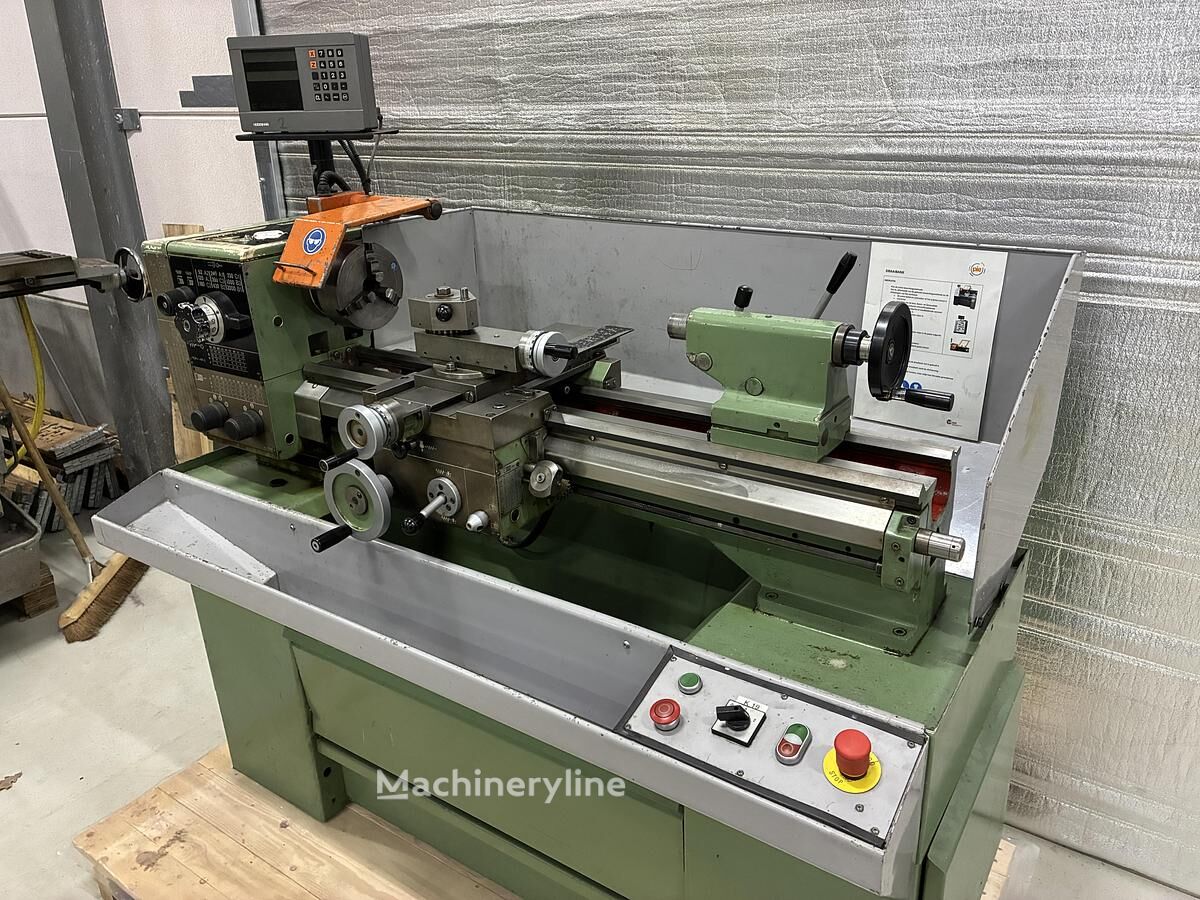

The Harrison M-250 is a used lathe — sometimes referred to as a centre lathe or engine lathe — a machine tool designed for turning, facing, boring, and threading cylindrical workpieces by rotating them against a cutting tool. Harrison is a well-established British machine tool manufacturer with a long history of producing precision lathes for engineering workshops, toolrooms, and light industrial applications.
This machine has a maximum swing diameter over the bed of 250 mm and a turning length between centres of 1,000 mm, making it a capable general-purpose lathe suited to a wide range of medium-sized workpieces. The spindle bore measures 37 mm, allowing bar stock of up to that diameter to be passed through and worked without additional setup. The spindle reaches a maximum speed of 2,000 rpm and is fitted with a Camlock connection, a standardised quick-change mounting system that allows chucks and faceplates to be swapped efficiently and securely.

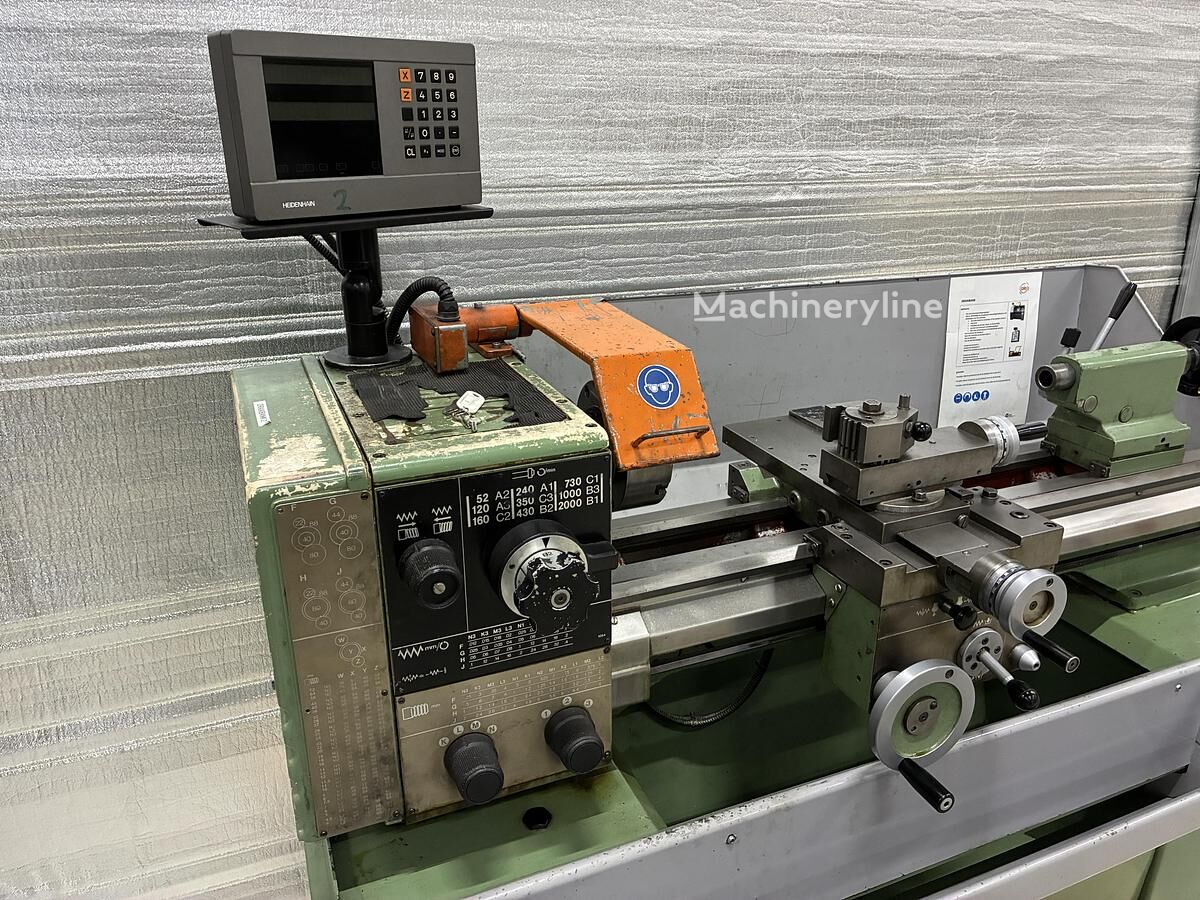

The toolpost is a Drehblitz-type holder, a quick-change toolpost system that enables rapid indexing and replacement of cutting tools without re-zeroing, which supports consistent and efficient production work. The machine is equipped with a two-axis digital readout, giving the operator real-time positional feedback on both the longitudinal and cross-slide axes, which improves accuracy and reduces the need for manual calculation during turning operations. A coolant system is also installed, enabling the use of cutting fluid to extend tool life and improve surface finish during machining.
The lathe runs on a 400 V supply and has overall dimensions of 1,500 × 800 × 1,200 mm. It is located in the Netherlands and is offered in used condition at a price of $4,750.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
