Hembrug DR1 Lathe()
- Listing No
- 966284
- Year
- Manufacturer
- Hembrug
- Model
- DR1
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Lathe AI DR1 Centre distance 470 mm Swing over bed: 270 mm Swing over cross slide: 145 mm Spindle speeds: 56 - 4000 rpm Spindle bore: 26 mm Digital readout: On X- and Y-axis Country of origin: The Netherlands Motor power: 1,75 HP Machine weight: 900 kg Machine LxWxH: 1200 x 460 x 1200 mm
About this machine

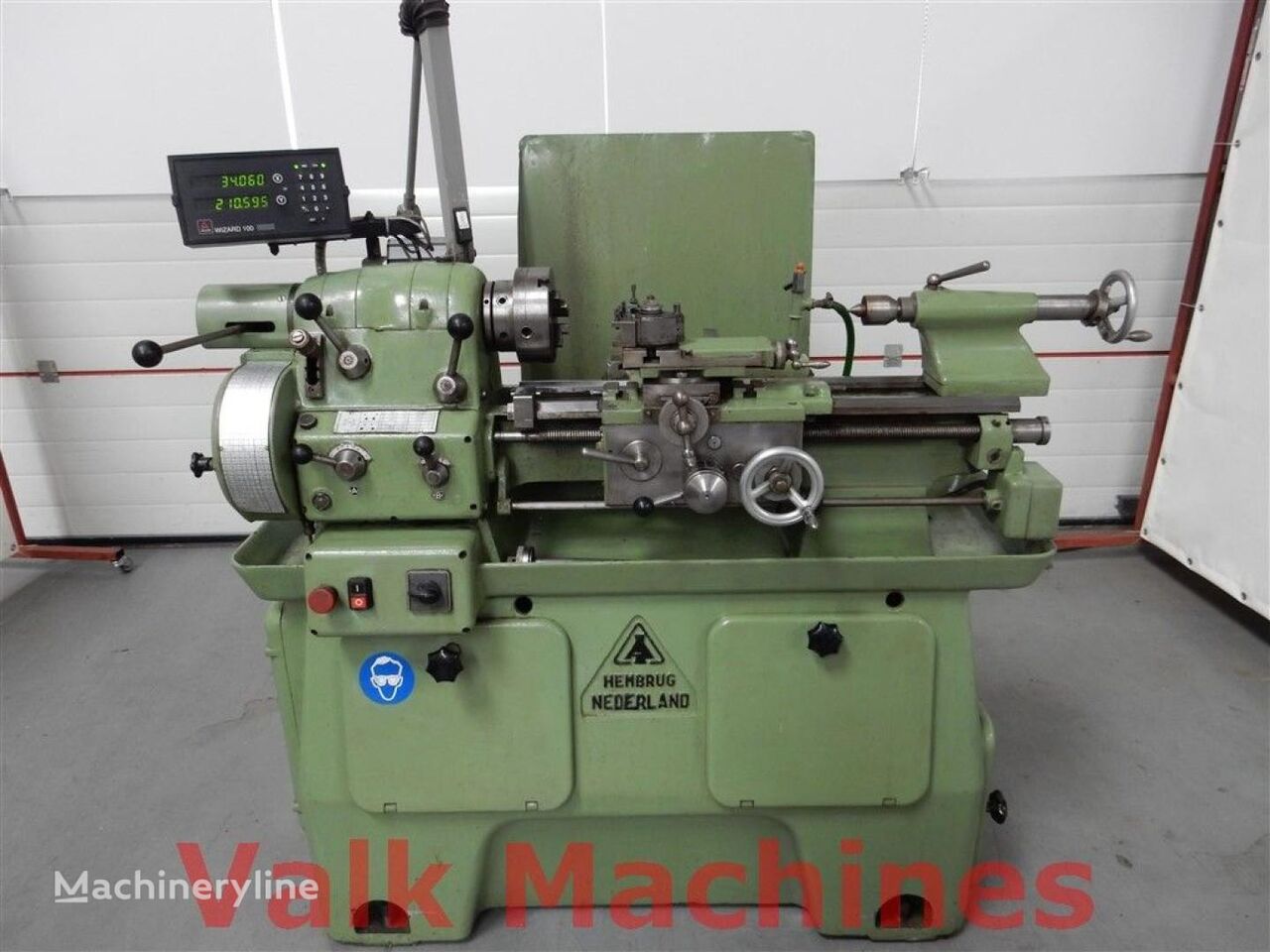

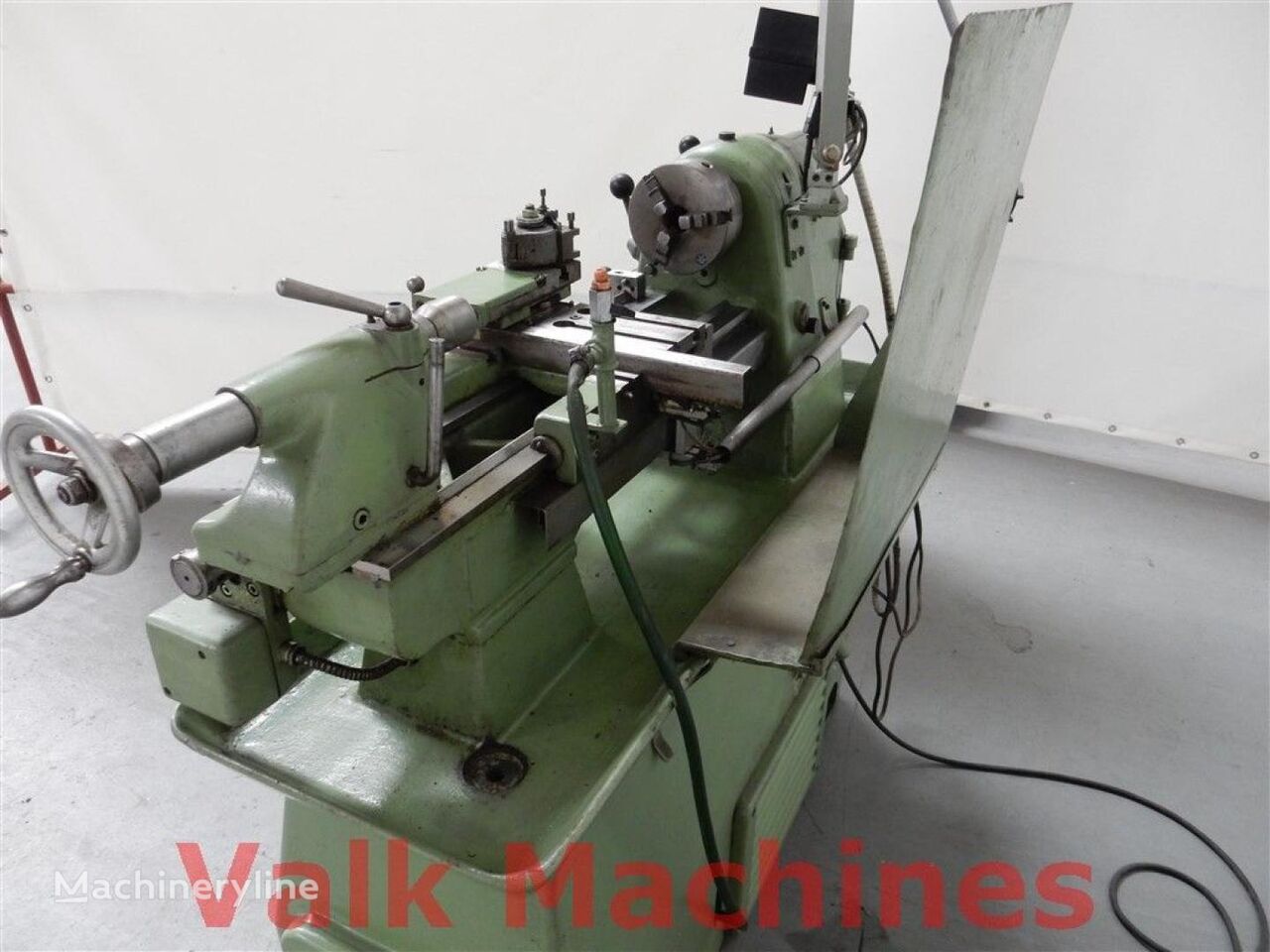

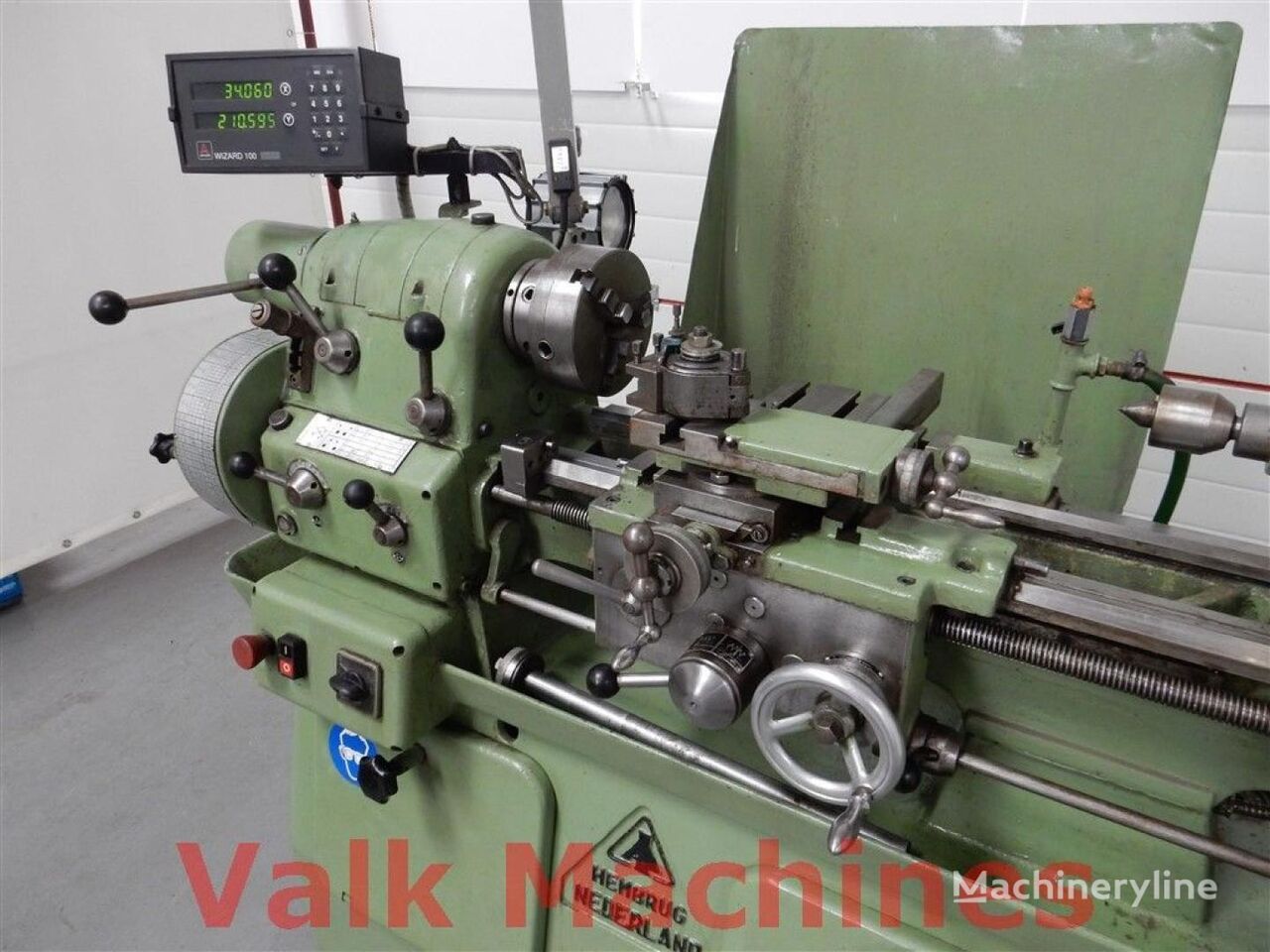

The Hembrug DR1 is a used lathe — sometimes called a centre lathe or turning lathe — a precision machine tool used for shaping metal workpieces by rotating them against a cutting tool. Hembrug is a Dutch manufacturer with a long-standing reputation for producing high-accuracy machine tools, particularly lathes and grinding machines, serving industries where tight tolerances and fine surface finishes are essential.
This machine offers a centre distance of 470 mm, which defines the maximum length of workpiece that can be held between centres, and a swing over bed of 270 mm, indicating the largest workpiece diameter that can rotate above the bed. The swing over cross slide is 145 mm, reflecting the usable turning diameter above the tool-holding carriage. These dimensions make the DR1 a compact but capable lathe suited to precision component work.
The spindle speed range runs from 56 to 4,000 rpm, providing considerable versatility for machining different materials and diameters — lower speeds for large or tough workpieces and higher speeds for fine finishing cuts on smaller stock. The spindle bore of 26 mm allows bar stock of up to that diameter to be fed through the headstock for continuous turning operations.

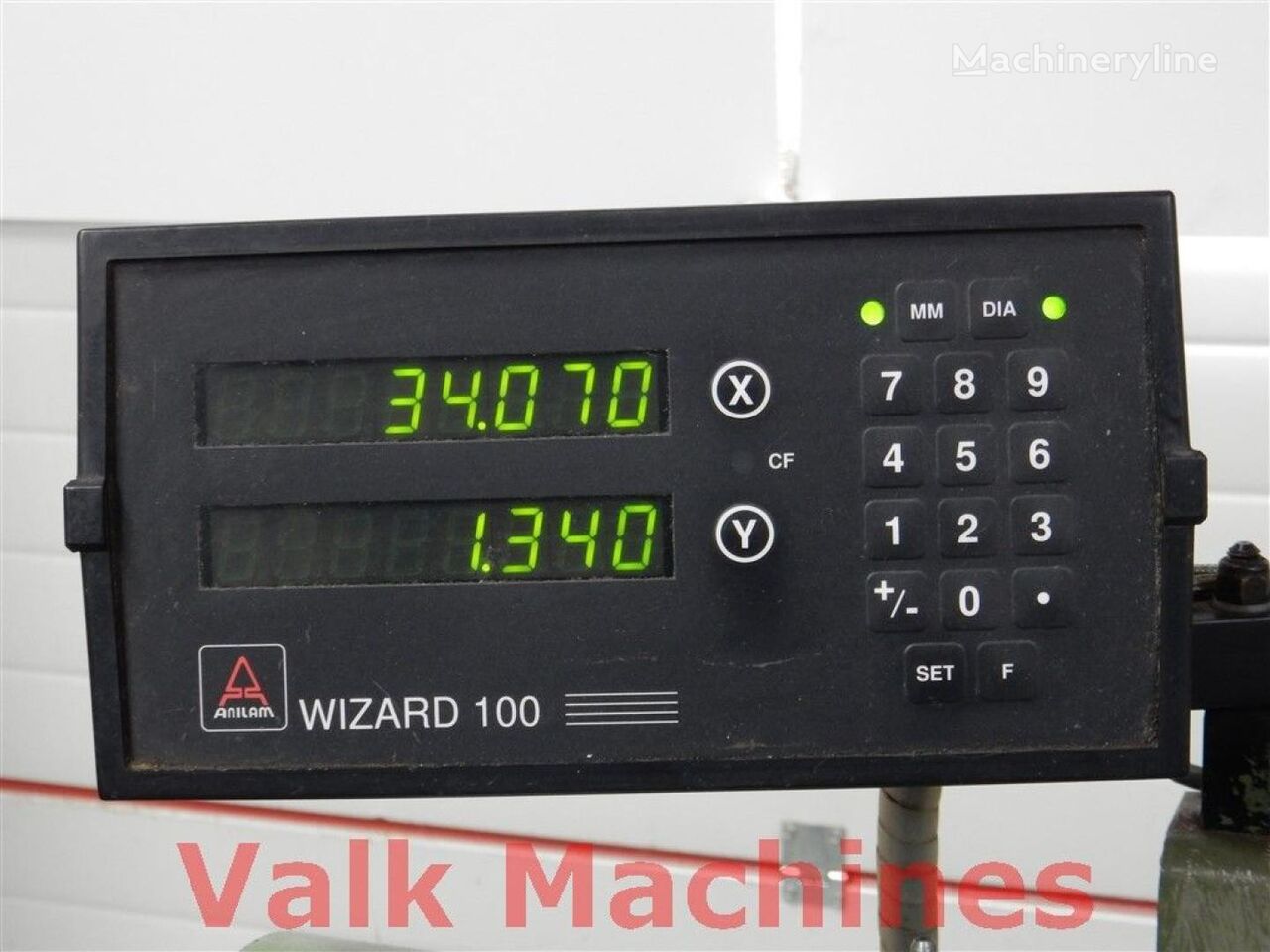

A digital readout is fitted on both the X- and Y-axis, giving the operator accurate positional feedback during cutting and reducing the risk of manual measurement error. The machine is driven by a motor rated at 1.75 HP. It weighs 900 kg and has overall dimensions of 1,200 × 460 × 1,200 mm (length × width × height). The machine is located in the Netherlands, its country of origin.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
