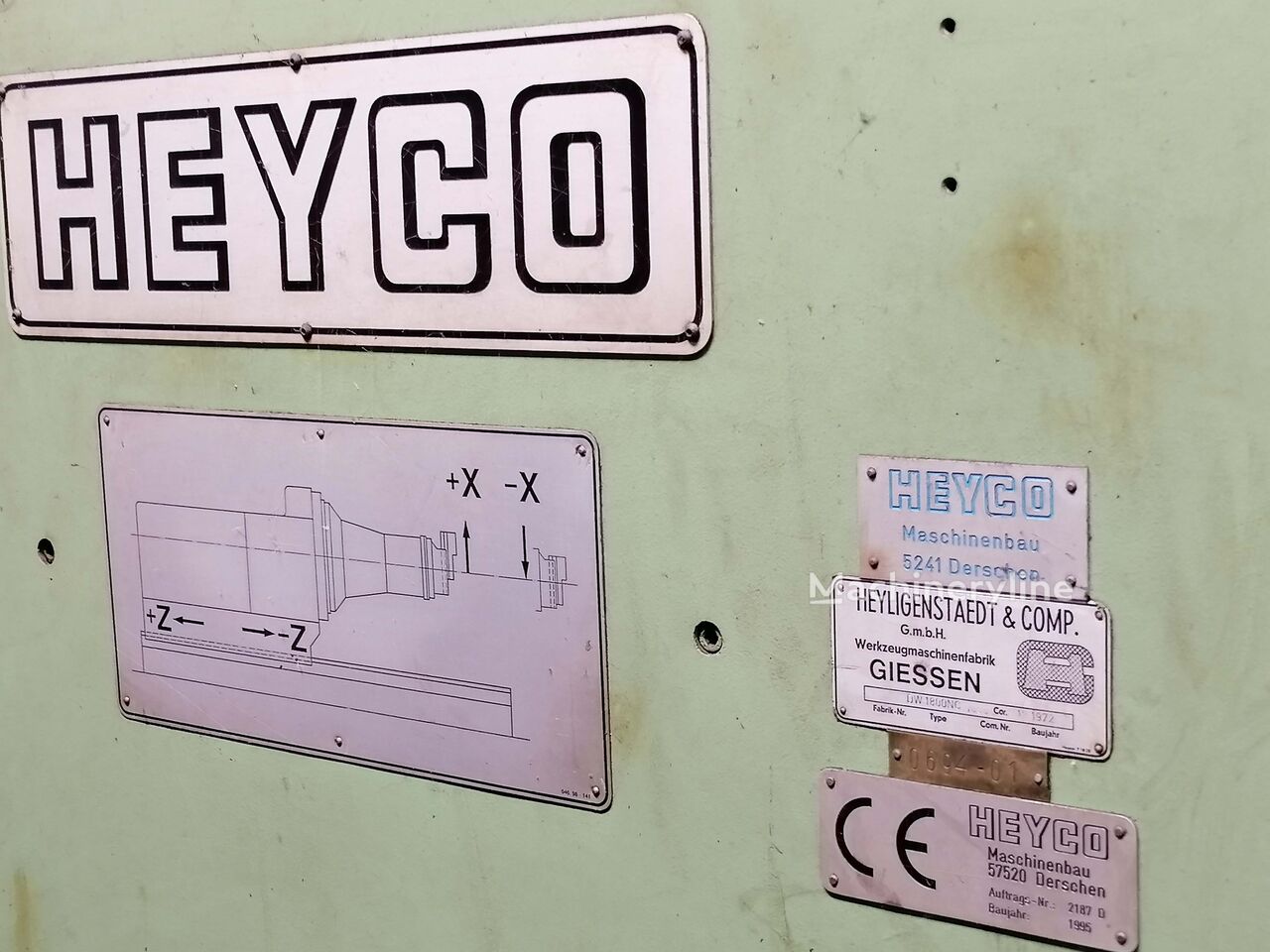

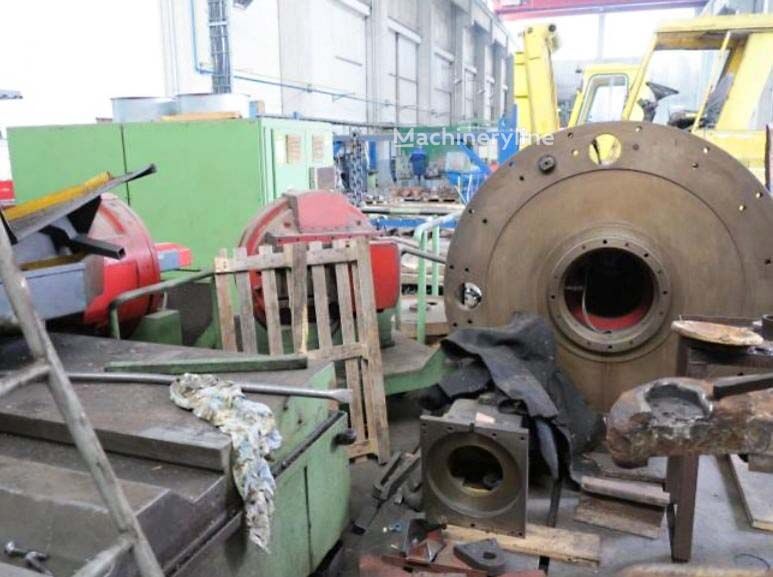

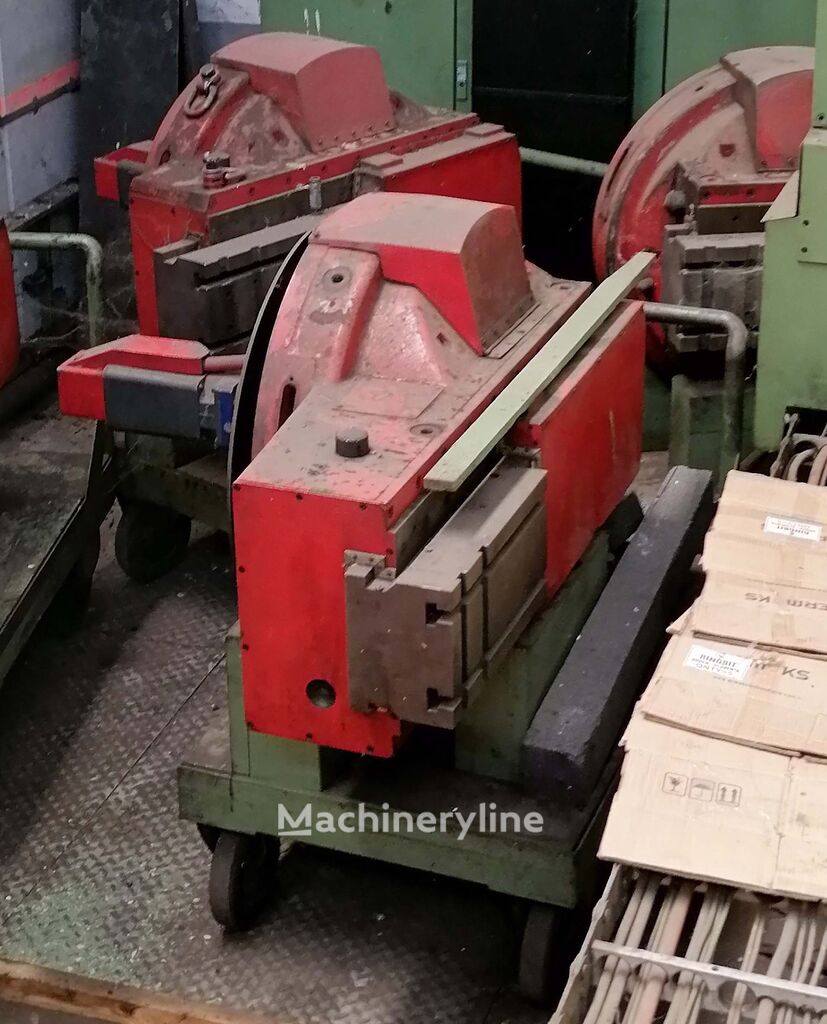

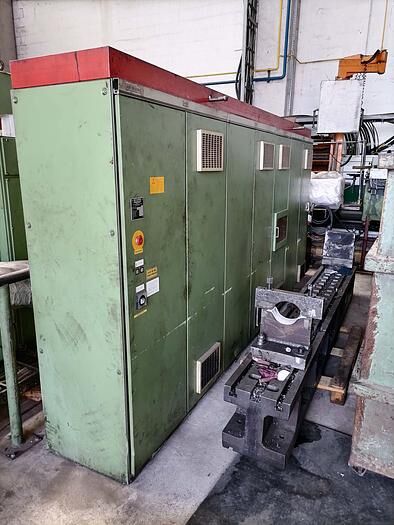

1972 - Heyligenstaedt DW 1800 Lathe()
- Listing No
- 959445
- Year
- 1972
- Manufacturer
- Heyligenstaedt
- Model
- DW 1800
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Metalworking - Heavy Duty CNC LatheUsed Heyligenstaedt industrial machinery – DW 1800 from 1972 located in Slovenia. This heavy duty high precision lathe has a turning length of 3950 mm, 0.45 - 90 mm/min spindle revolution and motor power of 63 kW.More info:Refurbished and Modernised in 1996____* Please note that this description may have been translated automatically. The information of this classified ad are only indicative and change without notice! GLOMACHT recommends to check the details with the seller. Contact us for further information.* Made in: Germany Turning diameter: Ø600 - Ø2800 mm Max. turning length: 3950 mm Center height: 1600 mm Spindle revolution: 0.45 - 90 mm/min X-axis traverse: 0 - 200 mm/min Z-axis traverse: 0 - 400 mm/min Rapid traverse X-axis: 1200 mm/min Rapid traverse Z-axis: 2400 mm/min Availability: Immediately Observations: *Information can sometimes be inaccurate and change without notice!
About this machine
The Heyligenstaedt DW 1800 is a heavy-duty lathe — sometimes referred to as a centre lathe or turning machine — used for precision rotational machining of large metal workpieces. Heyligenstaedt is a German manufacturer with a long-standing reputation for producing high-precision heavy lathes and grinding machines, serving industries such as energy, shipbuilding, and heavy engineering where large-diameter, long-run turning operations are required.
This machine was built in Germany in 1972 and subsequently refurbished and modernised in 1996, extending its working life and bringing its control and mechanical systems up to a later standard. It is currently located in the Netherlands and is available immediately.
The lathe is specified for a turning diameter range of Ø600 mm to Ø2,800 mm and a maximum turning length of 3,950 mm, making it well suited to large, heavy components such as rolls, shafts, flanges, and similar industrial parts. The centre height stands at 1,600 mm, consistent with its capacity for substantial workpieces. Motor power is rated at 63 kW, providing the torque necessary for demanding cuts in hard or tough materials at this scale.
Spindle speed ranges from 0.45 to 90 mm/min, offering a broad spread of feed rates to accommodate both roughing and finishing passes. Axis traverse rates are 0 to 200 mm/min on the X-axis and 0 to 400 mm/min on the Z-axis, while rapid traverse is rated at 1,200 mm/min on the X-axis and 2,400 mm/min on the Z-axis, supporting efficient positioning between cuts on long workpieces.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
