Heyligenstaedt NDC 710 1800 Lathe()
- Listing No
- 949018
- Year
- Manufacturer
- Heyligenstaedt
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Type: NDC 710 / 1800 Besturing: R&D MTC3 Draai lengte: 8250 mm Draai Ø over bed: 1400 mm Draaidiameter over support: 1120 mm Vermogen spil: 100 kW Werkstukgewicht: 16000 4 Chuck 1400 mm Steady rest 3 units Ø 100-1050 Roller steady open 2 units Ø 1120 KNOLL Chip conveyor 2022 Boring bar Ø 260 x 3500 mm Boring bar Ø 200 x 1500 mm Boring bar Ø 150 x 1100 mm
About this machine

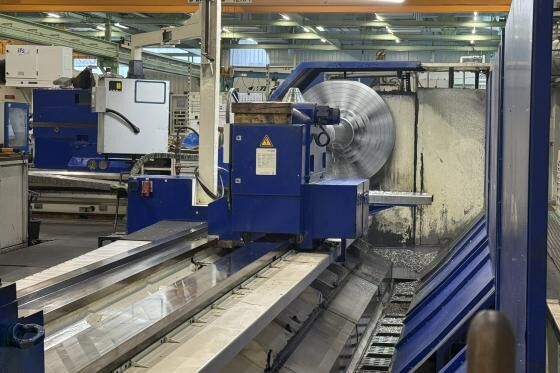

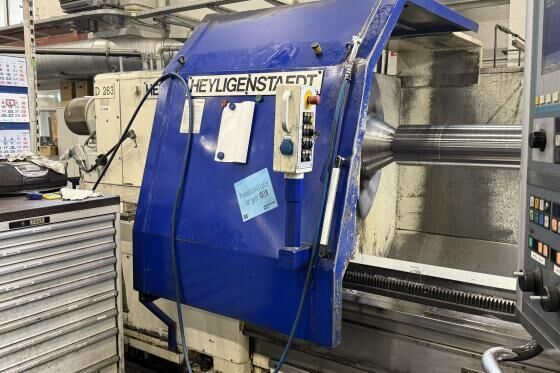

This Heyligenstaedt NDC is a used lathe — sometimes referred to as a centre lathe or turning lathe — a heavy-duty machine tool designed for rotating a workpiece against a cutting tool to perform turning, facing, boring, and similar precision machining operations. Heyligenstaedt is a well-established German manufacturer with a long history of producing large-capacity, high-precision lathes and grinding machines, primarily serving the heavy engineering, energy, and power generation industries where the machining of large, demanding workpieces is required.

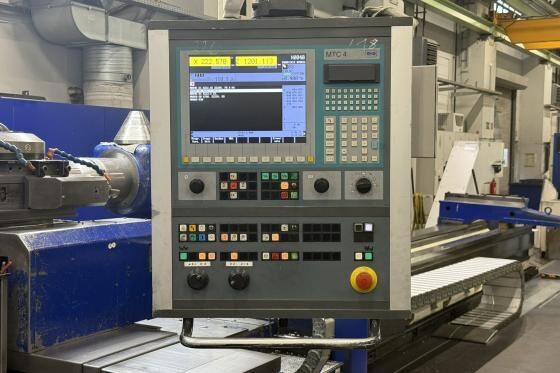

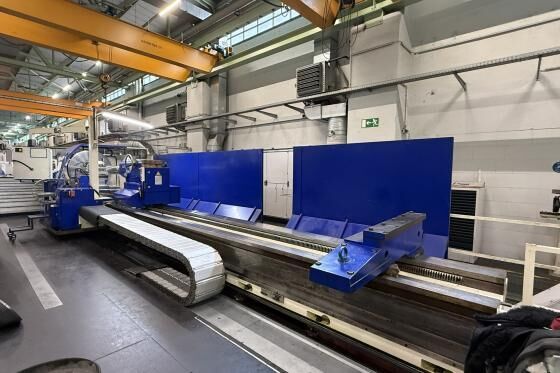

This machine is configured for substantial workpieces, with a turning length of 8,250 mm and a swing of 1,400 mm over the bed, giving it genuine heavy-duty capability. The turning diameter over the support is 1,120 mm. Spindle power is rated at 100 kW, reflecting the machine's capacity for aggressive cuts on large, heavy stock. The maximum supported workpiece weight is 16,000 kg, confirming its suitability for large shafts, rolls, and similar heavy components. Control is provided by an R&D MTC3 system.

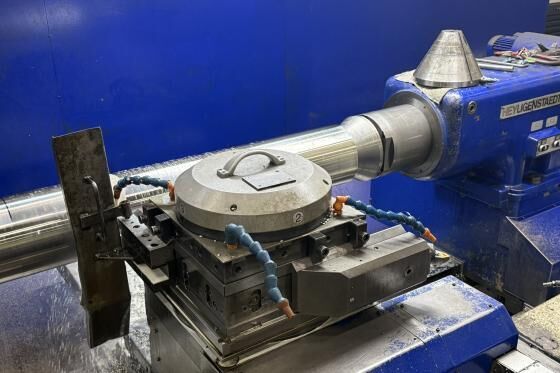

The machine is equipped with a 1,400 mm four-jaw chuck, appropriate for the swing diameter. Workpiece support is handled by three conventional steady rests covering a diameter range of 100 to 1,050 mm, alongside two open roller steadies rated to 1,120 mm diameter — the latter being well suited to supporting large cylindrical workpieces without full enclosure. A KNOLL chip conveyor, dated 2022, is included, indicating a relatively recent addition to the machine's auxiliary equipment.
Three boring bars are included with the machine: one of 260 mm diameter and 3,500 mm length, a second of 200 mm diameter and 1,500 mm length, and a third of 150 mm diameter and 1,100 mm length. This selection extends the machine's capability into internal boring operations across a range of bore sizes and depths. The machine is located in the Netherlands and is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
