2015 - Hyundai Wia L300C Lathe()
- Listing No
- 945702
- Year
- 2015
- Manufacturer
- Model
- L300C
- Condition
- Used
- Location
- United Kingdom
- Price
- POA
- Description
-
HYUNDAI WIA MODEL L300C 2 AXIS CNC LATHE WITH FANUC 0i-T. Very Low hours usage -2200 hours cutting time COOLANT SYSTEM - HIGH PRESSURE 20 BAR PARTS AUTOMATION - BARFEED INTERFACE CHIP CONVEYOR - SIDE HINGED CNC CONTROL OPTION - MANUAL GUIDE-I (NC FANUC 0i) PROBING - QUICK TOOL SETTER - MANUAL TRANSFORMER - 35 KVA AND CABLE MACHINE CONSTRUCTION & FEATURES Gs A Ejw Dcdyeqzbiebg • One Piece Heavy Duty Cast Iron Bed Construction for High Accuracy & Rigidity • 3,000 Rpm High Power Main Spindle • Heavy Duty Cutting with Excellent Performance • 12 Station Rigid Turret • 20 x 24 m/min Rapid Traverse • Hardened & Ground Solid Box Guide Ways MACHINE CAPACITIES Swing Over the Bed Ø 750 mm Swing Over the Carriage Ø 480 mm Maximum Turning Diameter Ø 560 mm Maximum Turning Length 720 mm Bar Capacity Ø 90 mm SPINDLE Chuck Size Ø 305 mm Spindle Bore Ø 102 mm Spindle Speed (rpm) 3,000 rpm Motor (Max/Cont.) 26/22 kW Torque (Max/Cont.) 1,098/929.7 Nm. Spindle Type Belt + 2 Step Gear Spindle Nose A2-8 FEED Travel X 335 mm Travel Z 750 mm Rapid Speed X 20 m/min Rapid Speed Z 24 m/min Slide Type Box TURRET Number of Tools 12 Tool Size - OD 25 mm² Tool Size - ID Ø 50 mm Indexing Time 0.3 Sec/Step TAILSTOCK Taper MT 5 Quill Diameter Ø 100 mm Quill Travel 120 mm Travel 750 mm TANK CAPACITY Coolant Tank 220 L Lubricating Tank 1.8 L POWER SUPPLY Electric Power Supply 30 kVA Thickness of Power Cable Over 35 mm² Voltage 415 V / 50 Hz / 3 Ph MACHINE Floor Space (L x W) 3,506 x 2,002 mm Height 1,997 mm Weight 6,400 kg STANDARD SUPPLIED MACHINE FEATURES • Ø 305 mm Hollow 3 Jaw Power Chuck • 220 L Coolant Tank • Door Interlock • Chuck Clamp Foot Switch • Total Splash Guard • Quill Type Tailstock • Call Light • Standard Live Centre • Quick Tool Setter • Levelling Pads • Operation Manuals • Electrical & Mechanical Drawings Request more information Request more information Already requested
About this machine

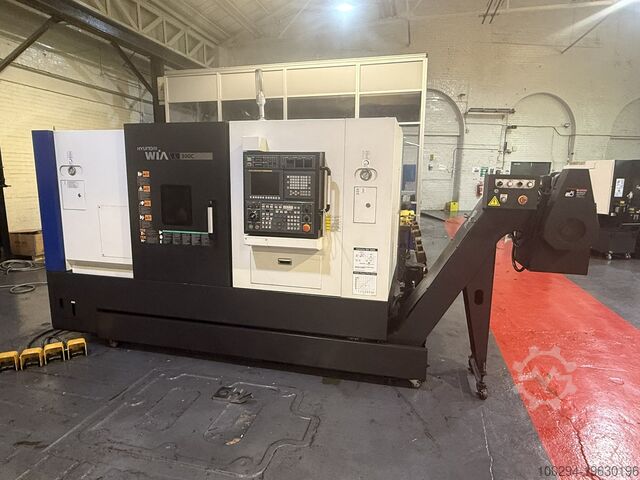

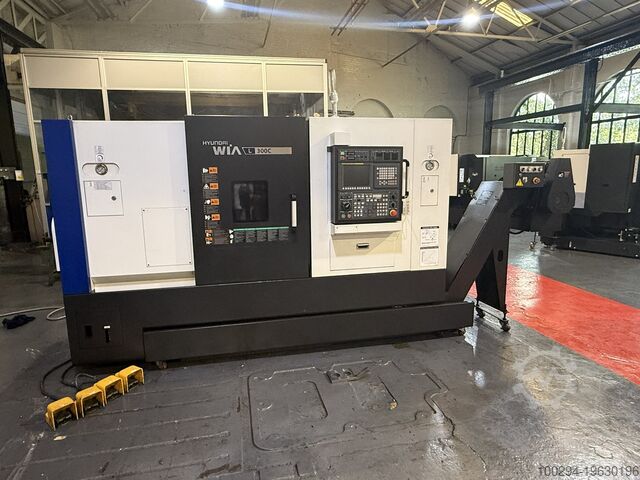

This Hyundai Wia L300C is a used CNC lathe — sometimes referred to as a turning centre — dating from 2015 and currently located in the United Kingdom. CNC lathes are precision machine tools used to remove material from rotating workpieces, producing cylindrical and contoured components to tight tolerances across industries such as automotive, aerospace, oil and gas, and general engineering. Hyundai Wia is a well-established South Korean manufacturer of CNC machine tools, producing lathes, machining centres, and turning machines for industrial production environments worldwide.
The machine is a 2-axis CNC lathe controlled by a Fanuc 0i-T system with the Manual Guide-i conversational programming option, making it accessible for both experienced CNC operators and those who prefer guided programming. Notably, the machine has accumulated only around 2,200 hours of cutting time, indicating very low usage relative to its 2015 build year.
Capacity figures are substantial: swing over the bed reaches 750 mm in diameter, swing over the carriage is 480 mm, maximum turning diameter is 560 mm, and maximum turning length is 720 mm. Bar capacity through the spindle is 90 mm in diameter, supported by a barfeed interface for automated parts loading.

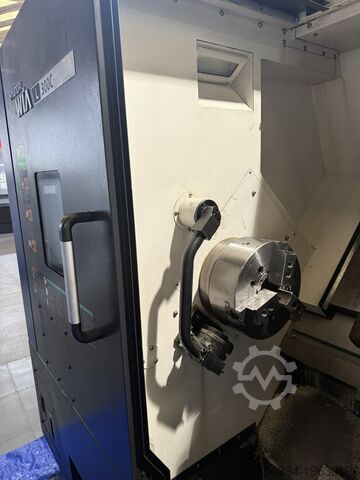

The spindle is driven by a belt and two-step gear arrangement through an A2-8 nose, accepting a 305 mm hollow three-jaw power chuck with a 102 mm bore. Spindle speed reaches 3,000 rpm, with motor output rated at 26 kW maximum and 22 kW continuous, delivering torque figures of 1,098 Nm maximum and 929.7 Nm continuous — figures suited to heavy-duty turning work.
Axis travels are 335 mm in X and 750 mm in Z, with rapid traverse speeds of 20 m/min in X and 24 m/min in Z. The slideways are hardened and ground solid box guideways, chosen for rigidity and long-term accuracy under heavy cutting loads. The 12-station rigid turret indexes at 0.3 seconds per step, accommodating 25 mm square OD tooling and 50 mm diameter boring bars.
The tailstock uses an MT5 taper with a 100 mm quill diameter, 120 mm quill travel, and 750 mm of longitudinal travel along the bed. A quick tool setter is included for manual presetting.

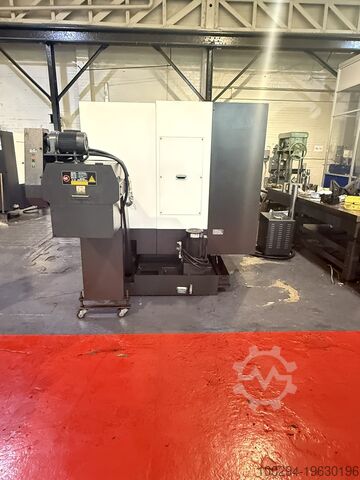

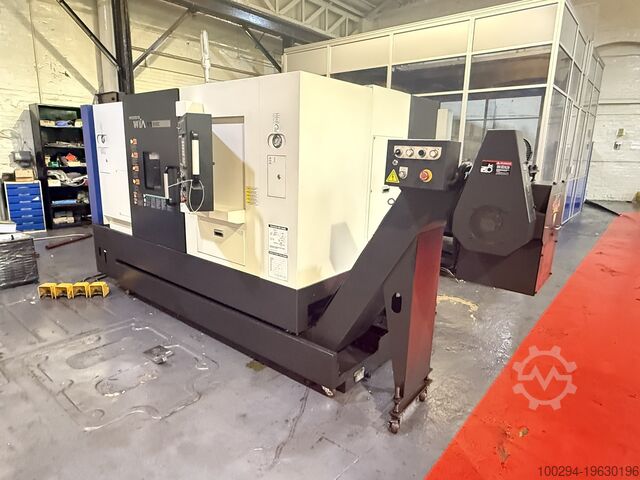

Ancillary equipment fitted to the machine includes a high-pressure coolant system operating at 20 bar with a 220-litre coolant tank, a side-hinged chip conveyor, and a 35 kVA transformer with cable. The power supply requirement is 415 V / 50 Hz / three-phase at 30 kVA, with cabling of at least 35 mm² cross-section specified.
The machine is built around a one-piece heavy-duty cast iron bed for structural rigidity. Its floor footprint is 3,506 mm long by 2,002 mm wide, standing 1,997 mm tall, with a total machine weight of 6,400 kg. Standard supplied items include the 305 mm hollow three-jaw power chuck, total splash guarding, door interlock, chuck clamp foot switch, quill-type tailstock with live centre, call light, levelling pads, and full operation manuals together with electrical and mechanical drawings.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
