2000 - Prominox 300L – Processing vessel Mixer Blender
()- Listing No
- 1184258
- Year
- 2000
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: Cuve No: 30430 Working pressure jacket: 6 Bar Vacuum possible jacket: check Material: Stainless steel 1.4435 (316L) Volume: 403 Ltr Motor: 5,5 kW, 240/380 volt, 1460 rpm Closed stirring vessel: check Capacity: 403 l., (300 l.) Vessel sizes: Dia. 1000x900 l Conical bottom: check Dished top side: check Manhole: Dia. 204 mm Top connections: check Outlet: DN50 Half coil jacketed: check volume 13,3 l Max. temperature: 150°C With anchor stirrer: check with scraper With dissolver stirrer: check Speed mixing shaft: 5,3/32 rpm Mounted on legs: check Floorspace: 1,10x1,10 m Total height: 3,50 m merk: Prominox General Pressure Main Features Specified Features - Processing vessel Information
About this machine

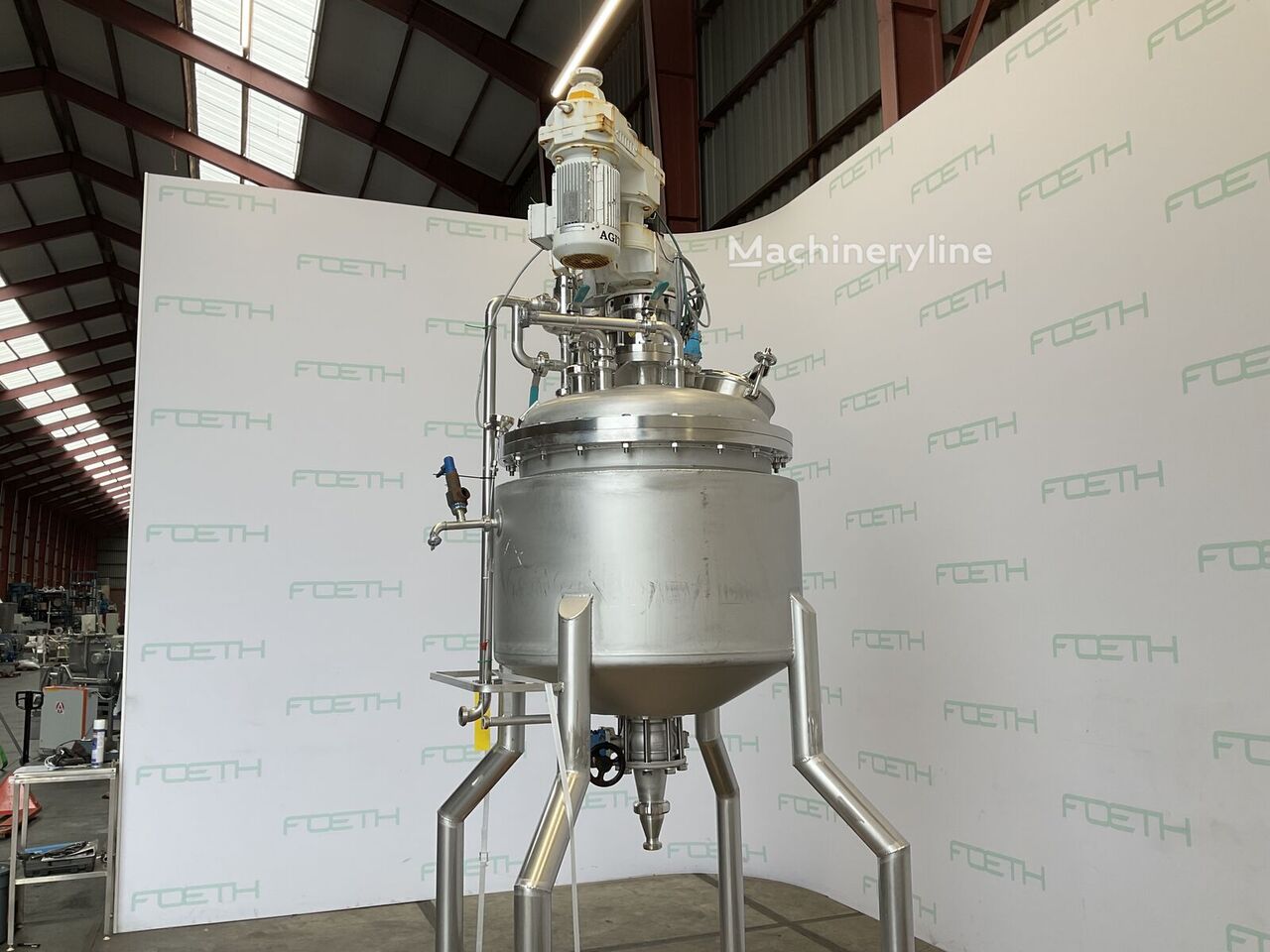

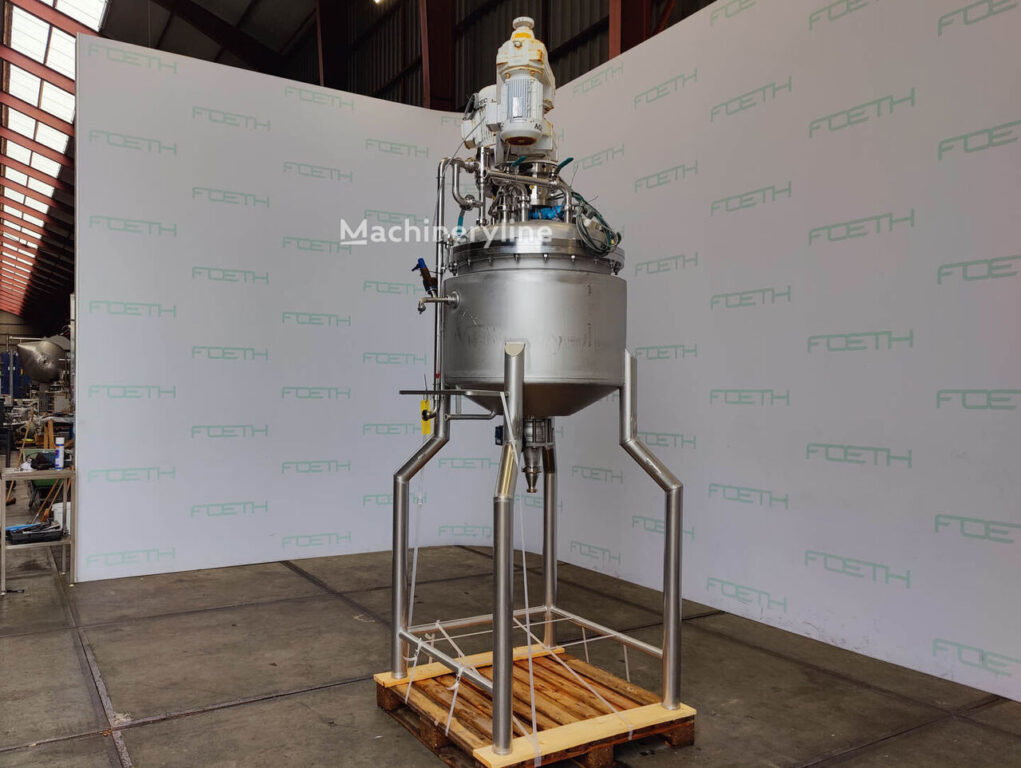

This Prominox 300L is a used mixer and blender — sometimes referred to as a mixing vessel or stirred tank — designed for processing, blending, and homogenising liquid and semi-liquid products under controlled conditions of temperature and pressure. Prominox is a manufacturer of stainless steel process equipment, producing vessels and systems for the food, chemical, and pharmaceutical industries.
Built in 2000 and currently located in Barneveld, Netherlands, the vessel is constructed from stainless steel grade L), a high-quality austenitic alloy well suited to hygienic and chemically demanding applications. The total geometric volume is 403 litres, with a working capacity of 300 litres. The vessel measures 1,000 mm in diameter with a 900 mm straight side, sits on legs, occupies a floor space of 1.10 × 1.10 metres, and reaches a total installed height of 3.50 metres.
The vessel is a closed, pressurised stirring vessel featuring a conical bottom and a dished top. It is fitted with a half-coil jacket with a volume of 13.3 litres, capable of operating at a working pressure of 6 bar, with vacuum capability also present. The maximum operating temperature is 150°C. Heating or cooling media can be circulated through the half-pipe coil jacket to control process temperature precisely.
Agitation is provided by two stirrer types: an anchor stirrer fitted with a scraper, which sweeps the vessel wall to promote heat transfer and prevent product build-up, and a dissolver stirrer for high-shear mixing and dispersion. The mixing shaft operates at two speeds — 5.3 rpm and 32 rpm — allowing the process to be adapted to different product viscosities and mixing requirements. The drive motor is rated at 5.5 kW and runs on 240/380 volt supply at 1,460 rpm.
Access to the interior is via a manhole with a diameter of 204 mm located on the top, which also carries additional top connections. Product discharge is through a DN50 outlet. The vessel carries internal reference number 30430 and is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
