Rotating valve Mixer Blender()
- Listing No
- 1184205
- Year
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Material: Mild steel Inlet diameter: 275 mm Rotary valve for air transport: check Rotor diameter: 250 Rotor width: 290 Number of locks: 8 Inlet: 275 x 150 mm Outlet: ø 75 mm With motor: 0,55 kW (400 V, 1400 rpm) Rotor speed: 13 rpm Capacity: 14 m³/h Floorspace: 0,80 x 0,60 m Total height: 0,45 m merk: Unknown ( type plate missing) jaar: unknown General Main Features Specified Features - Rotating valve Information
About this machine

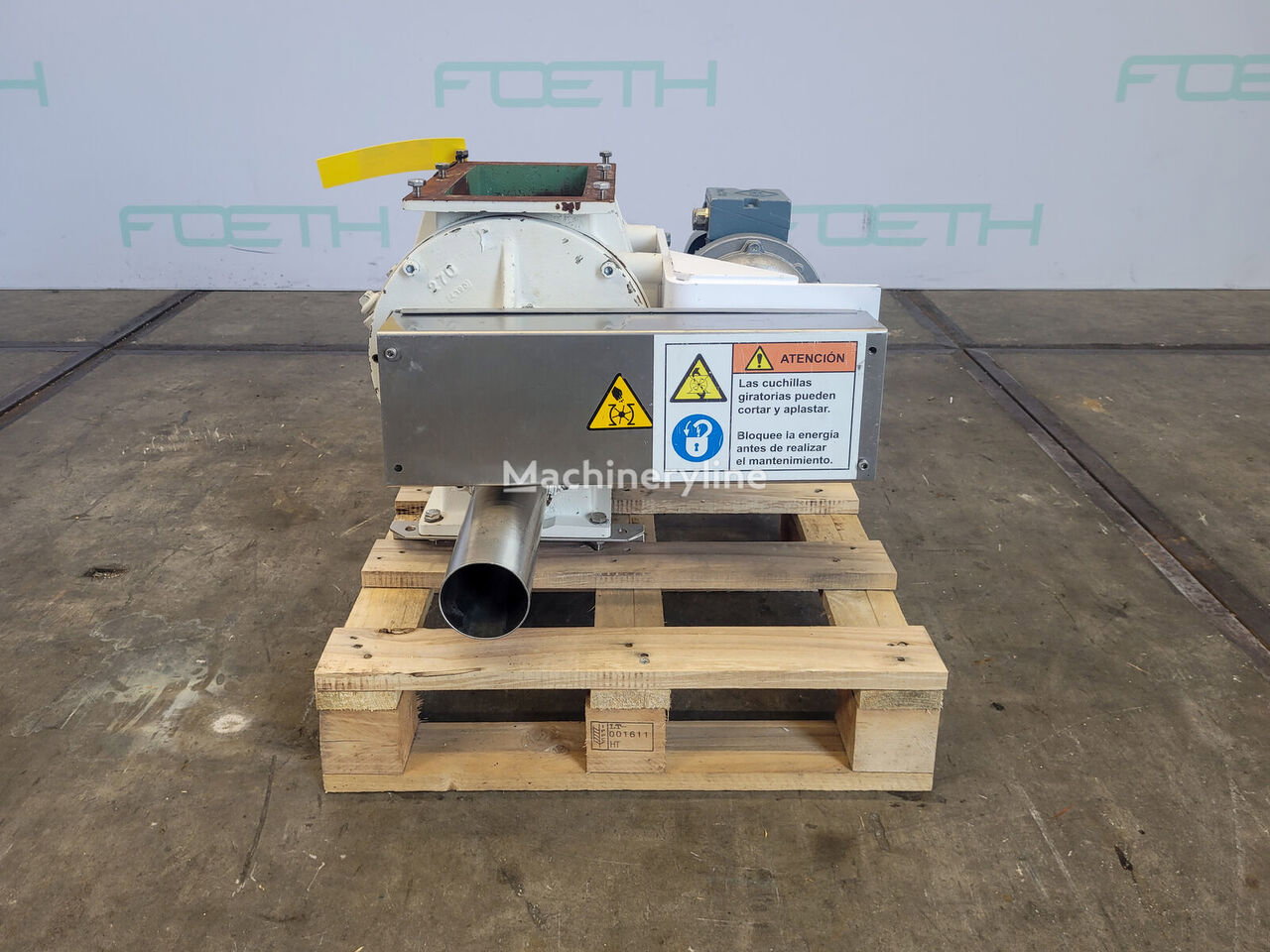

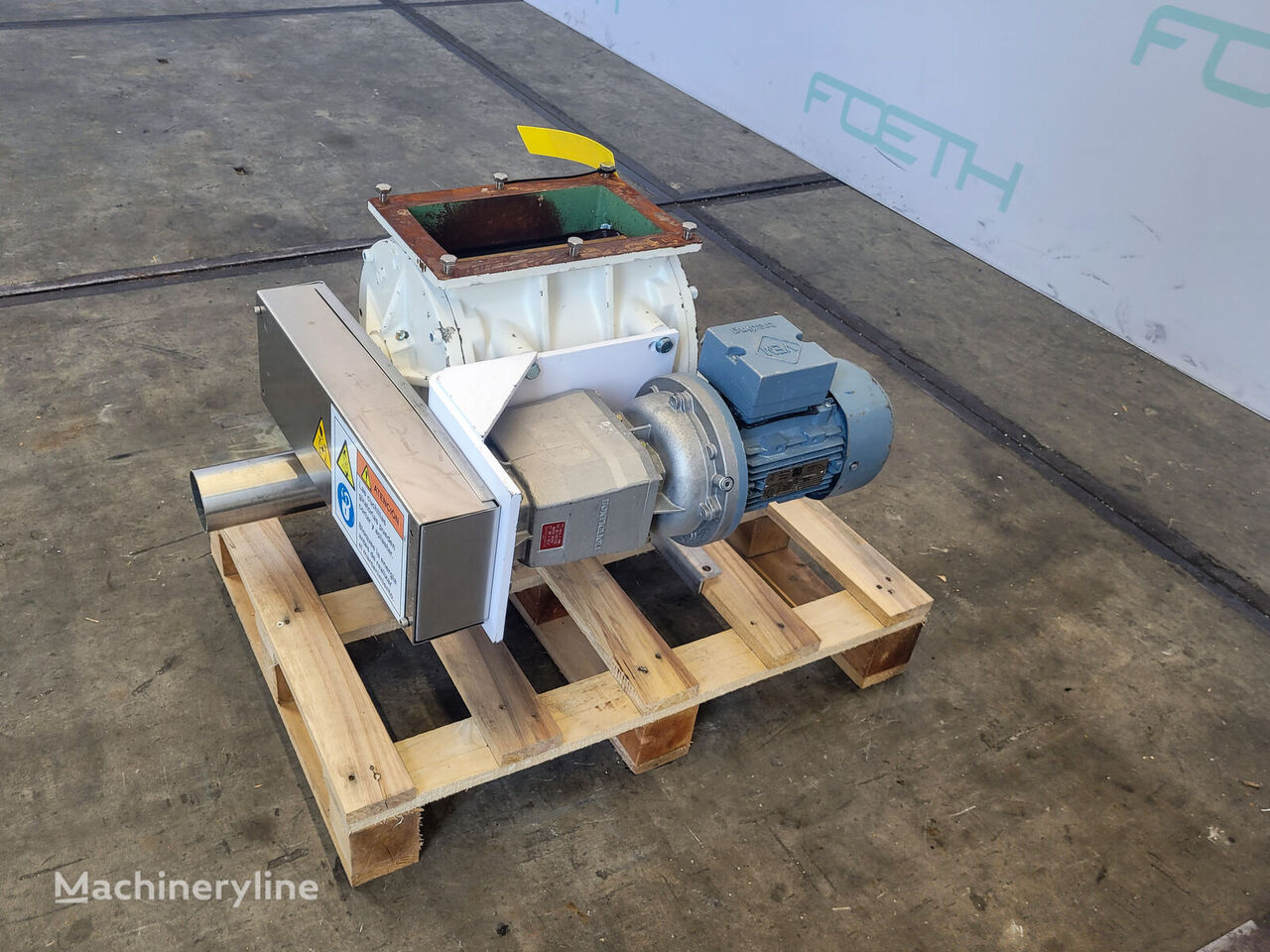

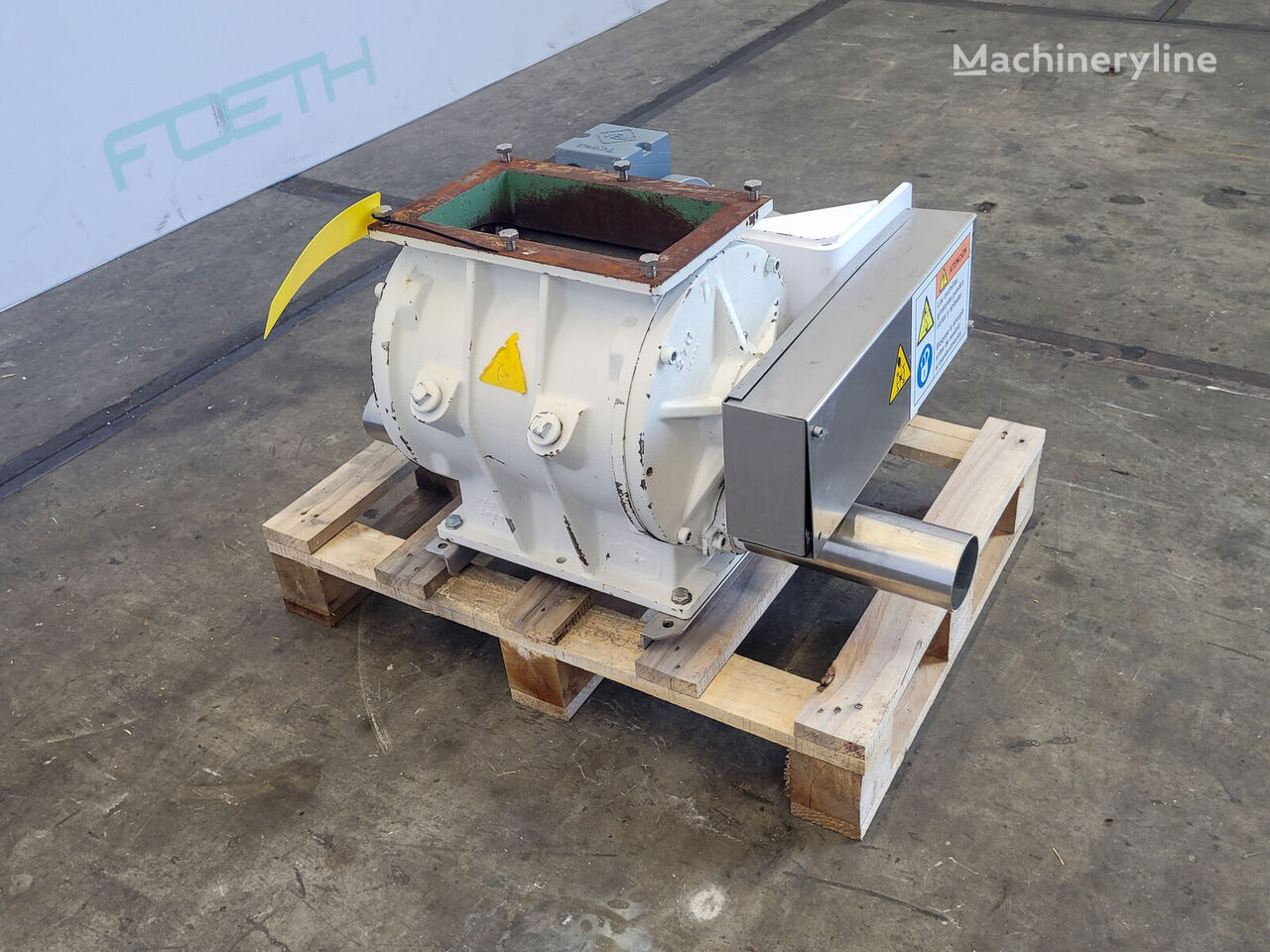

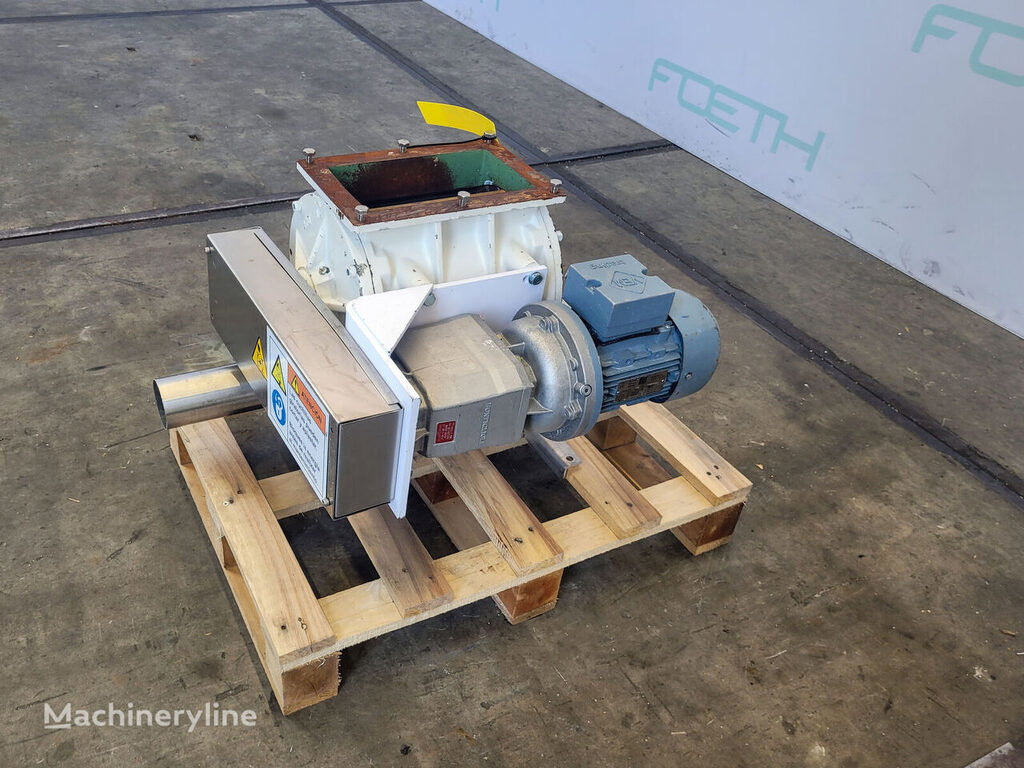

This used rotating valve — sometimes referred to as a rotary airlock valve or cellular wheel feeder — is a mixer and blender type machine designed to meter and control the flow of bulk materials in pneumatic conveying and air transport systems. By rotating a segmented rotor within a close-tolerance housing, it allows material to pass from a hopper or inlet into an airstream below while maintaining a pressure seal between the two zones.

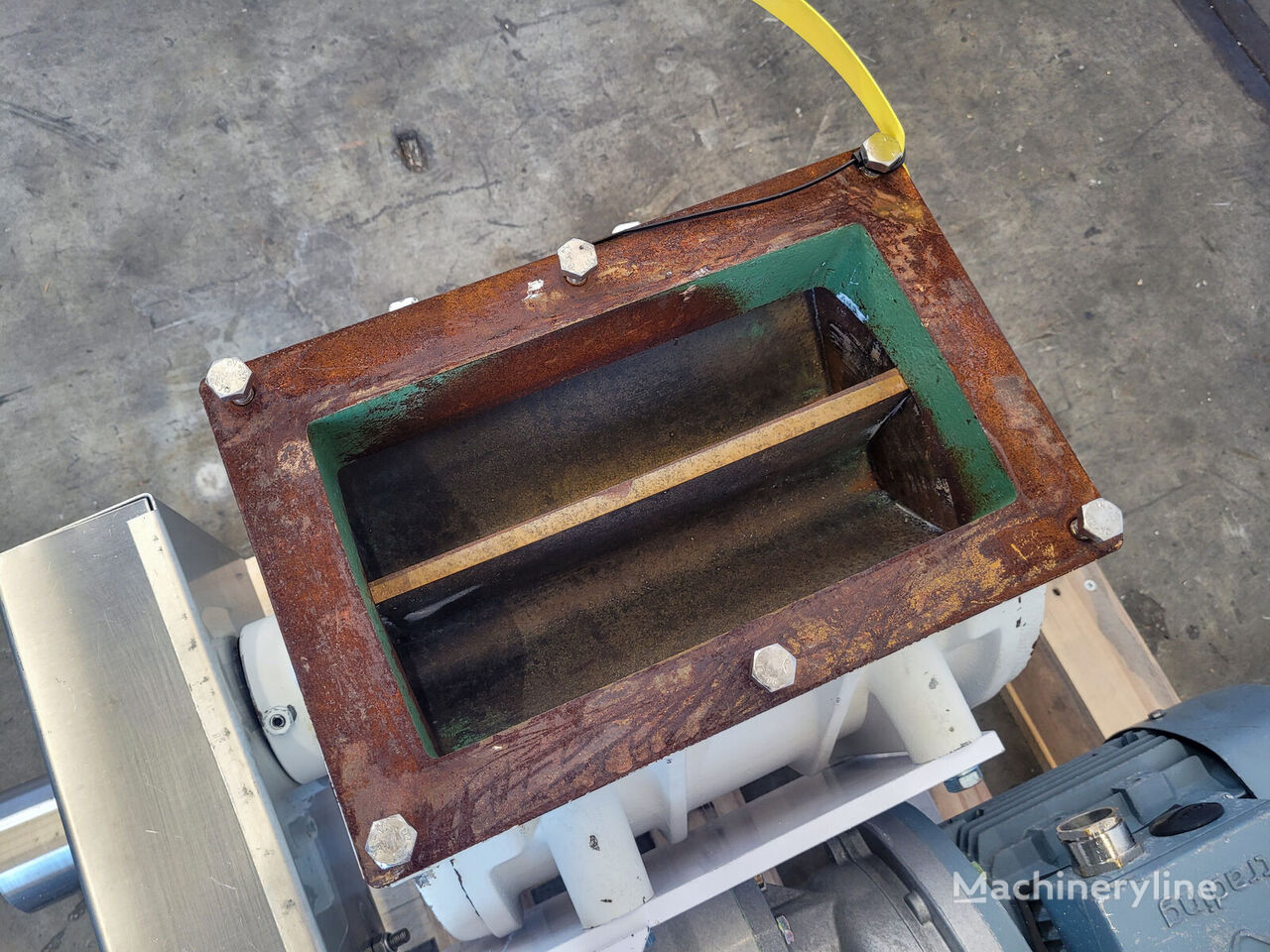

The unit is constructed from mild steel and is located in Barneveld, Netherlands. The inlet measures 275 × 150 mm with an inlet diameter of 275 mm, and the circular outlet has a diameter of 75 mm. The rotor itself has a diameter of 250 mm and a width of 290 mm, and is fitted with eight locking segments (locks), which is a standard configuration for achieving good volumetric consistency and a reliable air seal during operation.
The rotor turns at a speed of 13 rpm, driven by an electric motor rated at 0.55 kW running on a 400 V supply at 1,400 rpm. At this rotor speed, the valve delivers a throughput capacity of 14 m³/h, making it suitable for moderate-volume handling applications in industries such as food processing, animal feed, chemicals, or grain handling. The machine has a compact footprint of 0.80 × 0.60 m and a total installed height of just 0.45 m, meaning it can be integrated into existing conveying lines with minimal space requirements.
The manufacturer and year of manufacture are both unknown, as the type plate is missing. The machine is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
