2001 - TBT BW 200 Boring Mill()
- Listing No
- 949264
- Year
- 2001
- Manufacturer
- TBT
- Model
- Condition
- Used
- Location
- Price
- POA
- Description
-
20 toolstations with rotating table 800x600 approx 46300h Including chip conveyor and various tool holders Working Range -cubic- number of processing axes (excl parallel axes): 5 X-axis travel: 800 mm Y-axis travel: 600 mm Z-axis travel: 800 mm W-axis travel: 1250 mm rotating range B-axis from: 0 ° rotating range B-axis up to: 360 ° Working Range -Boring- drilling depth (max): 800 mm drilling capacity full bore (steel): 25 mm spindle / head tool fixture: HSK A50 drive power: 15 kW Axis drives feed velocity (max): 15000 mm/min Tool magazine number of positions: 20 Electrical specifications mains voltage: 400 V mains frequency: 50 Hz Dimensions / weights space requirements -left/right-: 5600 mm space requirements -front/back-: 4910 mm total height: 2700 mm total weight approx.: 10800 kg
About this machine

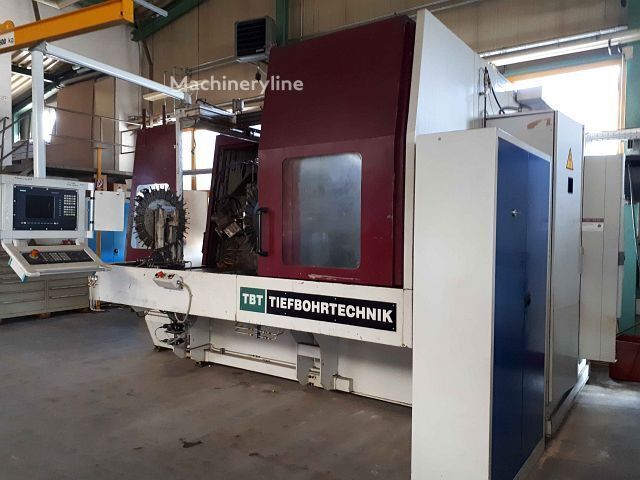

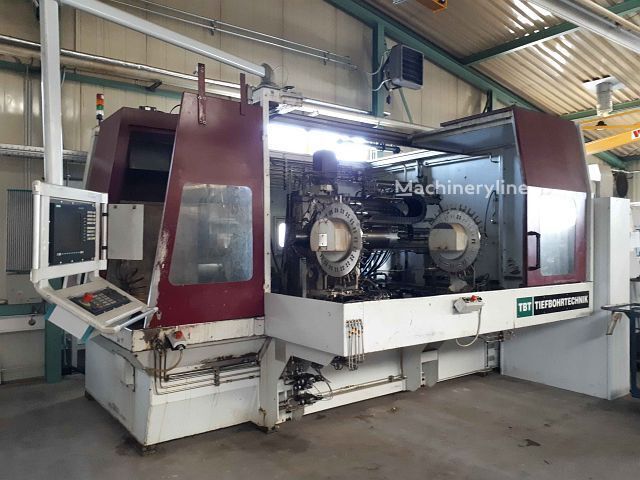

This TBT BW 200 is a boring mill — sometimes referred to as a machining centre or deep-hole drilling machine — a type of precision machine tool used to enlarge, finish, and true bored holes to exact tolerances in metal components, and to perform milling, drilling, and contouring operations across multiple axes. TBT is a German manufacturer with a strong reputation in precision machining technology, particularly in multi-spindle and deep-hole drilling systems serving the automotive, aerospace, hydraulics, and general engineering sectors.
This is a used 2001 example offered in used condition, with approximately 46,300 operating hours recorded. It is configured as a five-axis machine (excluding parallel axes), giving it a broad working envelope and the ability to machine complex geometries. The X-axis travels 800 mm, the Y-axis 600 mm, and the Z-axis 800 mm. The W-axis extends to 1,250 mm, and the B-axis rotates continuously from 0° to 360°, enabling full rotational positioning of the workpiece or spindle. The machine is equipped with a rotating table measuring 800 × 600 mm.
On the boring side, the maximum drilling depth is 800 mm, with a full-bore drilling capacity in steel of 25 mm. The spindle accepts HSK A50 tooling, a standardised short-taper interface widely used in high-speed precision applications. Drive power is rated at 15 kW, and the maximum feed velocity across the axis drives reaches 15,000 mm/min.

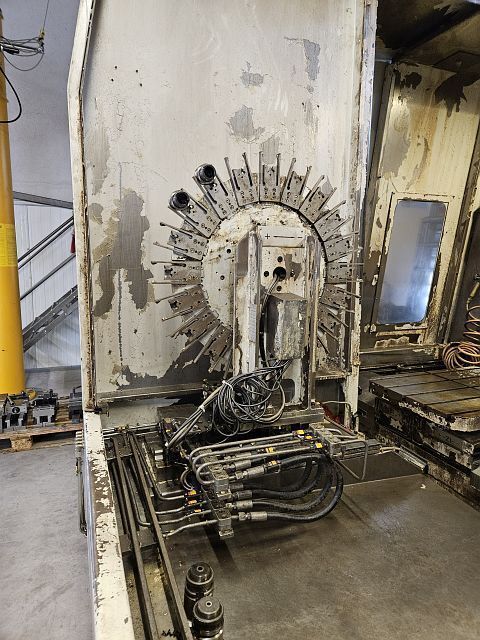

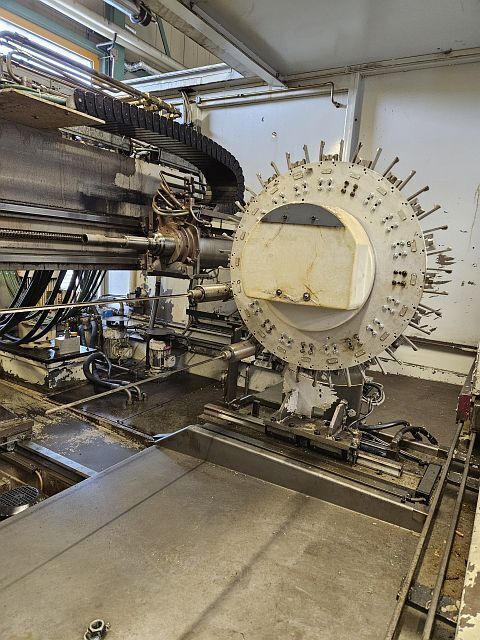

The tool magazine holds 20 positions, allowing a broad range of tooling to be kept on hand for automatic changing during a cycle, consistent with the seller's note of 20 tool stations. The machine comes with a chip conveyor and various tool holders included in the sale.
Electrical supply requirements are 400 V at 50 Hz. The machine's footprint is 5,600 mm left-to-right and 4,910 mm front-to-back, with a total height of 2,700 mm and an overall weight of approximately 10,800 kg.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
