TOS Varnsdorf Boring Mill()
- Listing No
- 949379
- Year
- Manufacturer
- TOS Varnsdorf
- Model
- Condition
- Used
- Location
- Portugal
- Price
- $17,500
- Description
-
amps: 22 Axis A: -25 / +15 ° Axis of travel -y: 800 mm Control System: Siemens 840D Course - z axis: 2000 mm hole depth: 1300 mm iso spindle taper: 40 kva power: 15 milling unit: 7/11 kW Path - x axis: 2000 mm stroke -w axis: 1700 mm table load: 7/10 tons table surface: 1500 x 1000 mm volts: 400 Boring machine TOS VARNSDORF.
About this machine

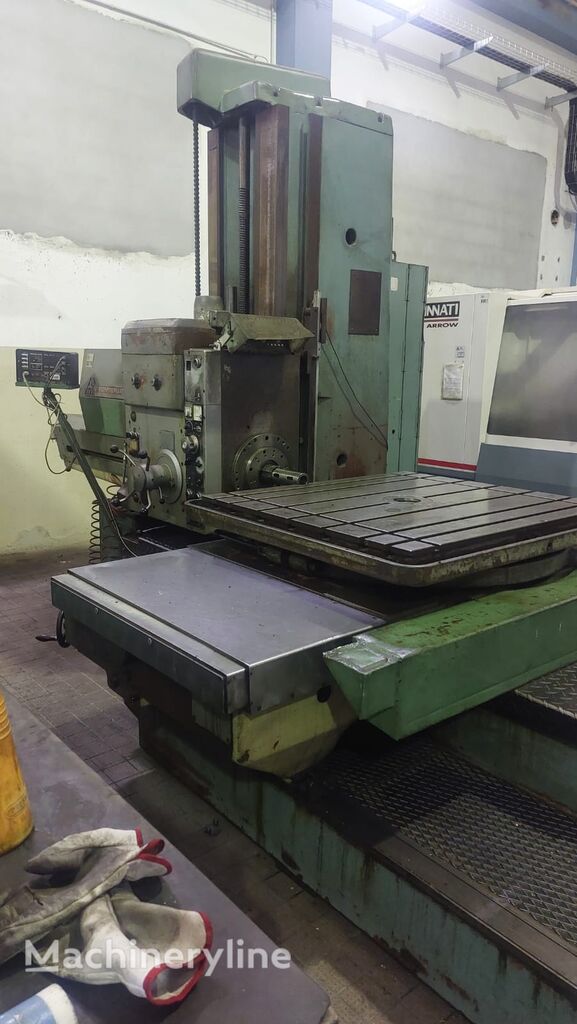

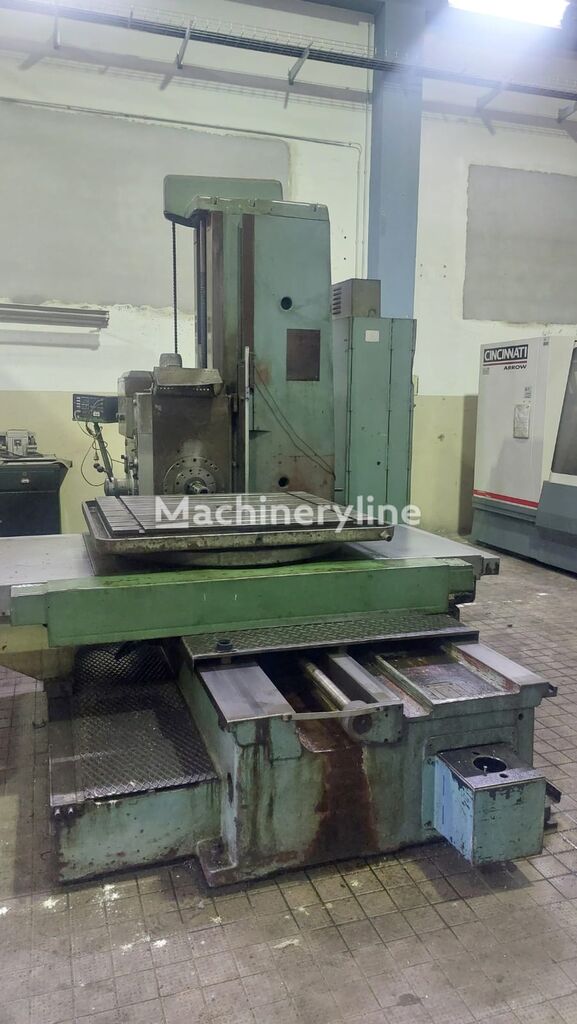

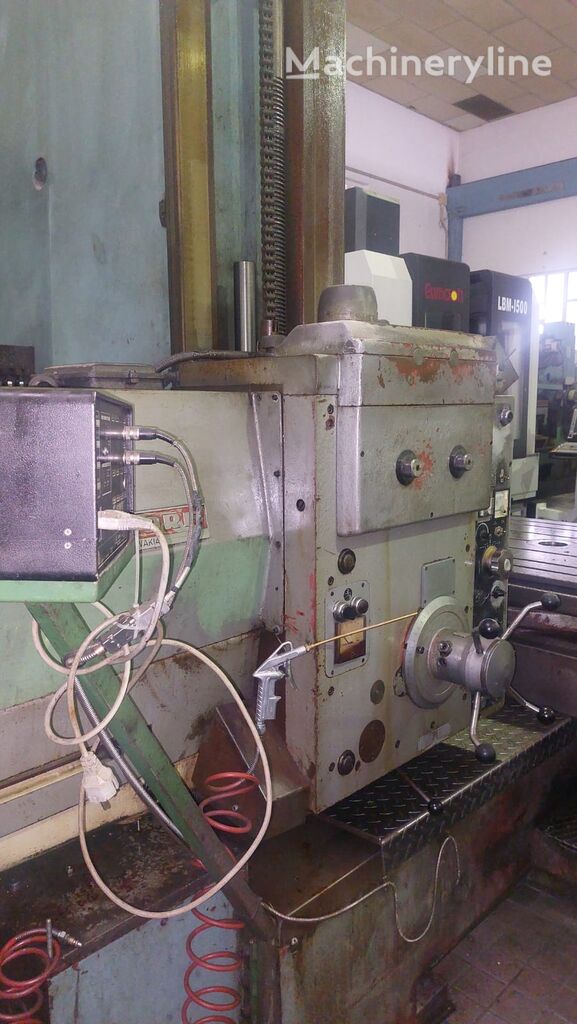

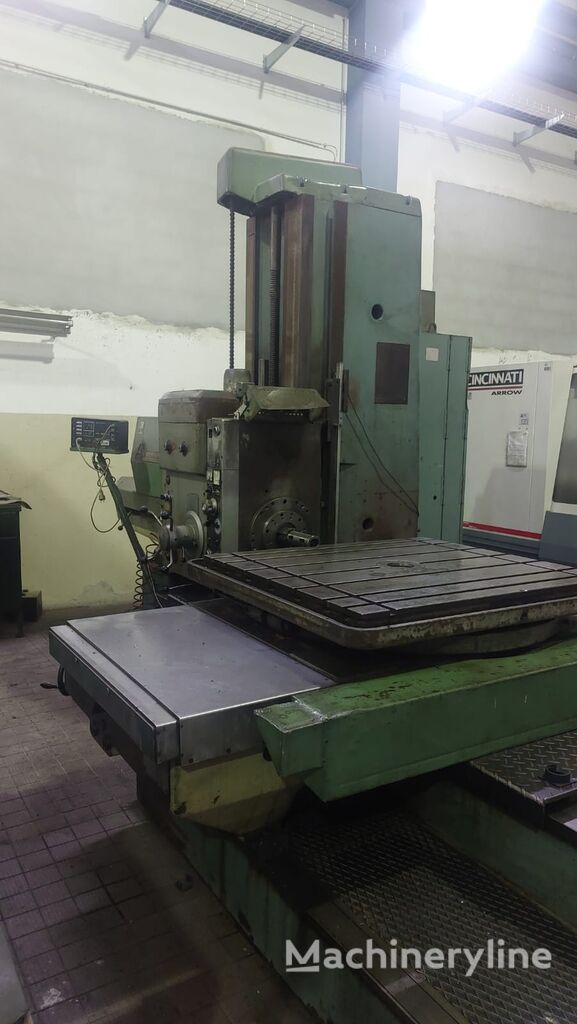

This TOS Varnsdorf is a used boring mill — sometimes referred to as a horizontal boring machine — designed for precision machining of large, heavy workpieces requiring deep hole boring, milling, and drilling operations. TOS Varnsdorf is a well-established Czech machine tool manufacturer with a long history of producing heavy-duty boring and milling equipment for metalworking, engineering, and industrial manufacturing sectors worldwide.
The machine is equipped with a Siemens 840D CNC control system, a widely respected and capable platform that supports complex multi-axis contouring and precision machining routines. The spindle features an ISO 40 taper, a common standard tooling interface suited to a broad range of cutting tools.
Travel and working envelope are substantial. The X-axis path extends to 2,000 mm, the Z-axis course reaches 2,000 mm, and the W-axis stroke provides 1,700 mm of additional reach. The Y-axis travel is 800 mm, and the maximum hole depth achievable is 1,300 mm. The A-axis offers angular movement from -25° to +15°, enabling angled boring and milling operations without repositioning the workpiece. The milling unit is rated at 7/11 kW, reflecting a two-range power output configuration for versatility across different cutting conditions.
The work table measures 1,500 x 1,000 mm and is capable of supporting loads between 7 and 10 tonnes, making it well suited to large and heavy components. Electrical supply requirements are 400 volts, 22 amps, with a total connected power of 15 kVA. This machine is located in Portugal and is offered for sale at $17,500.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
