TOS Varnsdorf WHN9A Boring Mill()
- Listing No
- 950829
- Year
- Manufacturer
- TOS Varnsdorf
- Model
- WHN9A
- Condition
- Used
- Location
- Portugal
- Price
- $15,500
- Description
-
amps: 22 Axis A: -25 / +15 ° Axis of travel -y: 800 mm Control System: Siemens 840D Course - z axis: 2000 mm cross trip: 1250 mm Faceplate diameter: 480 mm front plate diameter: 480 mm hole depth: 1300 mm iso spindle taper: 40 kva power: 15 Machine weight: 11200kg main electric motor: 7,5 kW Main electric motor: 7,5 kW milling unit: 7/11 kW nog in productie: 11200kg número_de_stock: 7,5 kW Path - x axis: 2000 mm shaft diameter: 90mm Shaft diameter: 90mm Spindle: 700 mm spindle speed: 1400 rpm spindle taper: Morse 5 stroke -w axis: 1700 mm table load: 7/10 tons table size: 1800 x 1120 mm table surface: 1500 x 1000 mm vertical travel: 1120 mm volts: 400 Boring machine TOS VARNSDORF Show the whole comment
About this machine

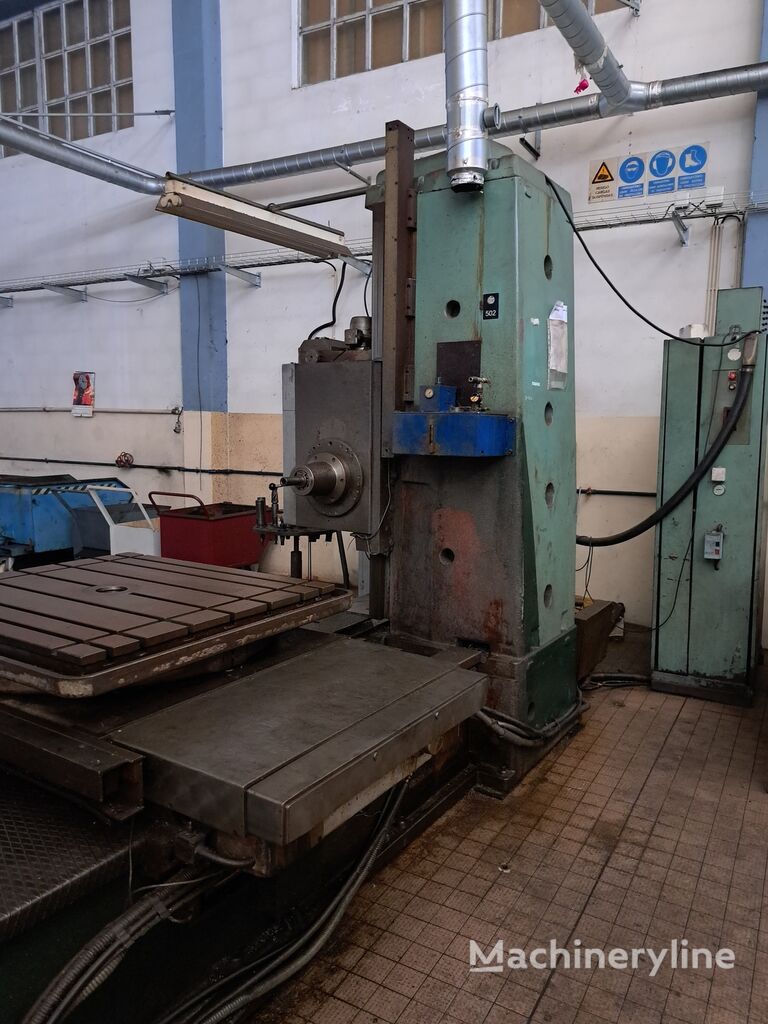

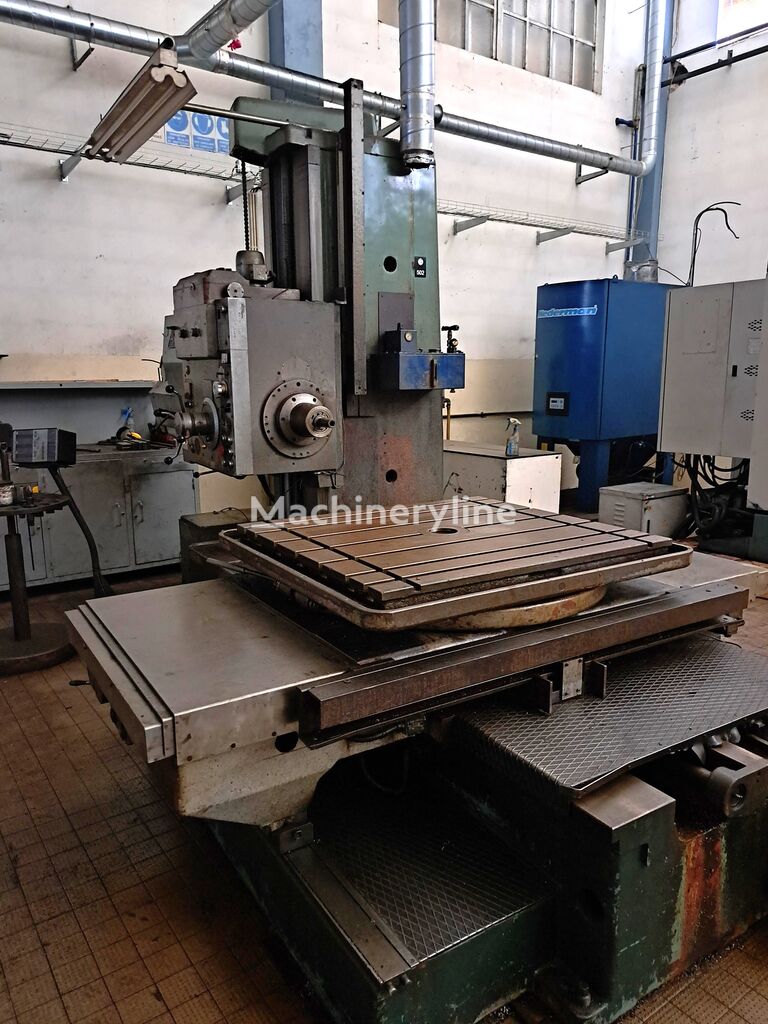

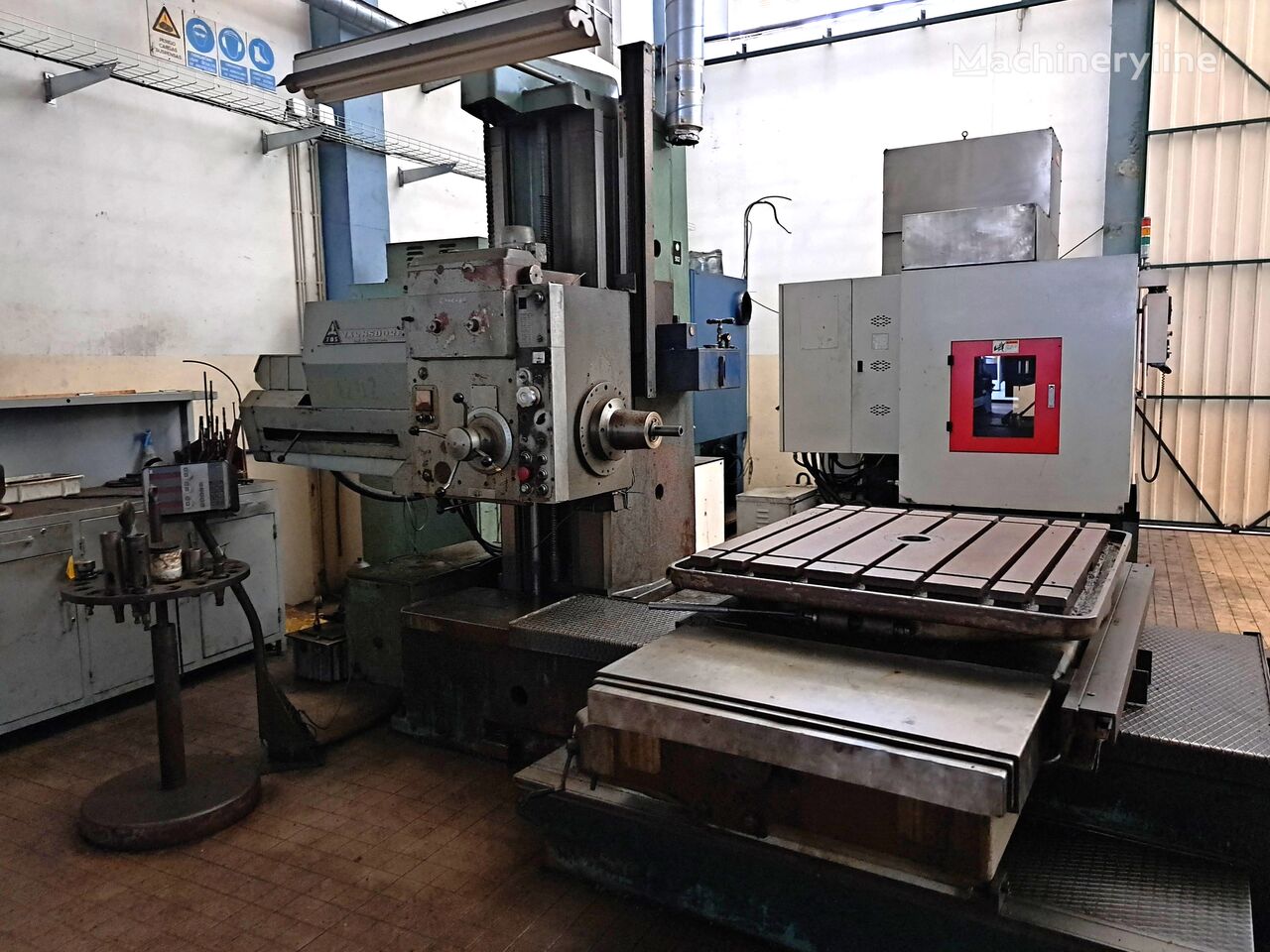

This TOS Varnsdorf WHN9A is a used boring mill — sometimes referred to as a horizontal boring machine — currently located in Portugal and offered at $15,500. Boring mills of this type are precision machine tools designed for boring, milling, drilling, and other metal-cutting operations on large, heavy workpieces that would be impractical to handle on a conventional machining centre. TOS Varnsdorf is a well-established Czech machine tool manufacturer with a long history of producing horizontal boring and milling machines for the metalworking, engineering, and heavy industry sectors.
The machine is equipped with a Siemens 840D CNC control system, a widely respected platform in precision machining that supports multi-axis coordinated motion. The main electric motor is rated at 7.5 kW, the milling unit carries a 7/11 kW motor, and the machine draws 22 amps at 400 volts, representing a total power input of 15 kVA. The spindle has a diameter of 90 mm, a maximum travel of 700 mm on the W axis, and runs to a maximum speed of 1,400 rpm. The spindle taper is Morse 5, with an ISO 40 taper also referenced, and the faceplate diameter is 480 mm.
Axis travels are substantial: the X axis covers 2,000 mm, the Z axis 2,000 mm, the Y axis 800 mm, the W axis (spindle) 1,700 mm, and vertical travel reaches 1,120 mm, with a cross travel of 1,250 mm. The A axis offers angular movement from -25° to +15°. The table surface measures 1,500 x 1,000 mm within an overall table size of 1,800 x 1,120 mm, and the table is rated to carry loads of 7 to 10 tonnes. Maximum boring depth is recorded at 1,300 mm. The machine weighs 11,200 kg, reflecting the substantial cast construction typical of this class of equipment.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
