1998 - 3C France Mixer Blender()
- Listing No
- 1177900
- Year
- 1998
- Manufacturer
- Model
- Condition
- Used
- Location
- France
- Price
- POA
- Description
-
Manufacturer: 3C France Year : 1998 Type : Process skid with 1 reactor / vacuum mixer and 1 melting tank Previous application: pharmaceutical (coating solution) A – Reactor / Main vessel Total volume: 1142 litres Pressure: – 1 / 2.4 bars Temperature : 144 °C Jacketed volume: 98 litres Pressure: 2.5 bars Temperature : 142 °C Mixel agitation: 2 deflocculators Ø260 mm Motor : 11 KW (1500 rpm) Sample intake Washing ball Level probe Inspection hatch, porthole, light B – Melter Total volume: 152 litres Pressure: – 1 / 2.1 bars Temperature : 114 °C Jacketed volume: 24 litres Pressure: 2.5 bars Temperature : 148 °C Agitation: 1 tank bottom deflocculator Ø125 mm Motor: 2.2 KW (3000 rpm) Washing ball Level probe Sample intake Inspection hatch, porthole, light Additional accessories : – Dosing pumps – Circulation pump – Flow meters – Controllers – Electrical cabinet with PLC and speed drives Access footbridge Batch of spare parts available (gaskets, seals, etc.) Full documentation in digital format Show the whole comment
About this machine

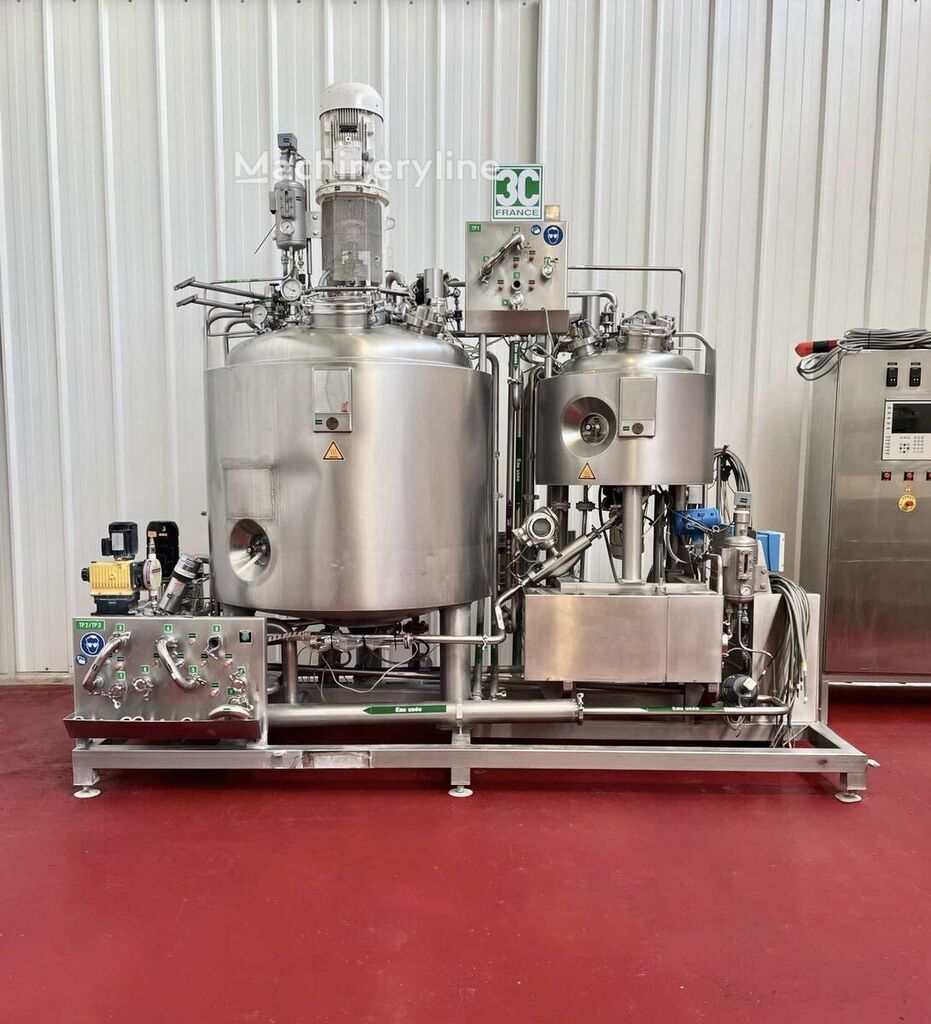

This 3C France mixer-blender — also referred to as a process mixer or vacuum mixer system — is a complete process skid designed for the mixing, blending, and melting of materials under controlled temperature and pressure conditions. Built in 1998 and previously used in a pharmaceutical application for the preparation of coating solutions, the unit comprises two interconnected vessels: a main reactor with vacuum mixing capability and a separate melting tank, supported by a full complement of ancillary equipment and process controls.

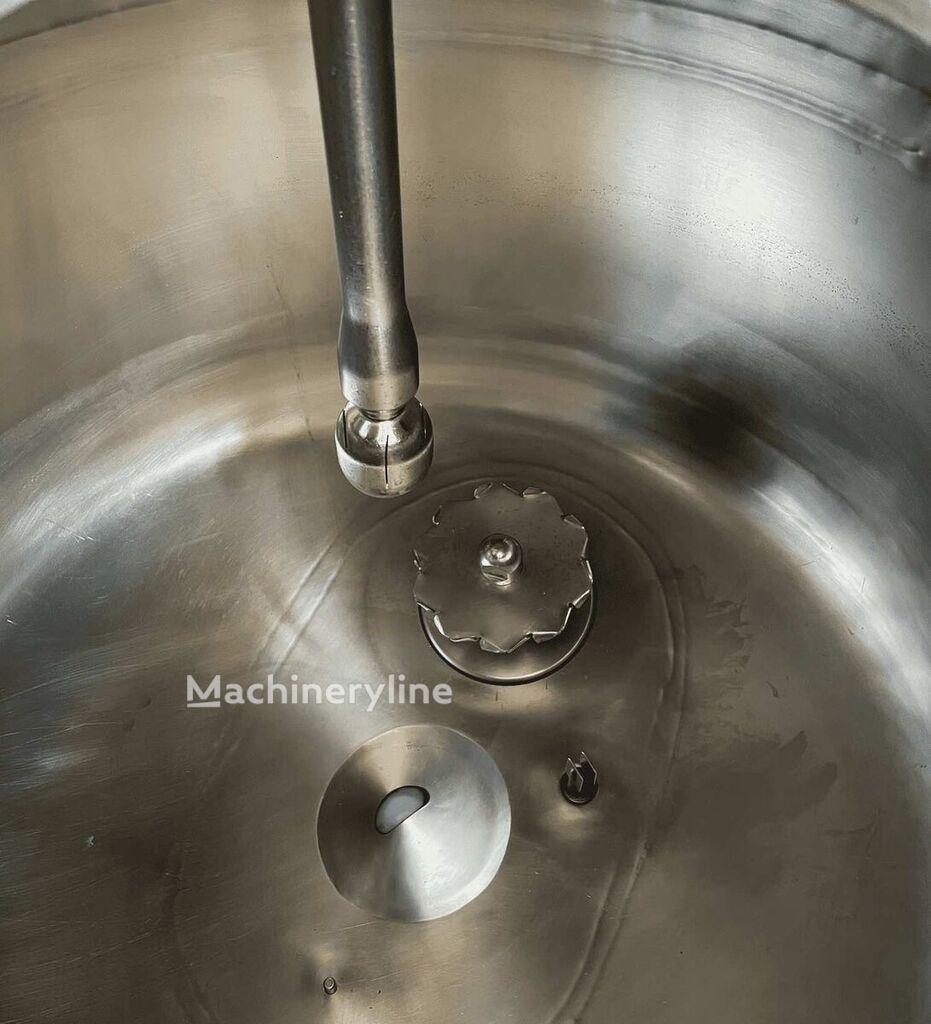

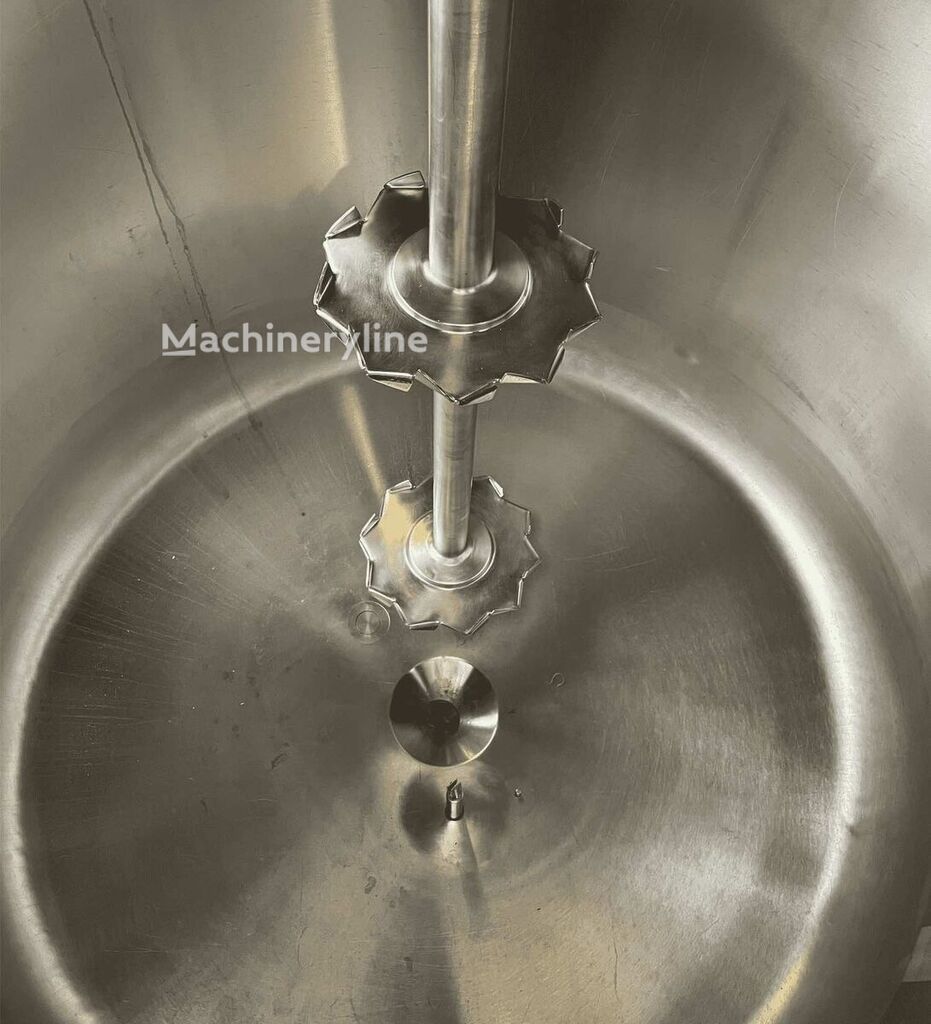

The main reactor vessel has a total volume of 1,142 litres and is rated for pressures between -1 and 2.4 bar, with a maximum process temperature of 144 °C. Its heating/cooling jacket carries a volume of 98 litres, rated to 2.5 bar and 142 °C. Agitation is provided by a Mixel-type system fitted with two deflocculators of 260 mm diameter, driven by an 11 kW motor running at 1,500 rpm. The vessel is equipped with a sample intake port, a washing ball for in-place cleaning, a level probe, an inspection hatch, a porthole, and internal lighting.
The melting tank has a total volume of 152 litres and operates at pressures between -1 and 2.1 bar, up to 114 °C. Its jacket volume is 24 litres, rated to 2.5 bar and a maximum temperature of 148 °C. Agitation is delivered by a single tank-bottom deflocculator of 125 mm diameter, powered by a 2.2 kW motor at 3,000 rpm. Like the main vessel, it includes a washing ball, level probe, sample intake, inspection hatch, porthole, and lighting.

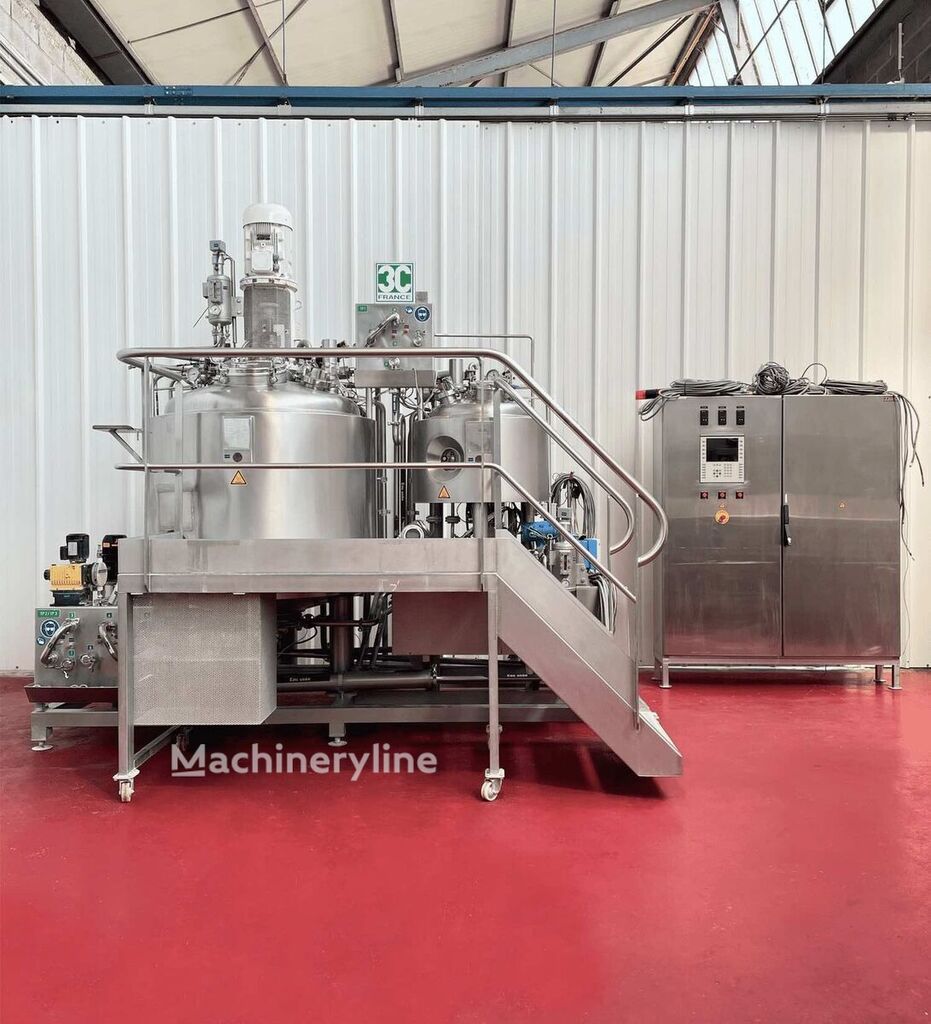

The skid is further equipped with dosing pumps, a circulation pump, flow meters, and process controllers, all managed through an electrical cabinet housing a PLC and variable-speed drives. An access footbridge is included with the installation. A batch of spare parts — including gaskets and seals — is available alongside the machine, and full documentation is provided in digital format. The unit is located in France and is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
