2000 - A. Bolz Wangen DB-900-M3 – Conical mixer Mixer Blender()
- Listing No
- 1182473
- Year
- 2000
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: DB-900-M3 No: M041355 Working pressure: 0.1 Bar Material: Stainless steel 1.4404 (316L) Volume: 18000 Ltr Conical mixer: check Capacity: 9000 Ltr. (Bruto 18000 Ltr.) Largest cone diameter: 3330 mm Cone height: 5205 mm Manhole: DN700 With stainless steel arm: check With variable speed drive: check screw speed (nominal): 66 rpm, arm speed (nominal): 0,7 rpm Bottom bearing pintle bearing: check Max. temperature: 100 °C Bottom discharge: DN 250/300 (side) Total height: 6,5 m Floor space: 3,6x3,6 m ATEX compatible: check Extra Specifications: This conical mixer is merk: A. Bolz Wangen General Pressure Main Features Specified Features - Conical mixer Information
About this machine

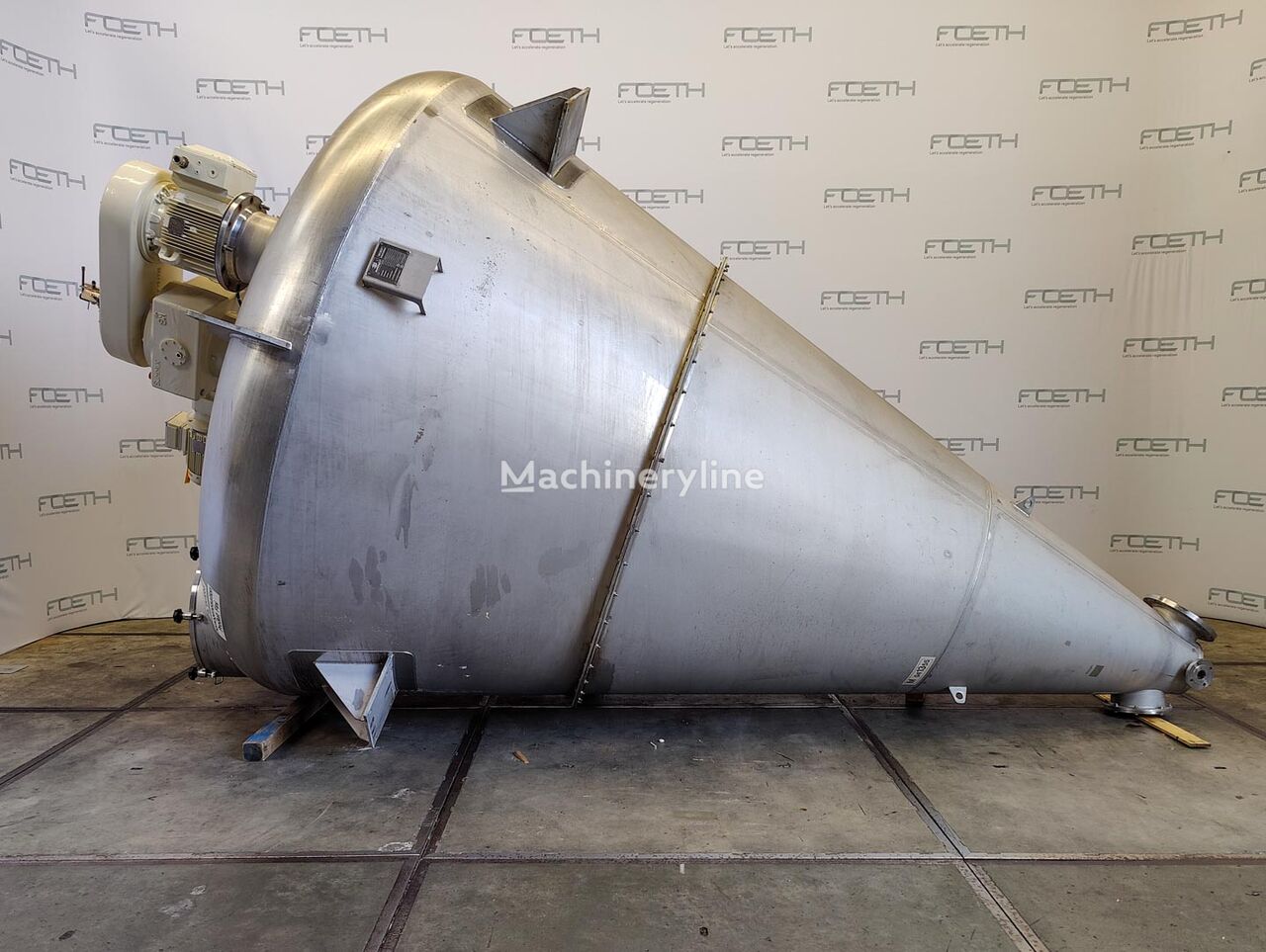

This A. Bolz Wangen DB-900-M3 is a used conical mixer — sometimes referred to as a cone screw mixer or conical blender — a type of mixing and blending machine designed for the thorough homogenisation of bulk solids, powders, and granular materials. A. Bolz Wangen is a well-established German manufacturer specialising in industrial mixing technology, with conical mixers among their core product lines, serving industries such as food processing, pharmaceuticals, and chemicals.
Built in 2000 and located in Barneveld, Netherlands, this machine carries serial number M041355 and is constructed entirely from stainless steel grade L), making it suitable for applications where corrosion resistance and hygiene are important. The mixer has a gross volume of 18,000 litres with a working capacity of 9,000 litres, and operates at a working pressure of 0.1 bar with a maximum process temperature of 100 °C.

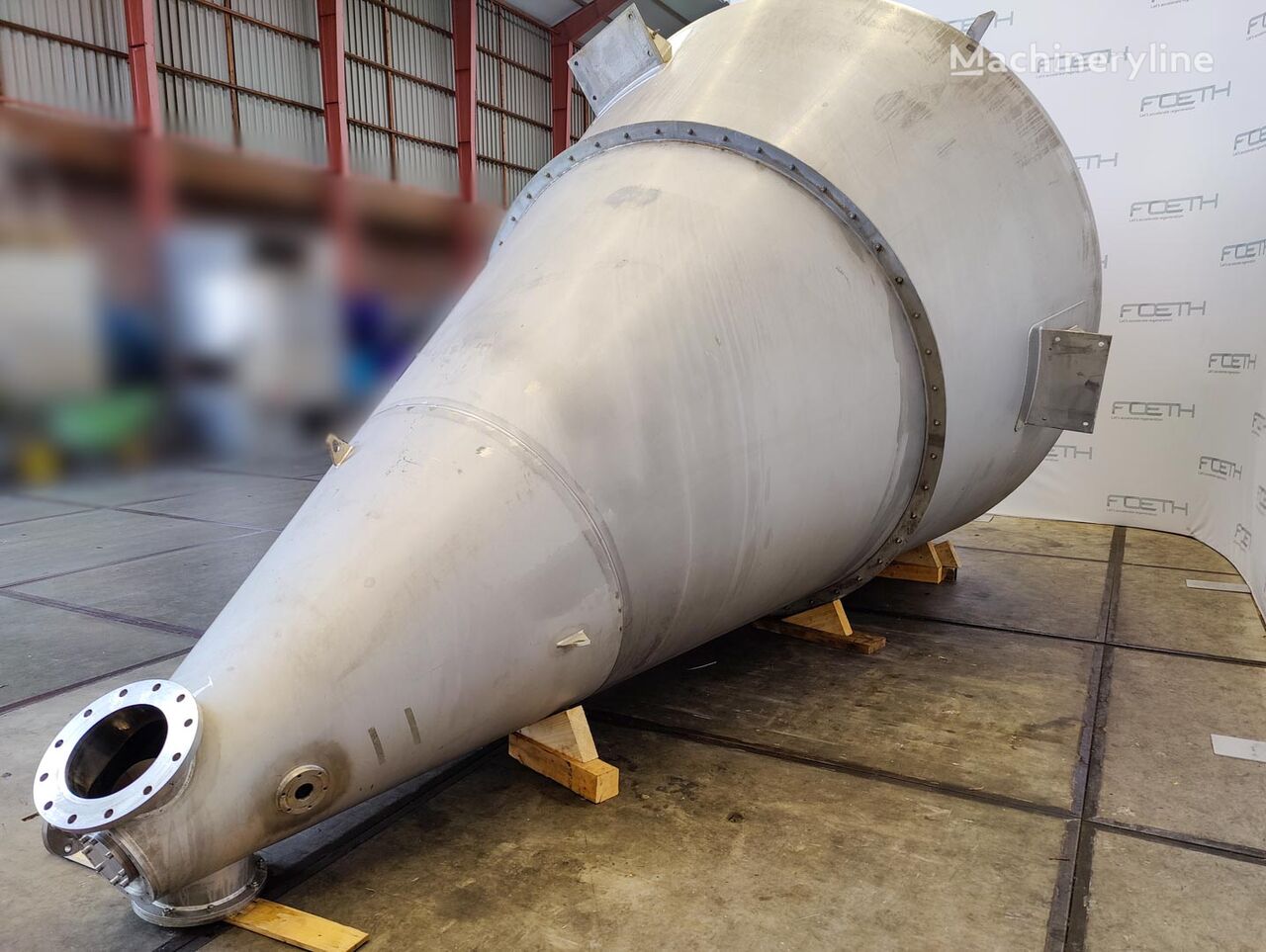

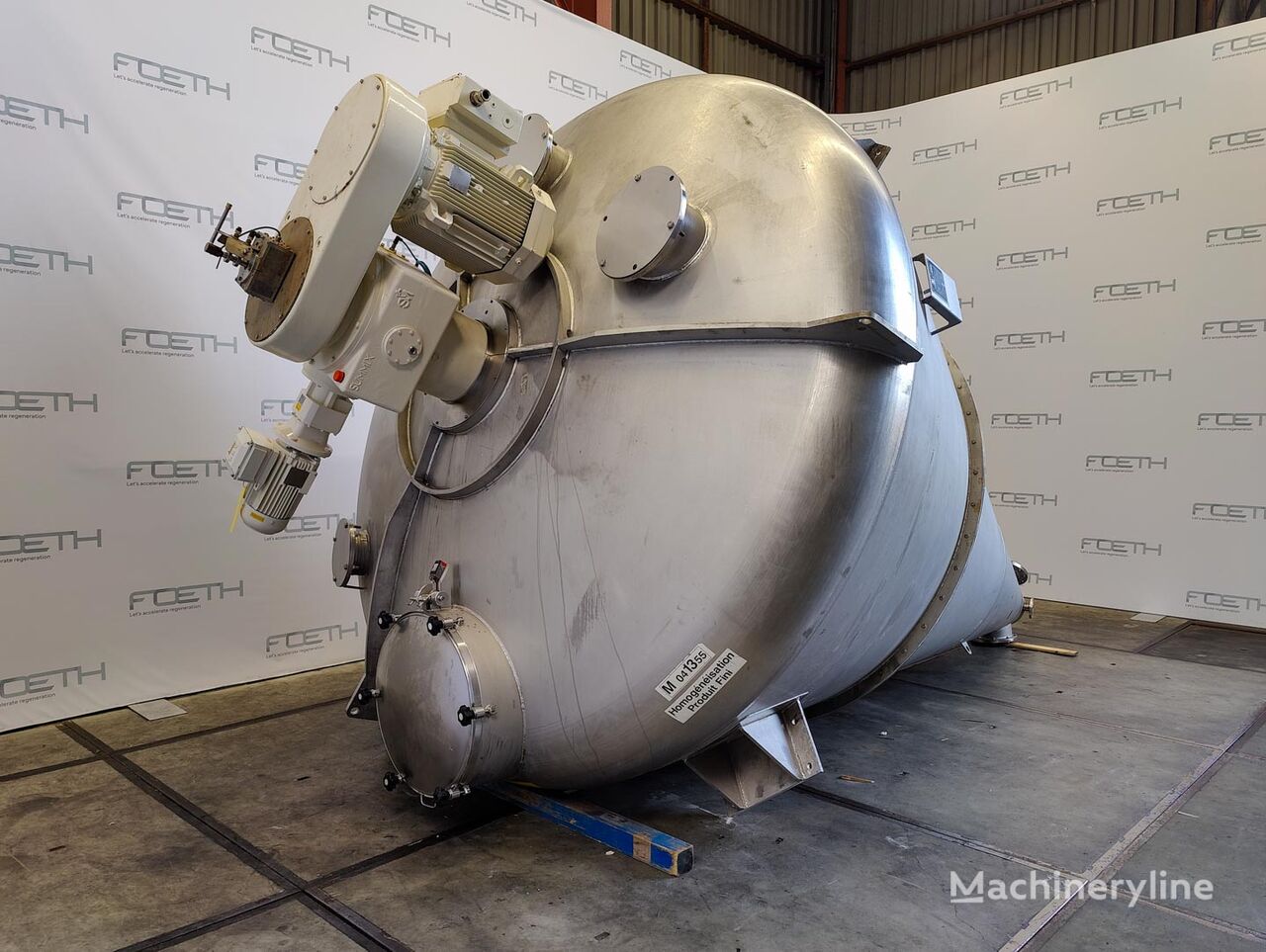

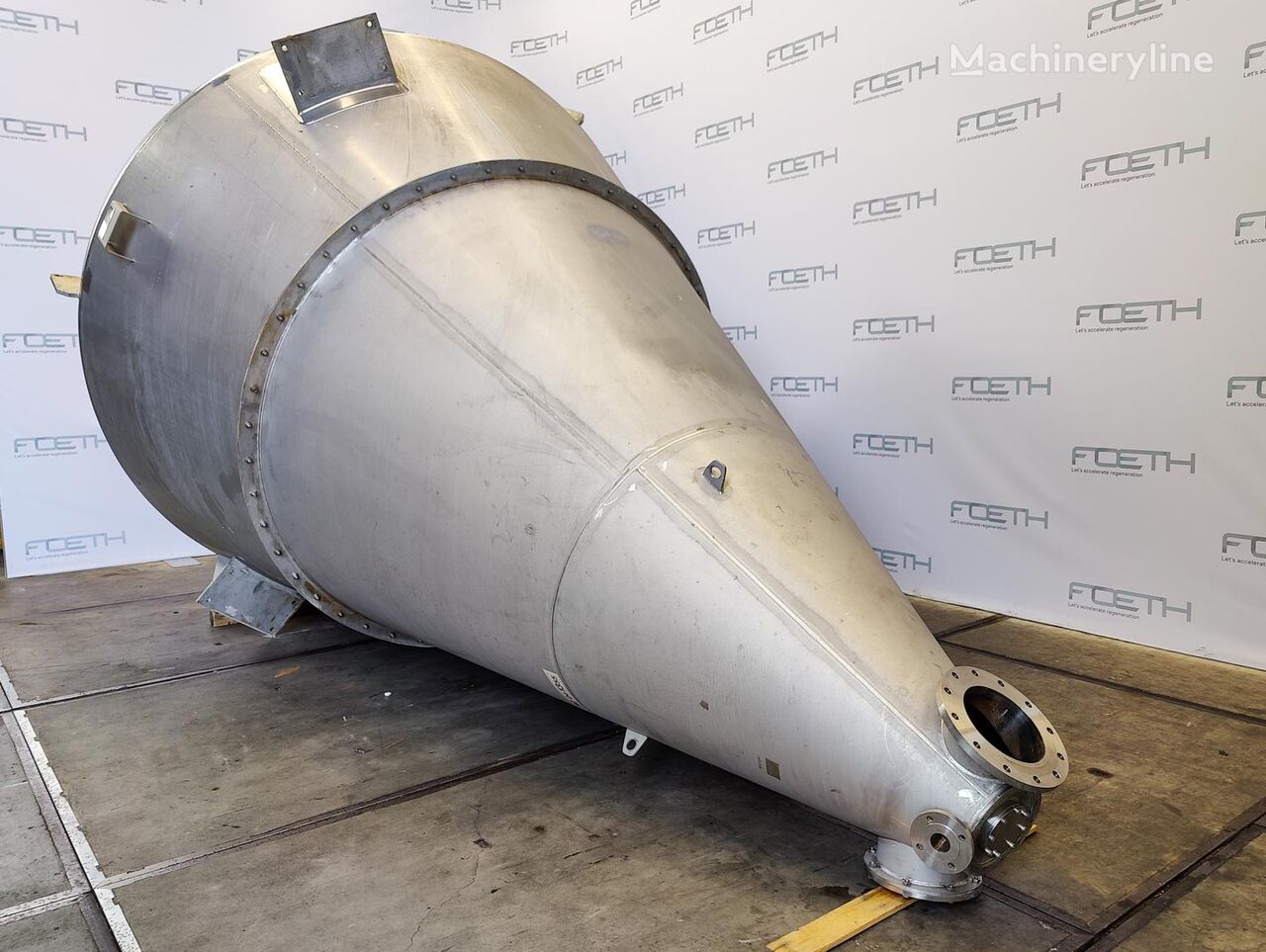

The conical vessel has a largest cone diameter of 3,330 mm and a cone height of 5,205 mm. The total installed height of the unit is 6.5 metres, and it occupies a floor space of 3.6 × 3.6 metres. Access to the interior is provided via a DN700 manhole.

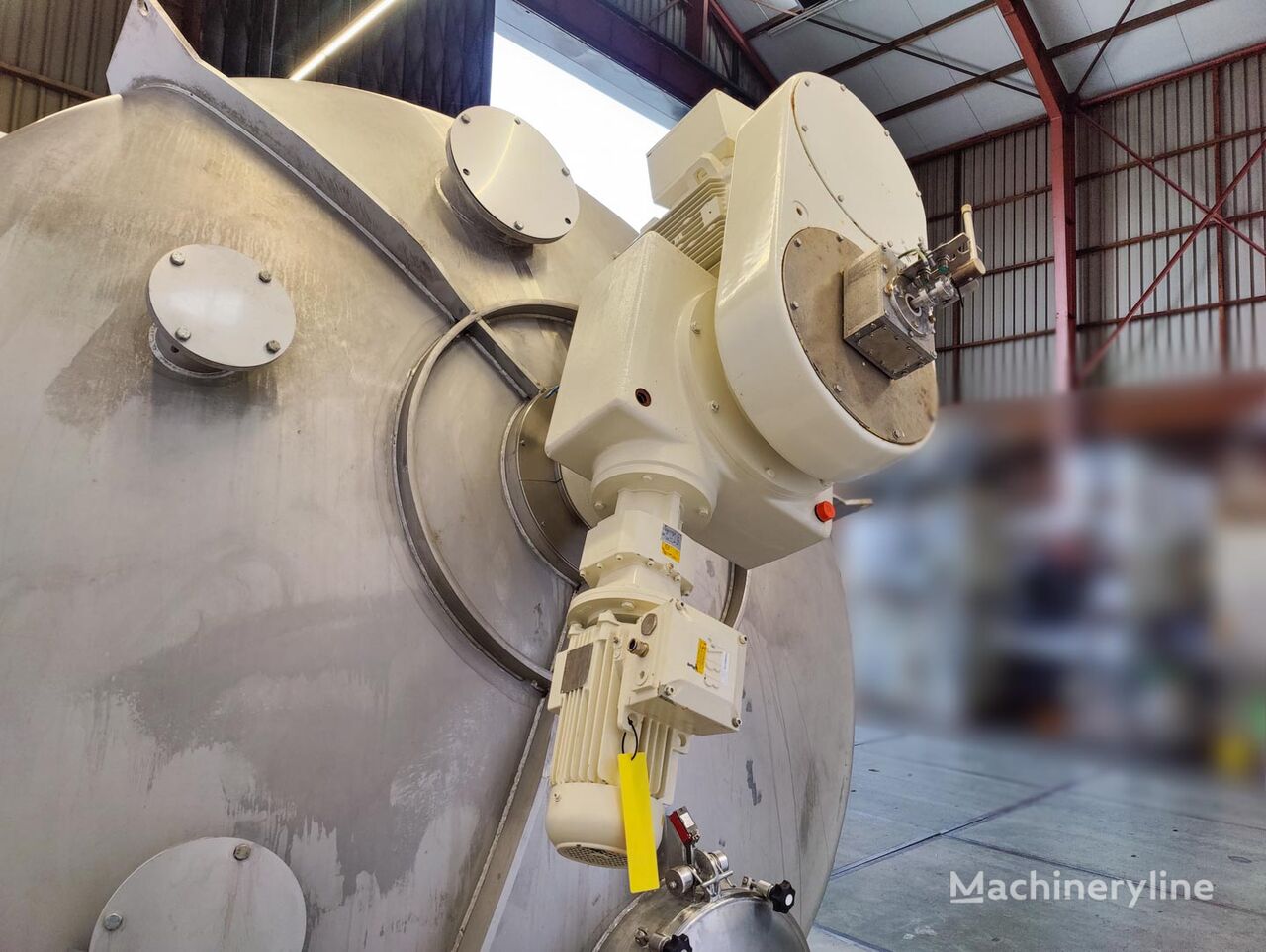

Mixing is carried out by a stainless steel screw arm, and the machine is fitted with a variable speed drive. The nominal screw speed is 66 rpm, while the orbital arm speed is 0.7 rpm. A bottom bearing pintle bearing supports the lower end of the screw. Product discharge is through a DN 250/300 bottom outlet positioned on the side of the cone.
The unit is noted as ATEX compatible, indicating suitability for use in potentially explosive atmospheres. This is a used machine offered in its current condition from the Netherlands.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
