1999 - Agie Agiecut CLASSIC2 Machining Center()
- Listing No
- 956264
- Year
- 1999
- Manufacturer
- Agie
- Model
- Agiecut CLASSIC2
- Condition
- Used
- Location
- Portugal
- Price
- POA
- Description
-
Auxiliary table displacement (U axis x V axis): 70 x 70 mm control system: AGIEVISION Maximum cone angle: +/- 30 degrees Maximum cone thickness: 100 mm Maximum dimensions: 750x550x250mm Maximum feeds in the X/Y/Z axes: 350/250/256 mm Maximum feeds on the X / Y / Z axes: 350/250/256 mm Maximum part weight: 200/450kg Maximum stroke length X-axis: 500 mm Maximum weight of the piece: 200/450kg Maximum working dimensions: 1050x650x250 mm Maximum workpiece weight: 800 kg Maximum Z-axis stroke length: 256 mm Nominal chain: 14 A Quantity in Stock: 1 Total weight: 2580 kg V conductor: 0 degrees – 2 degrees Weight: 3460 kg Wire diameter: 0.2 – 0.33 mm Wire tension: 0 – 25 N Yarn tension: 0 ��� 25 N Y-axis max stroke length: 350 mm AGIE AGIECUT CLASSIC 2 erosion machine. Note: There may be differences between the data presented and the actual values. You must confirm the characteristics by visiting the equipment.
About this machine

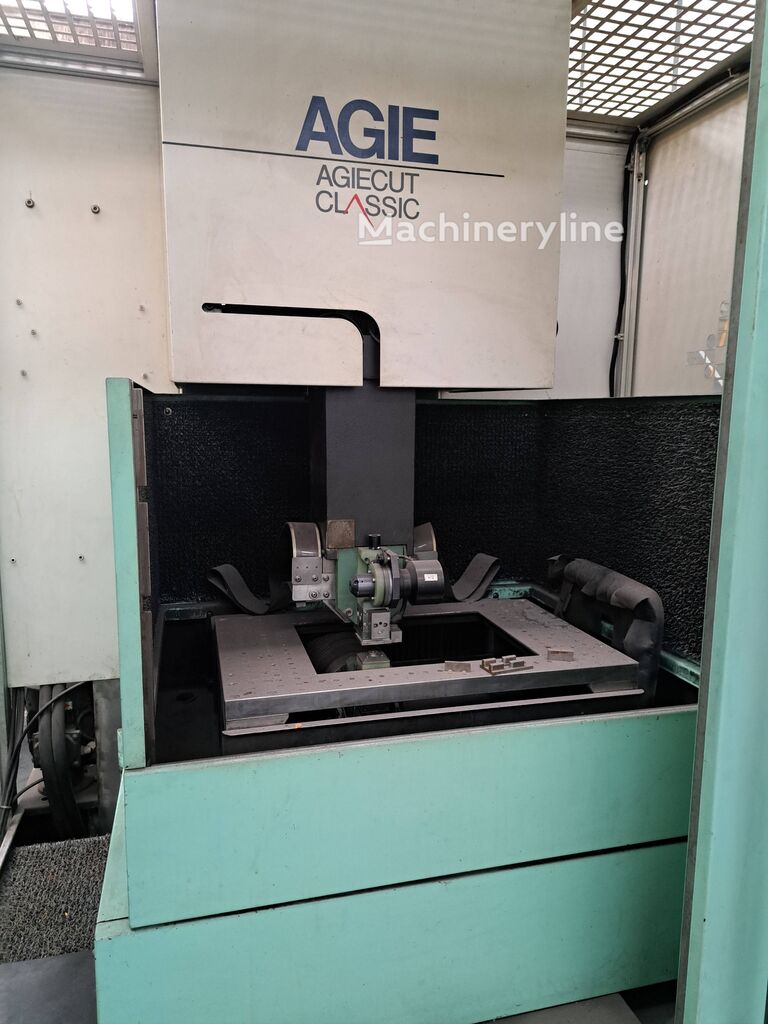

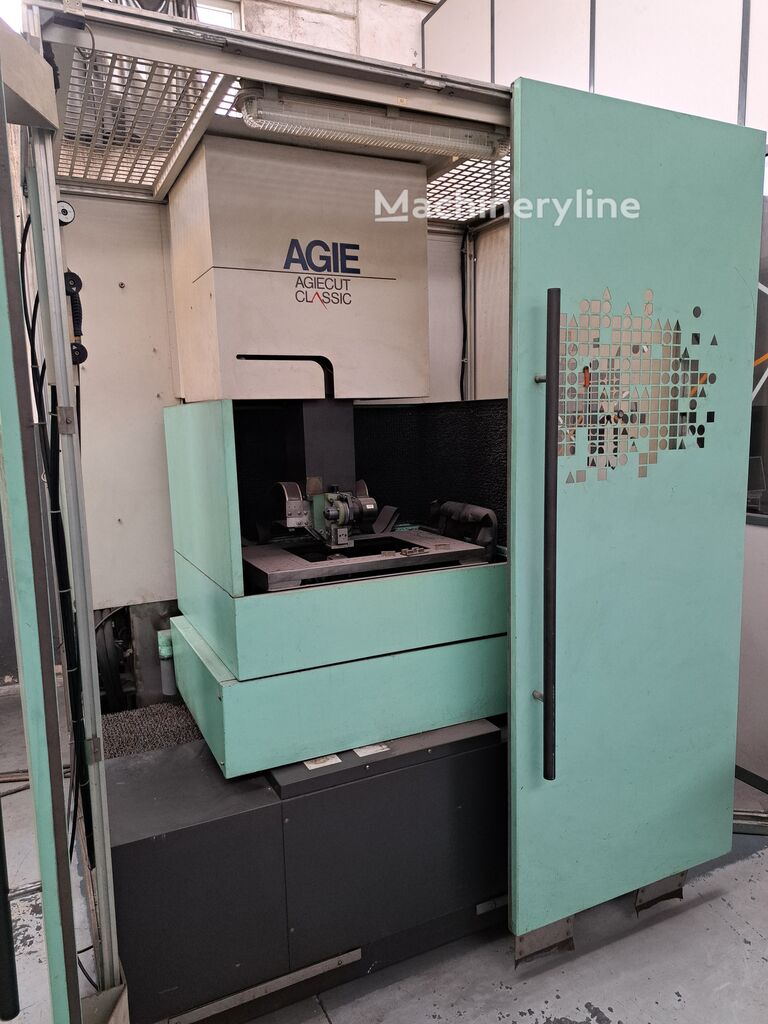

This Agie Agiecut CLASSIC2 is a used machining center — more specifically, a wire electrical discharge machine, also known as a wire EDM or wire-cut EDM — offered from Portugal and dating from 1999. Wire EDM machines use a thin, electrically charged wire to cut through conductive materials with high precision, making them a staple in toolmaking, die and mould production, aerospace component manufacture, and precision engineering. Agie is a Swiss manufacturer with a long-established reputation in the EDM sector, producing wire erosion and die-sinking machines used across industries that demand tight tolerances and complex geometries.
The machine operates under the AGIEVISION control system and accepts wire diameters ranging from 0.20 to 0.33 mm, with wire tension adjustable between 0 and 25 N. The maximum cone angle achievable is ±30 degrees, with a maximum cone thickness of 100 mm, making the machine capable of producing tapered and angled profiles as well as straight cuts.
Axis travel is as follows: the X axis offers a maximum stroke of 500 mm, the Y axis 350 mm, and the Z axis 256 mm, giving maximum feed dimensions of 350 × 250 × 256 mm across the three primary axes. The auxiliary table displacement on the U and V axes extends to 70 × 70 mm, supporting the taper-cutting capability. Maximum working dimensions reach 1,050 × 650 × 250 mm, while the maximum part dimensions the table can accommodate measure 750 × 550 × 250 mm.
The machine can handle workpieces weighing up to 800 kg at the maximum, with a part weight range of 200 to 450 kg also noted in the data. The nominal supply current is rated at 14 A, and the V conductor range runs from 0 to 2 degrees. Total machine weight is recorded at 2,580 kg, with an overall weight figure of 3,460 kg also stated. One unit is available. As noted by the seller, prospective buyers should verify all specifications against the actual machine on inspection.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
