2010 - Haas VF-3SSAPC Machining Center()
- Listing No
- 965898
- Year
- 2010
- Manufacturer
- Haas
- Model
- VF-3SSAPC
- Condition
- Used
- Location
- Price
- POA
- Description
-
Group: Machining centres Control: HAAS AUTOMATION Number of axis total: 3 Table length: 1219 mm Table width: 457 mm Transversal travel (y-axis): 508 mm numbers: 2 Number of tools: 40 Tool diameter max: 64 mm Diameter with free adjacent pockets: 127 mm Tool lenght: 330 mm Max. tool-weight: 5.4 kg Time of tool changing: 2.8 s Distance spindle nose to table: 742 mm up to: 12000 t/min Work feed rate: 21.2 m/min Rapid traverse: 35.6 m/min Air connect: 6 bar Voltage 50 Hz 3x: 400 Volt Machine's weight about: 6300 kg Coolant system: 208 l
About this machine
This Haas VF-3SSAPC is a used machining center — sometimes referred to as a CNC machining center or vertical machining center — dating from 2010. Machining centers are computer-controlled machine tools designed to perform milling, drilling, boring, and tapping operations on metal and other materials with high precision and repeatability, typically under the command of an onboard CNC system. Haas Automation is a well-established American manufacturer of CNC machine tools, producing vertical and horizontal machining centers, turning centers, and rotary tables that are widely used across aerospace, automotive, medical, and general engineering industries. Two units of this machine are available.

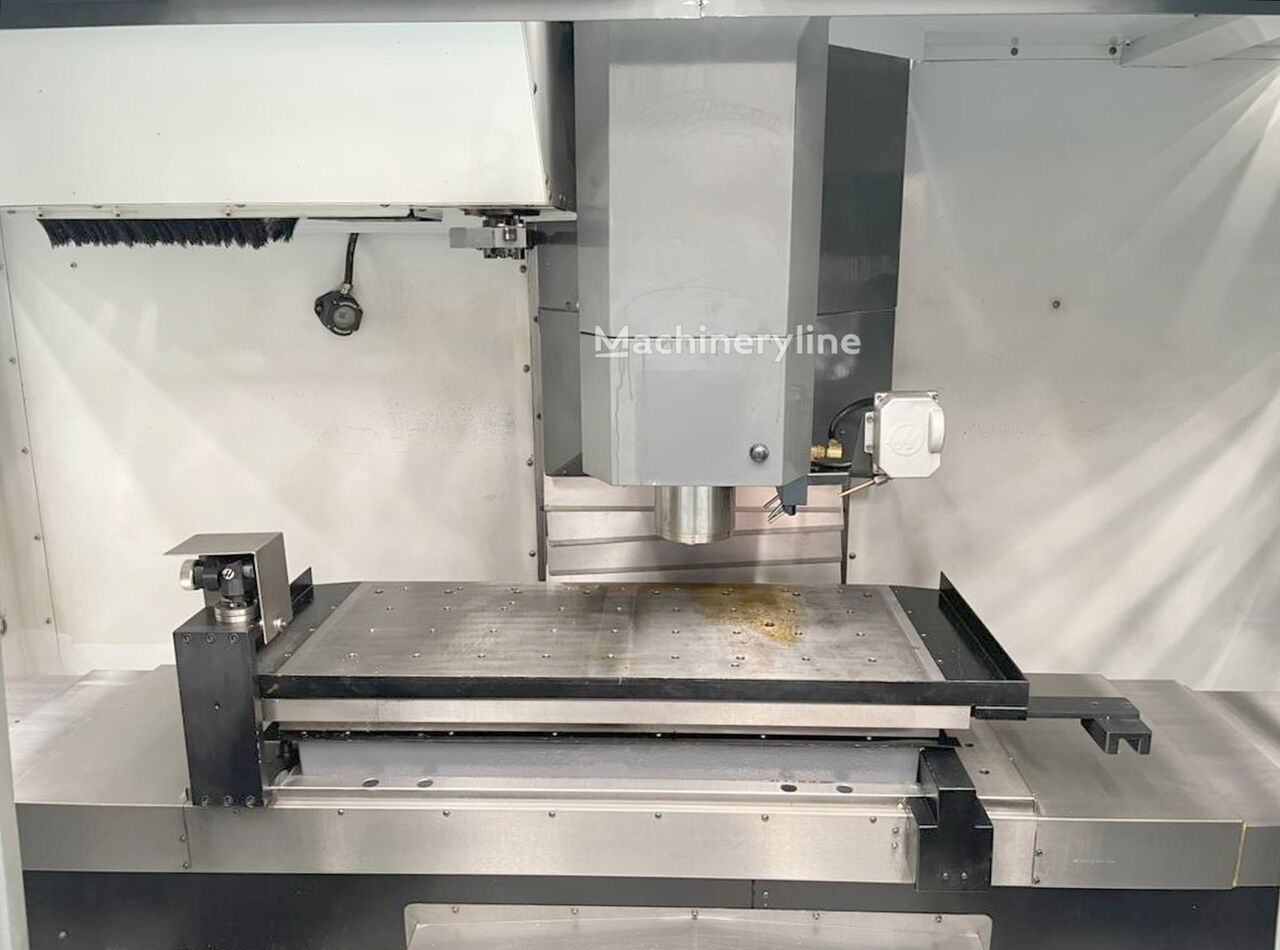

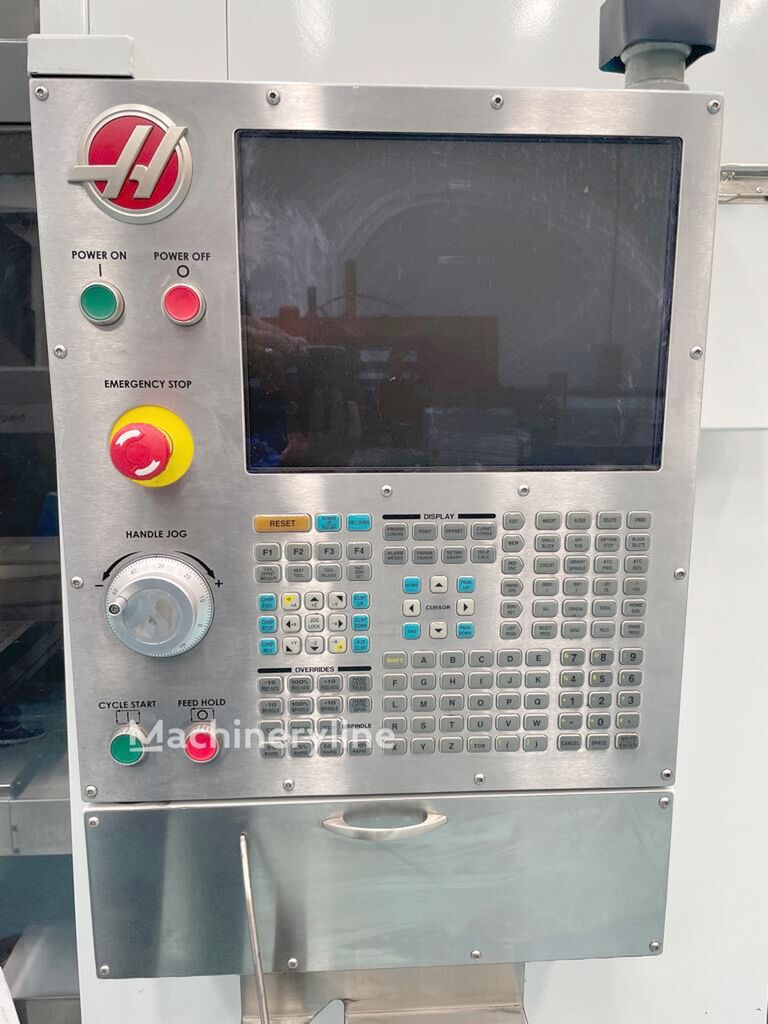

The machine runs a Haas Automation control system and operates on three axes. The table measures 1,219 mm in length by 457 mm in width, providing a substantial working surface for workpiece fixturing. Y-axis transversal travel is 508 mm, and the distance from the spindle nose to the table is 742 mm, giving a useful range of workpiece heights.

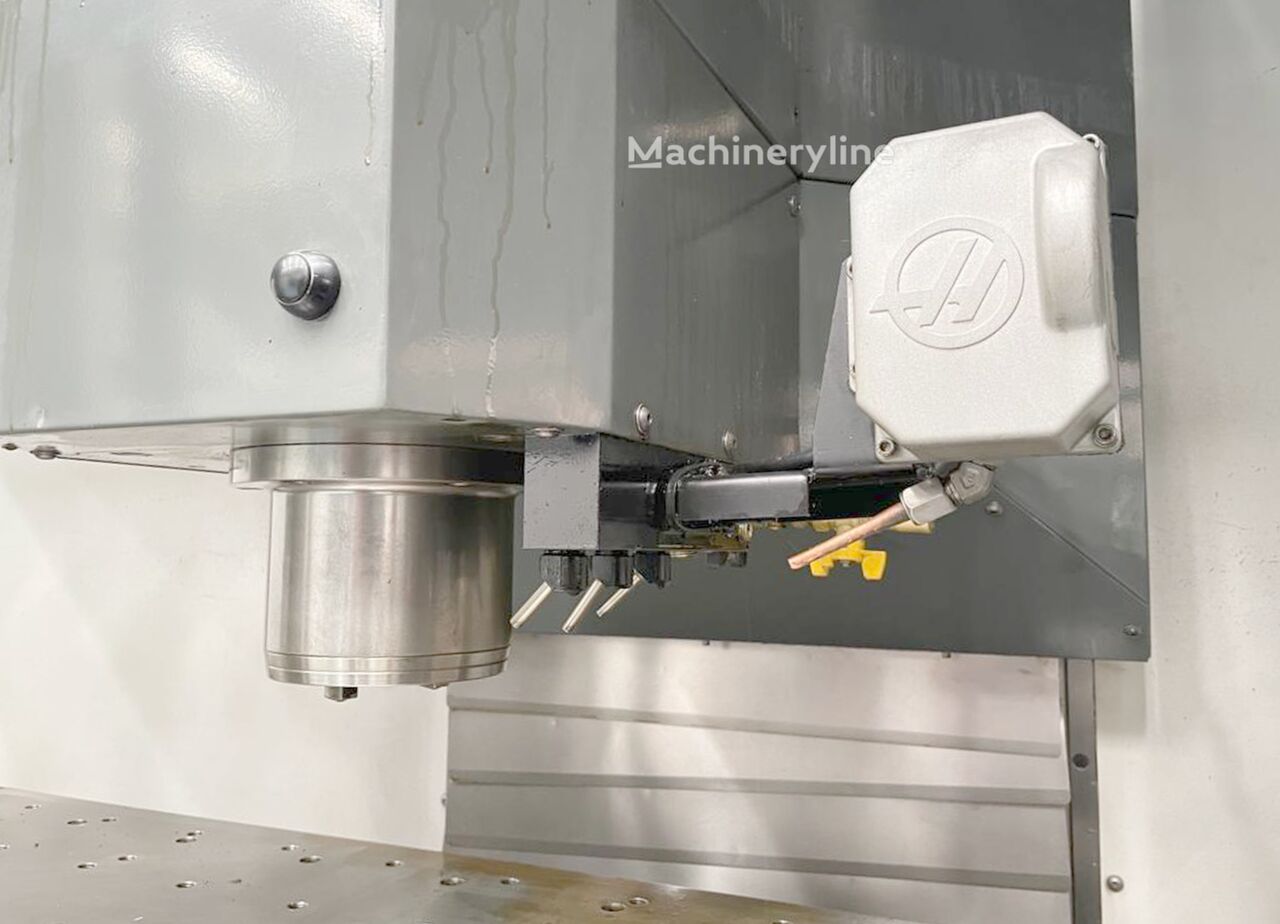

The spindle reaches a maximum speed of 12,000 rpm, and the machine offers a work feed rate of 21.2 m/min alongside a rapid traverse rate of 35.6 m/min, supporting efficient cycle times across a variety of cutting operations. The automatic tool changer holds 40 tools, with a tool change time of 2.8 seconds. Maximum tool diameter is 64 mm, expanding to 127 mm when adjacent pockets are left free, while maximum tool length is 330 mm and maximum tool weight is 5.4 kg per holder.
The coolant system has a capacity of 208 litres. The machine requires a compressed air supply at 6 bar and connects to a three-phase 400 V, 50 Hz electrical supply. Overall machine weight is approximately 6,300 kg.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
