2007 - Agie Charmilles Agie Charmilles Mikron HSM 400 Machining Center()
- Listing No
- 957646
- Year
- 2007
- Manufacturer
- Agie Charmilles
- Model
- Mikron HSM 400
- Condition
- Used
- Location
- Portugal
- Price
- POA
- Description
-
1.8 meters: Heidenhain iTNC 530 Advance (X/Y/Z): 20x18x20 m/min Auto Mode (Z axis): 36/min CNC: Heidenhain iTNC 530 CNC version: iTNC 530 Control: Heidenhain 6951/6951/11519N course x: 1300 MM Course (X/Y/Z): 1400x1600x600/700mm course y: 400 MM course z: 500 MM DEPTH MEASUREMENTS: 2865 MM Electric: 230V/3PH Fast forward (X/Y/Z): 20x18x20 m/min Head (Z axis): 610 mm HEIGHT MEASUREMENTS: 3079 MM iso: 50 kW power: 0.04/0.053 Kw spindle power: 3 Longitudinal advance mm/min: (8) 30 - 740 Longitudinal course: 1000 mm machine dimension: 4665x4605x3610 mm machine dimensions: 4,665 mm (width) x 4,605 mm (depth) x 3,610 mm (height) Machine dimensions: 4,665 mm (width) x 4,605 mm (depth) x 3,610 mm (height) machine net weight: 22.500 kg MACHINE WEIGHT: 12000 KG main engine: 15 / 22.5 hp mandrel cone: ISO40 Maximum height on the table: 820 mm Maximum load on the table: 120 kg Maximum spindle speed: 12.000 rpm Maximum spindle torque: 121 Nm Maximum tool diameter: 80 mm Maximum tool length: 300 mm Maximum weight on the table: 1500 kg Max spindle power: 14,5 kW MEASUREMENTS WIDTH: 4136 MM Minimum Increment: 0,001mm Minimum spindle speed: 20 rpm mm dimensions: 2300x2200x2115 net weight kg: 2000 Number of axes controlled: 5 Number of controlled axes: 5 number of speeds: 11 Number of tools: 30 number of tools: 30 Number of T-Slots: 5 Packing: 5350x4000x3700 mm PIECE WEIGHT: 3000 KG piston displacement mm: MANUAL Power: 10 kW Quantity in Stock: 2 Quantity in Stock: 2 Ram stroke mm: 600 Saddle (Y axis): 610mm spindle cone: HSK 40 spindle speed: 0 - 10,000 RPM spindle taper: CAT40 table area: 1500 x 1600 mm Table Capacity: 3,300 pounds. Table Dimensions: 160 x 160mm Table dimensions: 1400 x 750 mm Table feed mm/min: Automatic table load: 900kg Table Load: 5.000 kg table rotation: +/-35 table size: 60" x 30" Table (X axis): 1020mm Tapered spindle toolholders: HSK 40 Tool storage capacity: 20 pcs. total machine weight: 8800 kg Transverse feed mm/min: (8) 30-740 Transverse slide displacement: 280 mm T-slot: 22/200x8 mm T-slots: 3x14 mm Vertical advance mm/min: 10-168 Vertical slides mm/min: 600 Wattage: 10 kW work piece: 1600x1800x60 / 850 mm work surface: 1200 x 600mm X axis: 500 mm X Axis Course: 60″ X AXIS MOVEMENT: 1600 MM x/y/z acceleration: 6/5/4m/s2 X/Y/Z axis: 1150/700/550 mm X,Y,Z axis speed: 36 m / min Y axis: 450 mm Y Axis Course: 30″ Y AXIS MOVEMENT: 920 MM Z axis: 360 mm Z Axis Course: 30″ Z AXIS MOVEMENT: 844 MM CNC machining center Agie Charmilles Mikron HSM 400. Show the whole comment
About this machine

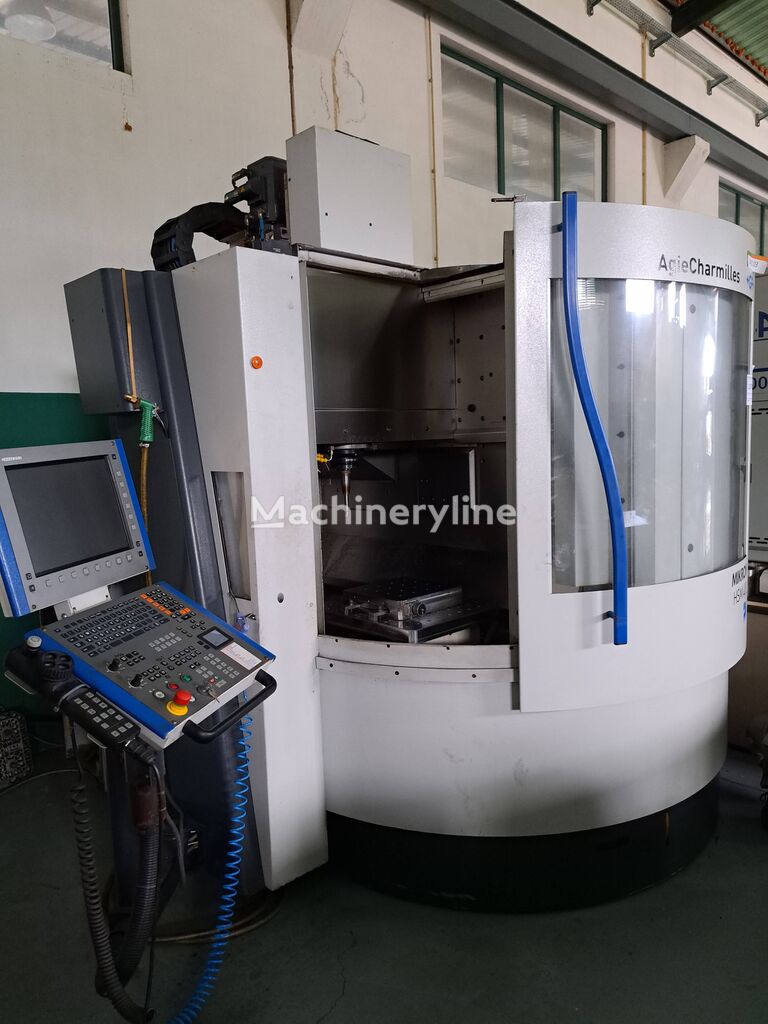

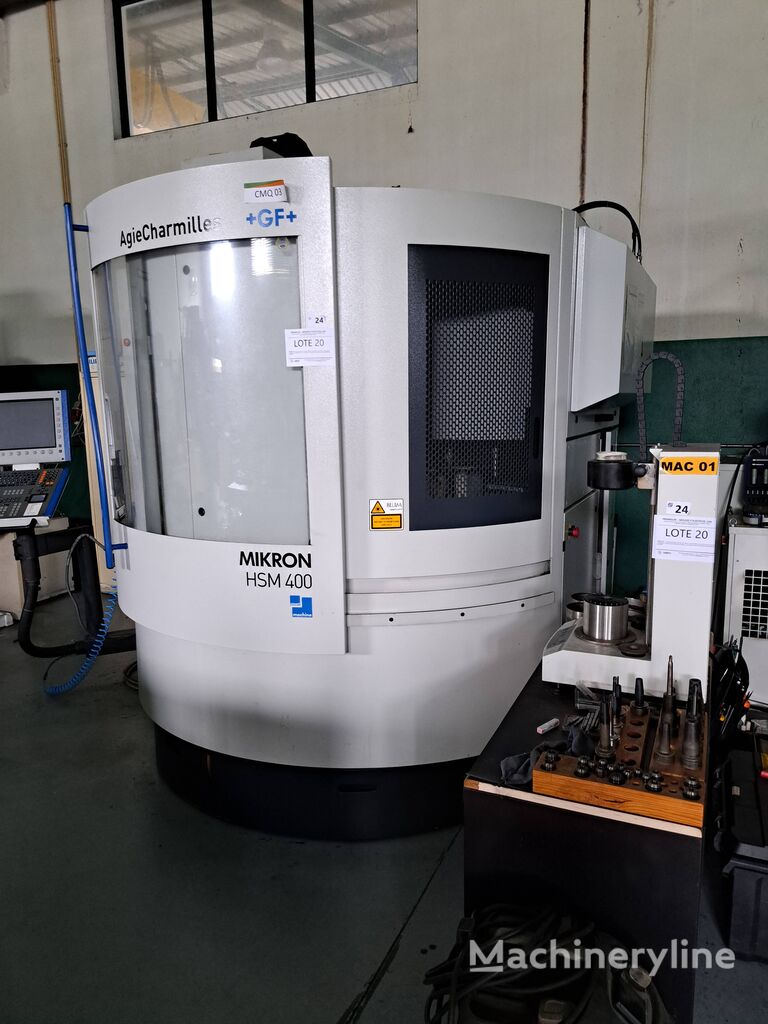

The Agie Charmilles Mikron HSM 400 is a used machining center — sometimes referred to as a CNC machining center or milling center — dating from 2007 and currently located in Portugal. Machining centers are multi-axis CNC machine tools designed for high-precision metal cutting operations including milling, drilling, boring, and tapping, typically within a single setup. Agie Charmilles is a well-established Swiss precision machine tool brand, part of the GF Machining Solutions group, and is widely associated with high-speed milling and EDM equipment serving the aerospace, automotive, toolmaking, and mould-and-die industries.

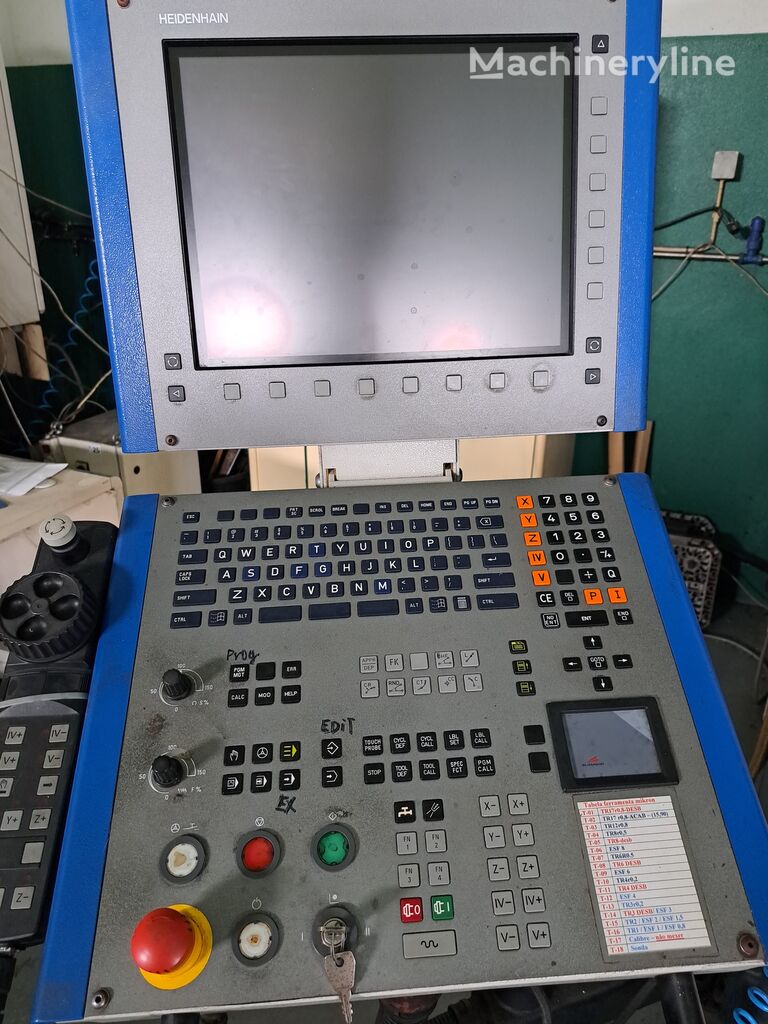

The machine runs on a Heidenhain iTNC 530 control system, identified with control number 6951/6951/11519N, and operates with five controlled axes. The spindle accepts HSK 40 toolholders and is rated for a maximum speed of 12,000 rpm with a minimum of 20 rpm, producing a maximum torque of 121 Nm and a peak spindle power of 14.5 kW. Maximum tool diameter is 80 mm and maximum tool length is 300 mm. The tool magazine holds 30 tools.
Axis travels are 500 mm in X, 450 mm in Y, and 360 mm in Z, with rapid traverse rates of 20 m/min in X, 18 m/min in Y, and 20 m/min in Z. Axis acceleration figures are 6 m/s² in X, 5 m/s² in Y, and 4 m/s² in Z. Minimum programmable increment is 0.001 mm. The workpiece envelope is given as 1,600 × 1,800 × 60/850 mm, and the maximum workpiece weight on the table is 1,500 kg.
The machine is powered by a 15/22.5 hp main motor on a 230 V three-phase supply. Overall machine dimensions are 4,665 mm wide × 4,605 mm deep × 3,610 mm high, with a net machine weight of 12,000 kg. Packing dimensions are 5,350 × 4,000 × 3,700 mm. Two units are available from this location in Portugal.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
