1991 - Alfa Laval Mixer Blender()
- Listing No
- 1181152
- Year
- 1991
- Manufacturer
- Alfa Laval
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: IV Vacuum possible: check Working pressure shell: 6.5 Bar Vacuum possible shell: check Working pressure tubes: 6.5 Bar Shell (Material): Mild steel Tube (Material): Stainless steel Surface: 3 m2 Material: Stainless steel 1.4404 (316L) Heat exchanger: check Horizontal: check Heating surface: 3 m2 Tube capacity: 16 l Max. temperature: 130°C Shell connections: DN40 Cover connections: DN40 No: 18892 Mounted on legs: check Floorspace: 0,80 x 0,65 m Total height: 1,50 m General Pressure Main Features Specified Features - Shell and tube heat exchanger Information
About this machine
This Alfa Laval mixer and blender — sometimes referred to as a process mixer — is a used industrial mixing and blending machine, offered here from a seller located in Barneveld, Netherlands. Alfa Laval is a well-established Swedish engineering company with a long history of supplying heat transfer, fluid handling, and separation equipment to industries including food and beverage, pharmaceuticals, chemicals, and energy.
The unit is a Type IV shell-and-tube heat exchanger configuration with an integrated heating surface of 3 m², giving it meaningful thermal capacity for process applications that require temperature control during mixing or blending operations. The shell is constructed from mild steel, while the tubes are manufactured from stainless steel 1.4404, which is the European designation for 316L — a grade widely used in hygienic and corrosion-resistant process environments. The tube-side capacity is 16 litres.

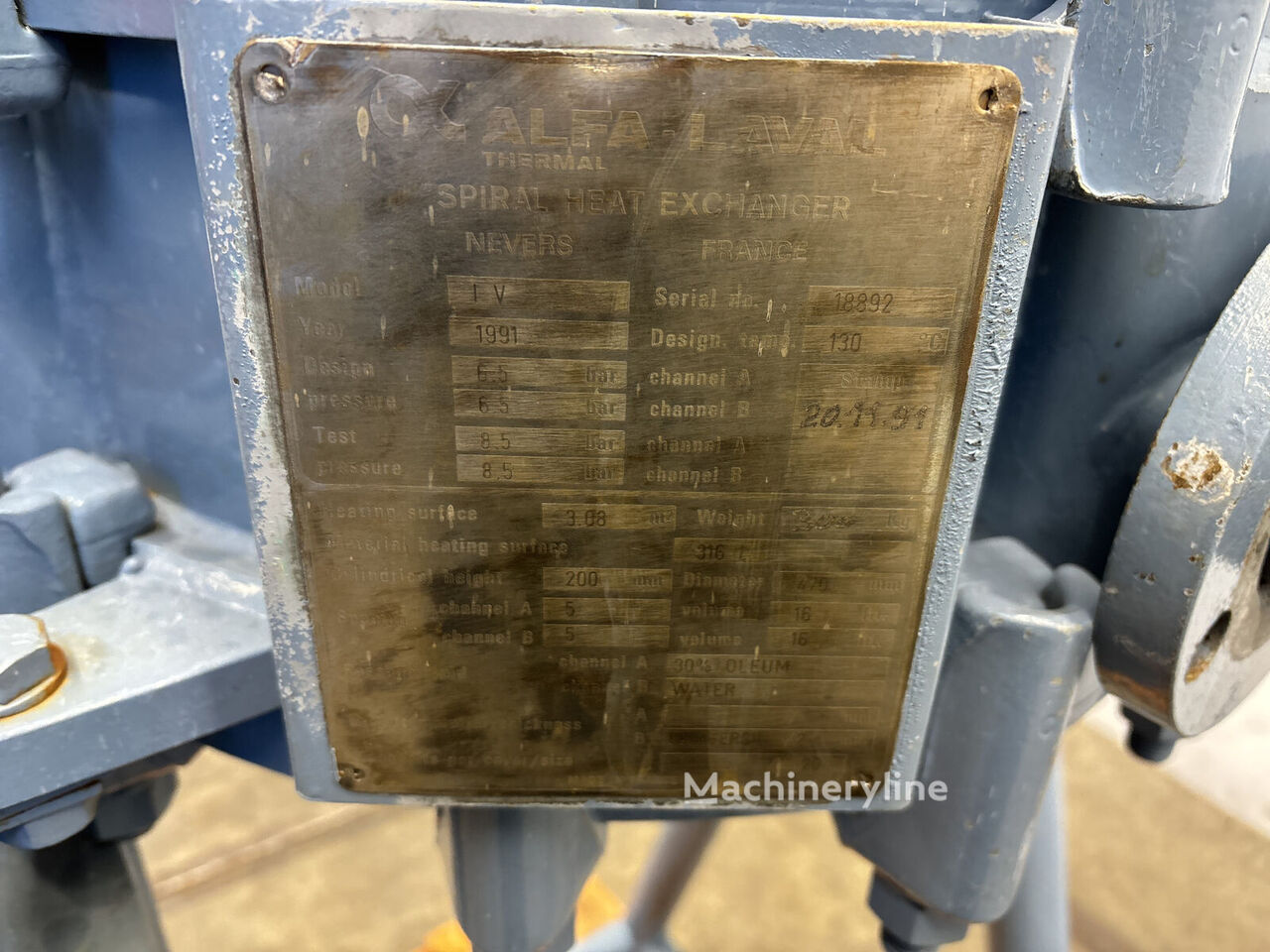

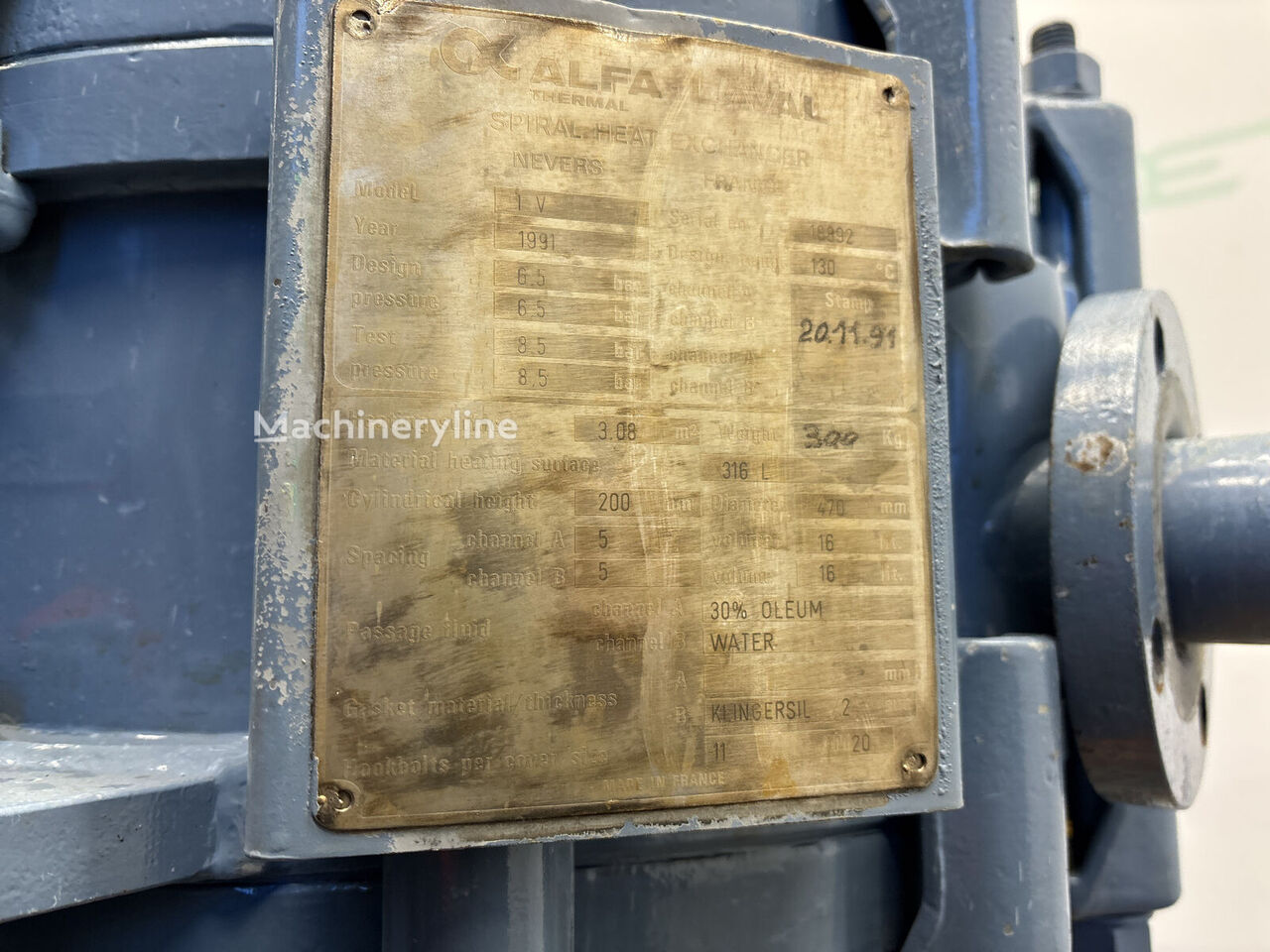

Both the shell and the tube side are rated to a working pressure of 6.5 bar, and the unit is noted as being capable of vacuum operation on the shell side. The maximum operating temperature is 130°C. Shell connections and cover connections are both sized at DN40. The unit carries the serial number 18892.

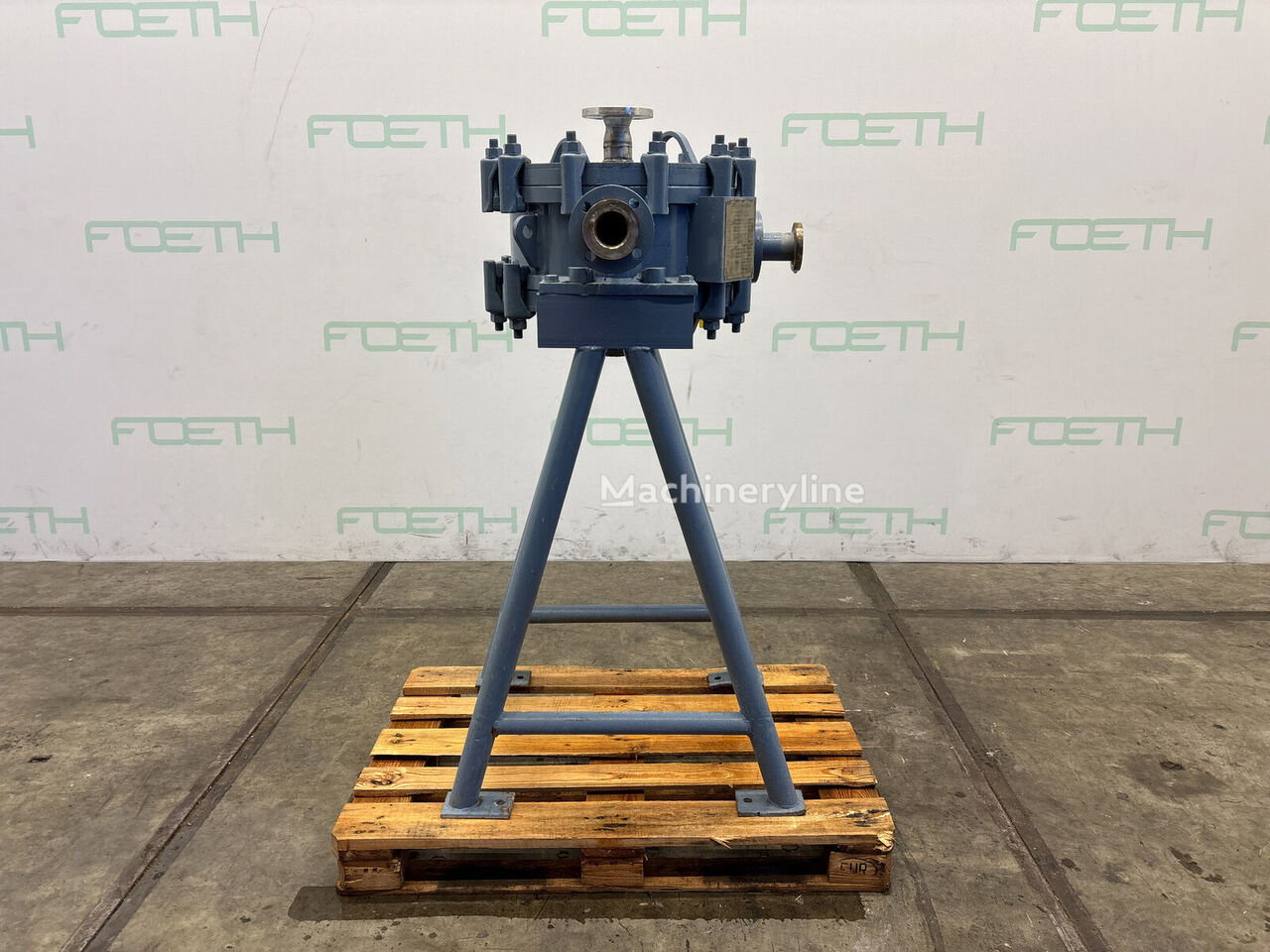

The machine is mounted horizontally on legs, giving it a stable, freestanding installation. Its floor footprint measures 0.80 × 0.65 metres, and the total height is 1.50 metres, making it a relatively compact unit suited to facilities with limited floor space. Manufactured in 1991 and offered in used condition, this machine represents an established design built to Alfa Laval's industrial process standards.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
