2001 - Amixon VM 300 Mixer Blender()
- Listing No
- 1183917
- Year
- 2001
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: VM 300 No: 1685 Working pressure: 0.1 Bar Vacuum possible: check Working pressure jacket: 0.2 Bar Material: Stainless steel 1.4301 (304) Volume: 390 Ltr Motor: 15 kW (400 V, 1450 rpm) Ribbon blender: check Capacity: 425 l Useful capacity: 300 l Trough sizes: Dia. 900x700 mm Inlet: Dia. 265 m Manhole: 500x550 mm Outlet: Dia. 200 mm Interrupted ribbon: check With jacket: check Max. temperature: 60°C Glands air purged: check Speed mixing shaft: 35 rpm Mounted inclined on frame: check Total height: 2,30 m Floor space: 1,40 x 0,90 m Extra Specifications: With lump breaker, 15/18,5 kW, 500 volt, 1475/2950 rpm merk: Ruberg Mischtechnik General Pressure Main Features Specified Features - Ribbon blender Information
About this machine

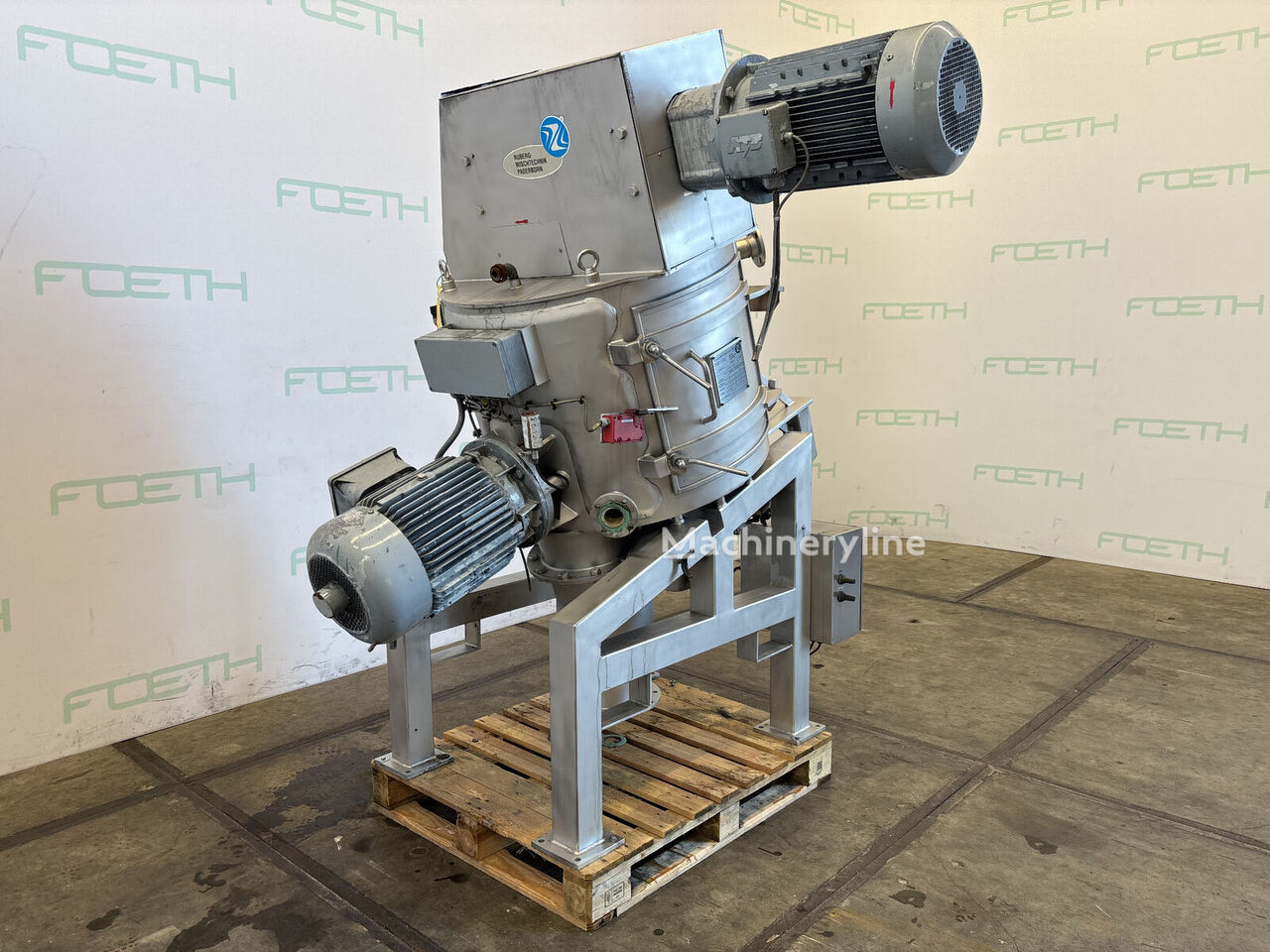

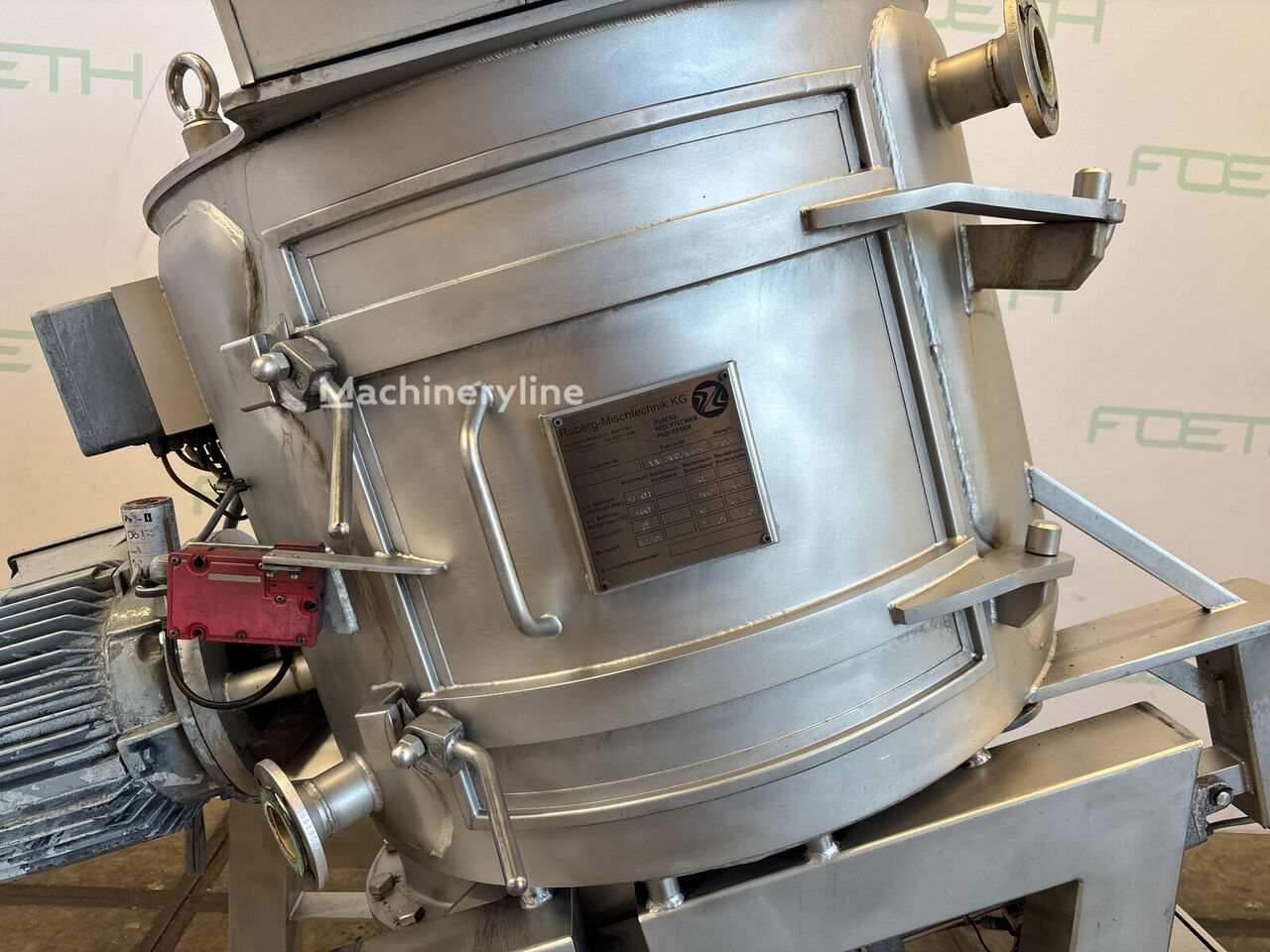

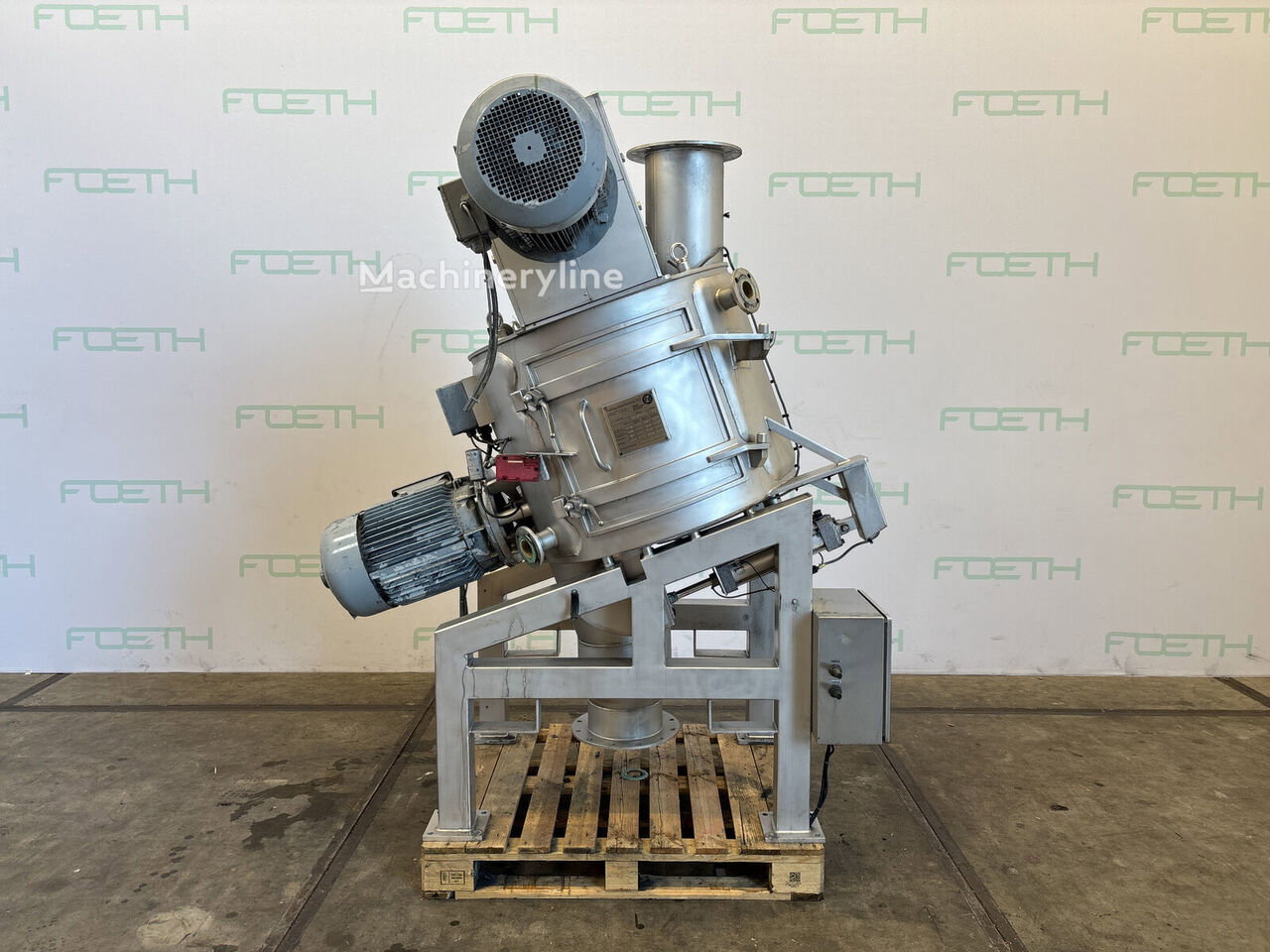

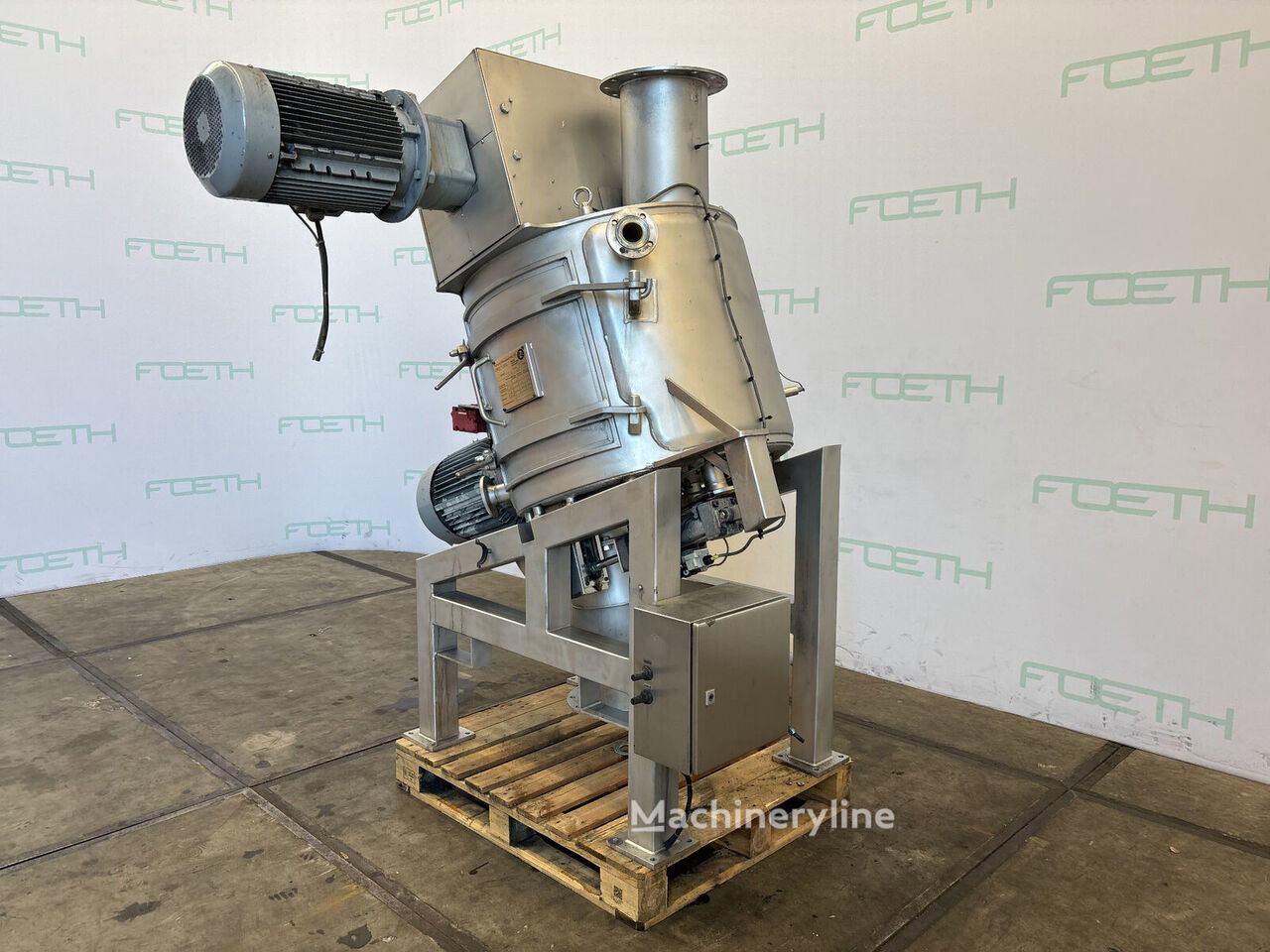

The Amixon VM 300 is a used mixer and blender — sometimes referred to as a ribbon blender or mixing vessel — designed for the blending, homogenising, and processing of bulk materials in powder, granule, or paste form. Amixon is a German manufacturer with a longstanding reputation for high-quality industrial mixing equipment serving the food, chemical, pharmaceutical, and related process industries. The machine on offer here was built in 2001, carries serial number 1685, and is located in Barneveld, Netherlands.

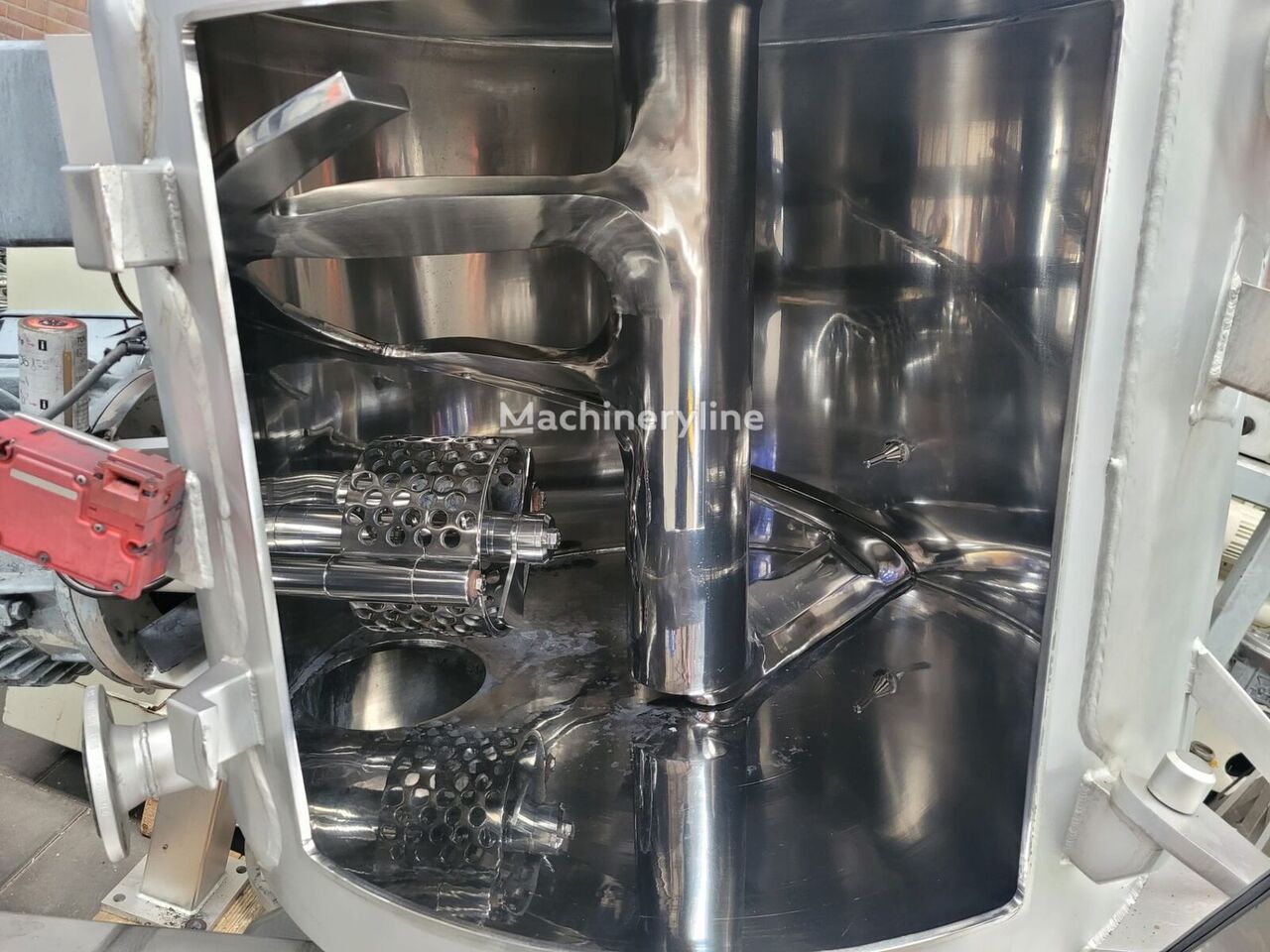

At its core, this unit is a ribbon blender mounted at an incline on a dedicated frame. The trough measures 900 mm in diameter by 700 mm in length and has a total volume of 390 litres, with a rated working capacity of 300 litres and a maximum capacity of 425 litres. The mixing shaft runs at 35 rpm and is driven by a 15 kW motor operating at 400 V and 1,450 rpm. An interrupted ribbon configuration is fitted, which promotes thorough material turnover and reduced dead zones during mixing. A lump breaker is also included, driven by a separate 15/18.5 kW motor running at 500 V and 1,475/2,950 rpm, providing two operating speeds for breaking down agglomerates within the mix.
The vessel is constructed from stainless steel grade 1.4301 (AISI 304), making it suitable for use with a wide range of food-grade and chemical products. It is equipped with a heating or cooling jacket rated to a working pressure of 0.2 bar, allowing temperature control up to a maximum of 60°C. The main vessel itself operates at a working pressure of 0.1 bar, and vacuum capability is noted as available for inspection. All shaft glands are air-purged, supporting hygienic operation and reducing the risk of contamination or ingress.
Access to the interior is provided via a manhole measuring 500 × 550 mm. The inlet is 265 mm in diameter and the outlet is 200 mm in diameter. The complete installation sits within a floor footprint of 1.40 × 0.90 metres and reaches a total height of 2.30 metres. The drive components are noted as being supplied by Ruberg Mischtechnik. The machine is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
