1999 - AWEA VP-1050 Machining Center()
- Listing No
- 954894
- Year
- 1999
- Manufacturer
- AWEA
- Model
- VP-1050
- Condition
- Used
- Location
- Portugal
- Price
- $30,000
- Description
-
9 pés e 2,24 polegadas: 21 Bueno: 1050 mm CNC type: FANUC O-M CONTROL: HEIDENHAIN TNC 530 HEAD: 8000 rpm Max. shaft speed: 6000 rpm Max. spindle speed: 6000 rpm Number of tools: 21 number of tools: 21 POWER: 15 kw Quantity in Stock: 2 Quantity in Stock: 2 spindle taper: BT40 TABLE DIMENSIONS: 1300 x 600mm table length: 1050 mm table width: 505 mm TOOL CHANGE: 20. Wattage: 40 kva WEIGHT: 7500 kg X axis: 1050 mm X axis stroke: 2000 mm Y axis: 600 mm Y axis stroke: 2000 mm Z axis: 505 mm Z axis travel: 1500 Awea VP-1050 Machining Center Show the whole comment
About this machine

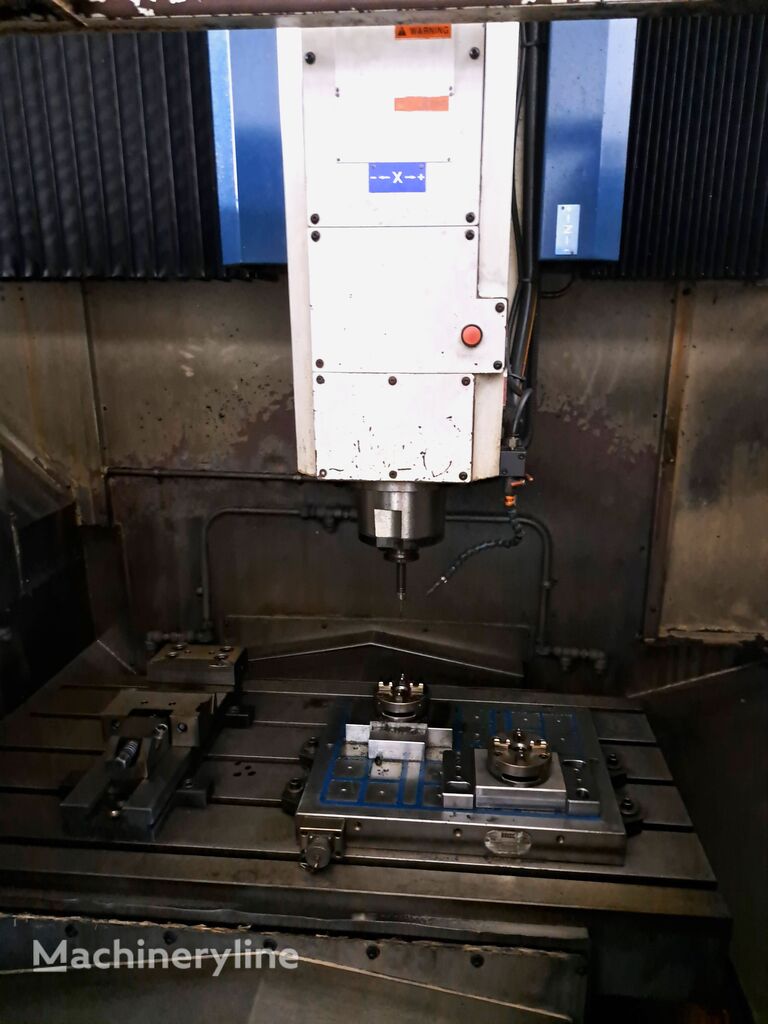

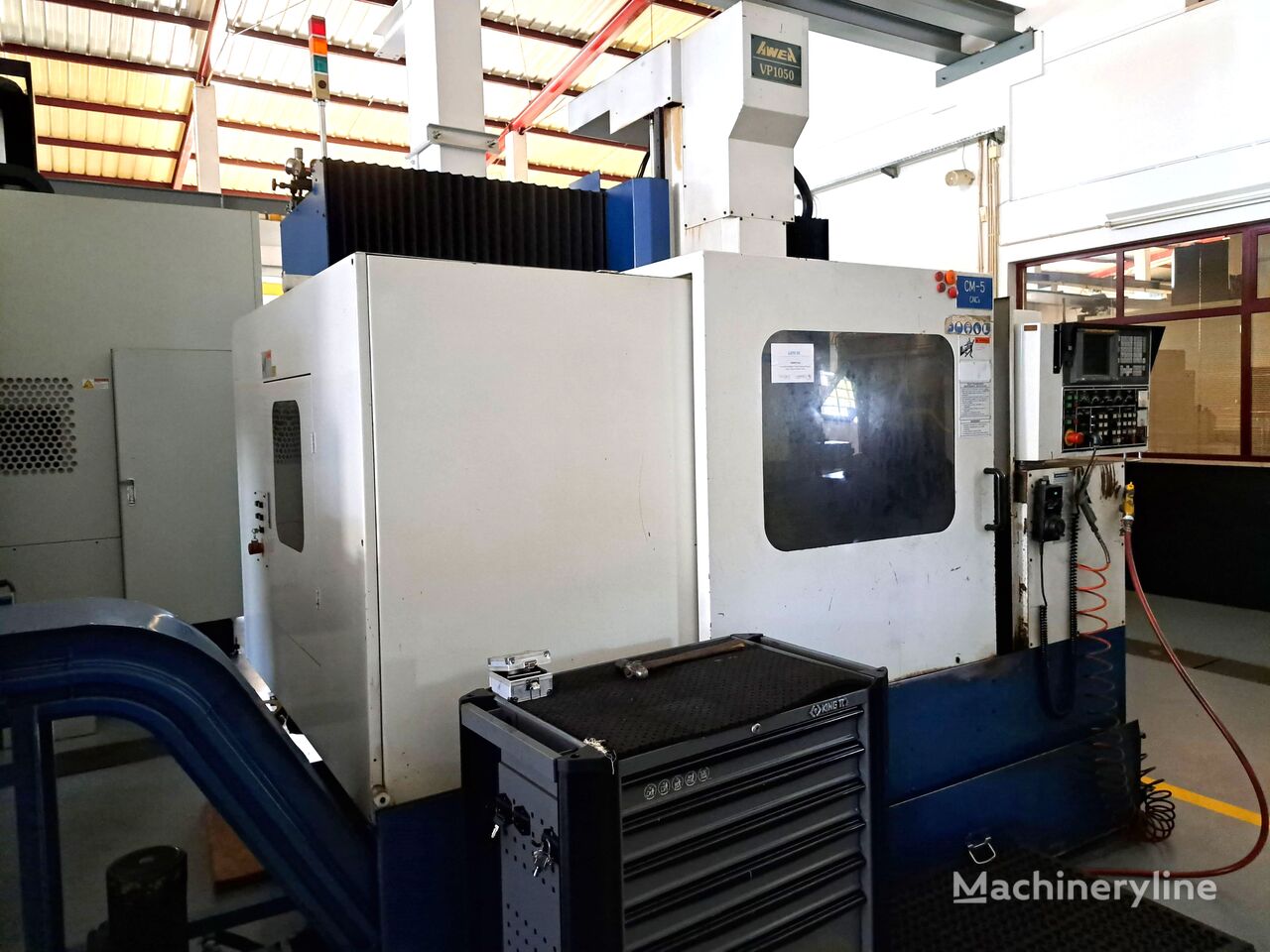

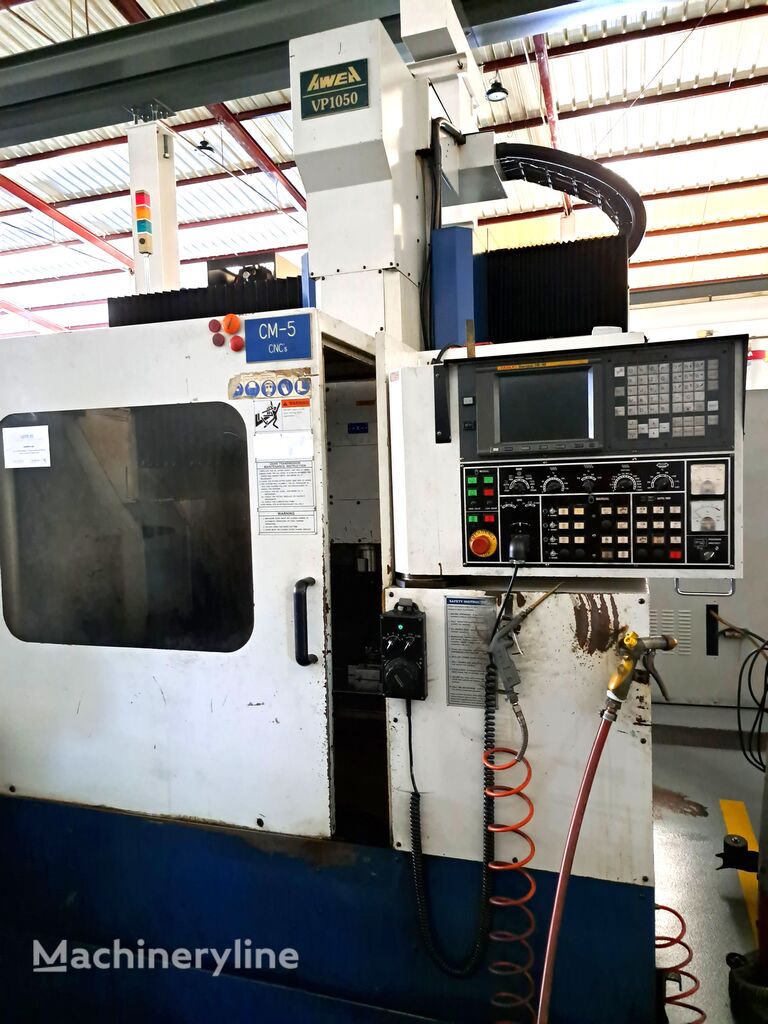

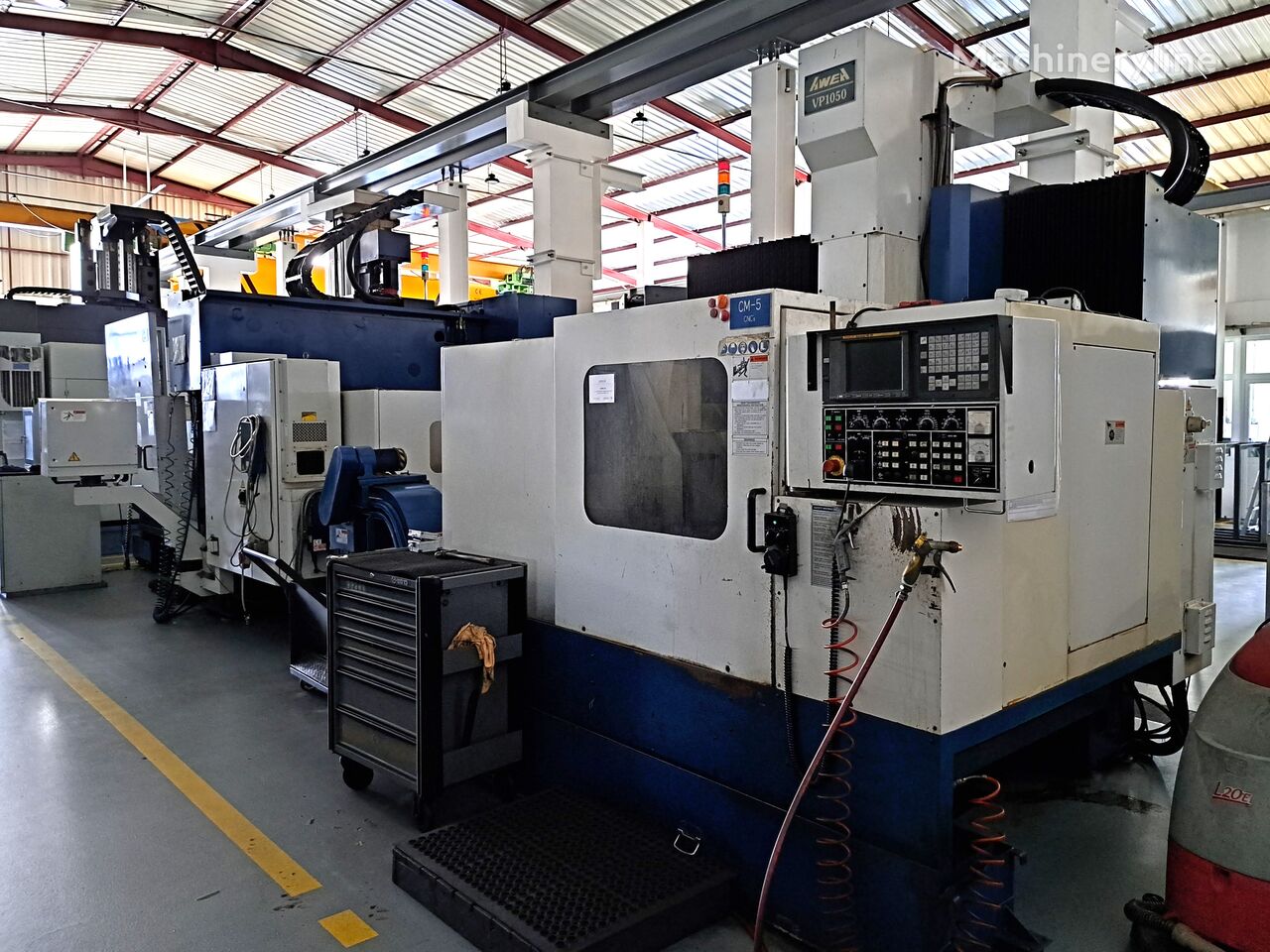

The AWEA VP-1050 is a used vertical machining center — sometimes referred to as a VMC — a machine tool designed for precision milling, drilling, boring, and tapping of metal and other rigid materials. AWEA is a Taiwanese machine tool manufacturer with a long-standing presence in the production of vertical and horizontal machining centers serving industries such as aerospace, automotive, mould-making, and general engineering.
Two units of this machine are available, both located in Portugal and dating from 1999. The control system fitted is a Heidenhain TNC 530, a conversational CNC well regarded for its ease of use in complex contouring work, and the machine also references a Fanuc O-M CNC type in the seller's data. The spindle runs to a maximum speed of 6,000 rpm and accepts BT40 taper tooling, a widely used standard in mid-range vertical machining centers. Spindle power is rated at 15 kW, with an overall electrical demand of 40 kVA.
The work envelope is defined by an X-axis stroke of 1,050 mm, a Y-axis stroke of 600 mm, and a Z-axis travel of 505 mm. The table measures 1,300 × 600 mm, offering generous workholding area for medium to large components. Machine weight is 7,500 kg, reflecting a robust, heavily constructed base suited to demanding cutting conditions.
Tool changing is handled by an automatic tool changer with a capacity of 21 tools, allowing extended unmanned machining cycles without manual intervention. At 7,500 kg and with a 15 kW spindle, this is a substantial mid-range vertical machining center well suited to production and jobbing environments.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
