2015 - BCD 50L Mobile Vessel Mixer Blender()
- Listing No
- 1183568
- Year
- 2015
- Manufacturer
- Model
- Condition
- Used
- Location
- France
- Price
- POA
- Description
-
prix: Contactez-nous pour le prix Volume utile: 50 litres Metal de la cuve: 316L Pression +: Atm Type d'agitation: Tri pale / par le dessus Moteur: ABB Puissance moteur: 0,25kW Diamètre couvercle: 450mm Sortie fond de cuve: Oui / 25mm Metal de la double enveloppe: 304L Volume double enveloppe: 10 litres Pression double enveloppe: + 6,5 Fluide double enveloppe: Gas Groupe 2 Design température: 0-150°C poids net à vide: 438 / 505 kg marque: BCD Variation vitesse agitation Event Cuve mobile Double enveloppe Cuve de mélange BCD de 50 litres avec régulation de température Huber (de 0 à 65°C) Avec agitation relevage du couvercle éclairage cuve 4 évents. 1 boule de CIP Toute la documentation est en Anglais (dont la FAT) 1 cuve de leurs 1 système de régulation de température Huber sont disponibles
About this machine

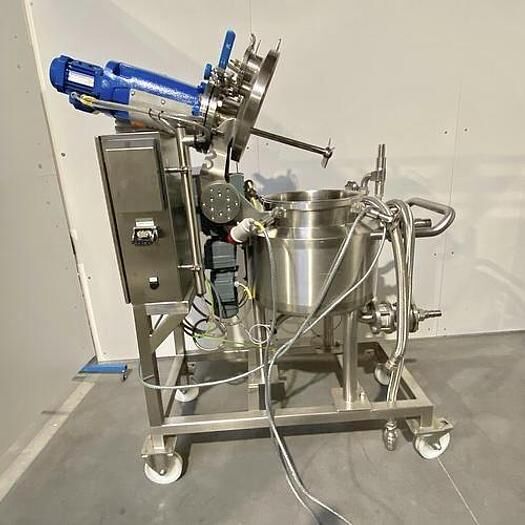

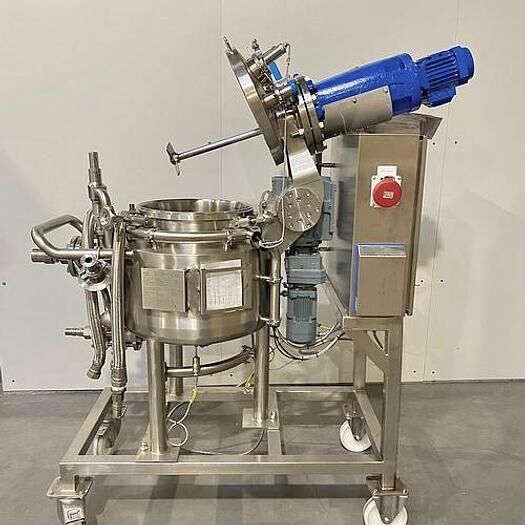

This BCD 50L Mobile Vessel Mixer Blender is a mobile blender and mixer — sometimes referred to as a mixing vessel — designed for blending, agitating, and temperature-controlling liquid or semi-liquid products in laboratory, pilot-plant, and light industrial applications. BCD is a manufacturer specialising in stainless-steel process vessels and mixing equipment for the pharmaceutical, cosmetic, and food industries. This example was built in 2015 and is offered in used condition from a seller based in France.

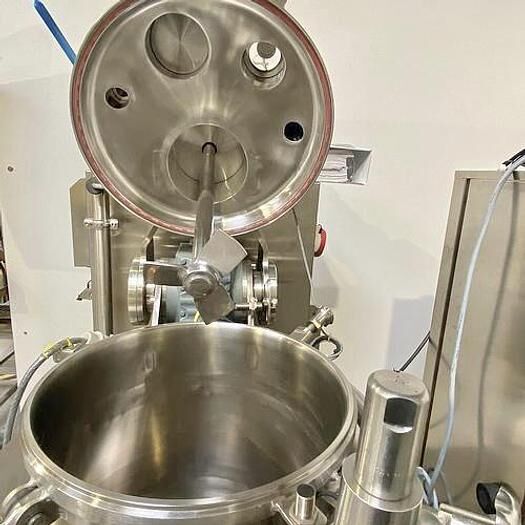

The vessel has a working capacity of 50 litres and is constructed from 316L stainless steel, a grade chosen for its superior corrosion resistance in process applications. The lid diameter measures 450 mm and is fitted with a lid-lifting mechanism, making access to the vessel straightforward. Internal illumination is also provided. Agitation is delivered from above by a three-blade impeller driven by an ABB motor rated at 0.25 kW, with variable agitation speed available. The base of the vessel includes a 25 mm bottom outlet. Four vents and a CIP (clean-in-place) spray ball are fitted, supporting hygienic cleaning without full disassembly.

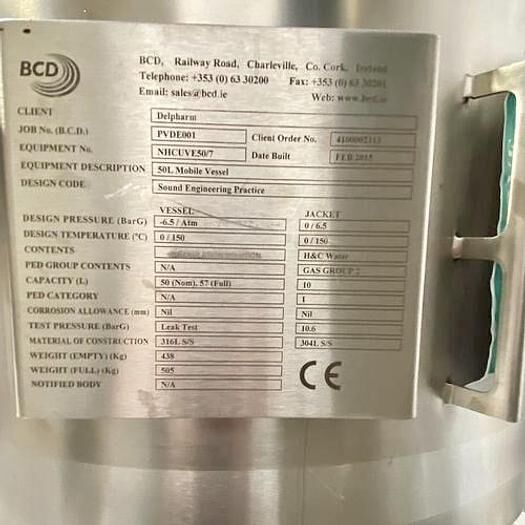

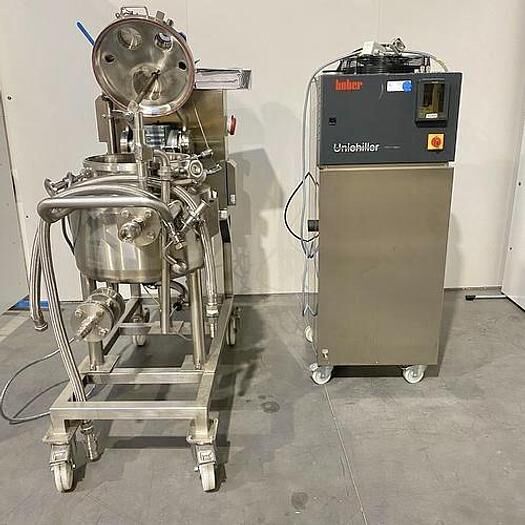

The vessel incorporates a double jacket for temperature control, fabricated from 304L stainless steel. The jacket has a volume of 10 litres, a maximum positive pressure of 6.5 bar, and carries Group 2 gas as the heat-transfer fluid. The design temperature range spans 0 to 150 °C. A Huber temperature regulation system is included with this listing, providing active temperature control between 0 and 65 °C. The vessel itself operates at atmospheric pressure on the process side.
The unit is mobile, allowing it to be repositioned within a facility as required. Net empty weight is stated at 438 kg, or 505 kg in a configured state. All documentation, including the Factory Acceptance Test (FAT) record, is available in English. One vessel and one Huber temperature regulation system are available as a complete set.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
