2016 - BCD (IE) Inline Mixer Skid Mixer Blender()
- Listing No
- 1178675
- Year
- 2016
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: Inline Mixer Skid No: TPPSP002 Working pressure jacket: 4 Bar Material: Stainless steel 1.4404 (316L) Volume: 150 Ltr Motor: 0,37 kW 220-240 / 380-400 Volt Rotor: 150 mm Capacity: 150 ltr Vessel sizes: dia. 550x680 mm Top connections: dia. 20 mm, dia. 8 mm Outlet: dia. 32 mm Max. temperature: 0/110 degr. C Floorspace: 1,4x3,2 M Total height: 2,2 M With movable boiler: BCD (IE); type: 30L Oil Phase Mixing merk: BCD (IE) General Pressure Vacuum possible jacket Main Features Specified Features - Stirring vessel Closed stirring vessel Dished bottom Dished top side With cover With jacket With turbo stirrer Information Mounted on frame Mounted on wheels With switchgear CE Extra Specifications
About this machine

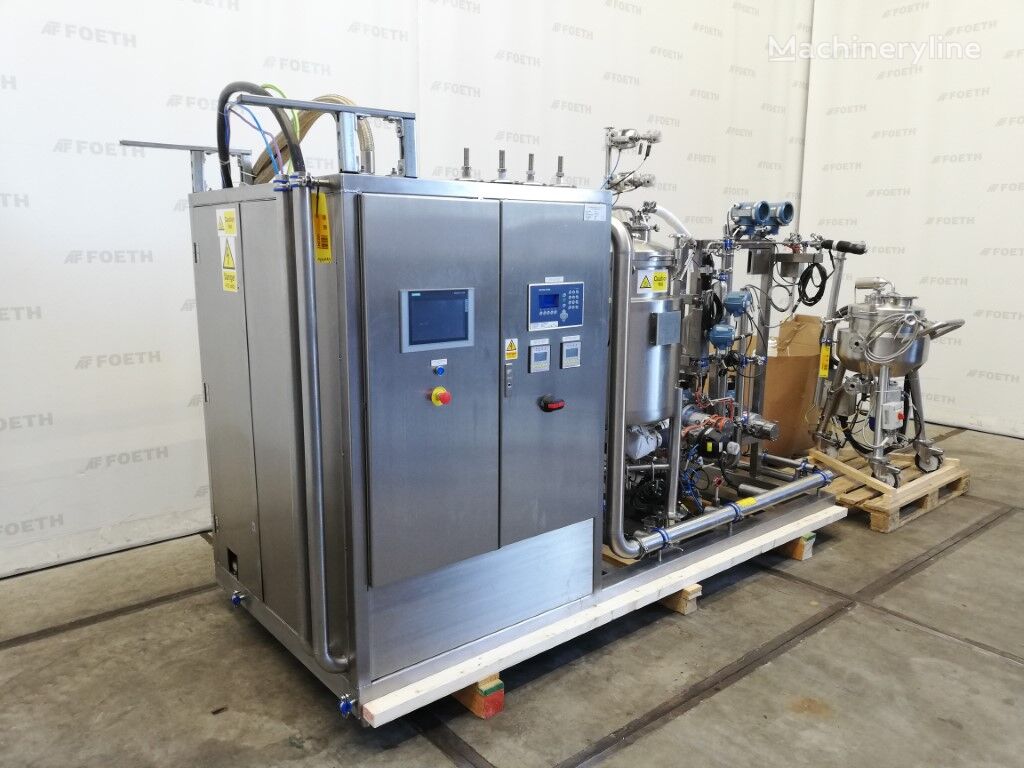

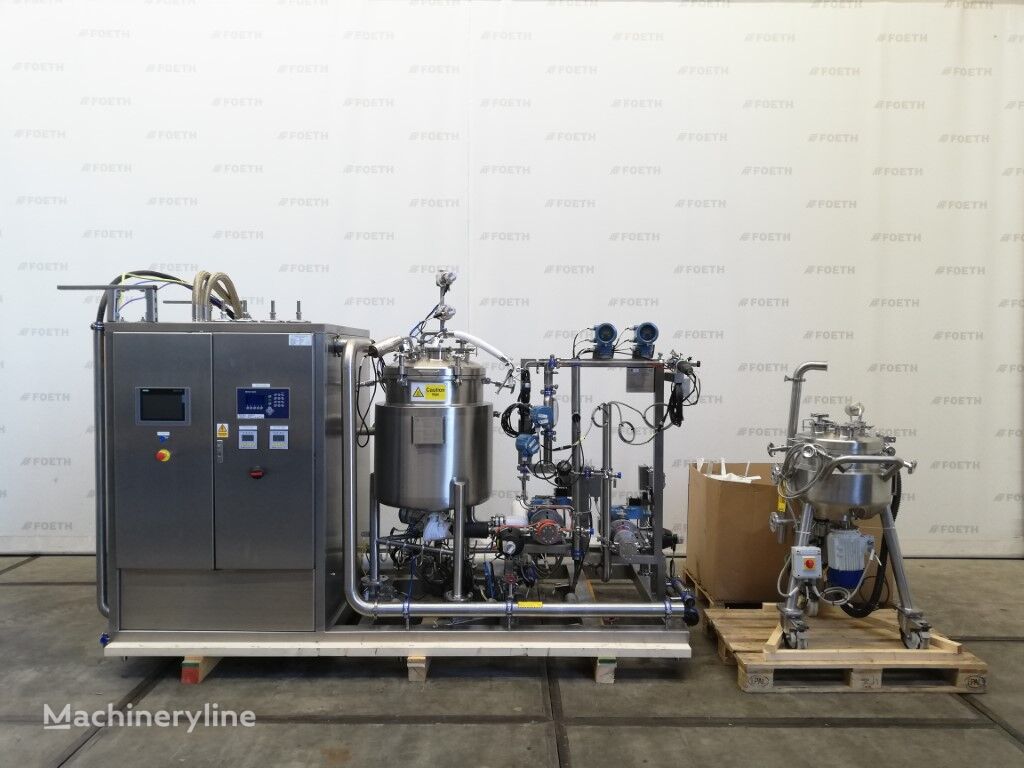

This BCD (IE) Inline Mixer Skid is a used mixer and blender — sometimes referred to as a process mixer or blending vessel — designed for the mixing, blending, and homogenising of liquid or semi-liquid products in industrial processing applications. Built in 2016 and currently located in Barneveld, Netherlands, the unit is a self-contained inline mixer skid configured for closed, pressure-capable mixing operations.

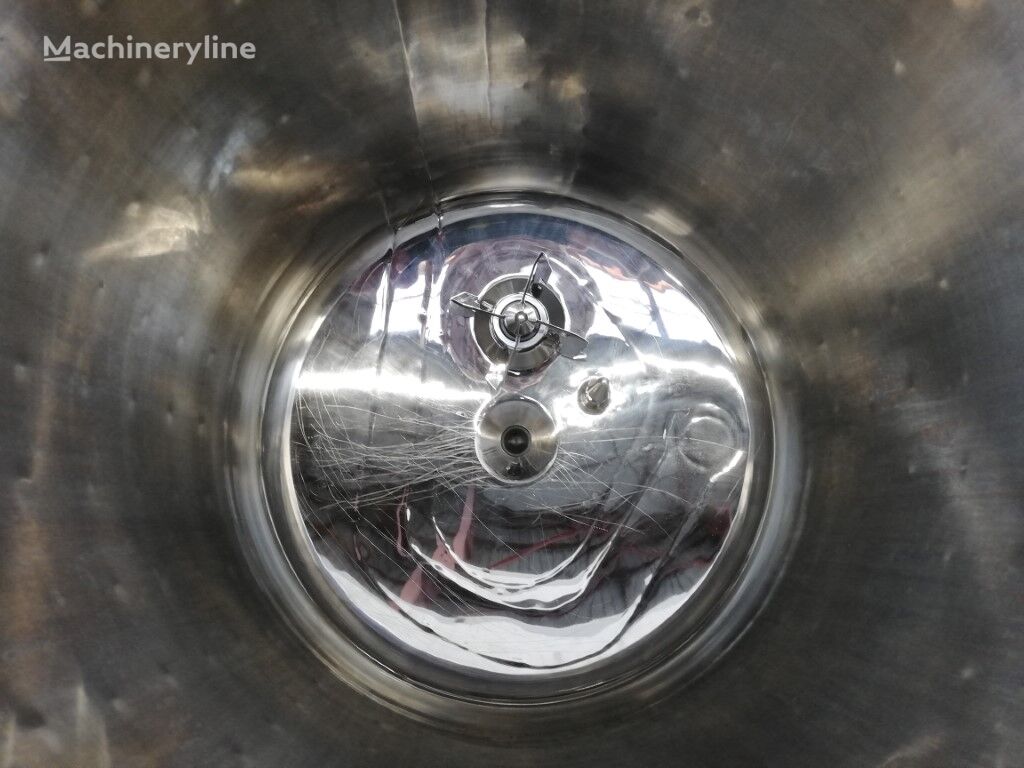

The vessel is fabricated from stainless steel grade L), offering excellent corrosion resistance for demanding process environments. It has a capacity of 150 litres, with vessel dimensions of 550 mm diameter by 680 mm height, and features a dished bottom and dished top side with a cover. The vessel is fitted with a jacket rated to a working pressure of 4 bar, with vacuum also possible on the jacket, allowing precise temperature control across a working range of 0 to 110 °C. Top connections are provided at 20 mm and 8 mm diameters, and the outlet is 32 mm in diameter.

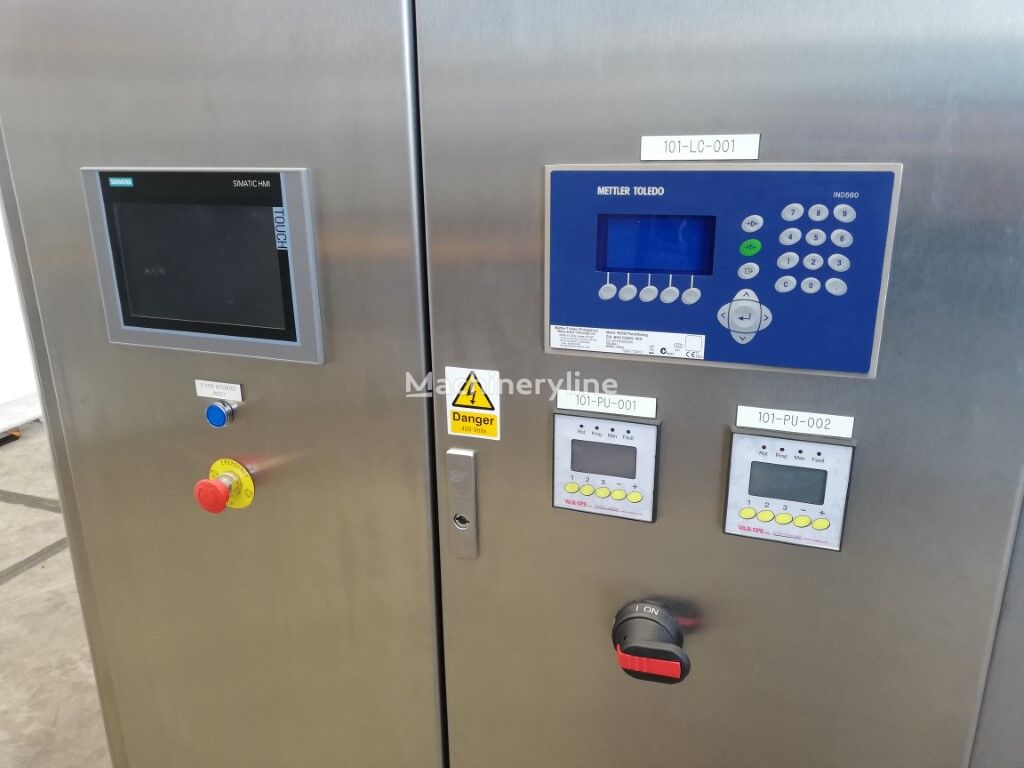

Mixing is driven by a turbo stirrer powered by a 0.37 kW motor rated for 220–240 / 380–400 V supply, with a rotor diameter of 150 mm. The entire assembly is mounted on a wheeled frame, making it mobile within a facility, and is equipped with its own switchgear. The overall footprint of the skid is 1.4 × 3.2 metres with a total height of 2.2 metres.

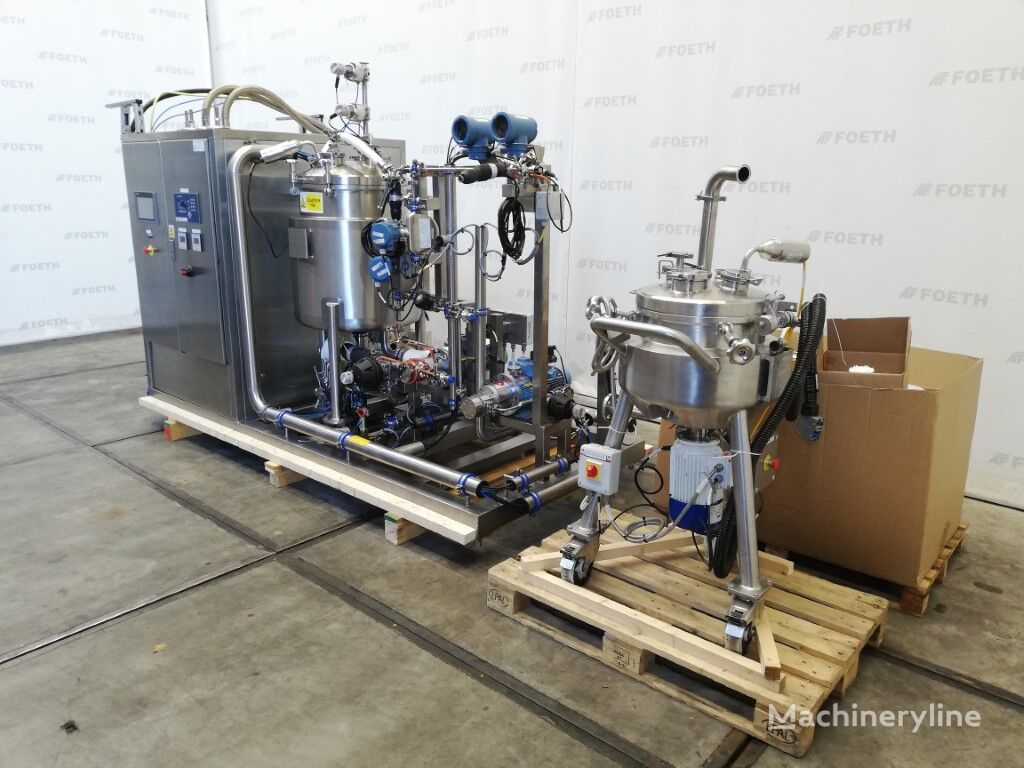

The system includes a movable boiler unit: a BCD (IE) 30-litre Oil Phase Mixing vessel, which accompanies the main skid and extends the processing capability of the installation. The unit carries CE marking and has been assigned the internal reference number TPPSP002.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
