About this machine

This Becomix mixer and blender — sometimes referred to as a mixing vessel or blending tank — is a closed, jacketed stirring vessel designed for the processing and blending of liquid or semi-liquid products under controlled temperature and pressure conditions. Becomix, operating in partnership with A. Berents GmbH & Co KG, specialises in the manufacture of mixing and processing equipment for industries such as cosmetics, pharmaceuticals, and food production, where precise blending in hygienic, pressure-rated vessels is essential.

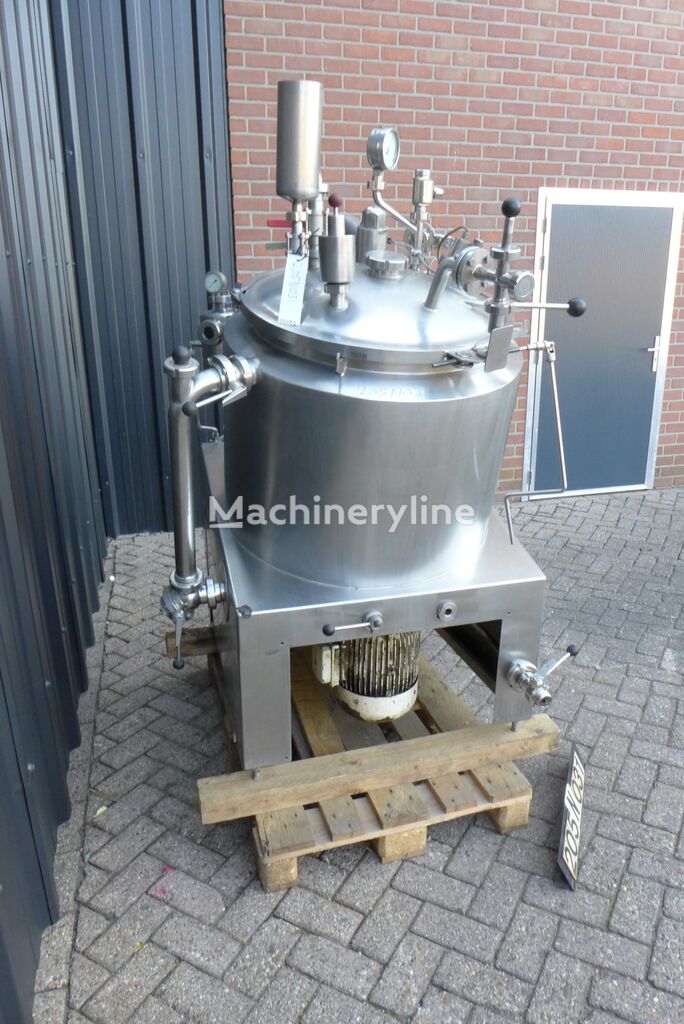

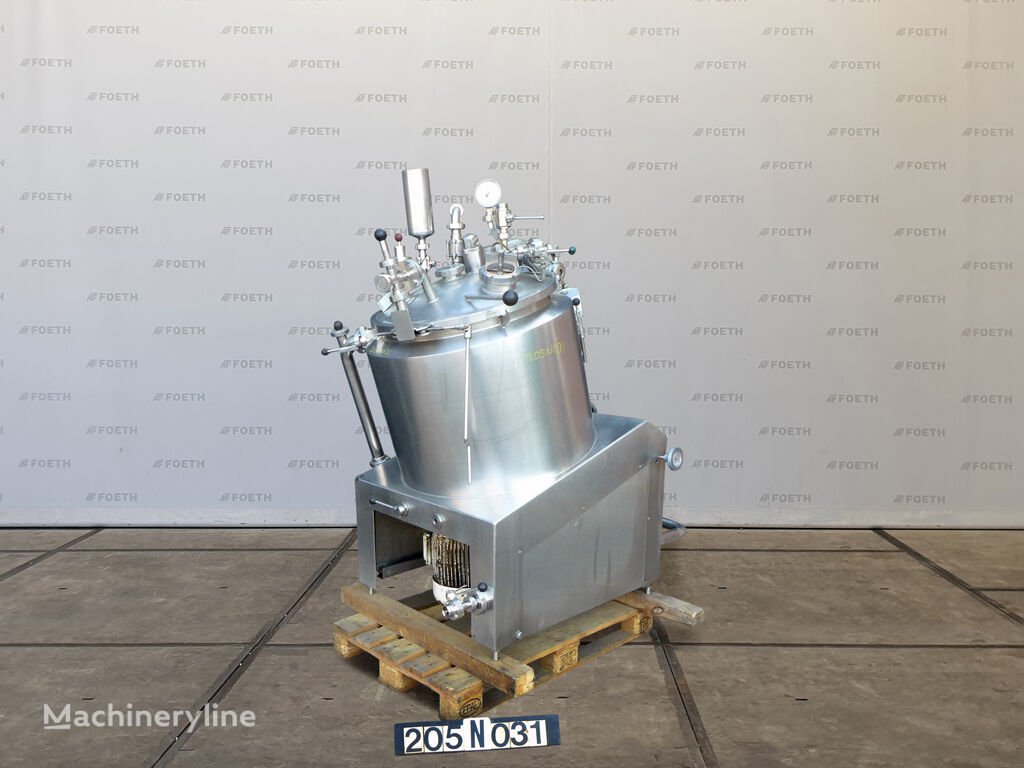

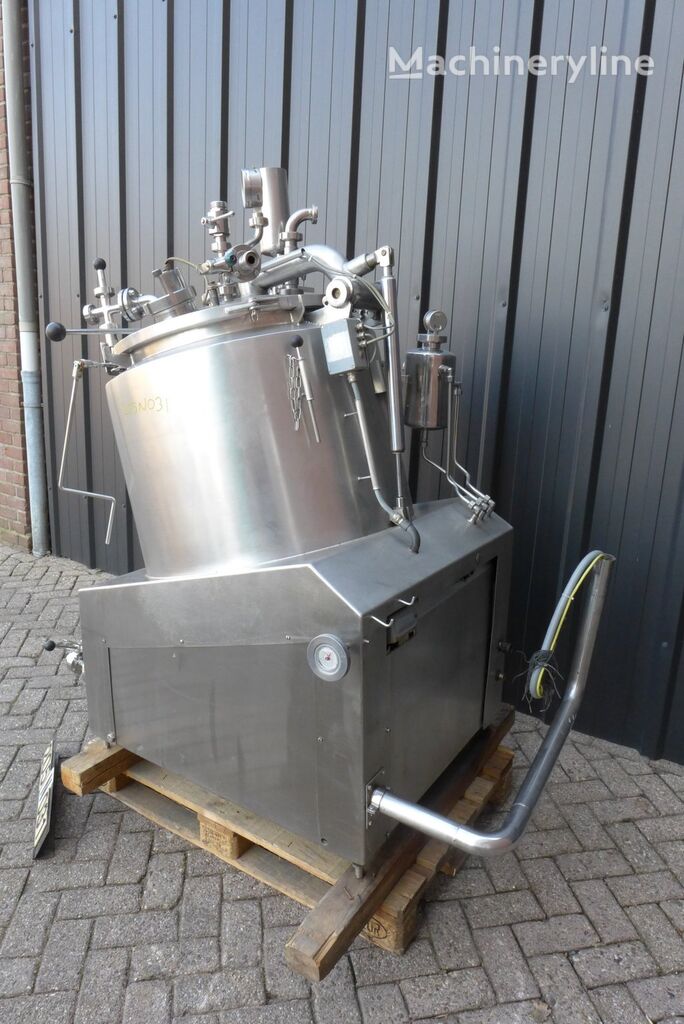

This particular unit is designated as an Inclinomat type, serial number , and dates from 1987. It is constructed entirely in stainless steel, offering a main vessel volume of 184 litres with a vessel diameter of 650 mm and a depth of 600 mm. The vessel features a sloped bottom and a dished top with a cover, which aids in product drainage and containment. A heated and cooled jacket surrounds the vessel, holding 14 litres of heat transfer medium, and is rated to a working pressure of 4 bar. The main vessel itself operates at a working pressure of 0.5 bar, with vacuum operation also possible. Maximum temperatures reach 111 °C or 152 °C depending on the operating configuration.

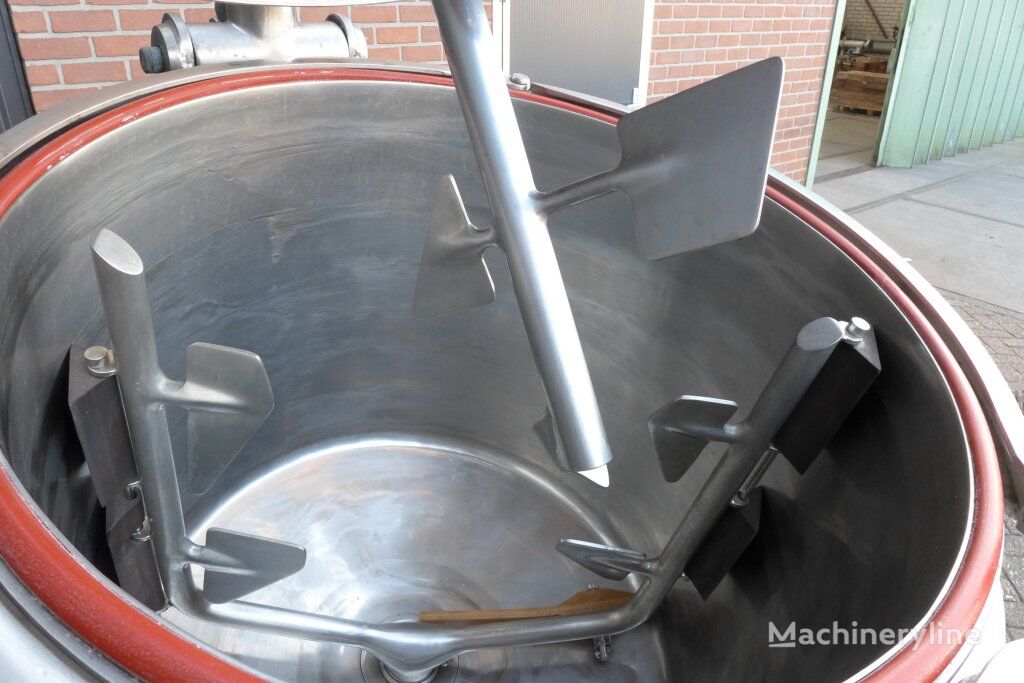

Mixing is carried out by an anchor stirrer fitted with scrapers, which ensures thorough contact with the vessel walls and prevents product build-up. The mixing shaft speed is variable, giving flexibility across different product viscosities and process requirements. The drive motor is rated at 4.7/5.7 kW and runs on 380 volts. The vessel is also equipped with a homogeniser, which enables finer emulsification or dispersion tasks in addition to the primary anchor mixing action.

Top connections include ports of 20 mm, 50 mm, and 60 mm diameter, accommodating various inlet, sensor, or processing line connections. The bottom outlet is 50 mm in diameter. The machine has a floor footprint of 1.4 by 1.2 metres and stands 2.3 metres in total height. This unit is located in Barneveld, Netherlands, and is offered in used condition.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
