Brabender FW40 0 PLUS-50 Mixer Blender()
- Listing No
- 1181098
- Year
- Manufacturer
- Brabender
- Model
- FW40 0 PLUS-50
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld CE: check Material: Stainless steel Inlet diameter: 150 mm Metering screw: check Screw diameter: 50 mm Screw length: 450 mm With hopper: check Capacity: ± 44,55 Ltr Hopper sizes: trapezium: a: 400 mm, b: 260 mm, h: 300 mm; H: 450 mm Inlet: ø 150 mm Outlet: ø 50 mm With motor: 0,37 kW, 380 volt, 1380 rpm Screw speed: 96 rpm Type: FW40/0 plus-50 & DDW-MD2-DDSR20-5 No: 1201737.1209 1201737.1223 With switchgear: check as is (E-scheme available) Extra Specifications: With 3x Brabender, dosing screw, type DDW-MD2-DDSR20-5; motor: 0,18kW; feed rate 105-400 g/h and 240-680 g/h; outlet: ø 55 mm General Main Features Specified Features - Metering screw Metering screws Information Sitecon vibro hopper filter Busch blower 3 kW 500 volt
About this machine

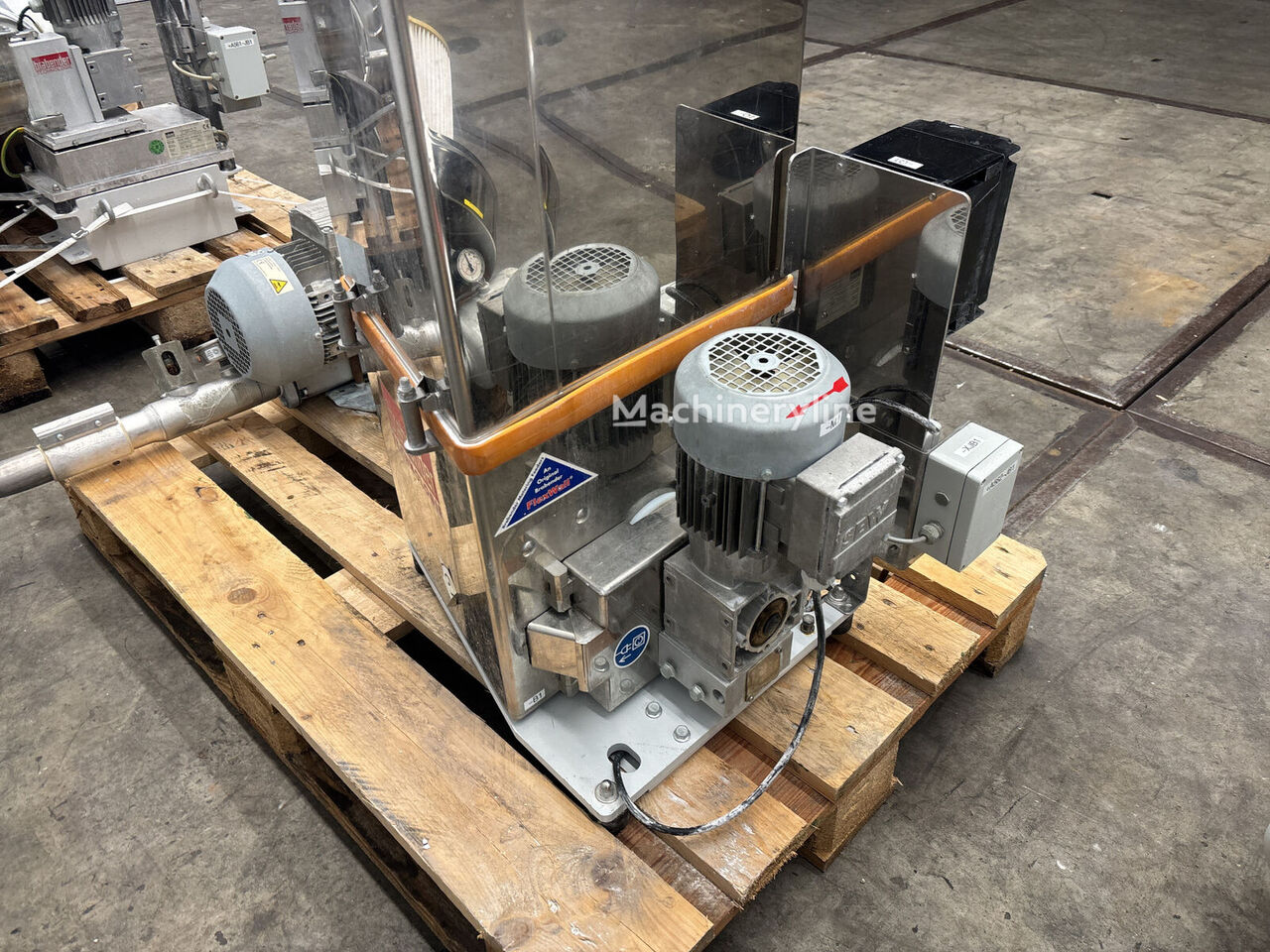

This Brabender FW40 0 PLUS-50 is a used mixer and blender — sometimes referred to as a dosing and blending system — designed to meter, mix, and convey bulk materials in a controlled, continuous process. Brabender is a well-established manufacturer of precision feeding, dosing, and rheological testing equipment, supplying industries including food processing, plastics, chemicals, and pharmaceuticals.

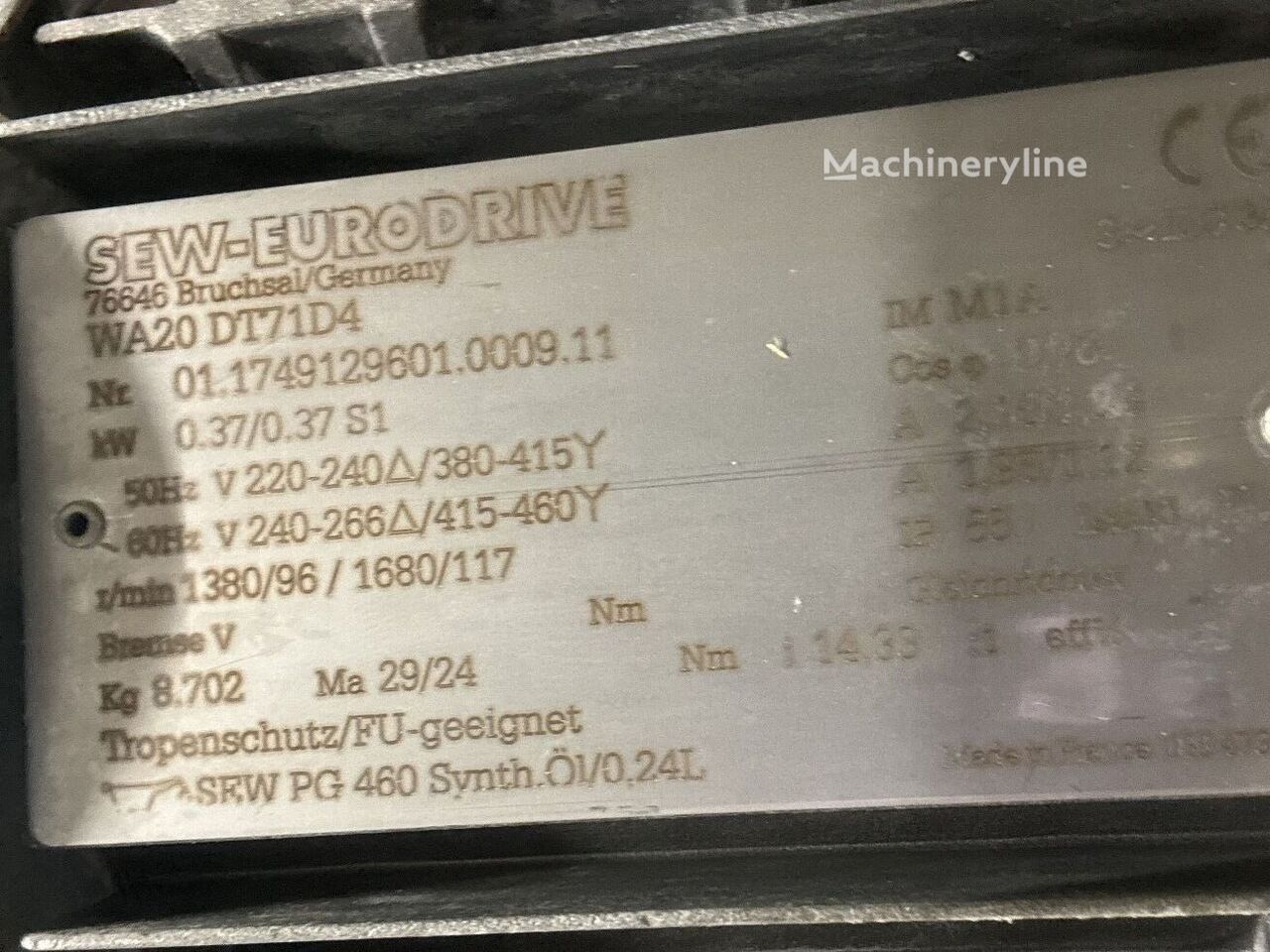

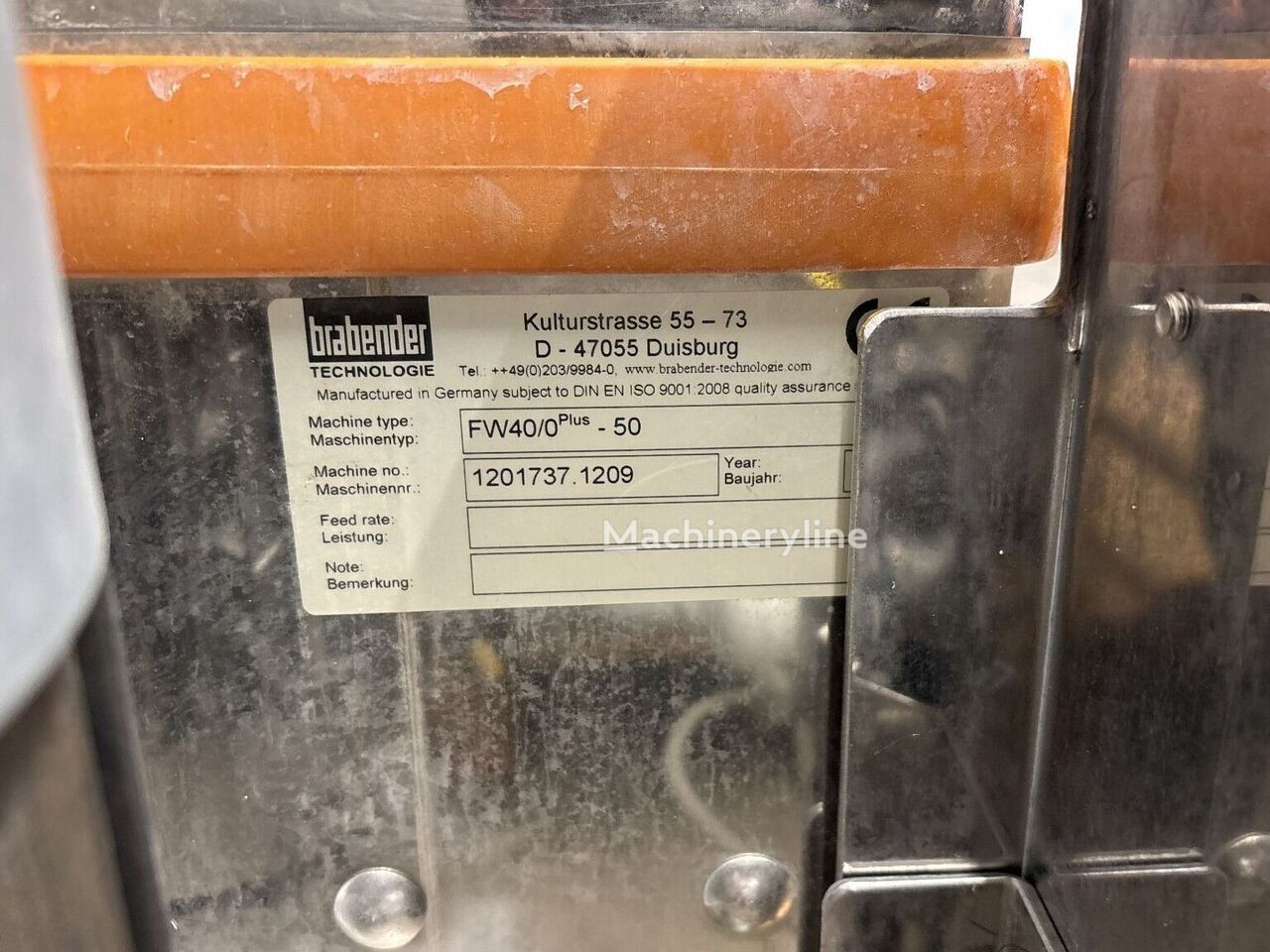

The machine is constructed in stainless steel and carries CE marking. It is located in Barneveld, Netherlands. The central unit is built around a metering screw with a diameter of 50 mm and a length of 450 mm, running at a screw speed of 96 rpm. The inlet diameter is 150 mm and the outlet diameter is 50 mm. The main drive motor delivers 0.37 kW at 380 volt and operates at 1,380 rpm. A hopper is fitted, with trapezoidal dimensions of 400 mm (top width, a), 260 mm (bottom width, b), 300 mm (side height, h), and an overall height of 450 mm, giving a total capacity of approximately 44.55 litres. The machine is supplied with its switchgear, described as in as-is condition, and an electrical schematic is available. The full type designation recorded on the unit is FW40/0 plus-50 & DDW-MD2-DDSR20-5, with serial numbers and .
The listing includes three additional Brabender dosing screws, each of type DDW-MD2-DDSR20-5, each powered by a 0.18 kW motor. These dosing screws cover two feed rate ranges: 105–400 g/h and 240–680 g/h, and each has an outlet diameter of 55 mm. Also included is a Sitecon vibro hopper filter and a Busch blower rated at 3 kW, 500 volt, completing what is offered as a multi-component gravimetric or volumetric dosing and blending assembly.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
