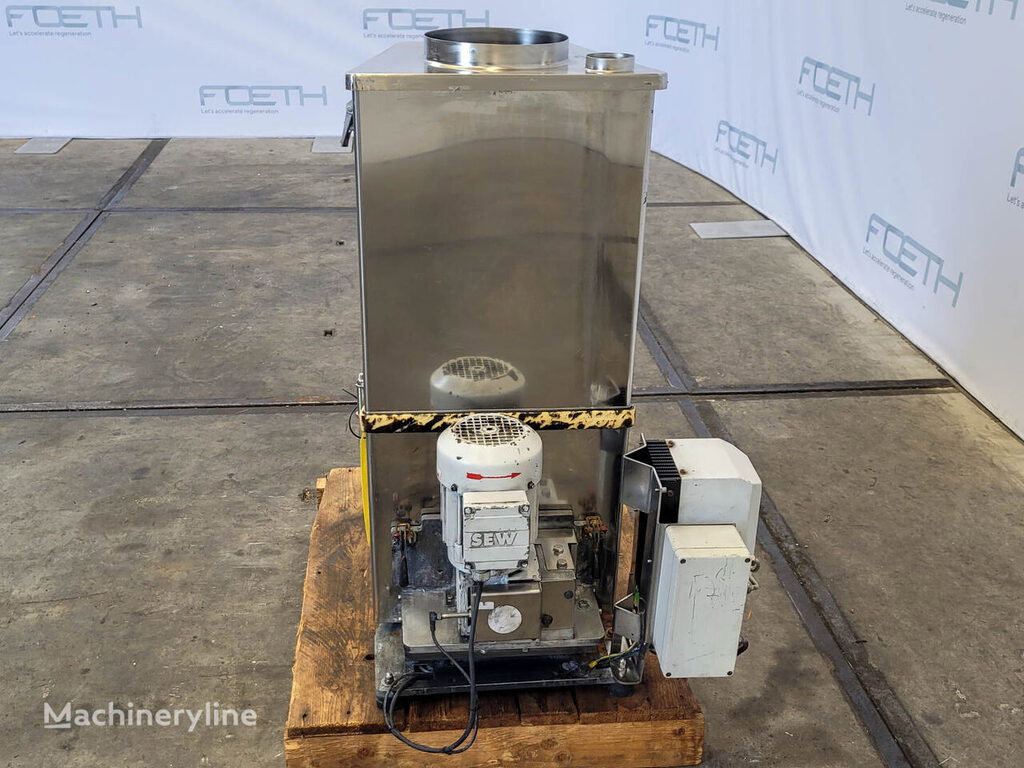

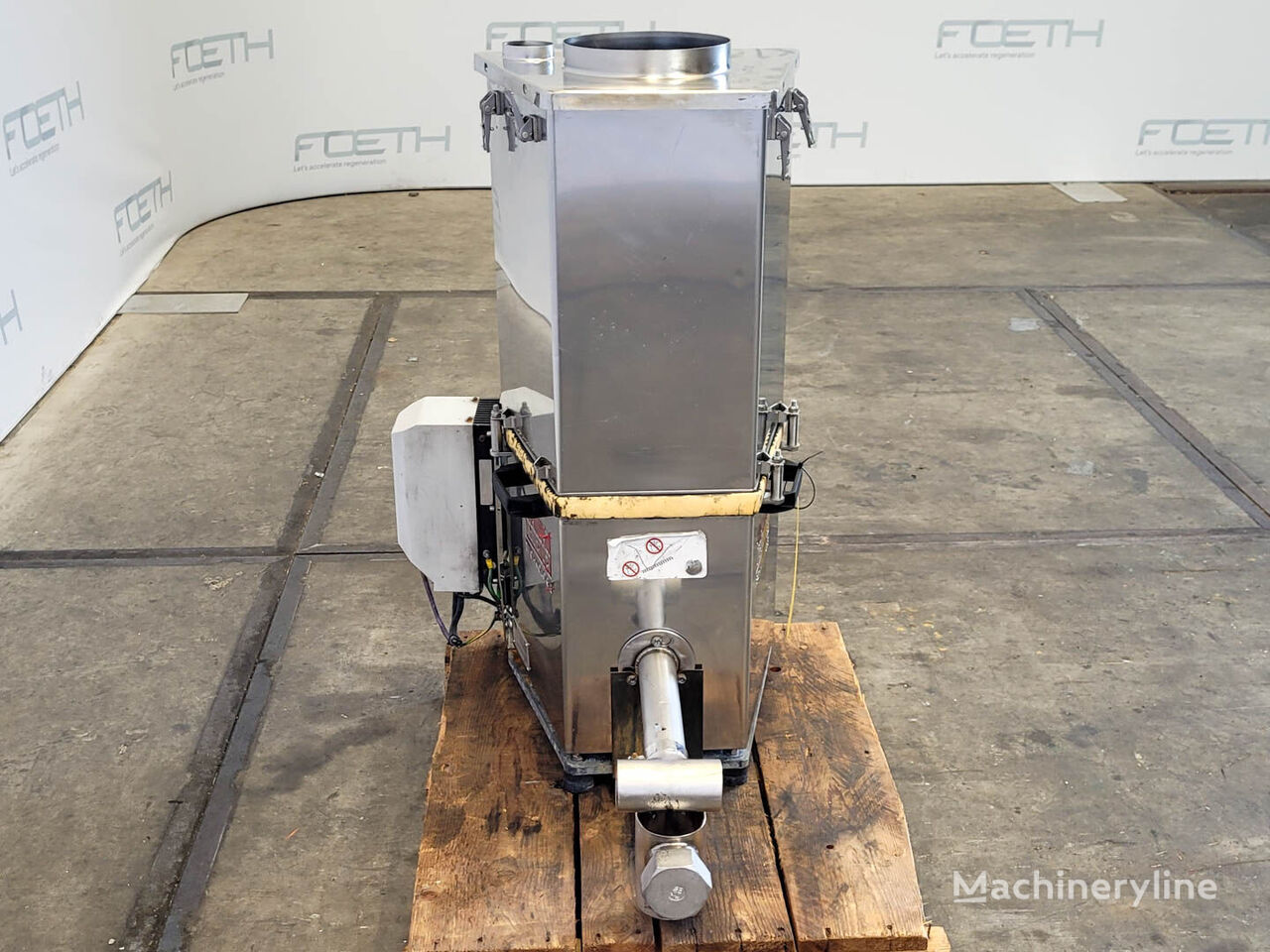

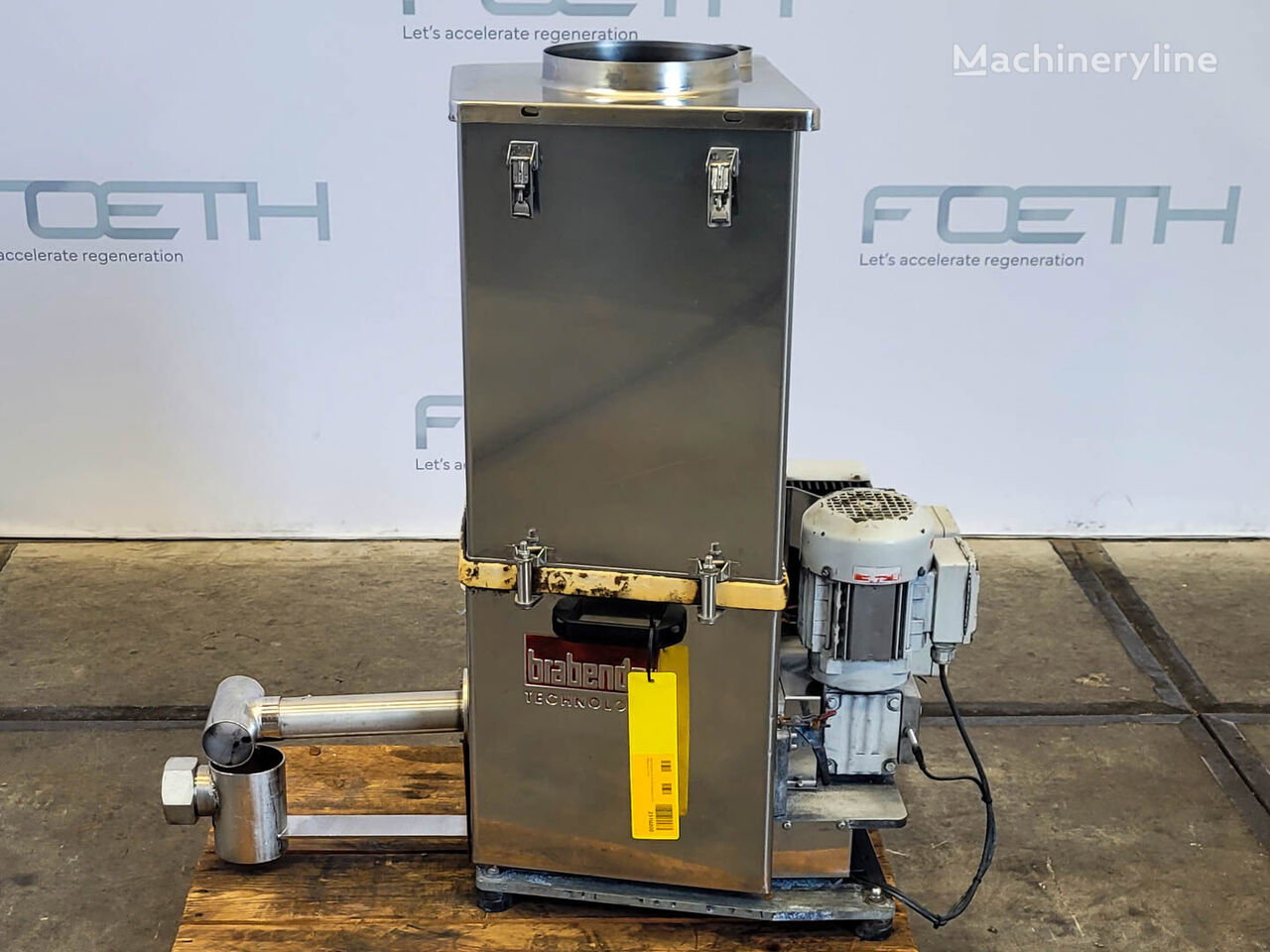

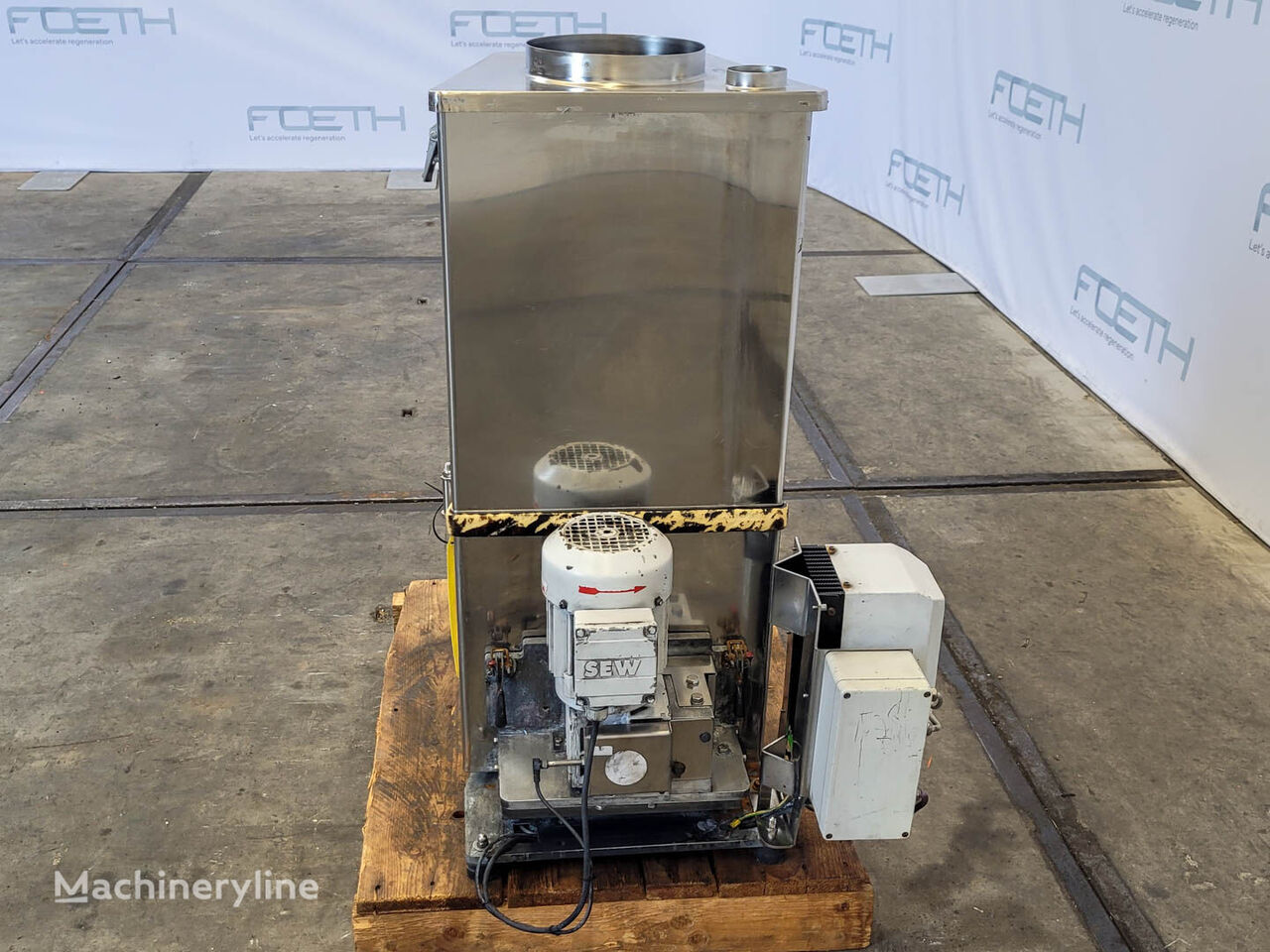

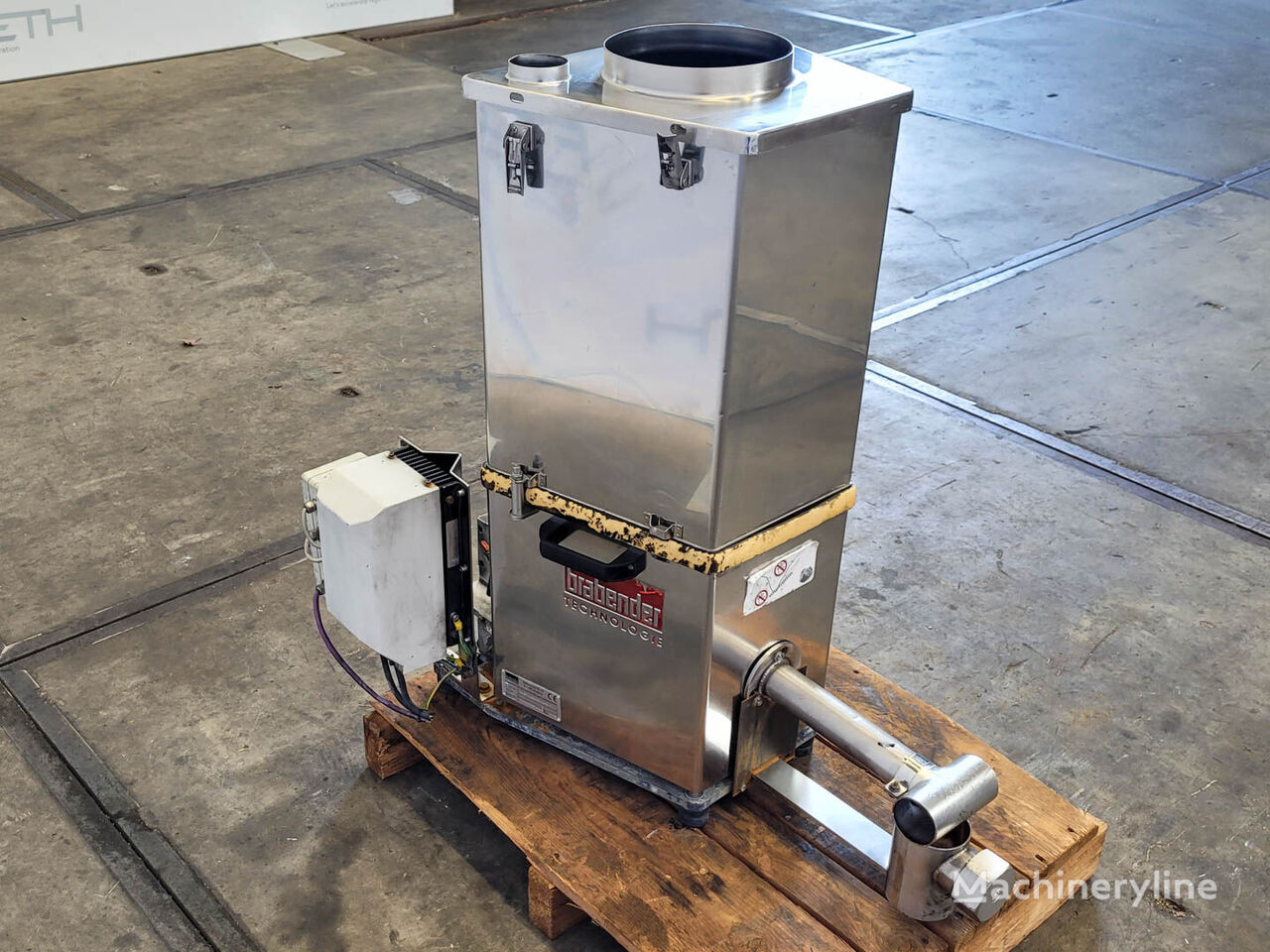

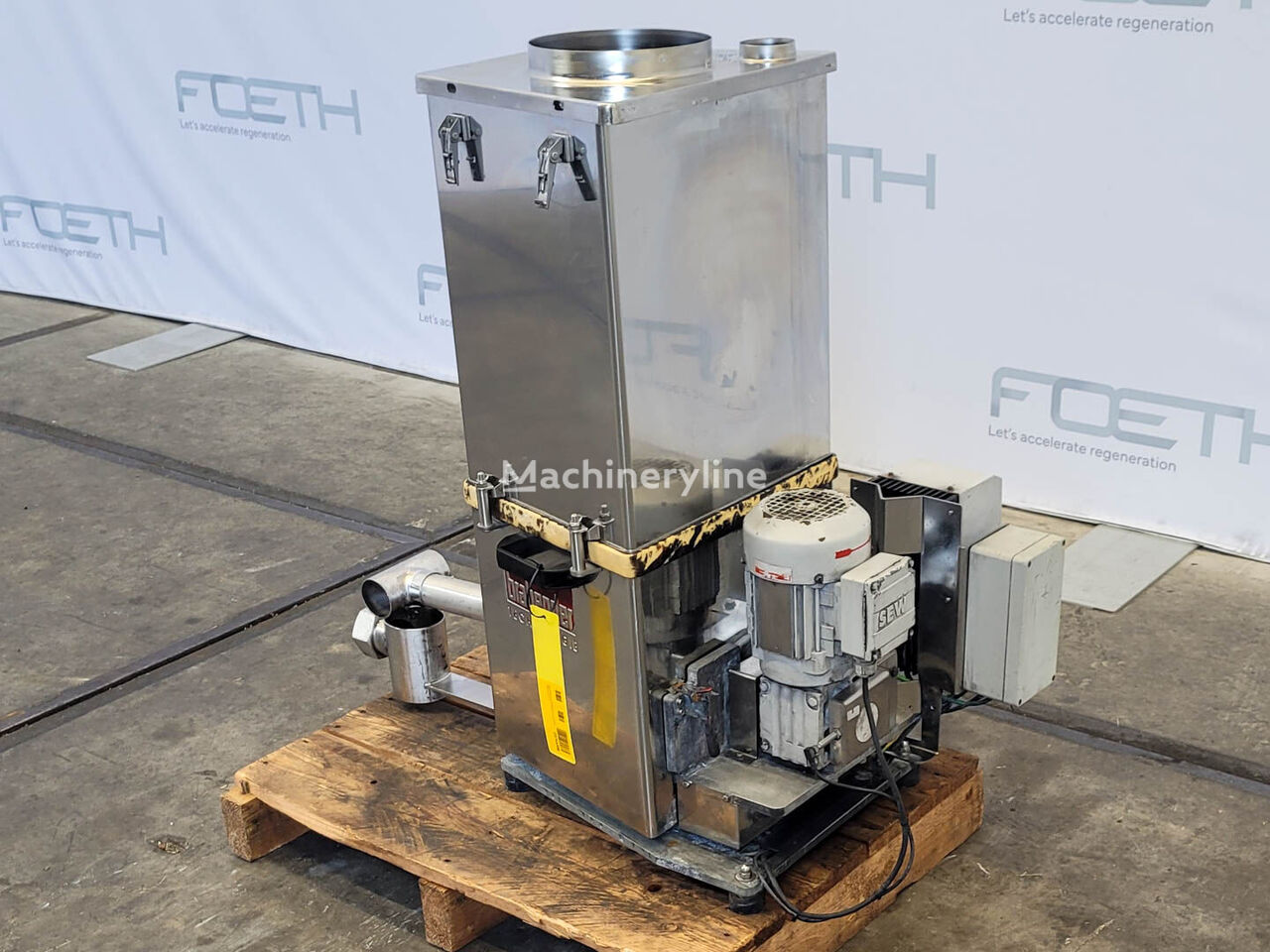

2005 - Brabender KB – Metering screw Mixer Blender()
- Listing No
- 1180592
- Year
- 2005
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: AUSTAUSCHEINHEIT No: show contacts Material: Stainless steel Inlet diameter: 200 mm Metering screw: check Screw diameter: 40 mm Pitch: 25 mm Shaft diameter: 8 mm Screw length: 500 mm With hopper: check Capacity: ± 50 Ltr Hopper sizes: a: 235 mm, b: 323, h: 385, H: 470 mm Inlet: dia. 200 mm Outlet: 55 mm (2x) With motor: 0,37 kW 220-240/380-415 Volt Screw speed: max. 168 rpm Hopper with flexible wall: check Floorspace: 0,6x1 m CE: check Total height: 0,95 m merk: Brabender General Main Features Specified Features - Metering screw Metering screws Information
About this machine
This Brabender KB is a metering screw mixer and blender — sometimes referred to as a dosing screw feeder — designed for the controlled, continuous feeding and blending of bulk materials. Brabender is a well-established German manufacturer known for precision laboratory and process equipment used in the plastics, food, and chemical industries, and this unit reflects that focus on controlled material handling. Listed as an Austauscheinheit (exchange or replacement unit), it is built from stainless steel throughout, making it suitable for applications where hygiene or corrosion resistance is a priority.
The machine is built around a metering screw with a diameter of 40 mm, a pitch of 25 mm, a shaft diameter of 8 mm, and a usable screw length of 500 mm. The inlet diameter is 200 mm and there are two outlets, each measuring 55 mm. The drive is provided by a 0.37 kW motor rated for 220–240 / 380–415 volt operation, delivering a maximum screw speed of 168 rpm.
The unit is equipped with a hopper rated at approximately 50 litres capacity. The hopper dimensions are: width (a) 235 mm, depth (b) 323 mm, body height (h) 385 mm, and total hopper height (H) 470 mm. The hopper features a flexible wall, which helps prevent bridging and promotes consistent material flow. The overall footprint of the machine is 0.6 × 1.0 m, with a total installed height of 0.95 m, making it a compact unit suitable for integration into existing process lines.
The machine carries CE marking, was manufactured in 2005, is offered in used condition, and is located in Barneveld, Netherlands.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
